Fire Rated Stainless Steel EN12209 Mortise Door Lock CE Mortise Deadlock
Quick Details
1. Distance:72mm,Backset:55/60/65mm
2. Lock shell:zinc steel SECC,thickness:1.5mm
3. Dead bolt:SUS304(Durability: 50,000 test cycles),two lock
4. Front Plate:SUS304,Size:235*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm
5. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE certification level (EN12209):
3x910G3BC00
Fire resistance test (standard EN1634-1): 240 minutes (steel door),wooden door 120 minutes (wooden door)
Mortise Deadlock
Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.
The mortise deadbolt lock features only a deadbolt and no latch bolt, providing a deadbolt function operated by the profile cylinder. It is designed for use in storage rooms, utility shaft doors, and other areas where a straightforward locking mechanism is required. This euro profile cylinder mortice deadlock is available with either a large or small locking plate to suit your specific needs.
Features
CE Certified
Tested for 50,000 cycles, low maintenance, extended service life
Suitable for wooden and steel fire doors
Forend and strike plate available in round and square head styles
Compatible with euro profile cylinders
High-quality satin stainless steel finish, additional surface finish options available
Specifications:
| Size |
| Backset | 55/60/65mm |
Center distance
| 72mm |
| Major parts |
Forend
| SS304, Height: 235mm, Width: 20/24mm, Thickness: 3mm |
Latch
| SS304 |
Deadbolt
| SS304, 1 throw, Projection: 20mm |
| Latch Follower | SS304, Square hole: 8*8mm |
Thumb turn Follower | SS304, Square hole: 5*5/8*8mm |
| Locking plate | SS304, Thickness: 1.5mm |
| Case | SECC, Thickness: 1.5mm |
| Standard |
EN12209, EN1634-1, DIN18251
|
| Certification |
CE (Intertek) | 3 X 9 1 0 G - B 0 2 0 |
| CE (Warrington) | 3 X 8 1 0 G - H G 2 0 |
Fire test (EN1634-1) | Steel fire door: 240mins Timber fire door: 90mins (Intertek) |
Steel fire door: 240mins Timber fire door: 30/60/90/120mins (Warrington) |
Certification:

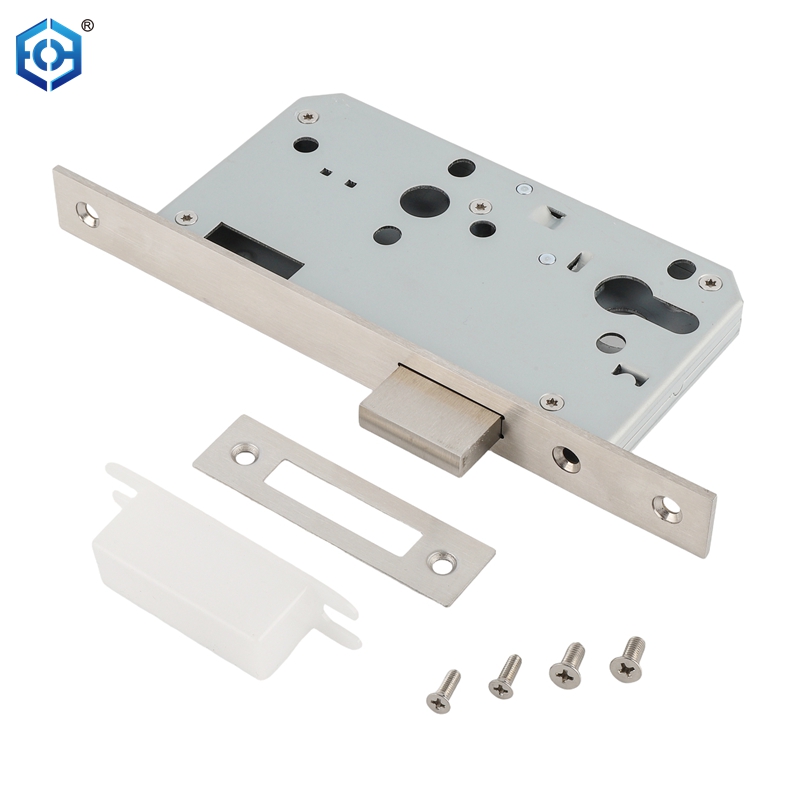

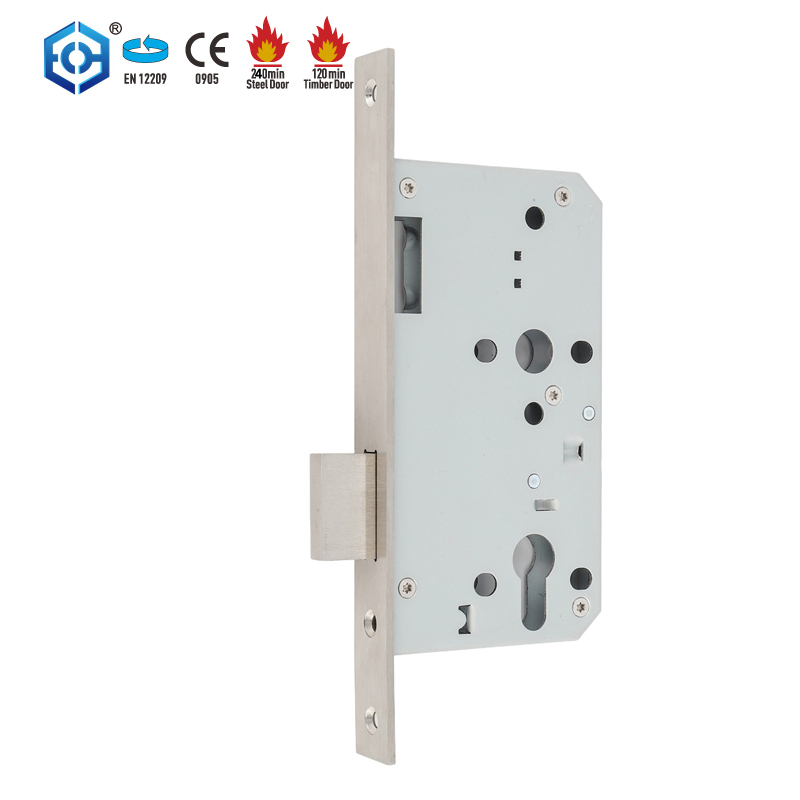

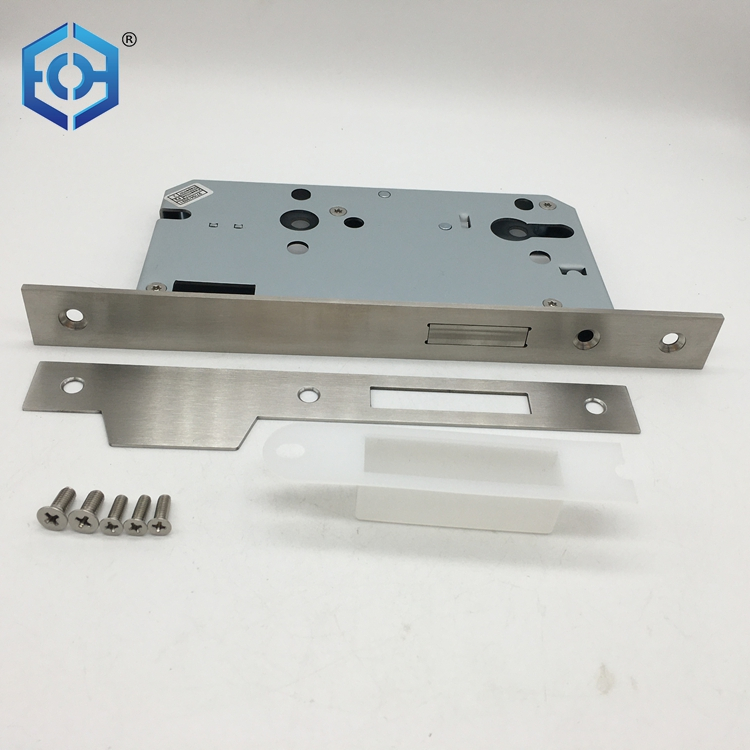

Product Picture:

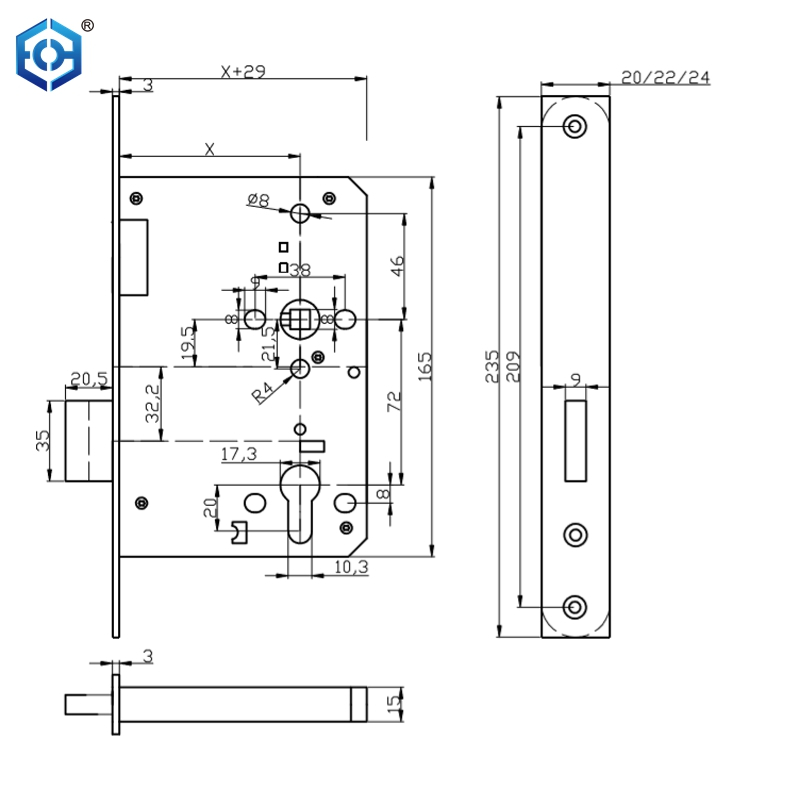

– Modular case across functions for rapid door prepping and installation
– 72mm centers, backset in 55/60/65mm
– 8mm follower with spindle gripping function
– Double throw deadbolt in solid stainless steel with 20mm projection
– ECH-5572ZD /ECH-J6072ZD/ECH-J6572ZD communicating mortise deadlock is suitable for sprung, and most un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version
– Compatible with bolt through furniture and escutcheons of 38mm centers

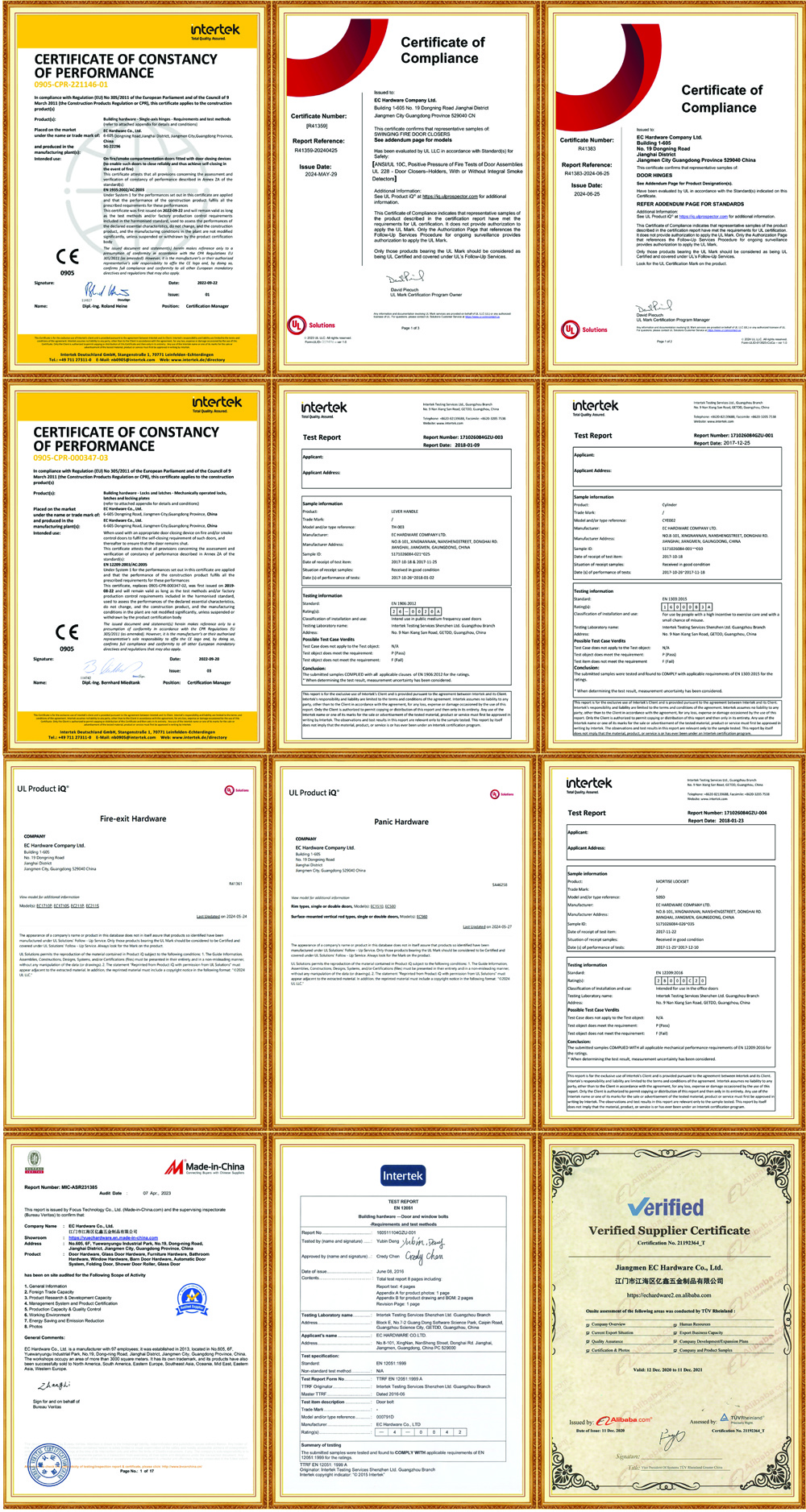

Certificate：
