EN12209 CE Fire Rated Commercial European Entry Mortise Door Lock
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: ECH
Model Number: MLE508
Square core:8x8mm
Center distance:72mm
Gate distance:55/60/65mm
Panel:Square
Thickness:3.0mm
Width:24mm
Skew tongue:stainless steel
Square Tongue:stainless steel
Panel material:stainless steel
Surface treatment:SS/AB/AC/SB/PB/PVD
Certificate：CE /EN12209
Usage: Door, Window
MOQ: 500 PCS
Delivery: 30 working days
Pacakge: White box, Soft foam plastic bag or to order
Packaging & Delivery Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications Fire Rated Mortise lock
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Welcome to ECH
Welcome a trial order (small quantity no problem)
If you want more style, please contact us at any time! Specifications:
| Type: | Fire Rated Mortise lock |
| Brand Name: | ECH |
| Place of Origin: | Jiangmen China (Mainland) |
| Model Number: | MLE507 |
| Material: | stainless steel or to order |
| Process: | assemble |
| Application: | Door |
| Finish & Size: | SSS/PSS 55/60/65X72MM |
| Standard export package: | White box, Soft foam plastic bag |
| Delivery : | 30 working days |

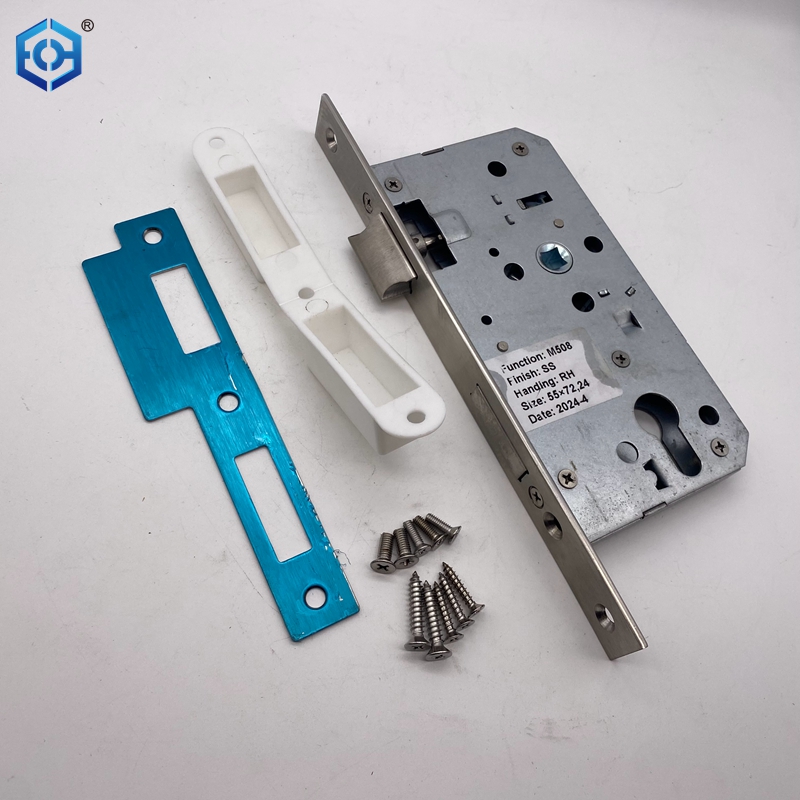

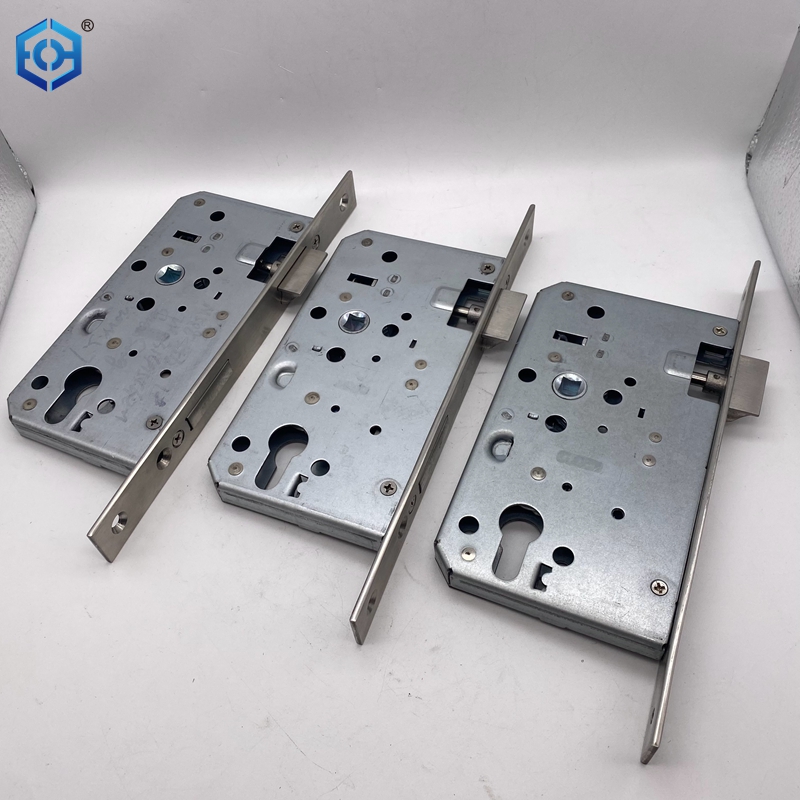

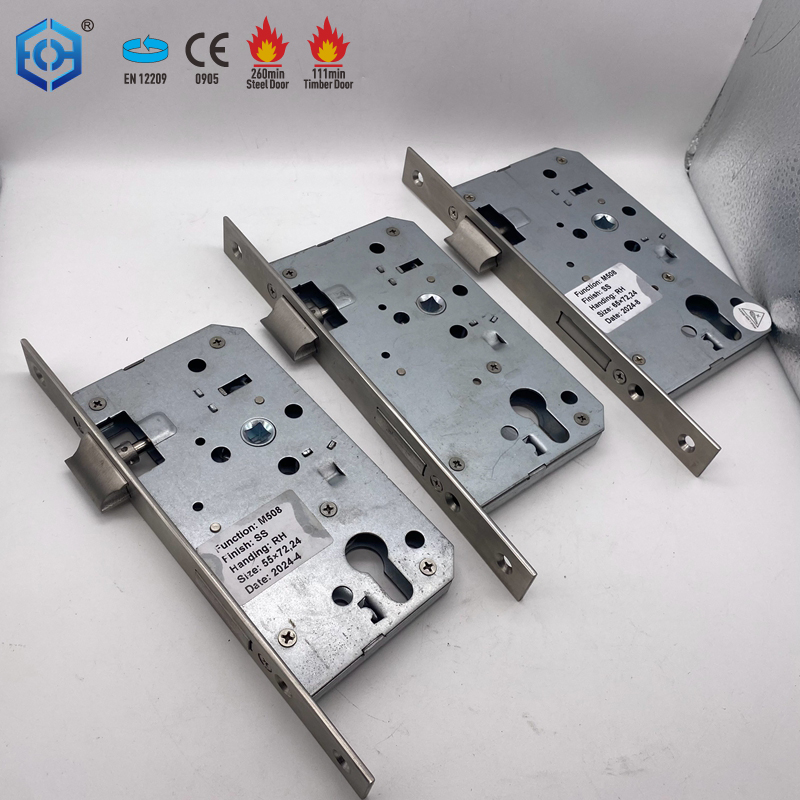

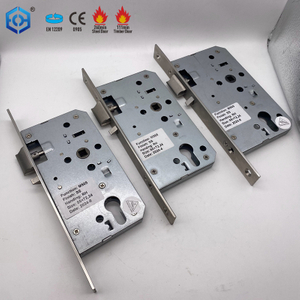

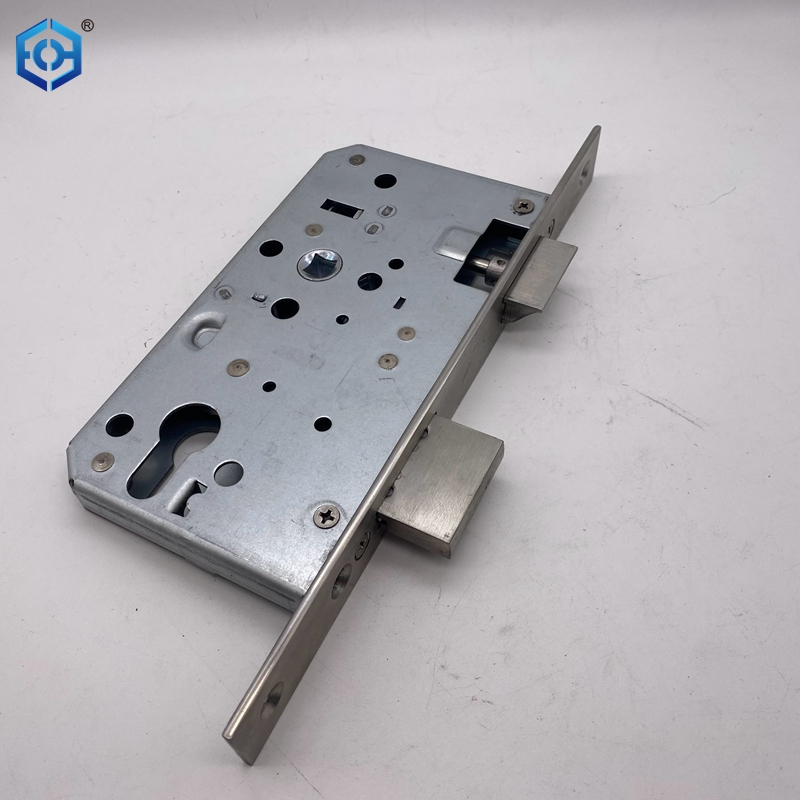

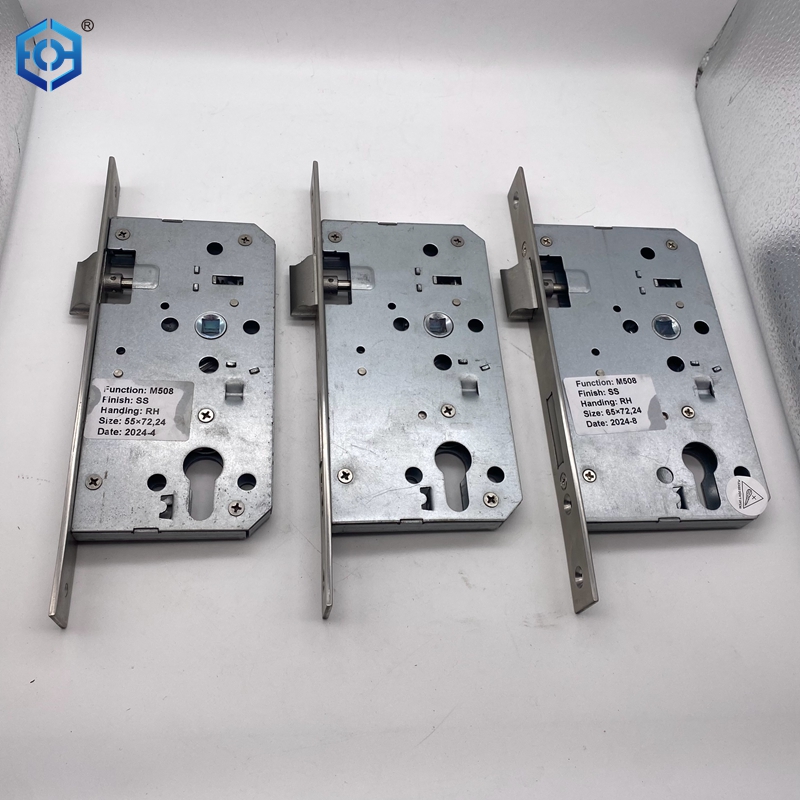

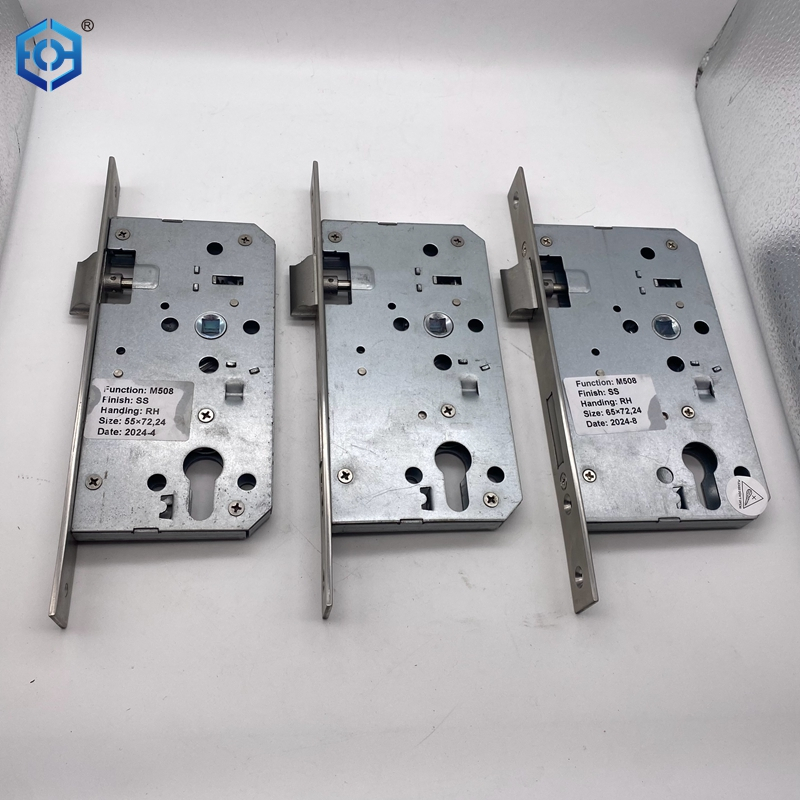

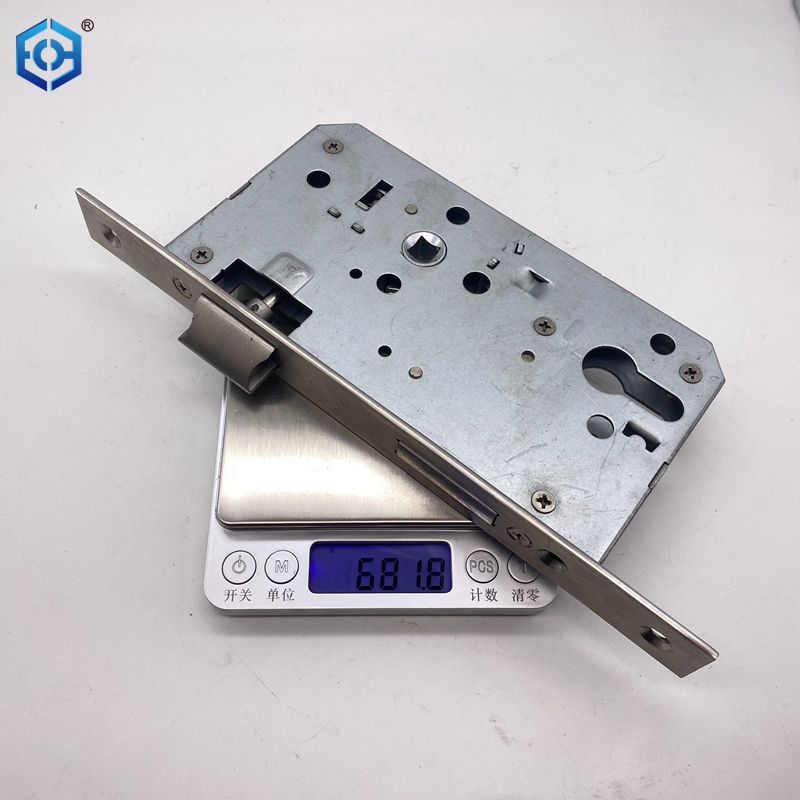

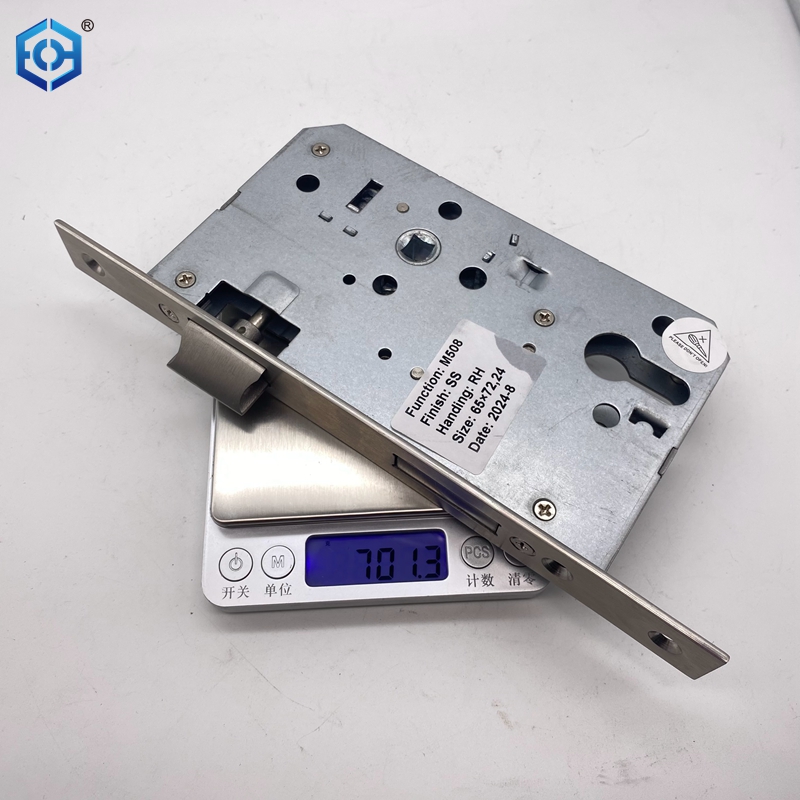

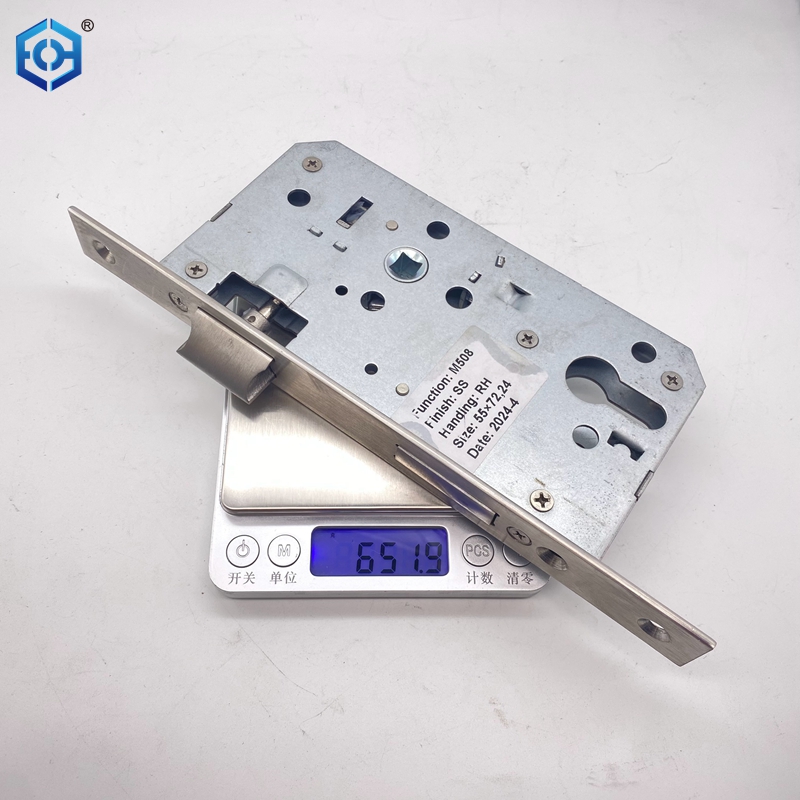

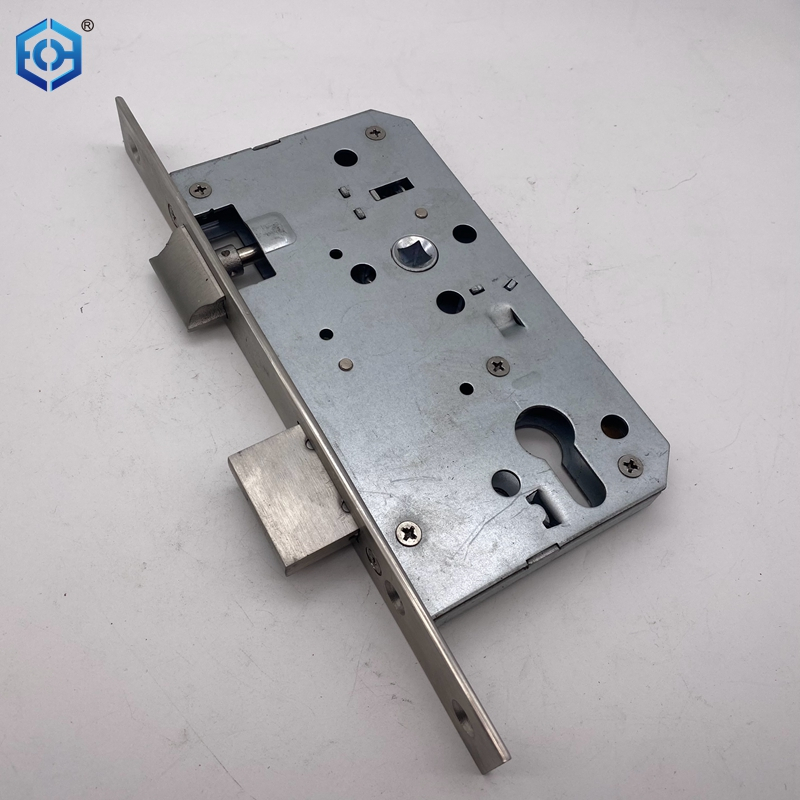

Product Picture:
– Modular case across functions for rapid door prepping and installation
– 72mm centers, backset in 55/60/65mm
– 8mm follower with spindle gripping function
– MLE508 entry door lock set has a reversible latch bolt in solid stainless steel
– Double throw deadbolt in solid stainless steel with 20mm projection
– Suitable for sprung and most un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
– Compatible with bolt through furniture and escutcheons of 38mm centers
Certificate：
