American Style Satin Nickel Stainless Steel Electrified Solenoid Mortise Lock

American Style Satin Nickel Stainless Steel Electrified Solenoid Mortise Lock

DESCRIPTION:

√Universal imput voltage-accepts 12or 24V Dc for installation flexibility

√User selectable fail safe/fail secure-changing

√Low maxmum current draw-allows multiple lock on a single power supply

√Low holding current-produces minimal heat,eliminating "hot levers"in electrically locking applications and allowing reliable operation even in wood doors.

√All-new switch monitors the inside lever with enhances detection level that balances security with lever sensitivity

Electrical specifications

Fail Safe/Fail Secure

Voltage:12VDC~24VDC

Starting Current:2Amp at 24V,DC

Holding current:0.05Amp at 24V,DC

Starting Current:1Amp at 12V,

DCHolding current:0.12Amp at 12V,DC

Operating Temp.:

Max.151F(66℃)Min.-31°F(-35℃)

All monitoring switches rated at:2 Amp@30 VDC 3Amp@125VAC

Monitor available

Deadbolt function

Door position sensor

Latchbolt monitor

Lever sensor

Cylinder sensor

Certification /Compliance			ANSI/BHMA A156.13 Series 1000, Grade 1 operational and security. UL Listed for 1.5 Hours fire rating.

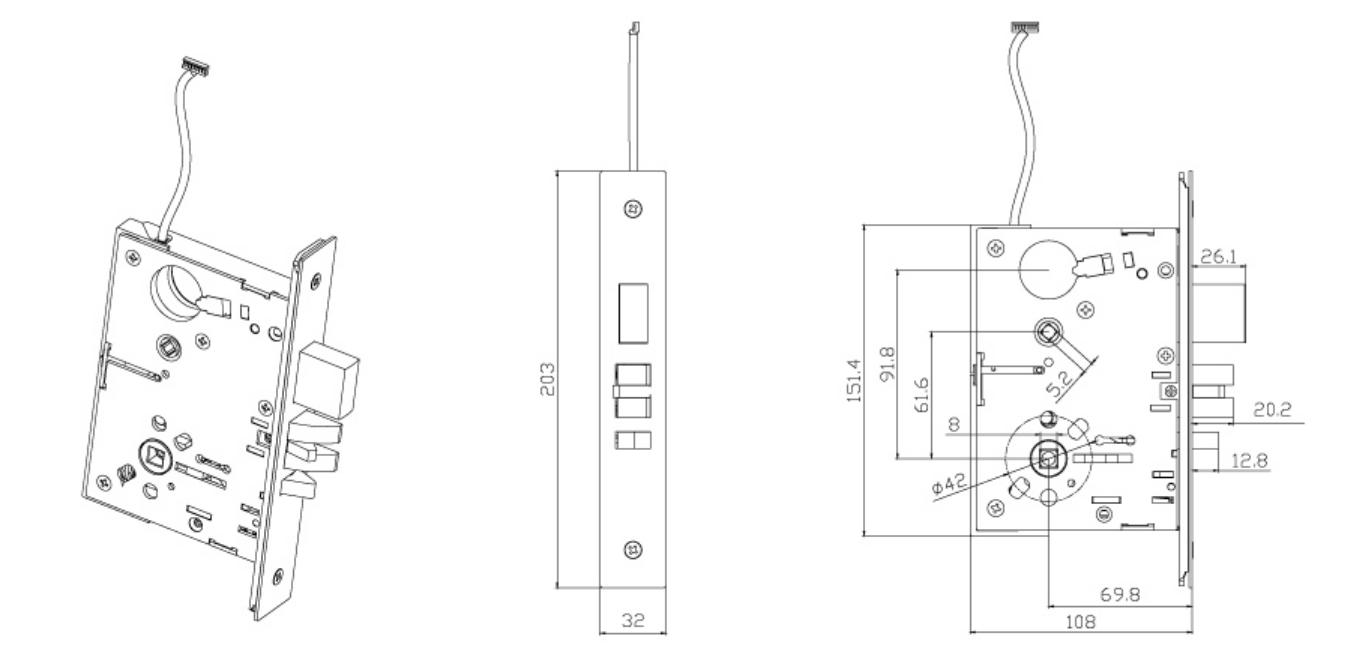

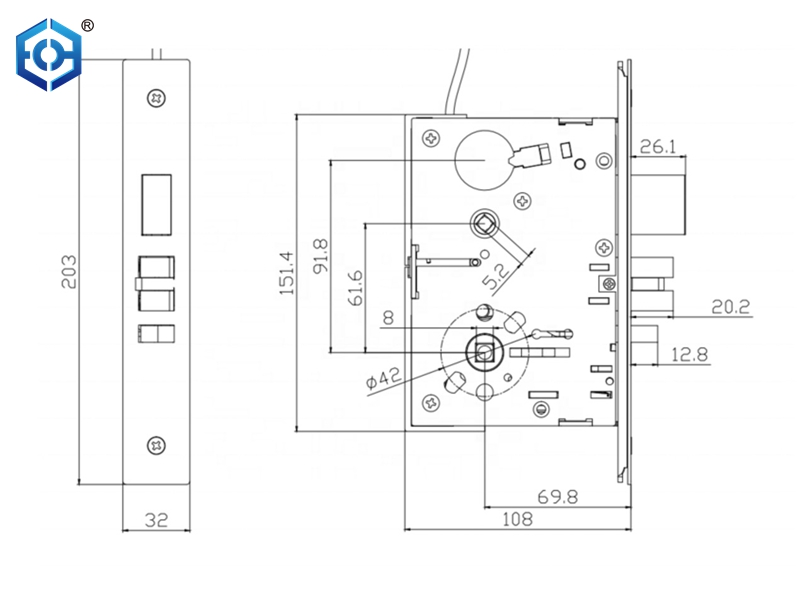

Case Size			4-5/16"×6"×1"(110mm×152mm×25mm)
Armor Front			1-1/4"×8"×7/32"(32mm×203mm×1.5mm) as standard
Backset			2-3/4" (70mm) only
Door Range			1-3/8"(35mm) to 2-1/2"(64mm) steel door.
			1-3/4"(45mm) to 2-1/2"(64mm) wood door.
Beveled Doors			Self - adjusting case.
Spacing			3-5/8"(92mm) center cylinder to spindle. 2-7/16"(62mm) center thumbturn to spindle.
Deadbolt			1"(25mm) throw, stainless steel
Latchbolt			3/4"(19mm) throw, solid one-piece stainless lathce, anti-friction curve design provides.
Deadlocking Bar			Non-handed, stainless steel
Case Handing			Field reversible sithout removing case
THrough Bolts			Through-bolted trim self-aligned with lock case
Stopworks			Incorporated into thumbturn
Strikes			Curved lip is nonhanded
			Custom lip lengths at 1/8"(3mm) increments available
Spindles			Breakable to prevent the lock case from unlicking or being damaged.
Cylinder			6-pin standard, with two nickel silver keys, "SC" keyway. Can be masterkeyed.
I/C Core			6-pin, "SC" keyway.
Cylinder Guard			Tapper cylinder guard with tension spring to resist wrenching of cylinder.
Trim Designs			Levers /Knobs forged SS304 stainless steel attached to rose plate /escutcheon.
			Outside lever /knob cannot be removed from outside. Inside lever /knob can be snapped in place. Return spring in trim enhances protectin against lever. sagging, providing a firm and positive return of lever to horizontal.
Roses			2-7/16"(62mm) diameter, positive friction attachment.
Escutcheons			1-15/16"×8"(50mm×203mm), positive friction attachment.
Fasteners			Concealed under the rose /escutcheon.
Trim Combinations			Available with lever on both sides, knob on both sides, or knob × lever with rose or escutcheon on both sides.
Finishes			Satin stainless steel

Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
 baldwin mortise lock installationk
]1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



Welcome to ECH
Welcome a trial order (small quantity no problem)
If you want more style, please contact us at any time!

Specifications:

Type:	oval  mortise lock
Brand Name:	ECH
Place of Origin:	Jiangmen China (Mainland)
Model Number:	EL70
Material:	stainless steel or to order
Process:	assemble
Application:	Door
Finish & Size:	SSS/PSS  70x92MM
Standard export package:	White box, Soft foam plastic bag
Delivery :	30 working days

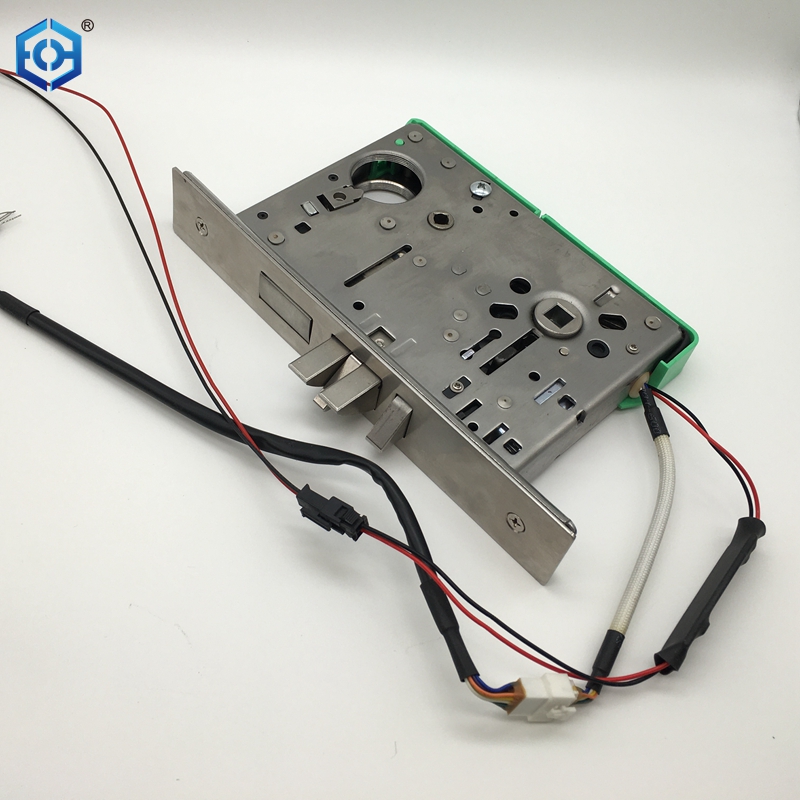

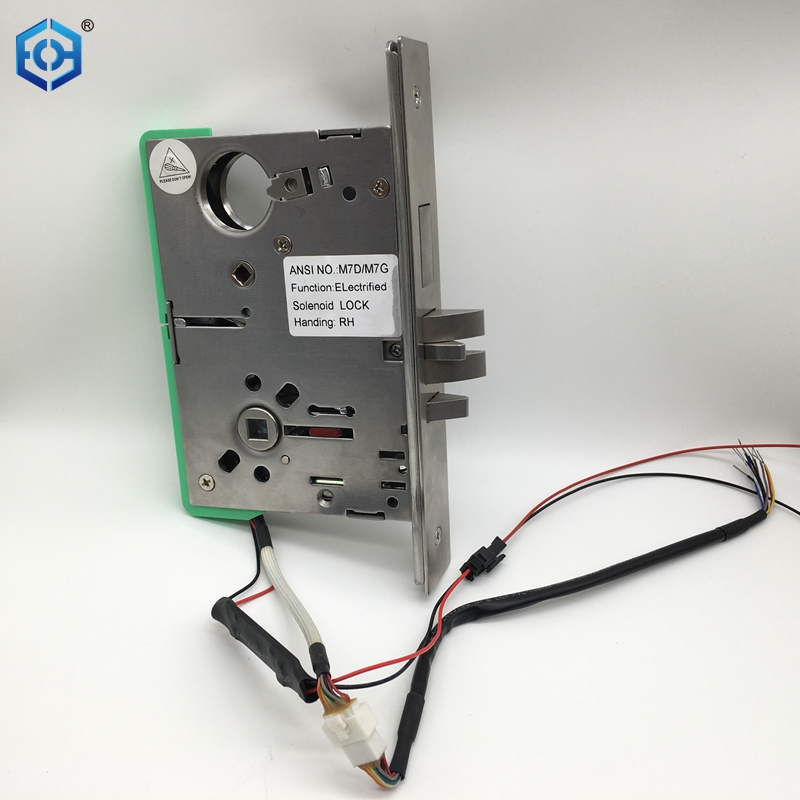

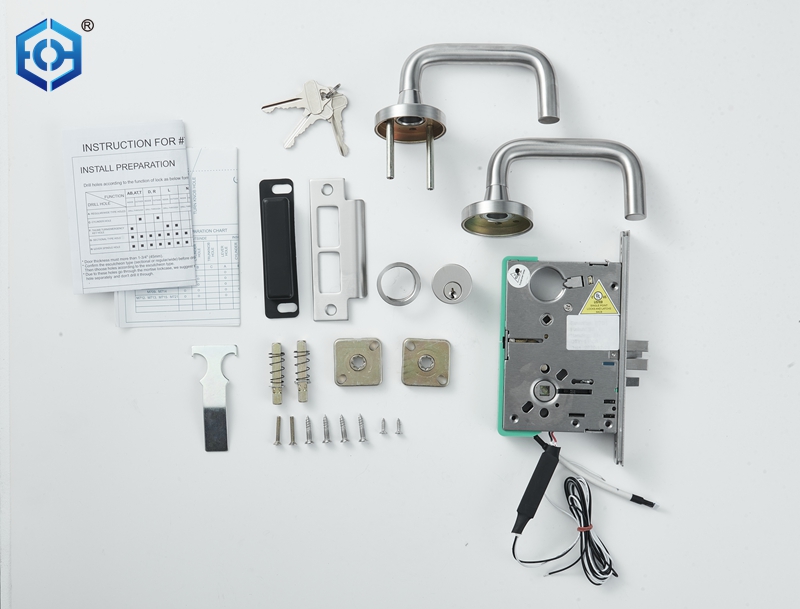

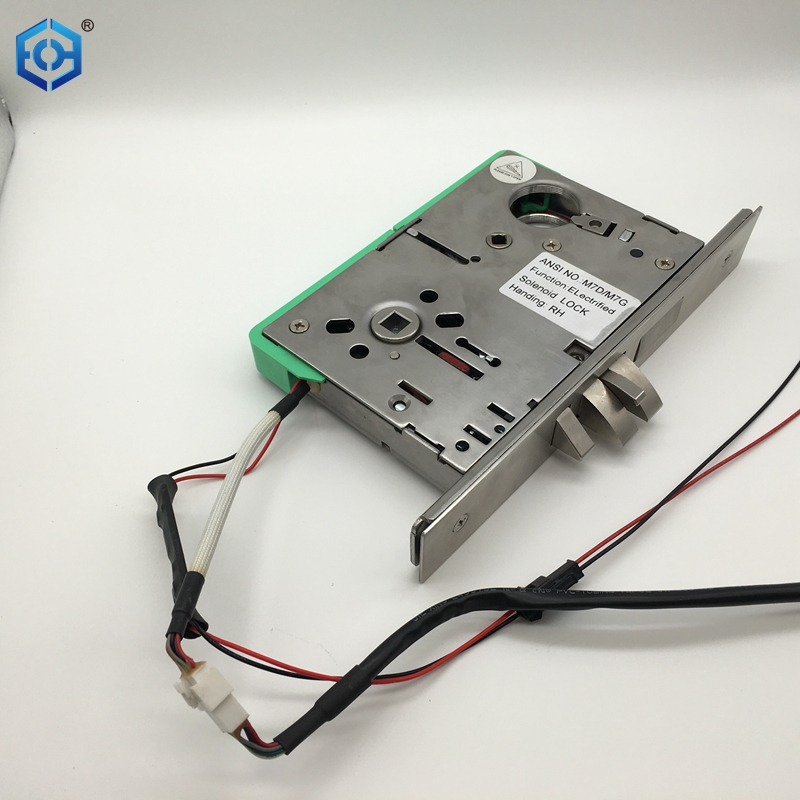

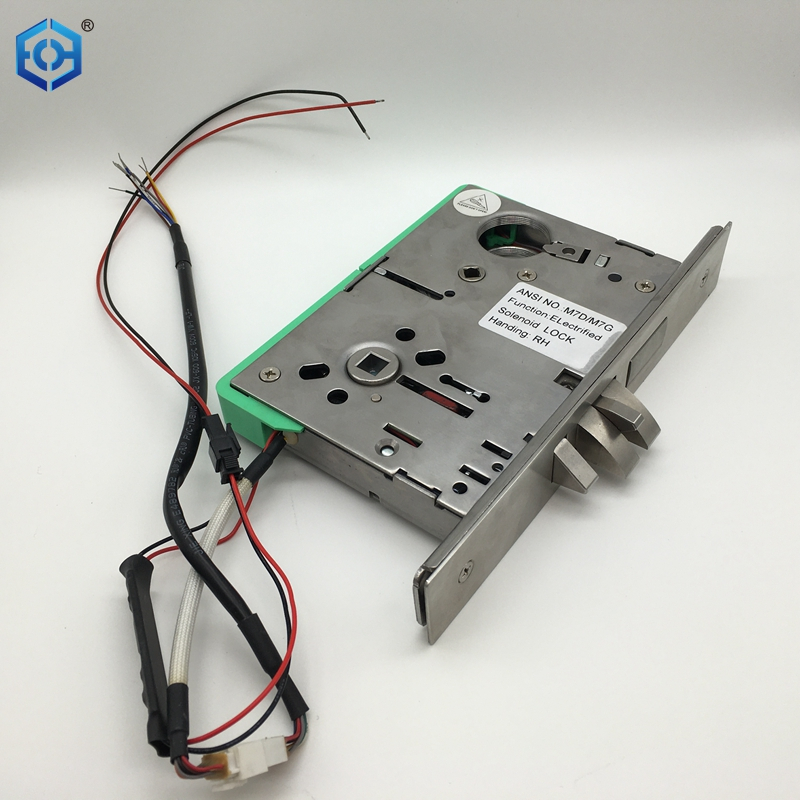

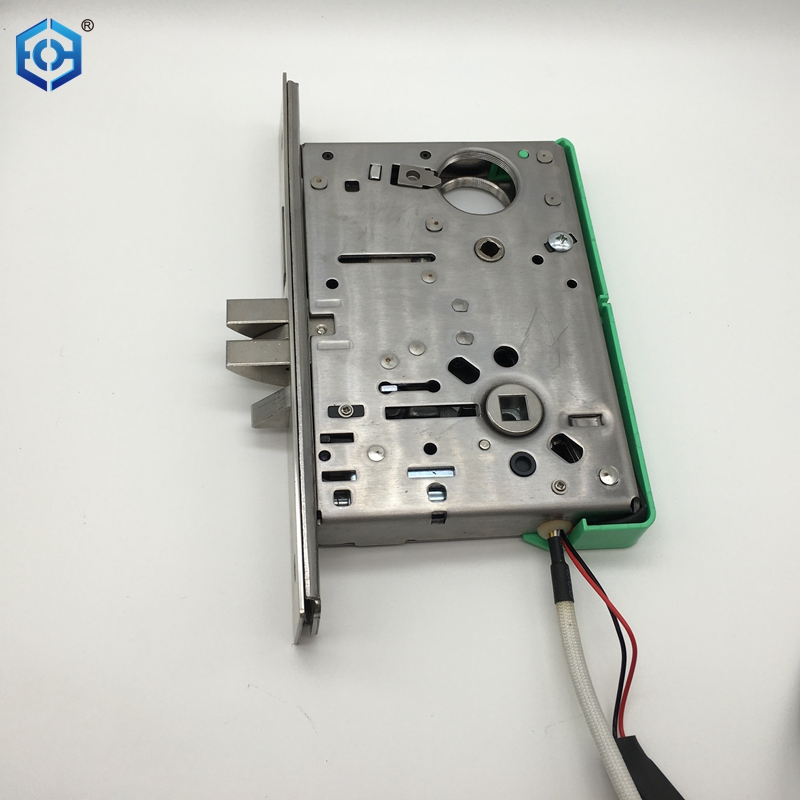

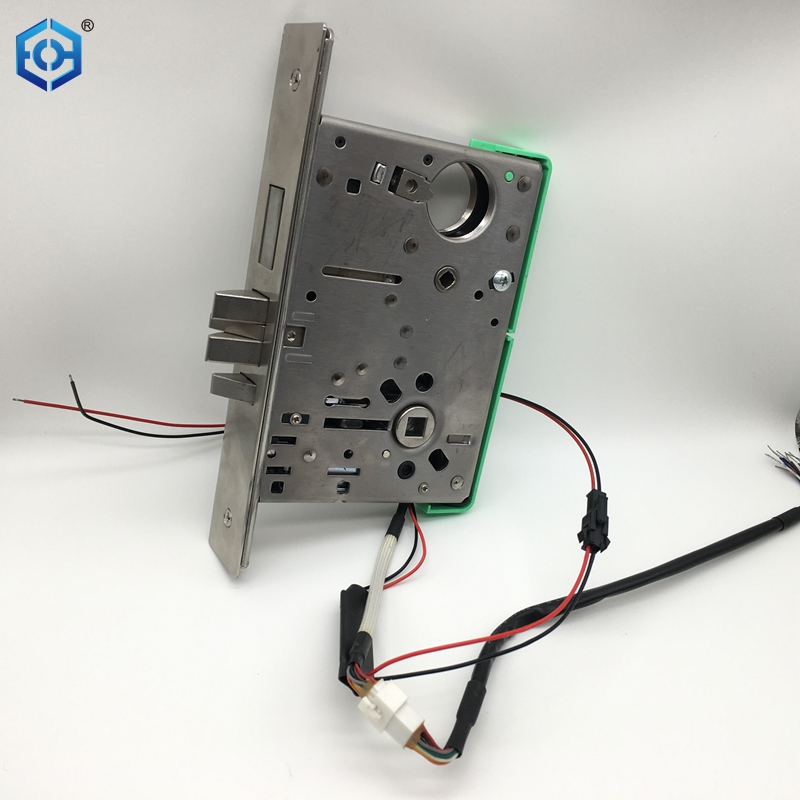

Product Picture:
