EN12209 CE Anti-thrust Night Latch Mortise Lock with Escape Function

EN12209 CE Anti-thrust Night Latch Mortise Lock with Escape Function

Quick Details

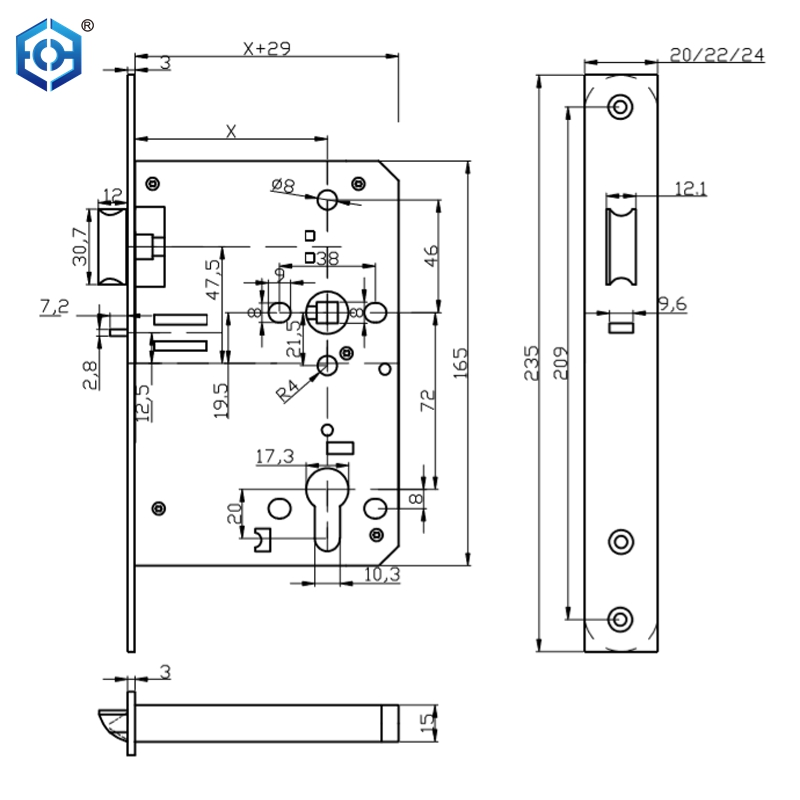

1. Distance:72mm,Backset:55/60/65mm

2. Lock shell:zinc steel SECC,thickness:1.5mm

3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)

4. Insurance bolt:SUS304

5. Front Plate:SUS304,Size:235*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm

6. Spindle:SUS304,Hole size:8*8mm

7. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE certification level (EN12209):

3x910G2BB20

Fire resistance test (standard EN1634-1): 240 minutes (steel door),wooden door 120 minutes (wooden door)

Night Latch Mortise Lock

Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.

The fire rated night latch mortise door lock features a safety latch that automatically locks upon closing. Exiting from the inside is unrestricted, while entry from the outside requires a key. This euro profile cylinder mortice night latch lock is ideal for rooms that require a certain level of privacy, such as operating rooms and conference rooms.

Features

• CE Certified

• Tested for 200,000 cycles, low maintenance, extended service life

• Easy reversible latch

• Suitable for wooden and steel fire doors

• Forend and strike plate available in round and square head styles

• Compatible with standard lever handles and profile cylinders

• High-quality satin stainless steel finish, additional surface finish options available

•


Specifications:

 Certification

Product Picture:

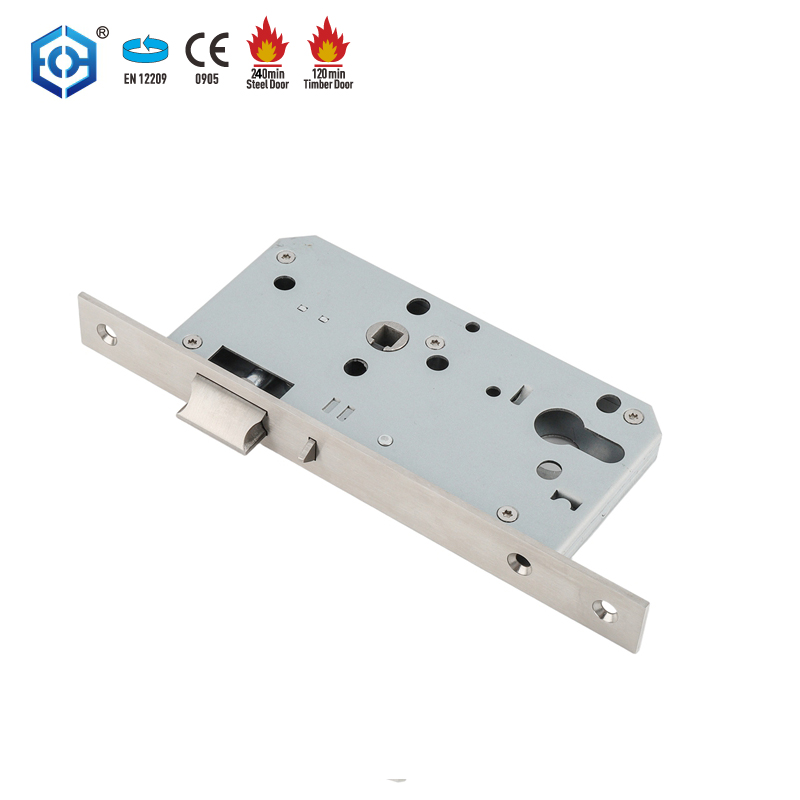

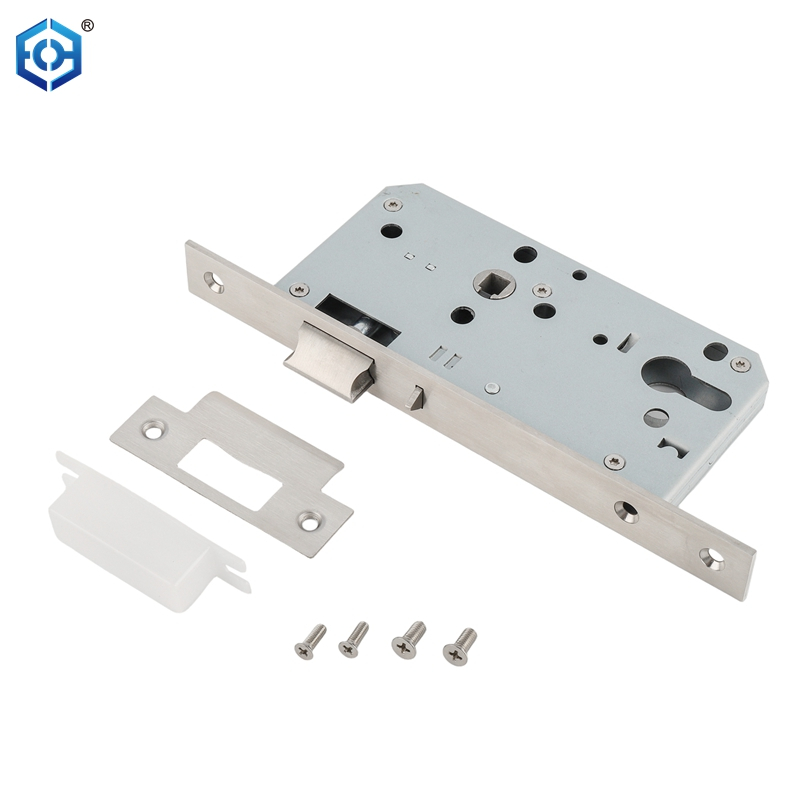

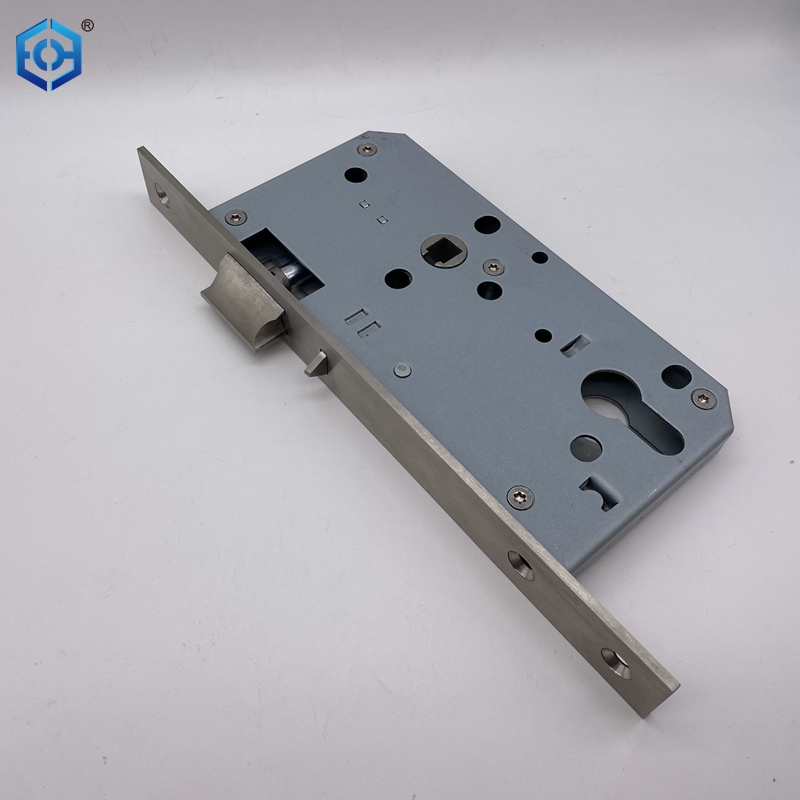

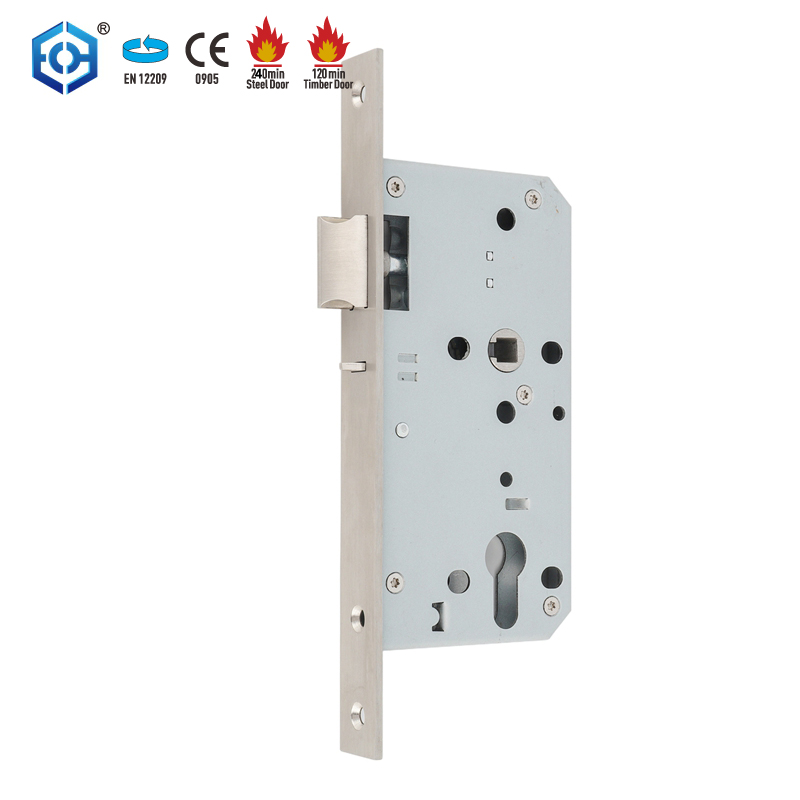

– ECH-J5572ZN ECH-J6072ZN ECH-J6572ZN  anti-thrust night latch mortise lock has a modular case across functions for rapid door prepping and installation
– 72mm centers, backset in 55/60/65mm
– 8mm follower with spindle gripping function
– ECH-J5572ZN ECH-J6072ZN ECH-J6572ZN  night latch lock has a reversible latch bolt in solid stainless steel
– Double throw deadbolt in solid stainless steel with 20mm projection
– Suitable for sprung and most un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
– Compatible with bolt through furniture and escutcheons of 38mm centers

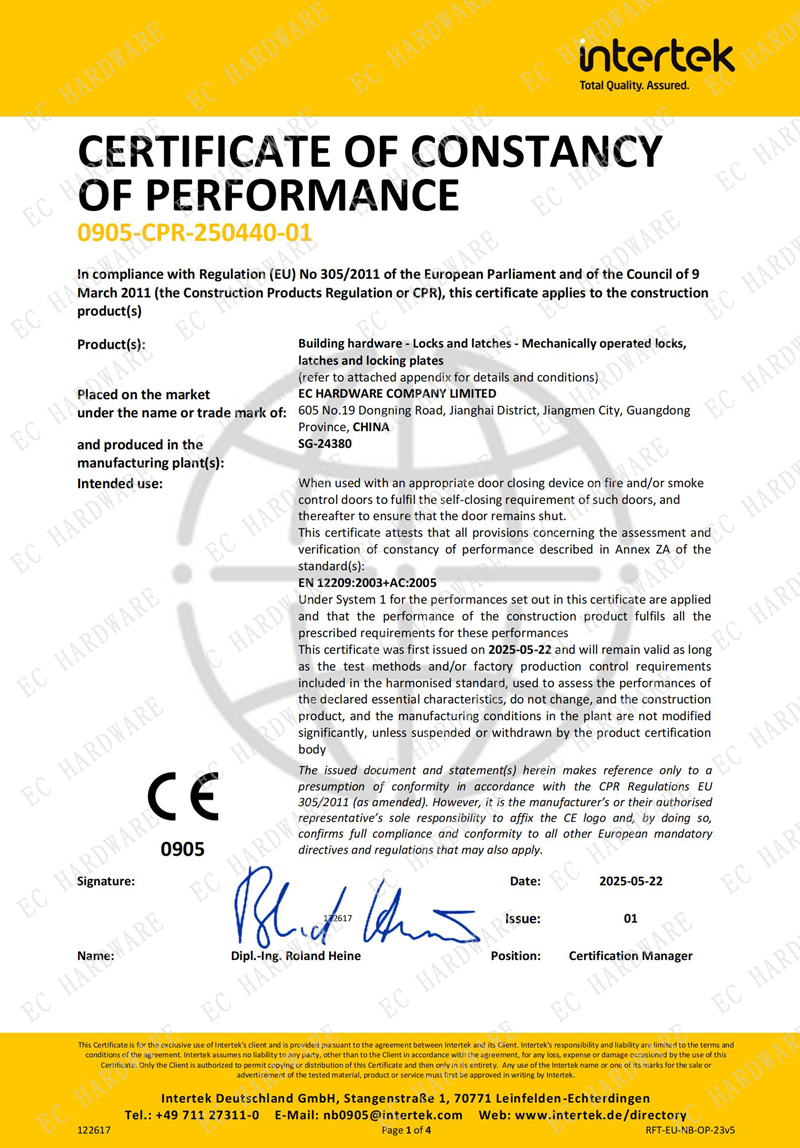

Certificate：
