ECH-J5572ZL ECH-J6072ZL ECH-J6572ZL
ECH
CE EN12209 Stainless Steel Fire Door Mortise Door Lock Lock Body
Quick Details
1. Distance:72mm,Backset:55/60/65mm
2. Lock shell:zinc steel SECC,thickness:1.5mm
3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)
4. Front Plate:SUS304,Size:240*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm
5. Spindle:SUS304,Hole size:8*8mm
6. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE
certification level (EN12209): 3x910G-BC020

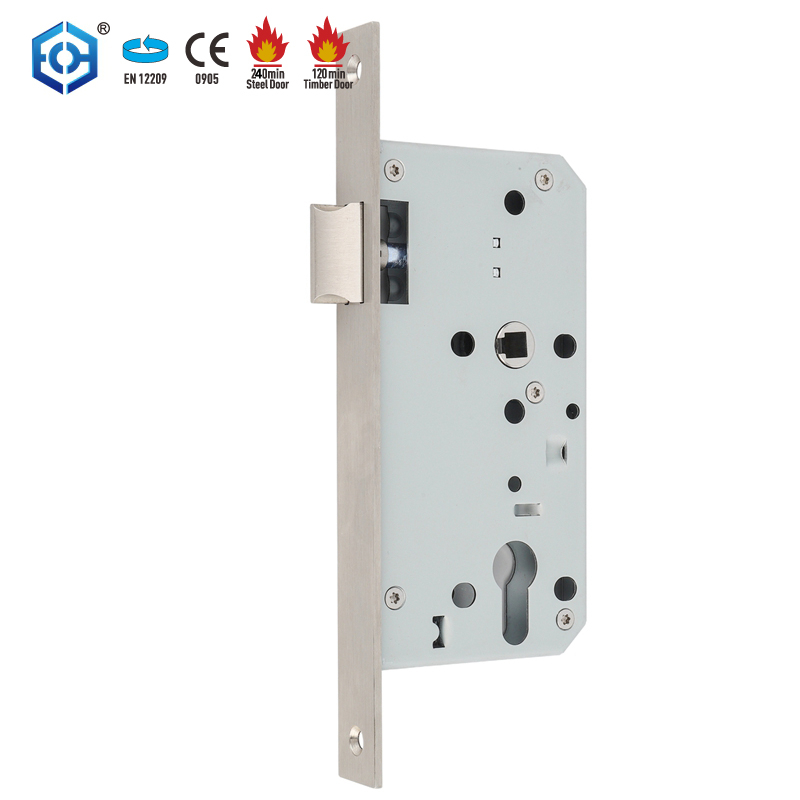

Fire resistance test (standard EN1634-1): 240 minutes (steel door),wooden door 120 minutes (wooden door)
Passage Mortise Lock
Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality stainless steel materials, these mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.

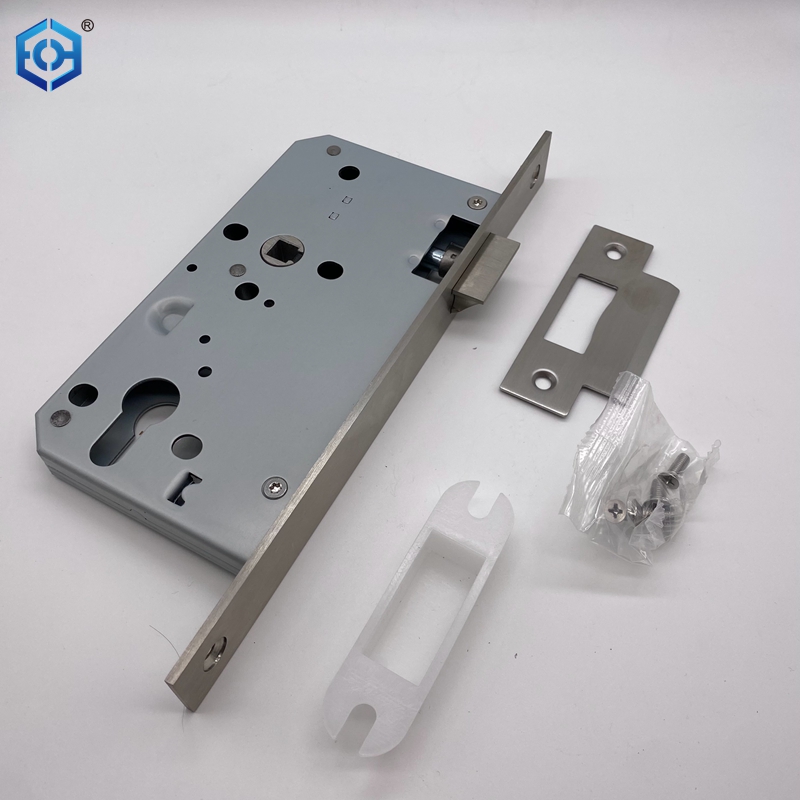

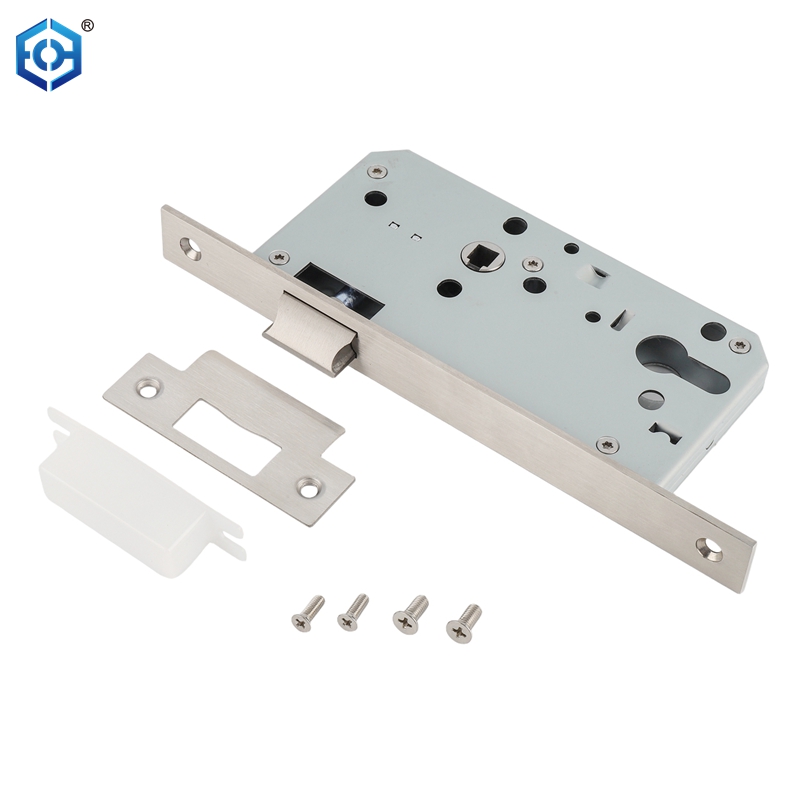

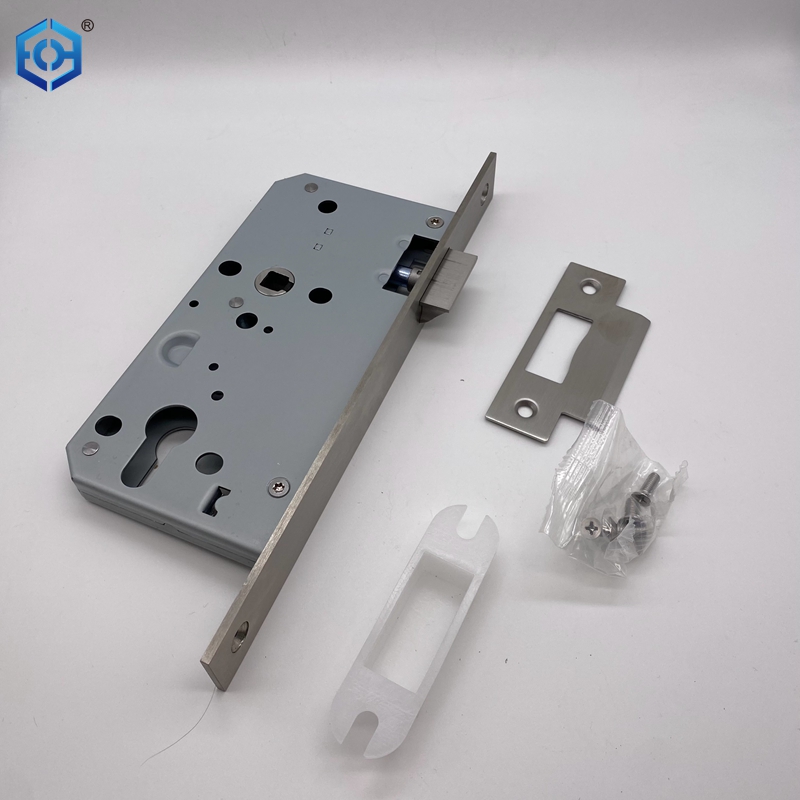

The mortise latch lock has only latch bolt function, handle operate latch, which means it's a lock body that cannot be locked. Therefore, it's also called a passage lock. It's suitable for passages in public places like shopping malls, where doors need to remain unlocked to ensure smooth and accessibility. Each lock is supplied with a strike plate, screws, and a dust-proof box for easy installation and maintenance.
Features
CE Certified
Tested for 200,000 cycles, low maintenance, extended service life
Easy reversible latch
Suitable for wooden and steel fire doors
Forend and strike plate available in round and square head styles
Compatible with standard lever handles
High-quality satin stainless steel finish, additional surface finish options available

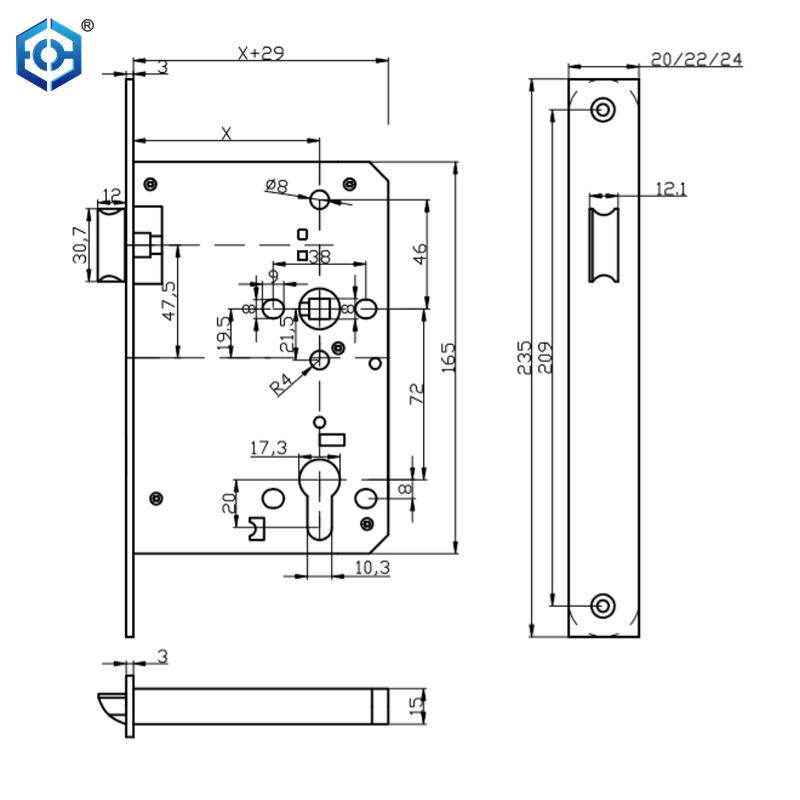

Specifications:
Certification:

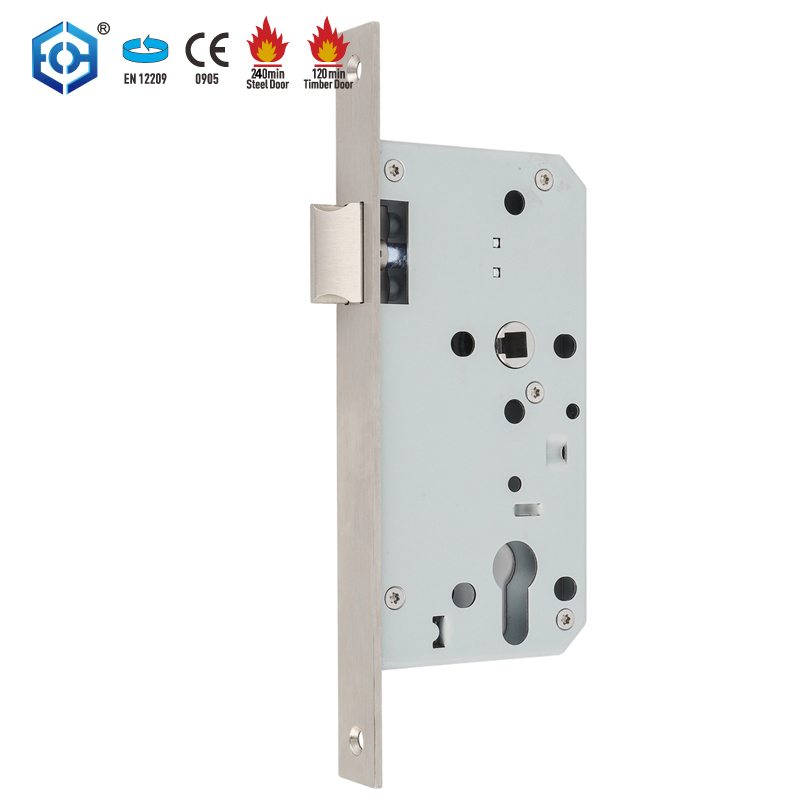

Product Picture:
– Modular case across functions for rapid door prepping and installation
– 72mm centers, backset in 55/60/65mm
– 8mm follower with spindle gripping function
– ECH-J5572ZL ECH-J6072ZL ECH-J6572Z entry door lock set has a reversible latch bolt in solid stainless steel
– Double throw deadbolt in solid stainless steel with 20mm projection
– Suitable for sprung and most un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
– Compatible with bolt through furniture and escutcheons of 38mm centers
Certificate：
