EN12209 Euro Standard CE Quality Stainless Steel Fire Resistance Mortise Door Lock

EN12209 Euro Standard CE Quality Stainless Steel Fire Resistance Mortise Door Lock

Quick Details

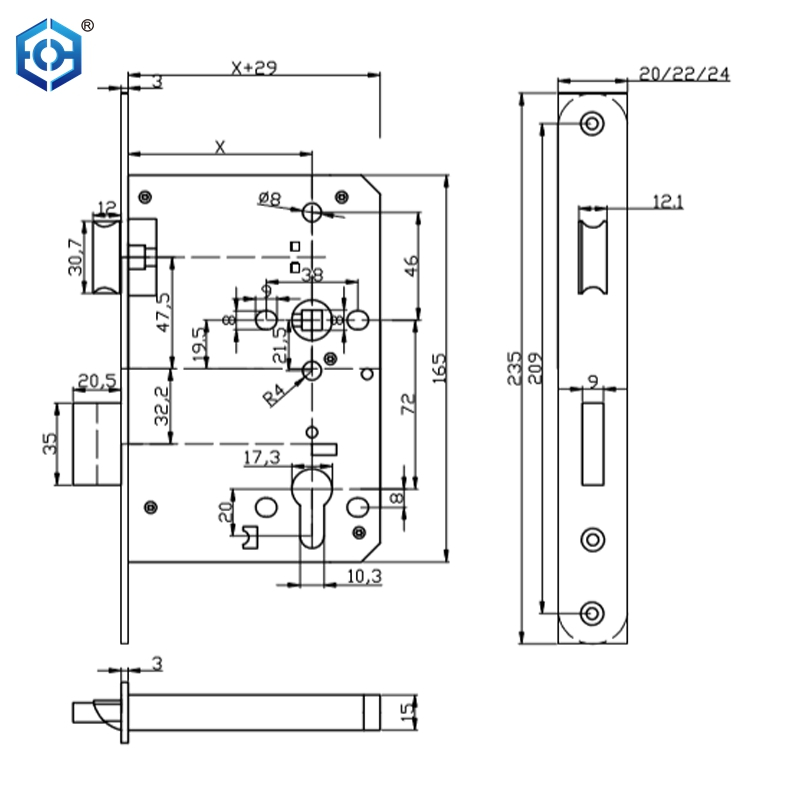

1. Distance:72mm,Backset:50/55/60/65/70/80mm

2. Lock shell:zinc steel SECC,thickness:1.5mm

3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)

4. Dead bolt:SUS304(Durability: 50,000 test cycles),two lock

5. Front Plate:SUS304,Size:235*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm

6. Spindle:SUS304,Hole size:8*8mm

7. Performance in line with European standard EN12209,size in accordance with European standard DIN18251,

 CE certification level (EN12209): 3x910G3BC20

Fire resistance test (standard EN1634-1): 240 minutes (steel door),wooden door 120 minutes (wooden door)

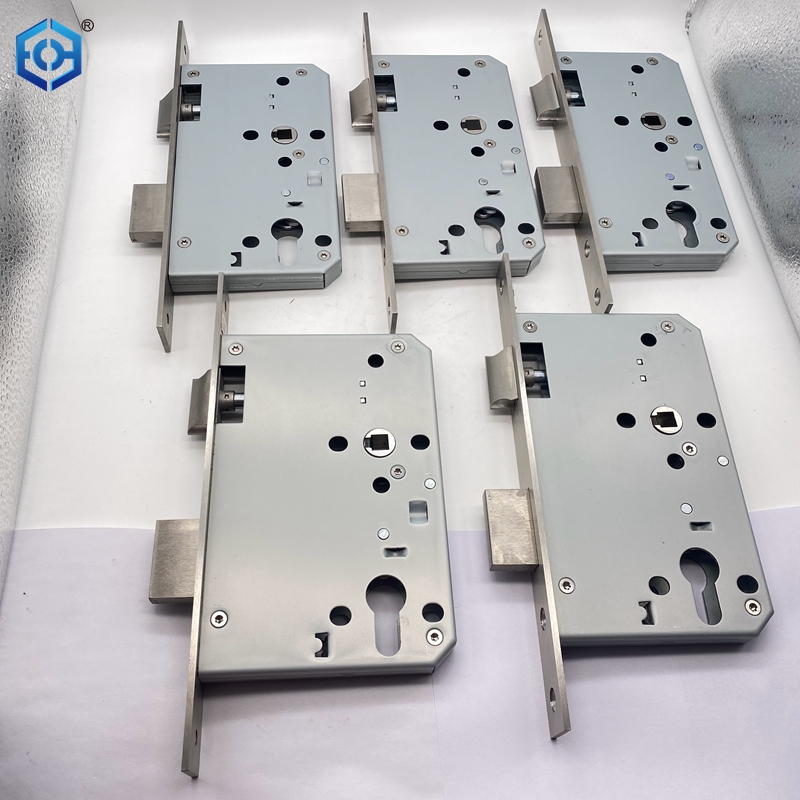

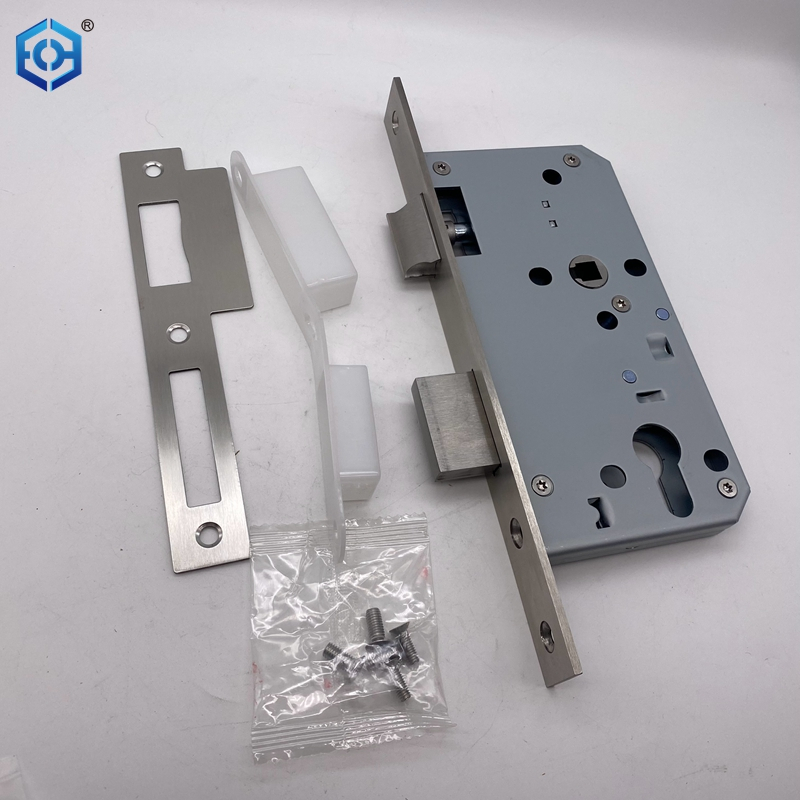

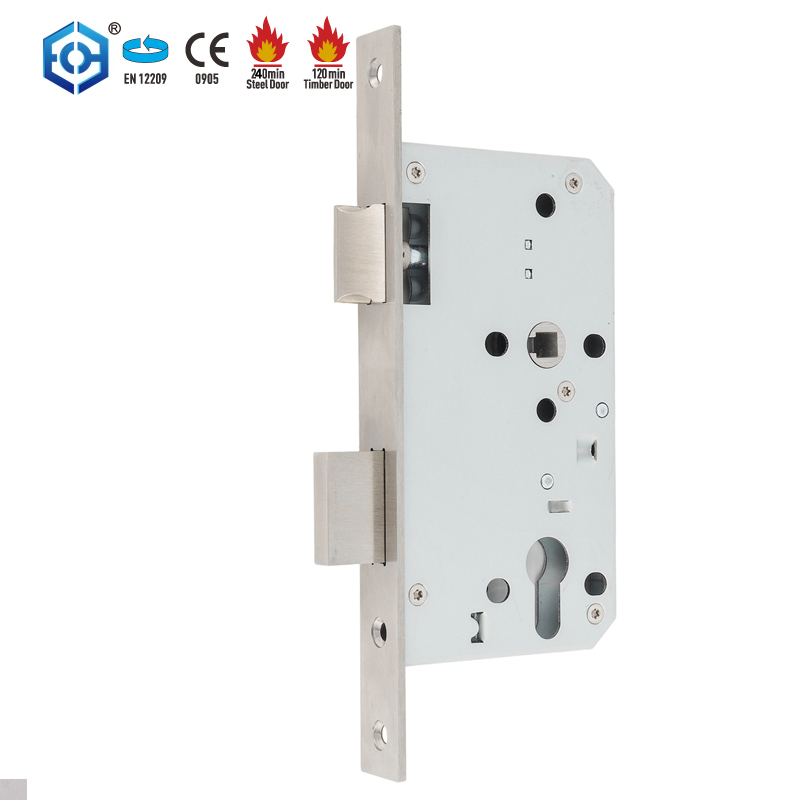

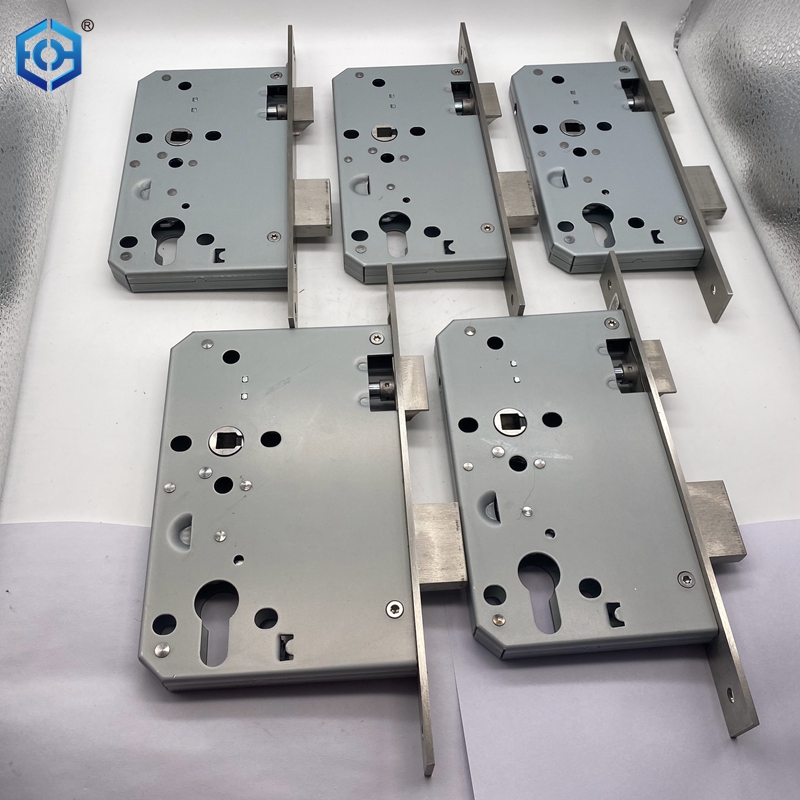

CE Mortise Lock

Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these euro profile mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.

This CE marked mortise sash lock is the most widely used mortise locks in public buildings,such as shopping centers, hospitals, schools, airports. Door handle only operate latch, and profile cylinder operate latch and deadbolt. The latch can be easily reversed to accommodate both left and right-handed doors.

Features

• CE Certified

• Tested for 200,000 cycles, low maintenance, extended service life

• Easy reversible latch

• Suitable for wooden and steel fire doors

• Forend and strike plate available in round and square head styles

• Compatible with standard lever handles and profile cylinders

• High-quality satin stainless steel finish, additional surface finish options available

Specifications:

Certificate：

Product Picture:

– Modular case across functions for rapid door prepping and installation
– 72mm centers, backset in 55/60/65/70/80mm
– 8mm follower with spindle gripping function

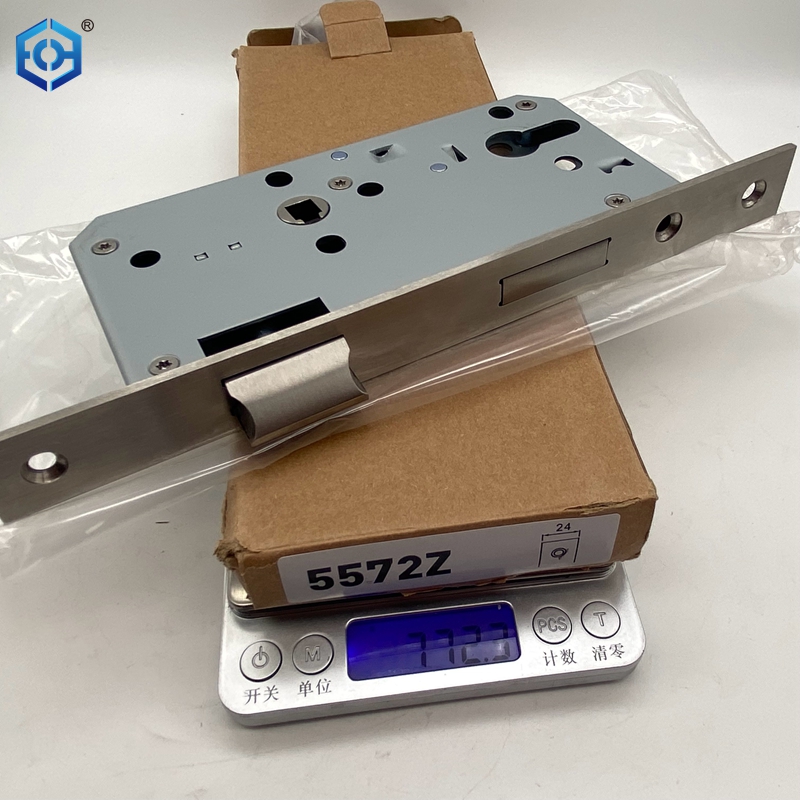

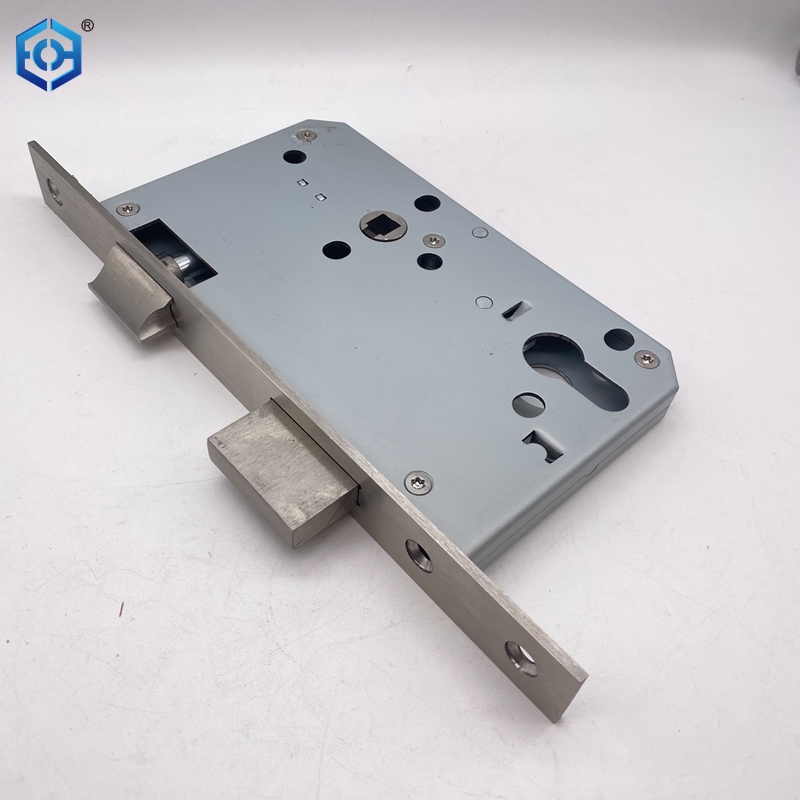

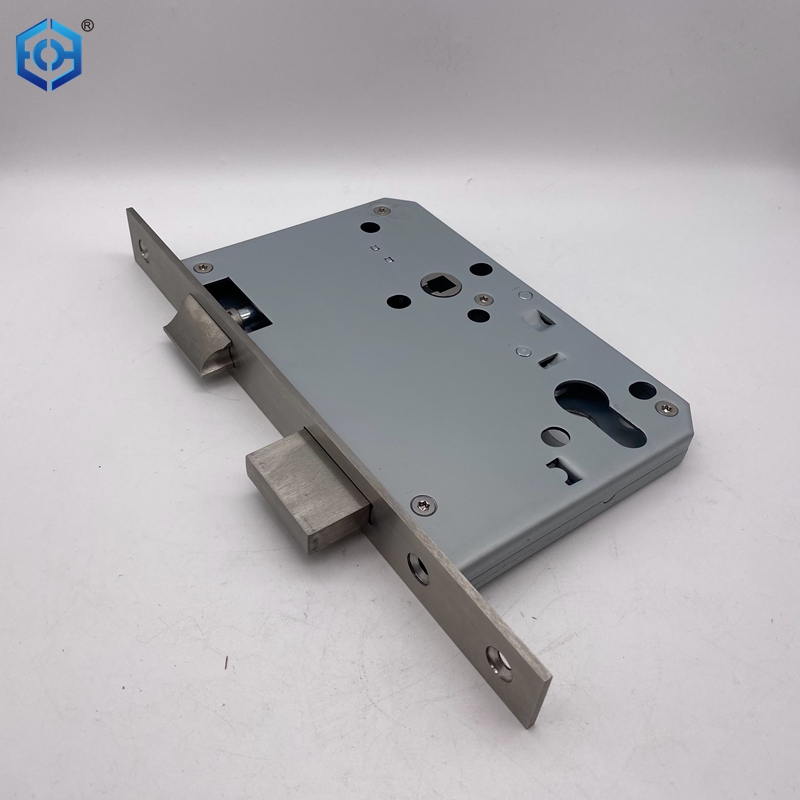

– ECH-J5572Z ECH-J6072Z ECH-J6572Z ECH-J7072Z ECH-J8072Z entry door lock set has a reversible latch bolt in solid stainless steel
– Double throw deadbolt in solid stainless steel with 20mm projection
– Suitable for sprung and most un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
– Compatible with bolt through furniture and escutcheons of 38mm centers

Certificate：
