ECH-5578WC ECH-J6078WC ECH-J6578WC
ECH
CE Certified Roller Bolt Mortise Door Lock Suitable for Wooden And Steel Fire Doors
Quick Details
1. Distance:78mm,Backset:55/60/65mm
2. Lock shell:zinc steel SECC,thickness:1.5mm
3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)
4. Dead bolt:SUS304(Durability: 50,000 test cycles),one lock
5. Front Plate:SUS304,Size:235*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm
6. Spindle(2):SUS304,Hole size:8*8mm
7. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE certification level (EN12209):
3x910G-B020
Fire resistance test (standard EN1634-1): 240 minutes (steel door),wooden door 120minutes (wooden door)

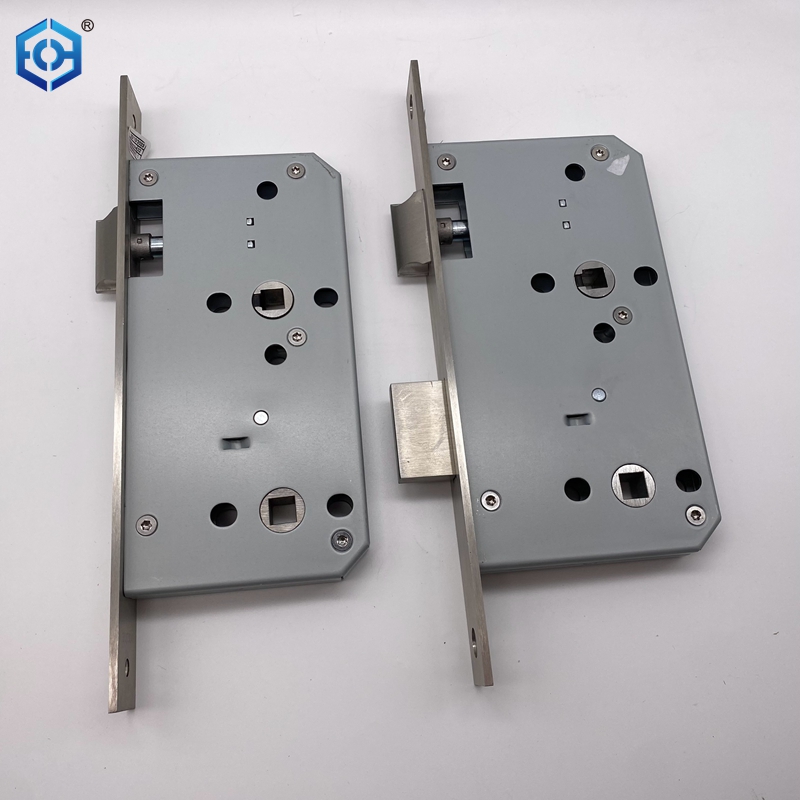

Bathroom Mortise Lock
Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.
This mortise bathroom lock provides reliable privacy protection. Latch is operated by handle, deadbolt is operated by a turn. In emergencies, the door can be unlocked using a coin or screwdriver to turn the emergency slot from the outside.
Features
CE Certified
Tested for 200,000 cycles, low maintenance, extended service life
Easy reversible latch
Suitable for wooden and steel fire doors
Forend and strike plate available in round and square head styles
Compatible with standard lever handles and profile cylinders
High-quality satin stainless steel finish, additional surface finish options available

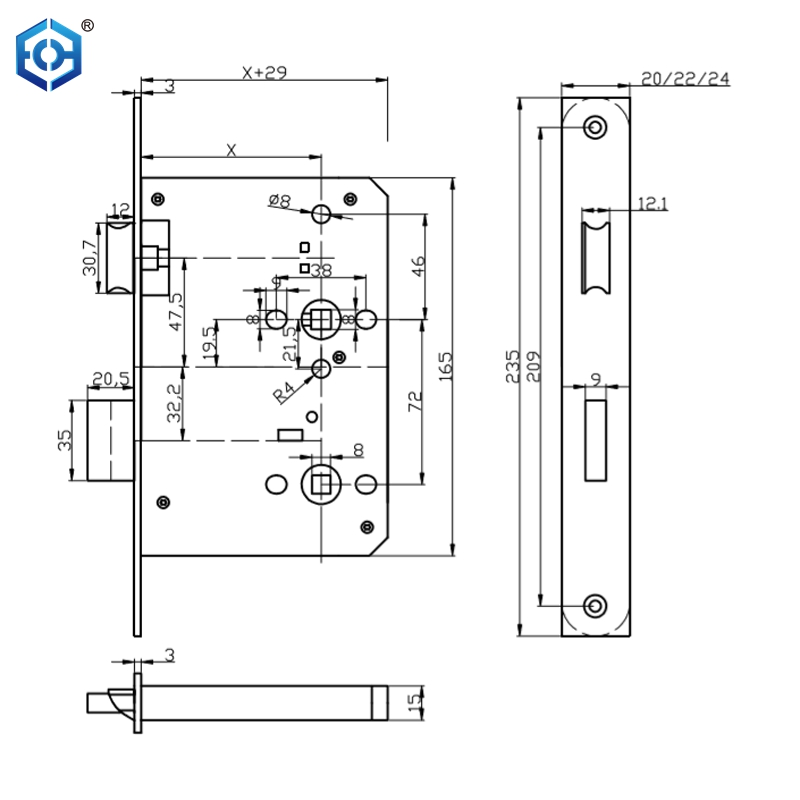

Specifications:
| Size | |
| Backset | 55/60/65mm |
| Center distance | 78mm |
| Major parts | |
Forend | SS304, Height: 235mm, Width: 20/24mm, Thickness: 3mm |
| Latch | SS304 |
| Deadbolt | SS304, 1 throw, Projection: 20mm |
| Latch Follower | SS304, Square hole: 8*8mm |
Thumb turn Follower | SS304, Square hole: 5*5/8*8mm |
| Locking plate | SS304, Thickness: 1.5mm |
| Case | SECC, Thickness: 1.5mm |
| Standard | |
| EN12209, EN1634-1, DIN18251 | |
| Certification | |
CE (Intertek) | 3 X 9 1 0 G - B 0 2 0 |
| CE (Warrington) | 3 X 8 1 0 G - H G 2 0 |
Fire test (EN1634-1) | Steel fire door: 240mins Timber fire door: 90mins (Intertek) |
Steel fire door: 240mins Timber fire door: 30/60/90/120mins (Warrington) | |
Certification

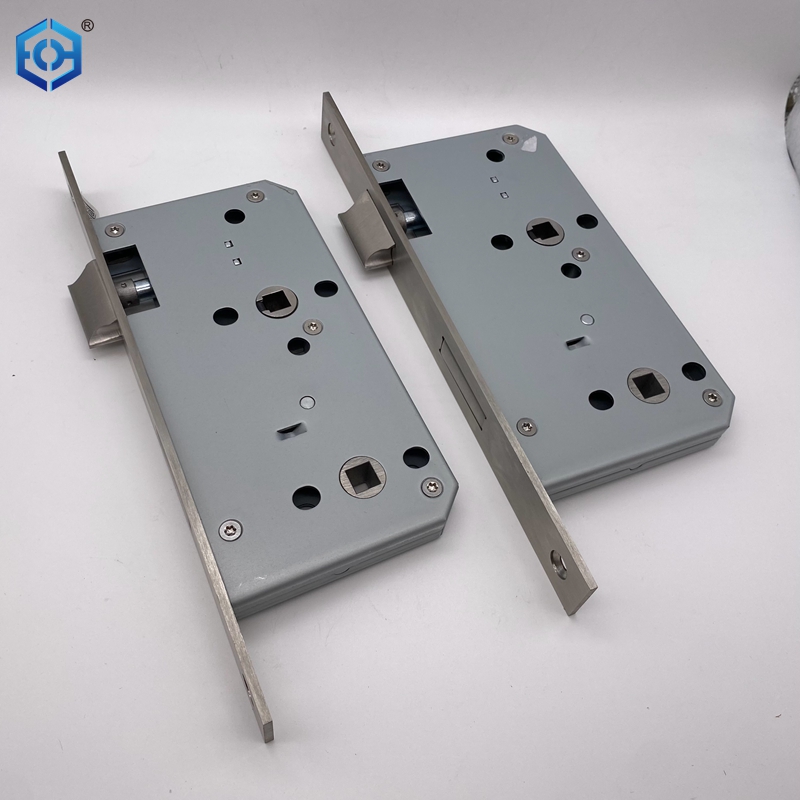

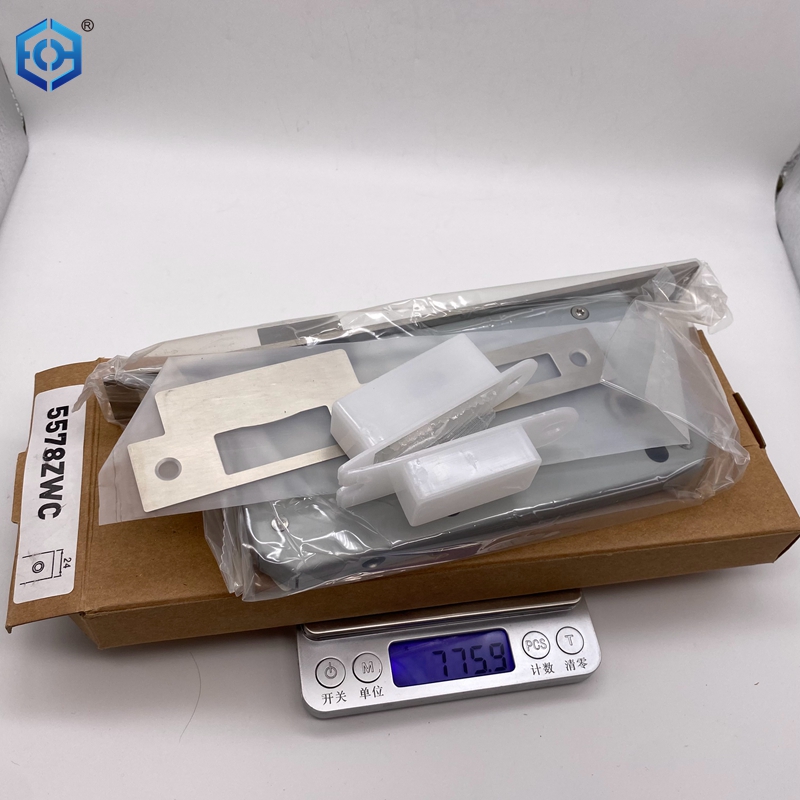

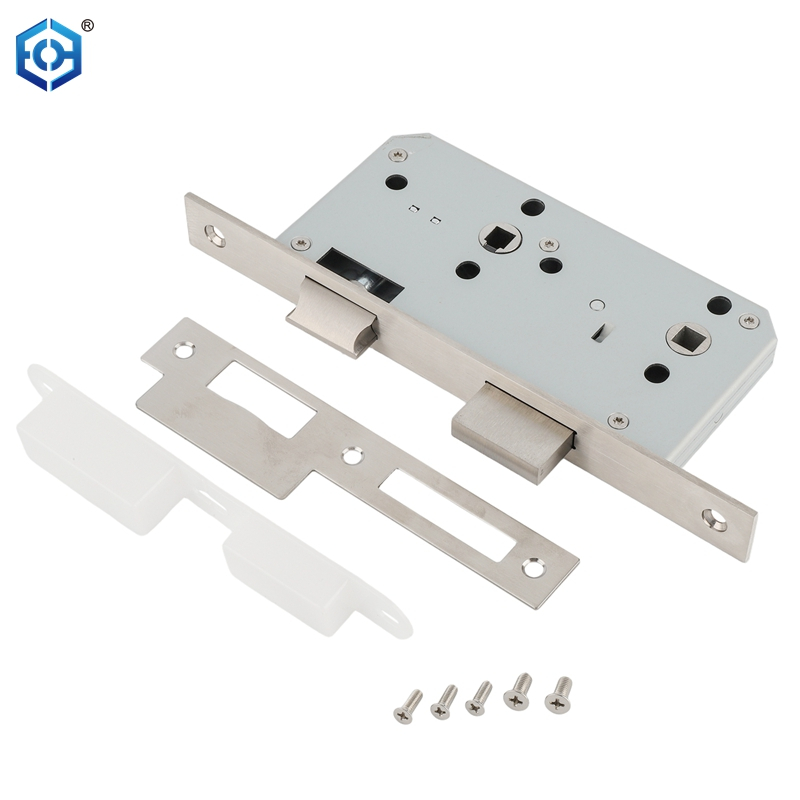

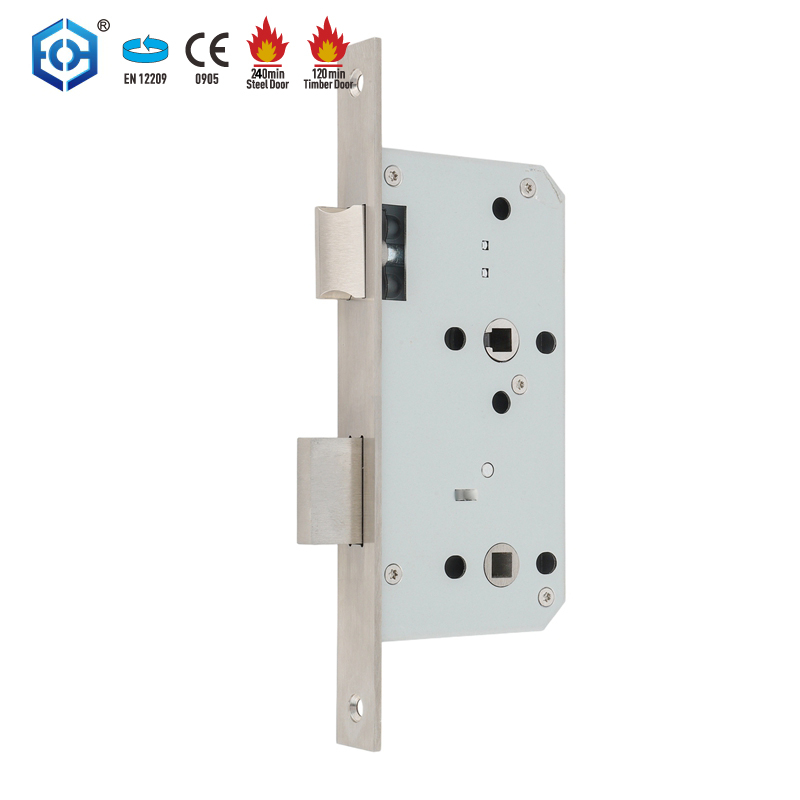

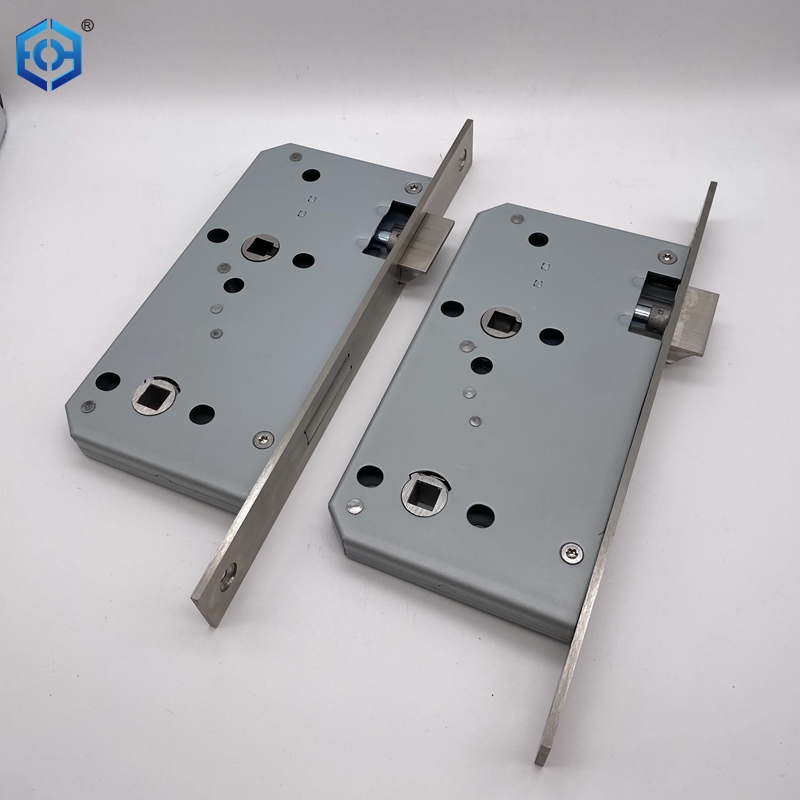

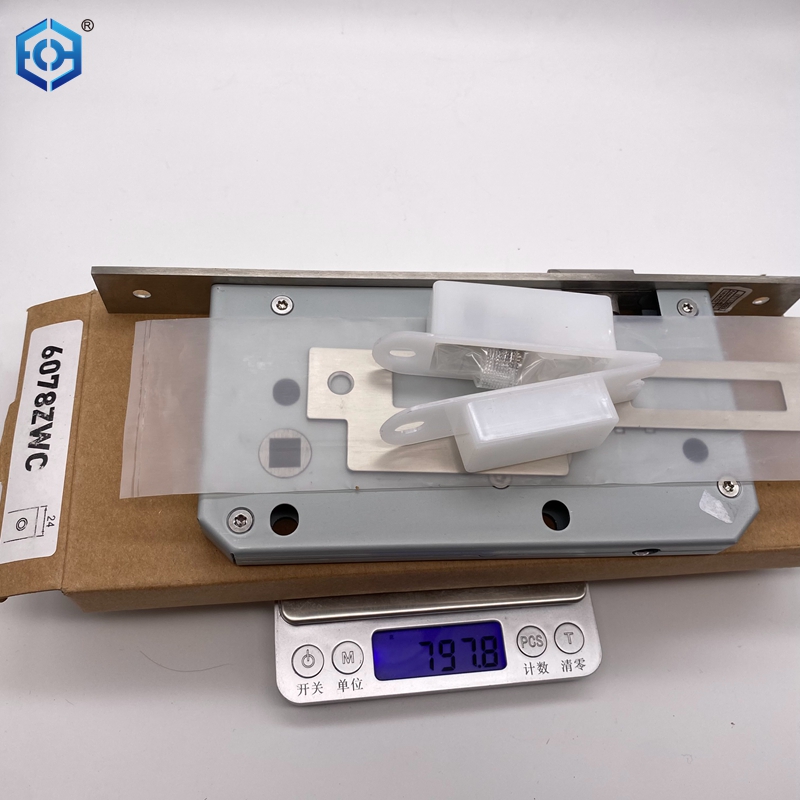

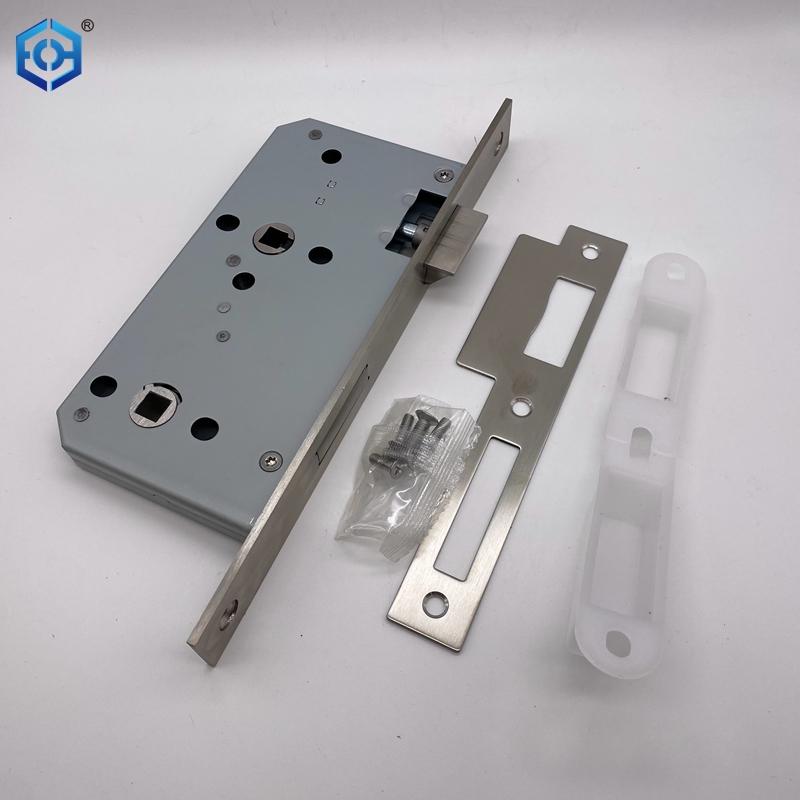

Product Picture:
– Modular case across functions for rapid door prepping and installation
– 78mm centers, backset in 55/60/65mm
– 8mm follower with spindle gripping function
– ECH-J5578WC ECH-J6078WC ECH-J6578WC entry door lock set has a reversible latch bolt in solid stainless steel
– Double throw deadbolt in solid stainless steel with 20mm projection
– Suitable for sprung and most un-sprung lever furniture
– Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
– Compatible with bolt through furniture and escutcheons of 38mm centers
Certificate：
