Finish: | |
---|---|
Size: | |
Min door thickness: | |
Load-Bearing: | |
MAX.door width: | |
Material:: | |
Availability: | |
Quantity: | |
EC200R
ECH

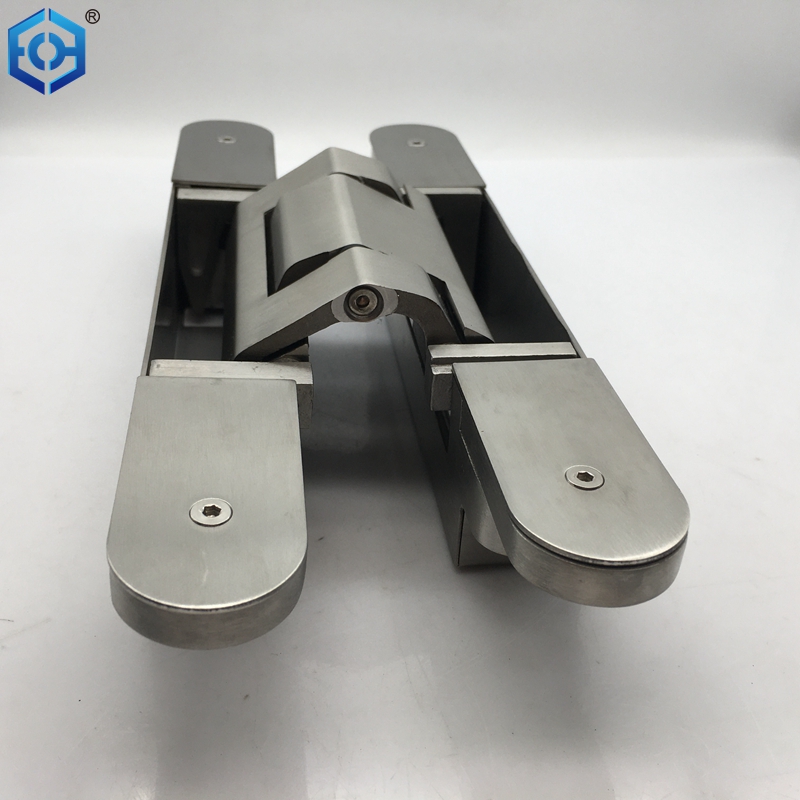

Load 200kg Heavy Duty 304 Stainless Steel Concealed Mute Hinge 3d Invisible Adjustable Wooden Gate Hinges
Product Details
Basic Info.
ADJUSTABLE CONCEALED HINGE
FEATURES
For wooden doors
For flush doors
Concealed installation
Adjustable after installed
Adjustments:
Vertical ±3mm, horizontal+2mm,-2mm and depth ±1mm
Opening angle:180°
TECHNICAL DATA
Max.door weight with 2 hinges: 200kg
Min.door thickness: 50mm
Max.door width: 940mm
Slim design for thin door: 44.5mm
MATERIALS:stainless steel
FINISHES:Chrome,Nickle,Brass and Painting
INSTALLATION: Wood tapping screws,Iron screws(optional)
Note
Finger protection due to small gap between door and frame
Application
Completely concealed for flush door with wood steel or aluminum frame
Hinge/door hinge/ stainless steel door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification | |
Type | door hinge |
Brand name | ECH |
Model NO. | EC200 |
Material | stainless steel |
Finish | Satin chrome/Satin nickel/Polished chrome/Polished nickel |
Size | 240x32mm |
Radius comer | Round corner |
Inner packing | soft foam pastic bag, color box and blister packing |
Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
Delivery day | 30 working days |
name | hidden door hinge |
Product Picture:
Product Size Picture:
