New Design 2way Stainless Steel Hidden Door Hinge Concealed Hinge

New Design 2way Stainless Steel Hidden Door Hinge Concealed Hinge
  • EG002

New Design 2way Stainless Steel Hidden Door Hinge Concealed Hinge
Cabinet hinge/ stainless steel cabinet hinge /concealed door hinge
Welcome a trial order (small quantity no problem)
If you want more style, please contact us at any time!
Quick Details

Type: Concealed door hinge
Material: SUS304
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM
Model Number: EG0012inish: SSS or to order
Size: 120X37X80mm
MOQ: 600 sets
Delivery: 30 working days
Name: Concealed door hinge
Packaging & Delivery

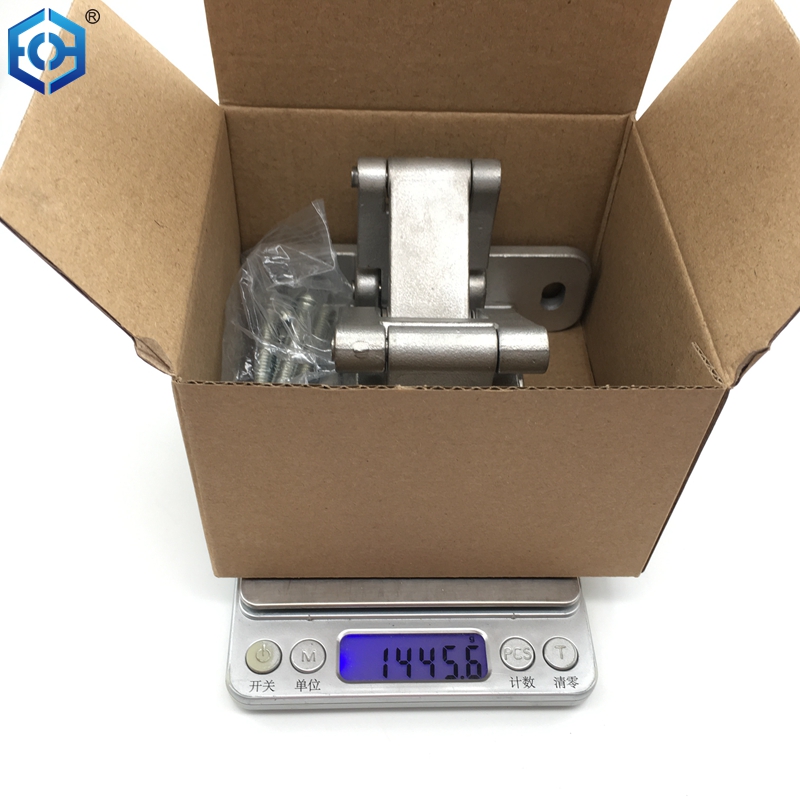

Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Concealed door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish

Types concealed door hinge
Place of Origin Jiangmen China (Mainland)
Model Number: EG001
Material: stainless steel
Process assemble
Finish SN or to order
Standard export package White box, Soft foam plastic bag
Delivery 30 working days
Size 120x37x80mm

Product Parameters:

The product is SUS304 material

Carry the weights 130kg maximum

Door/frame:Length120x120  ,width:37x37mm

Maximum thickness of door plate:20mm

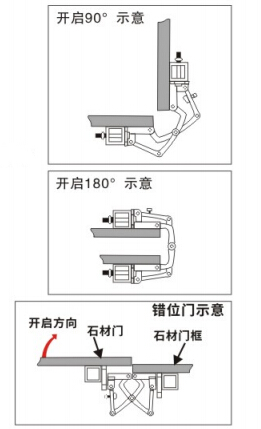

Opening Angle 160-180° maximum;

Can be realized up and down adjustment +-2.0mm

before and after the adjustment +-2.0mm;

easy to install and use;

Applicable to the left/right handle door tube well.

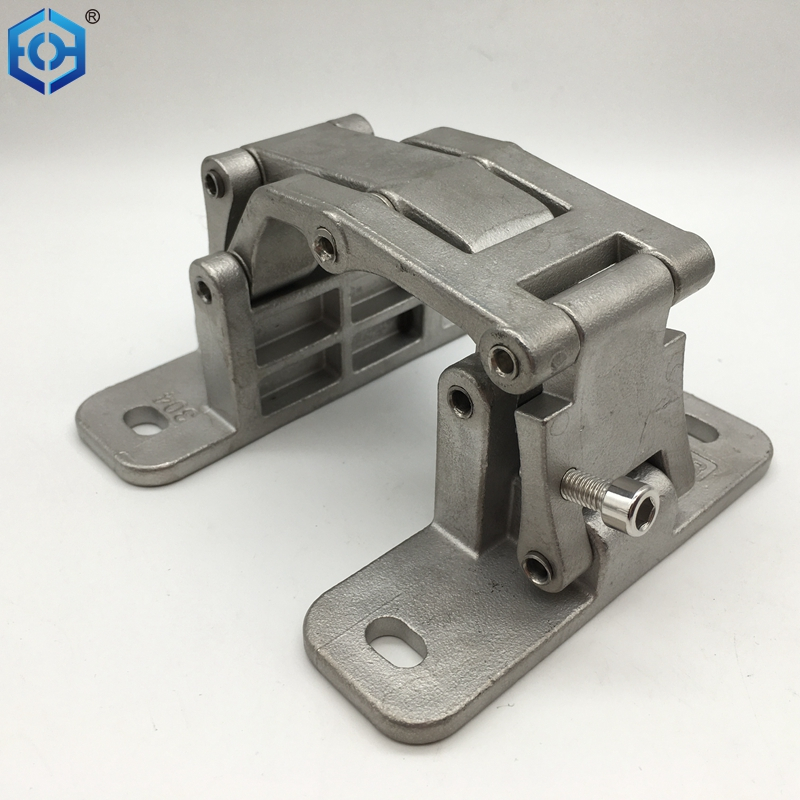

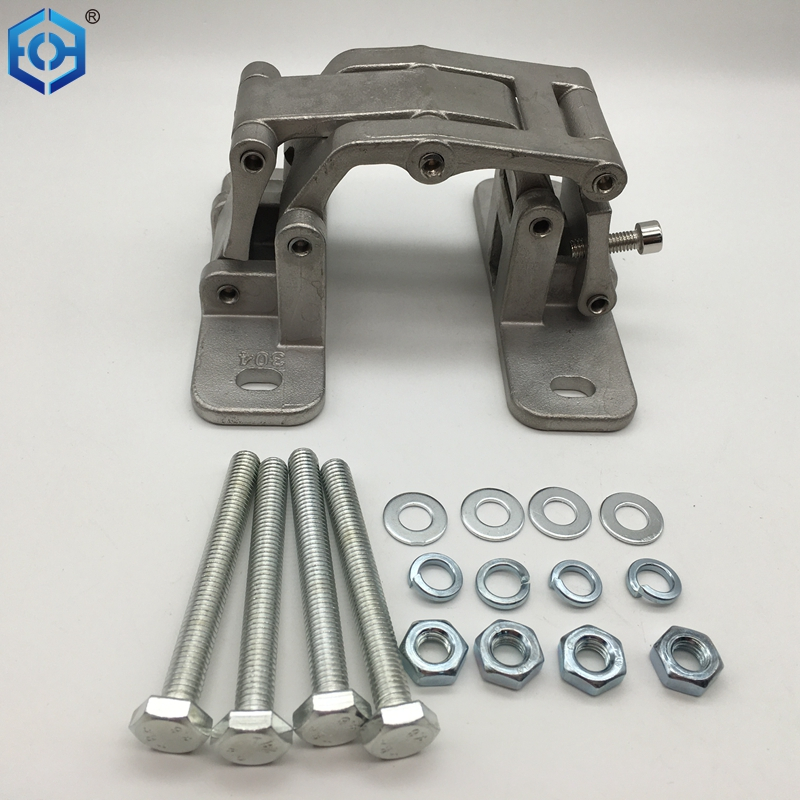

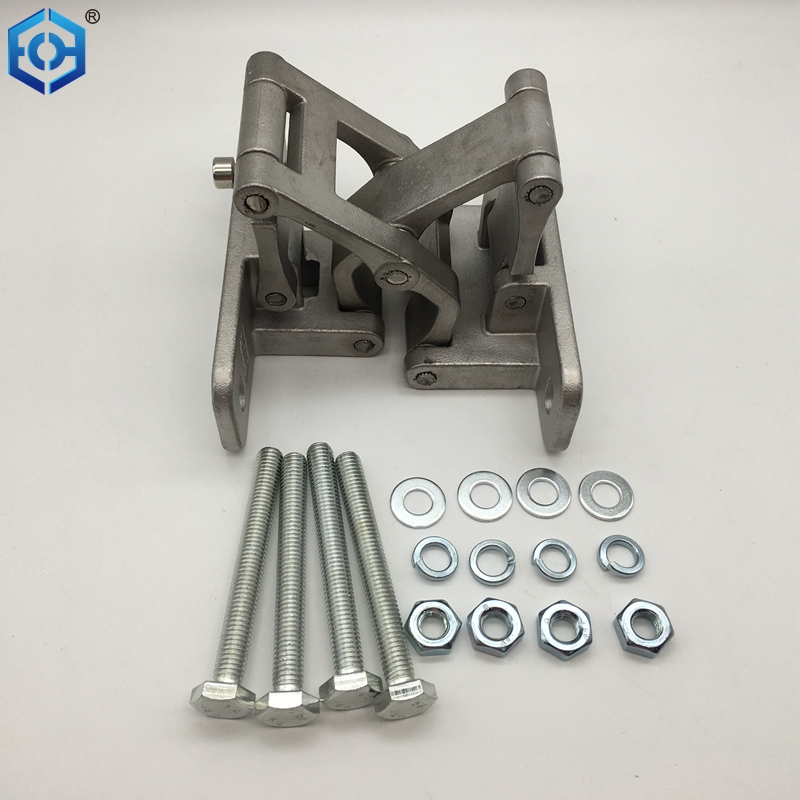

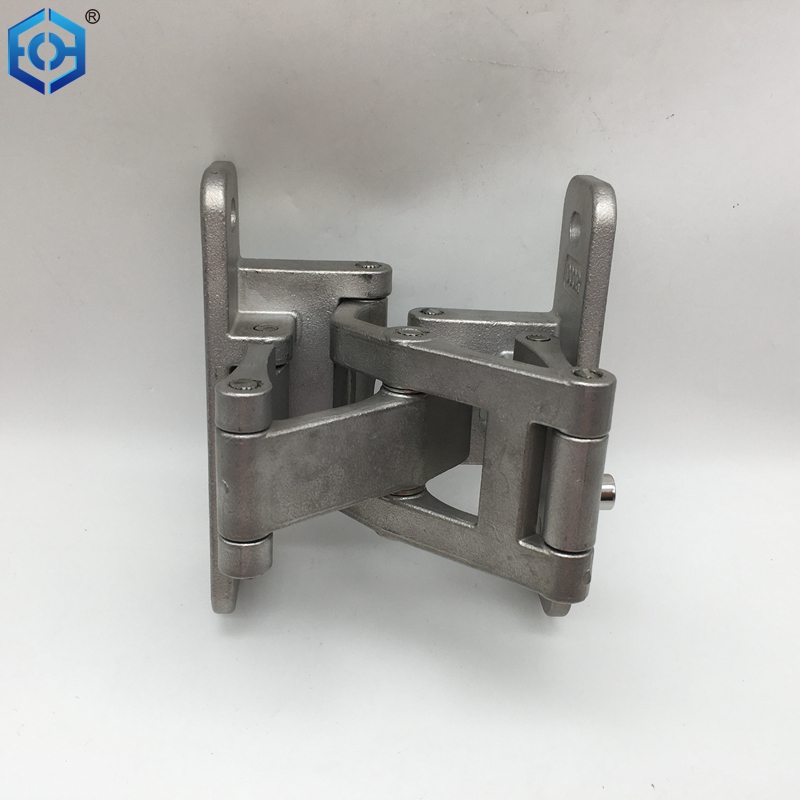

Product Picture:



EG002-2Applicable To The Left Or Right Hand Door Tube Well

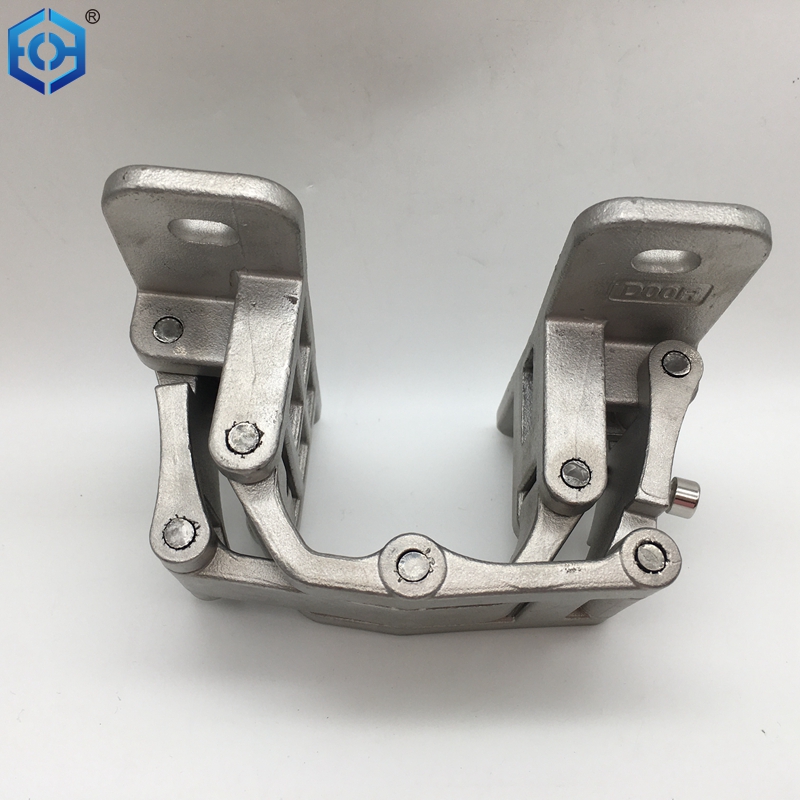

Adjustable Conceal Door Hinge

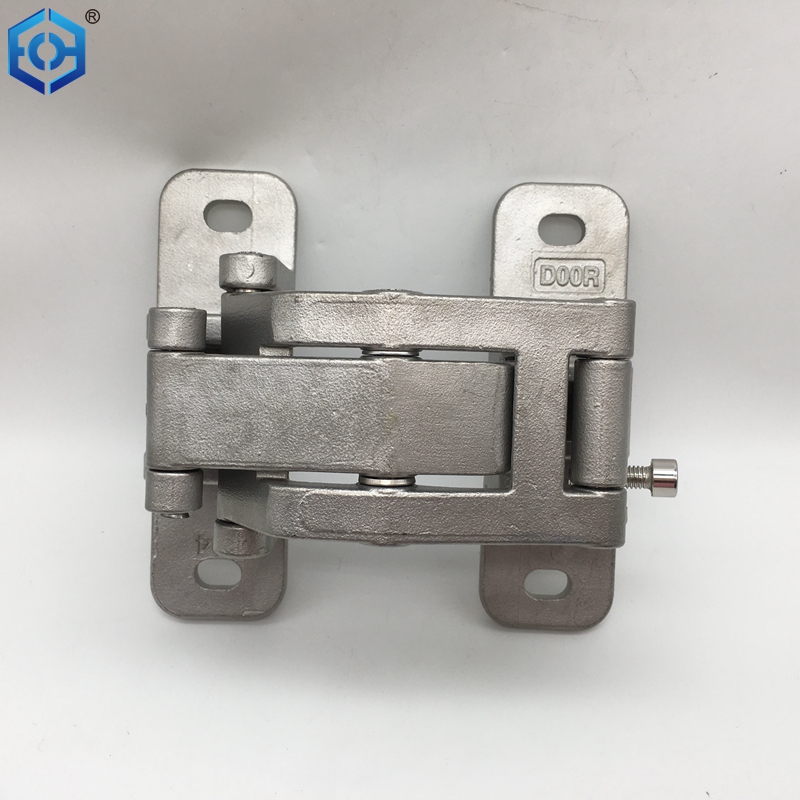

Solid 304 Stainless Steel concealed hinges

conceal hinge

hidden door hinges
