3-way Adjustable Concealed Hinge for 60kg Load Capacity Door Invisible Hinge Manufacturer
Product Details
Basic Info.
ADJUSTABLE CONCEALED HINGE
FEATURES
For wooden doors
For flush doors
Concealed installation
Adjustable after installed
Adjustments:
Vertical ±2mm, horizontal+-1.5mm and depth ±1mm
Opening angle:180°
TECHNICAL DATA
Max.door weight with 2 hinges: 60kg
Min.door thickness:36mm
Max.door width: 850mm
MATERIALS:Zinc Alloy
FINISHES:Chrome,Nickle,Brass and Painting

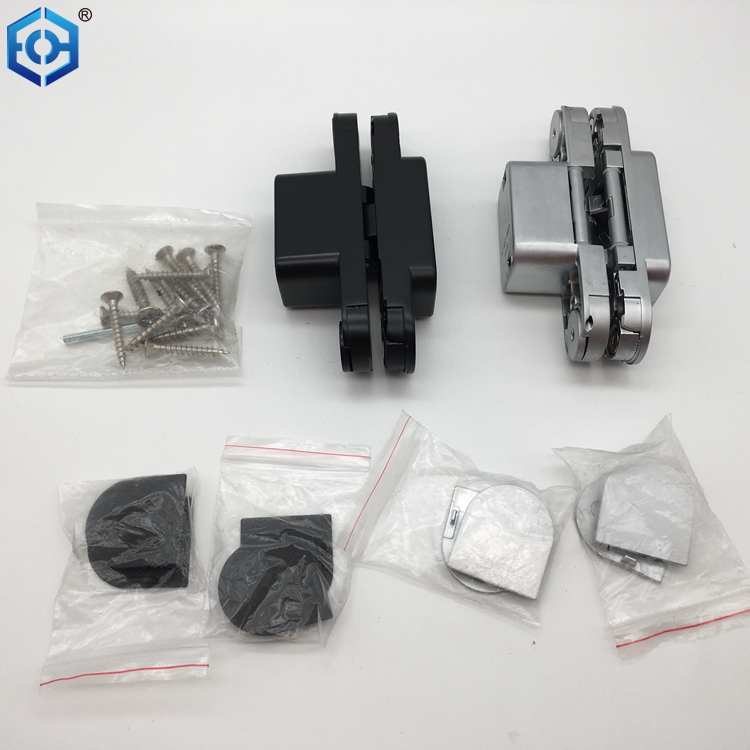

INSTALLATION: Wood tapping screws,Iron screws(optional)
Note
Finger protection due to small gap between door and frame
Application
Completely concealed for flush door with wood steel or aluminum frame
Hinge/door hinge/ zinc alloy door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery

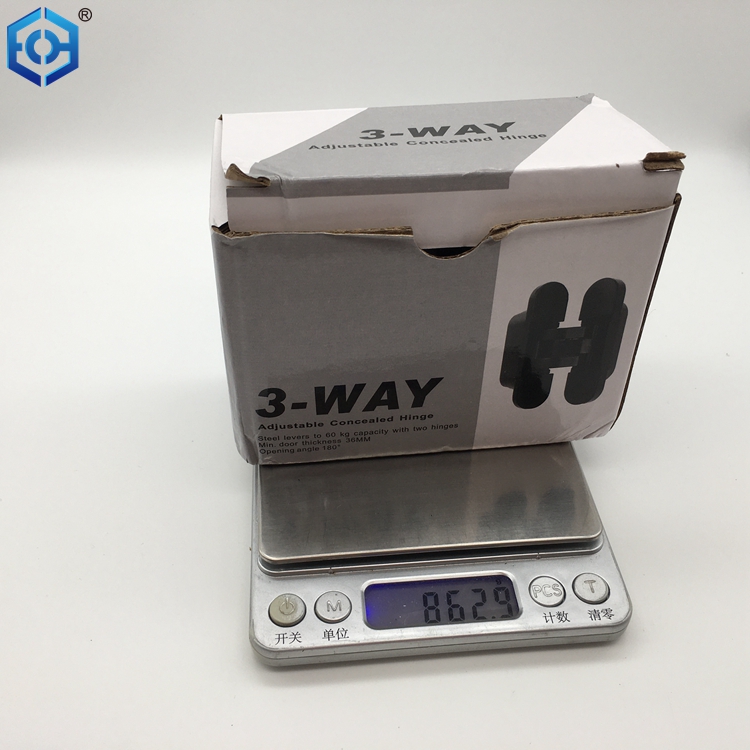

Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification | |
Type | door hinge |
Brand name | ECH |
Model NO. | EC128-110 |
Material | zinc alloy |
Finish | Satin chrome/Satin nickel/Polished chrome/Polished nickel |
Size | 110X30mm |
Radius comer | Round corner |
Inner packing | soft foam pastic bag, color box and blister packing |
Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
Delivery day | 30 working days |
name | hidden door hinge |

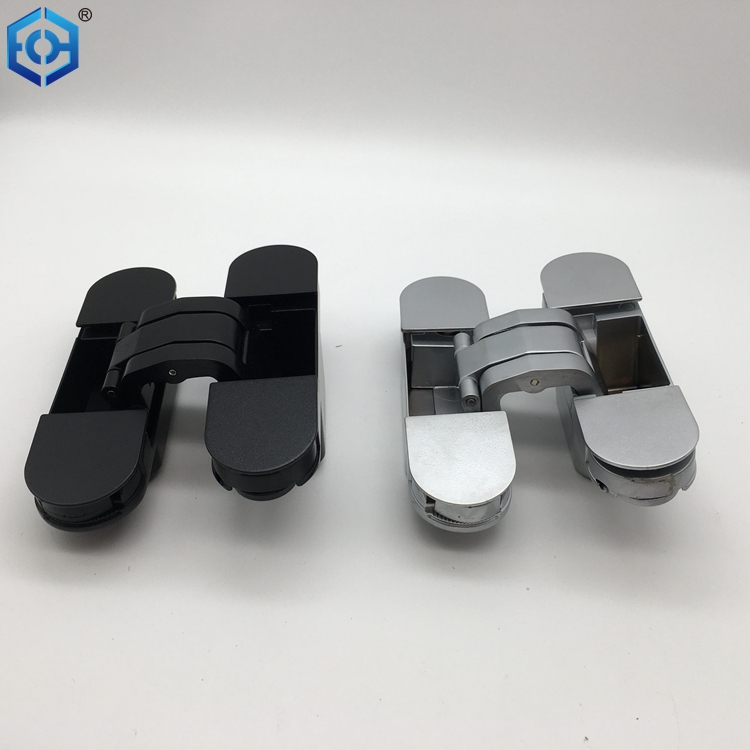

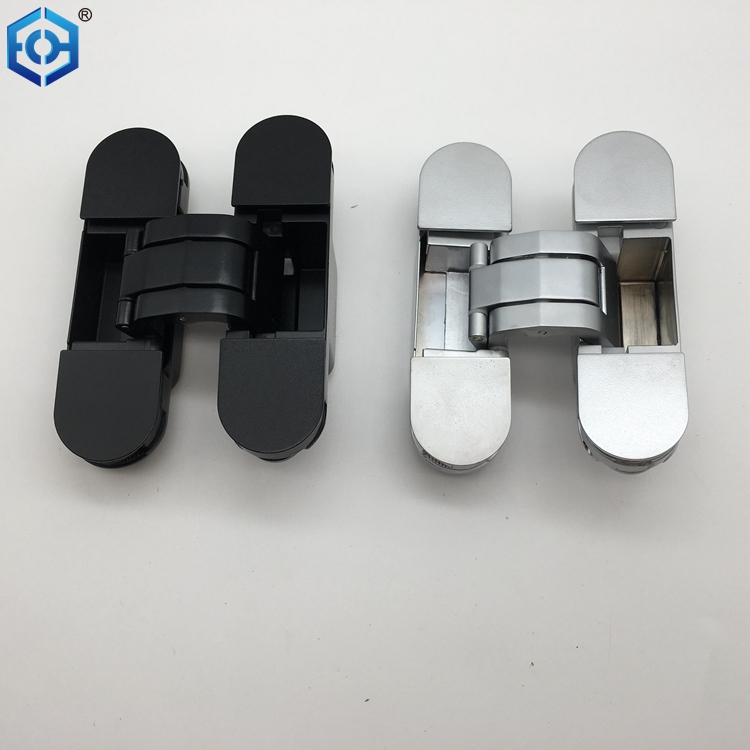

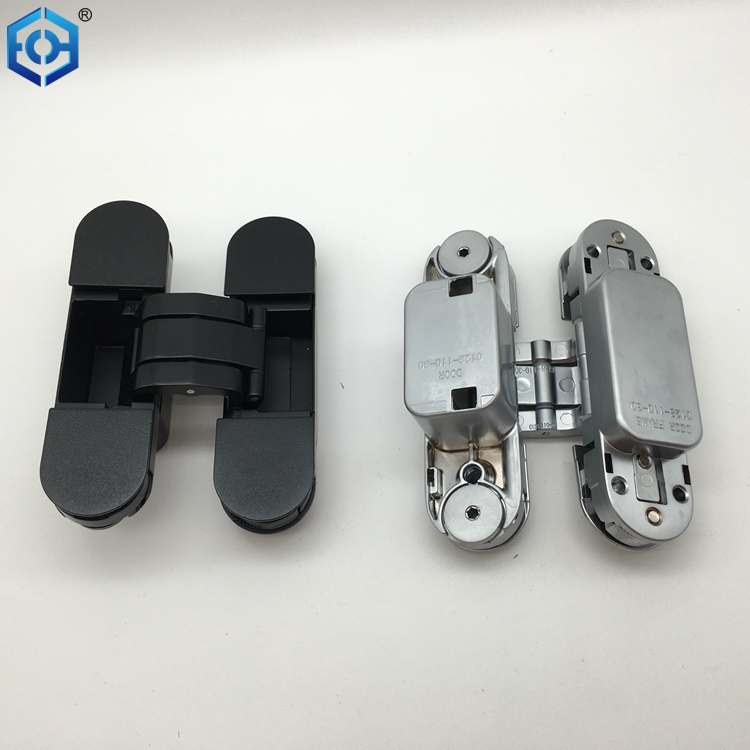

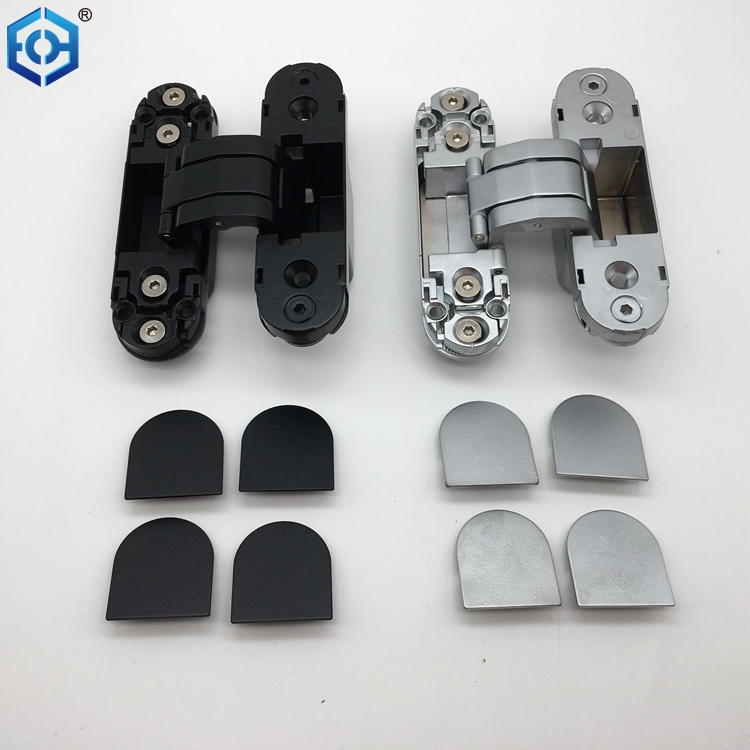

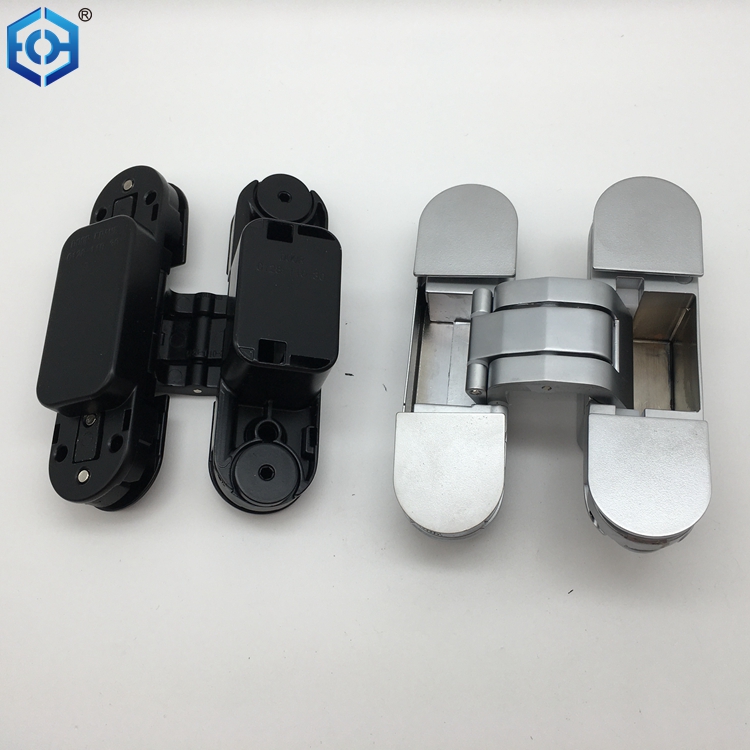

Product Picture:
