3D Adjustable Black Concealed Hinge for Interior Door

3D Adjustable Black Concealed Hinge for Interior Door
Finish:
Size:
Min door thickness:
Load-Bearing:
MAX.door width:
Availability:
Quantity:
  • CH113
  • ECH


3D Adjustable Black Concealed Hinge for Interior Door

Product Details
Basic Info.


ADJUSTABLE CONCEALED HINGE

FEATURES

For wooden doors

For flush doors

Concealed installation

Adjustable after installed

Adjustments:

Vertical ±3mm, horizontal+2mm,-2mm and depth ±1mm

Opening angle:180°

TECHNICAL DATA

Max.door weight with 2 hinges: 60kg

Min.door thickness: 36mm

Max.door width: 850mm

MATERIALS:Zinc Alloy,Aluminum

FINISHES:Chrome,Nickle,Brass and Painting

INSTALLATION: Wood tapping screws,Iron screws(optional)

Note

Finger protection due to small gap between door and frame

Application

Completely concealed for flush door with wood steel or aluminum frame




Hinge/door hinge/ zinc alloy door hinge/gate hinge

Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price



Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
Hidden door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



   Specification
Type door hinge
Brand name ECH
Model NO. CH113
Material zinc alloy
Finish Satin chrome/Satin nickel/Polished chrome/Polished nickel
Size 30X30X113mm
Radius comer Round corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 20 pairs in one carton
Delivery day 30 working days
name hidden door hinge

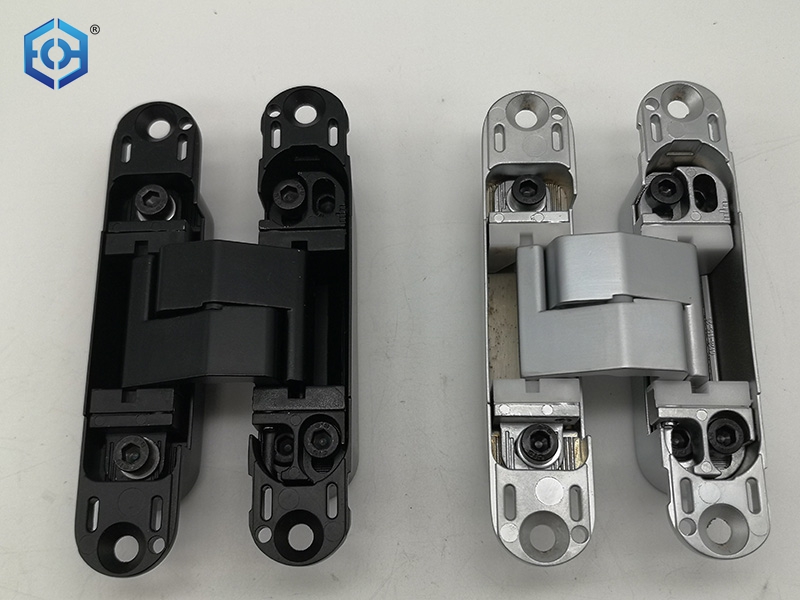

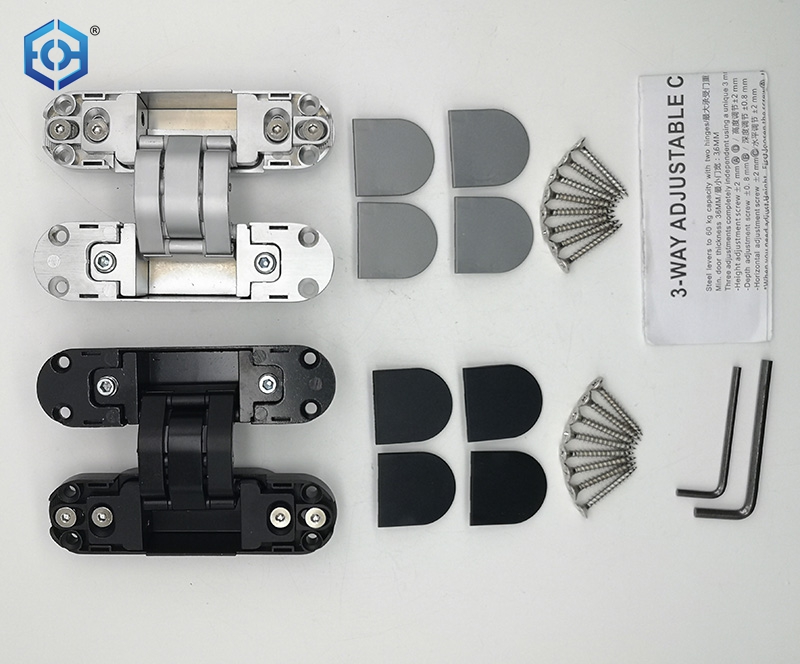

Product Picture:
