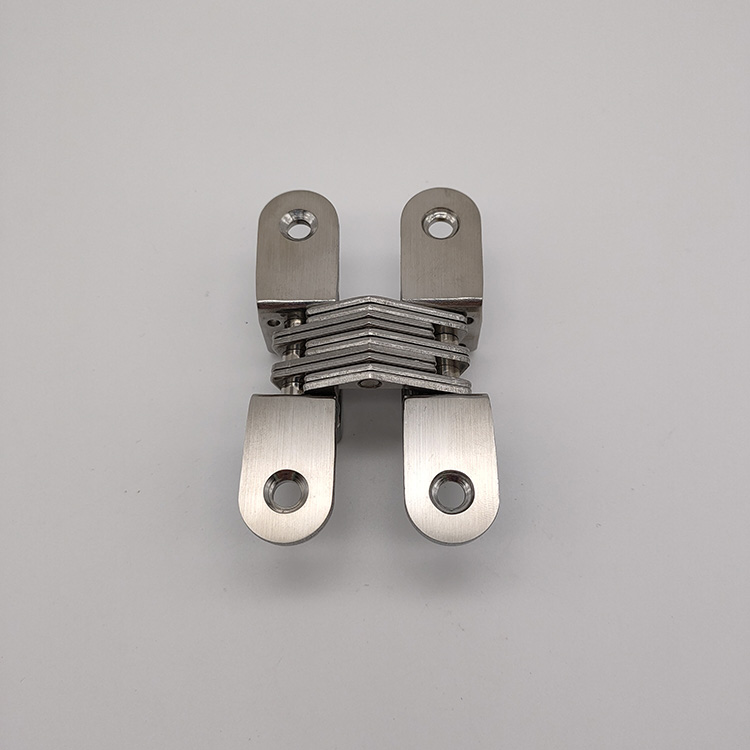

MA03-09
ECH
180 Degree Stainless Steel Mini Small Best Hidden European Concealed Hinges UK for Cabinets
Product Details
Basic Info.
Features:
1.For wooden doors,flush doors,aluminum doors;
2.Concealed installation;
3.Opening angle 180°；
4.Finish：SSS;
Technical Data：
1.Max.door weight with 2 hinges:7/10/20/30/50/70/85kg;
2.Min.door thickness:32mm;
3.Height:44.5-137mm
4.Width frame:12.4-33.5mm
5.Depth frame :16.7-40.5mm
Hinge/door hinge/ zinc alloy door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification | |
| Type | door hinge |
| Brand name | ECH |
| Model NO. | MA03-09 |
| Material | stainless steel |
| Finish | SSS |
| Size | 44.5-137mm |
| Radius comer | square corner |
| Inner packing | soft foam pastic bag, color box and blister packing |
| Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
| Delivery day | 30 working days |
| name | hidden door hinge |

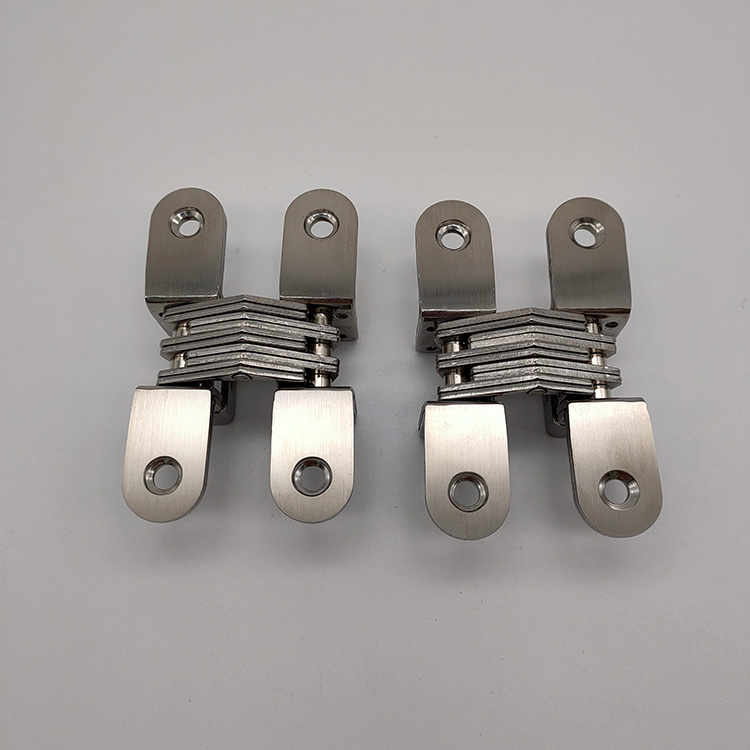

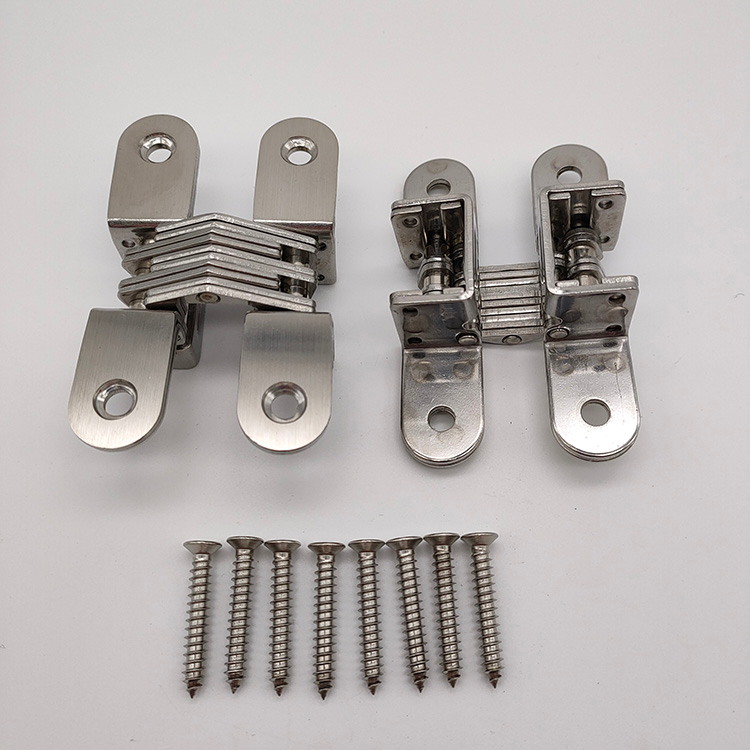

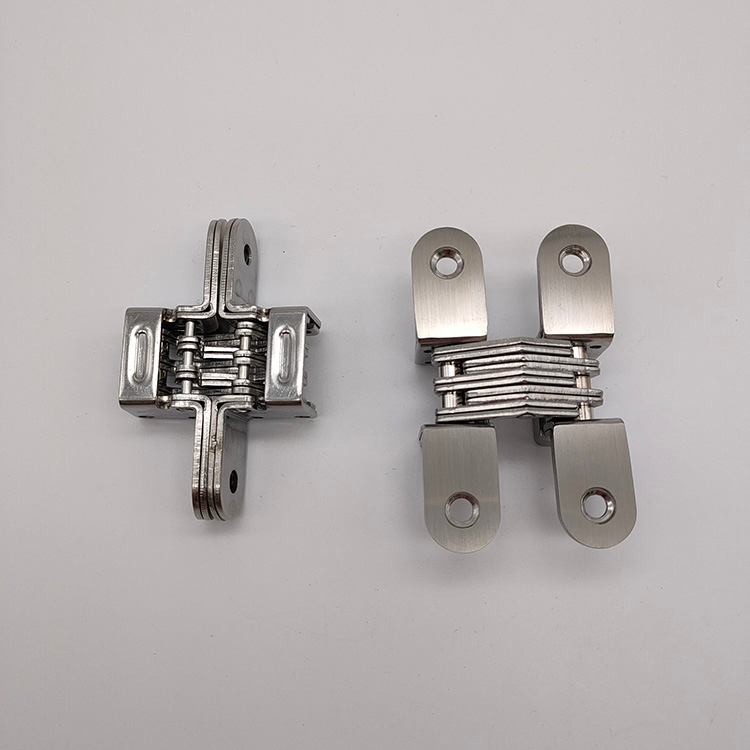

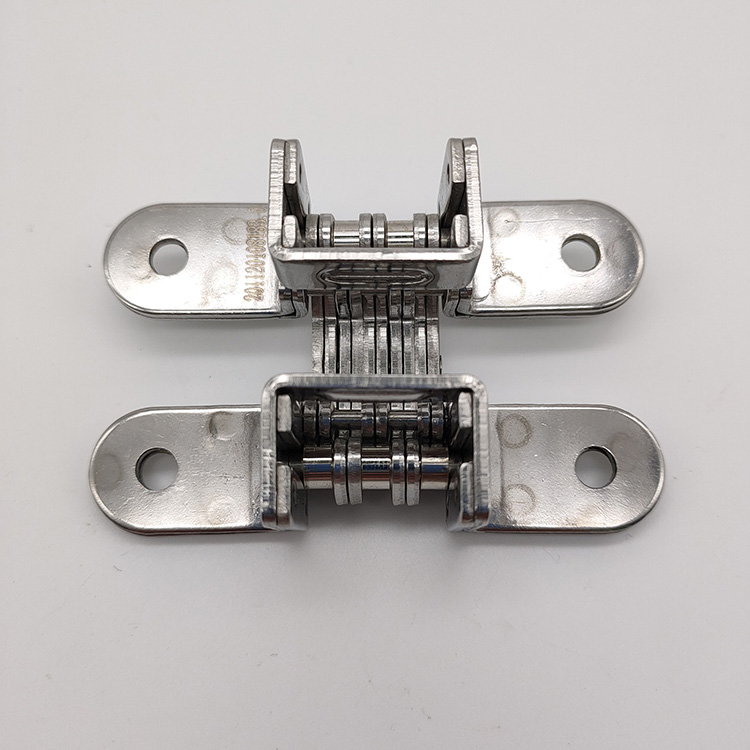

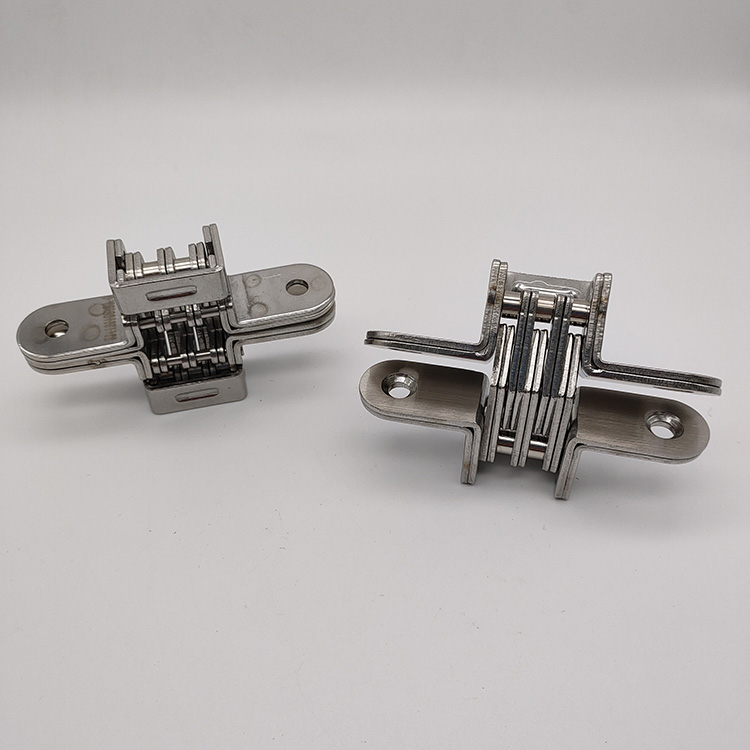

Product Picture

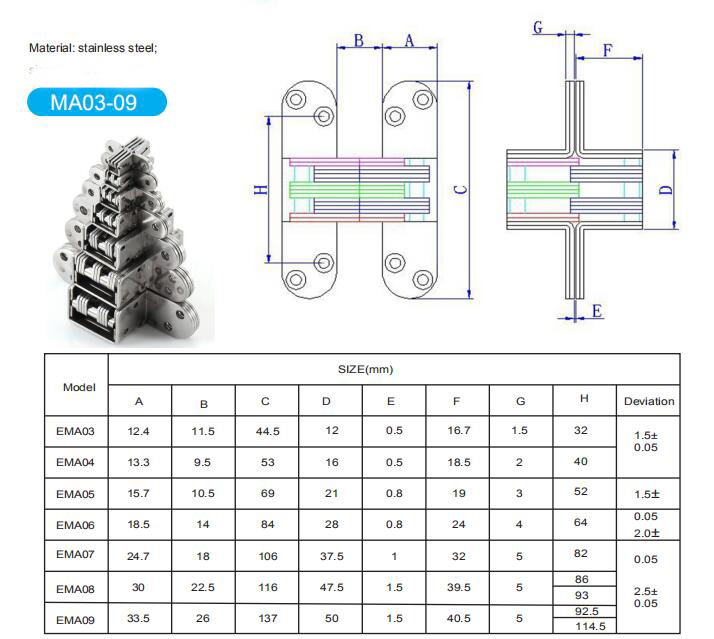

Product Size Picture:
