Concealed 3d Door Hinge Adjustment Zinc Alloy Door Hinges

3d Adjustable Invisible Hinge Heavy Duty Zinc Alloy 180 Degree Concealed Door Hinges

Finish:
Size:
Min door thickness:
height:
Load-Bearing:
Quantity:
  • EC160
  • ECH
  • 12/pcs


Product Details
Basic Info.


Features:

1.For wooden doors,flush doors,aluminum doors;

2.Concealed installation;

3.3D Adjustments:vertical ±3mm,horizontal ±3mm and depth ±1mm;

4.Opening angle 180°;

5.Finish:SC/SN/PC/PN/AB/AC/white/black;


Technical Data:

1.Max.door weight with 2 hinges:80KG;

2.Min.door thickness:40mm;

3.Height:160mm

4.Width:frame:28mm/leaf:28mm;

5.Depth:frame:31mm/leaf:33.5mm;

6.Router Bit Diameter:24mm


Hinge/door hinge/ zinc alloy door hinge/cabinet hinge

Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price



Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
Hidden door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



   Specification
Type door hinge
Brand name ECH
Model NO. EC160
Material zinc alloy
Finish Satin chrome/Satin nickel/Polished chrome/Polished nickel
Size 28X28X160mm
Radius comer square corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 20 pairs in one carton
Delivery day 30 working days
name hidden door hinge

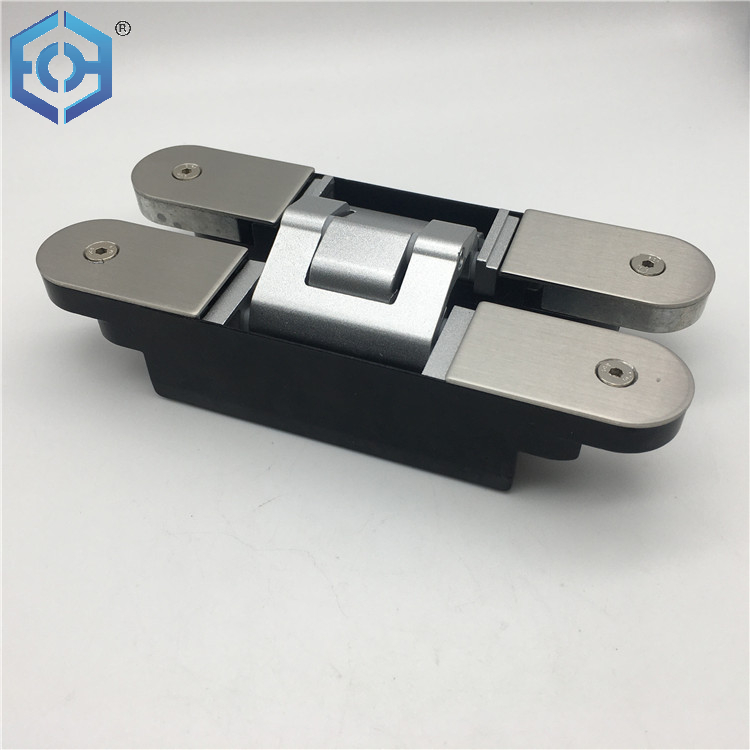

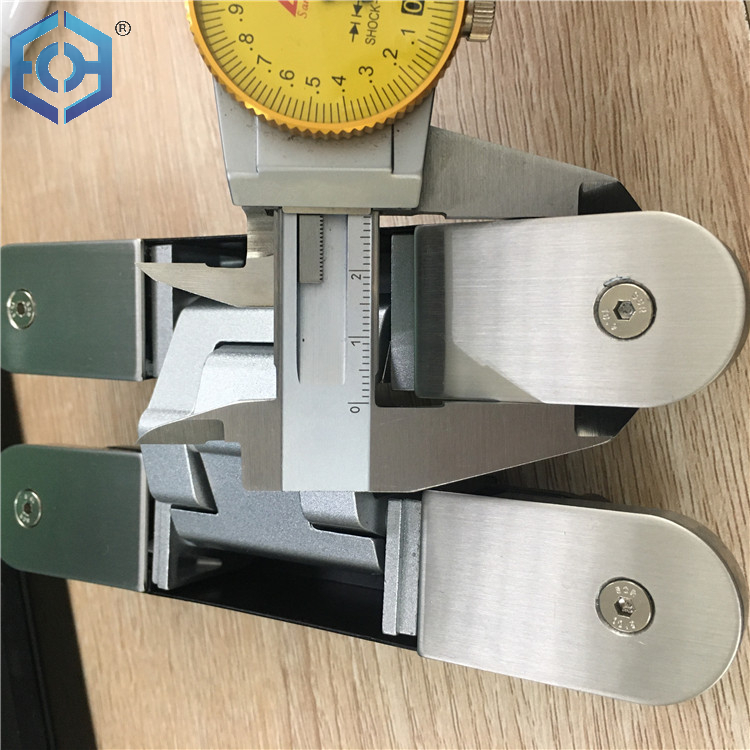

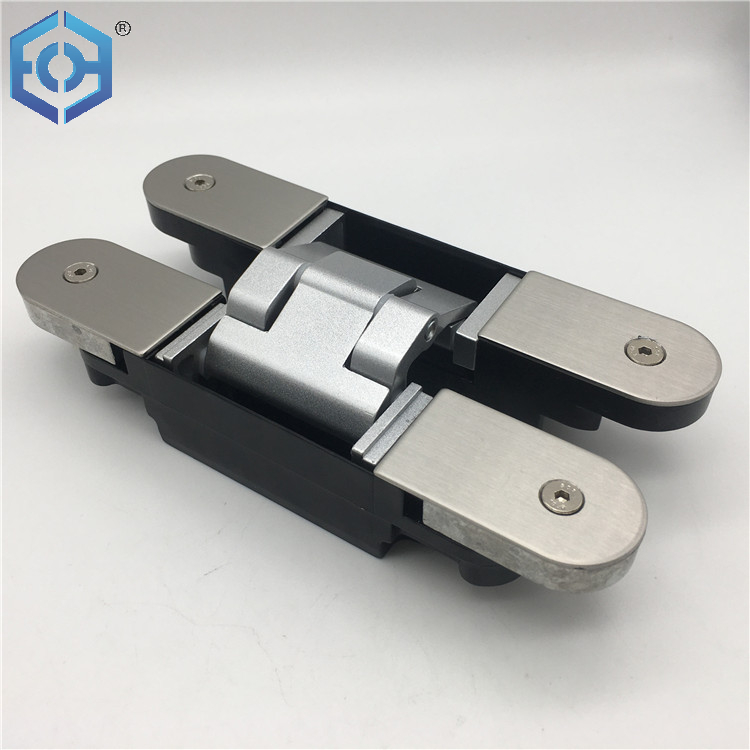

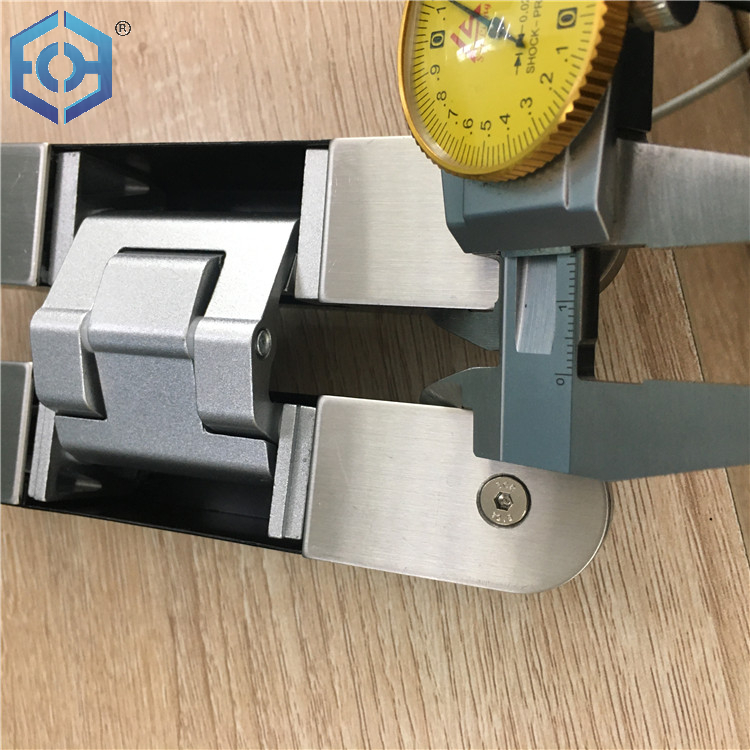

Product Picture:

concealed hinge cad blockconcealed hinge crankconcealed hinge cutter jigconcealed hinge cad fileconcealed hinge doorconcealed hinge drill bitconcealed hinge drilling systemconcealed hinge drilling guide

concealed hinge detailconcealed hinge door detailconcealed hinge depthconcealed hinge dimensions
