Zinc Alloy 120 Degree Second-Dimensional Adjustable Invisible Concealed Door Cabinet Hinge

Zinc Alloy 120 Degree Second-Dimensional Adjustable Invisible Concealed Door Cabinet Hinge

Finish:
Size:
Min door thickness:
Load-Bearing:
MAX.door width:
Quantity:
  • G80KG-C
  • ECH


Zinc Alloy 120 Degree Second-Dimensional Adjustable Invisible Concealed Door Cabinet Hinge

Product Details
Basic Info.


Features:

1.For wooden doors,flush doors,aluminum doors;

2.Concealed installation;

3.3D Adjustments:vertical ±3mm and depth ±1mm;

4.Opening angle 120°;

5.Finish:silver/black;

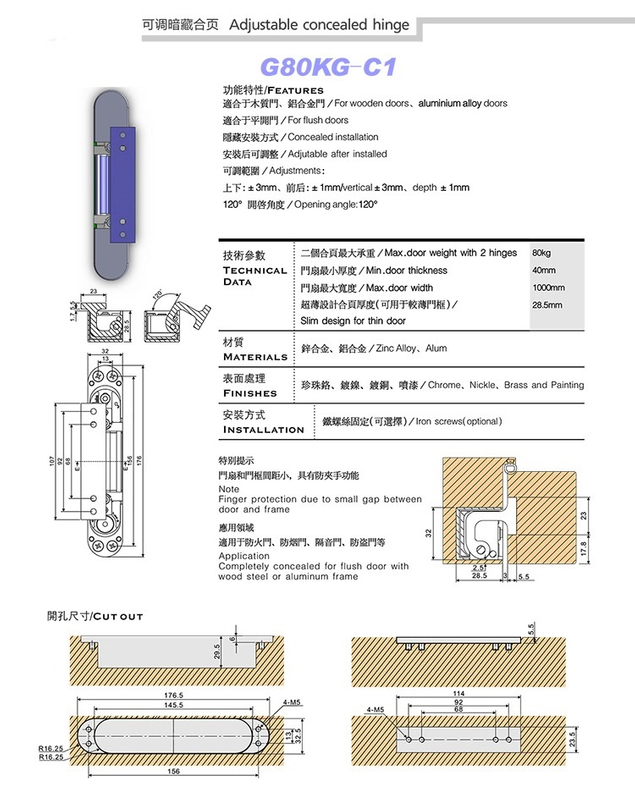

Technical Data:

1.Max.door weight with 2 hinges:80KG;

2.Min.door thickness:40mm;

3.Max.door width:1000mm

4.slim design for thin door :28.5mm



Hinge/door hinge/ zinc alloy door hinge/gate hinge

Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price



Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
Hidden door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



   Specification
Type door hinge
Brand name ECH
Model NO. G80KG-C
Material zinc alloy
Finish Satin chrome/Satin nickel/Polished chrome/Polished nickel
Size 176X32mm
Radius comer square corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 20 pairs in one carton
Delivery day 30 working days
name hidden door hinge

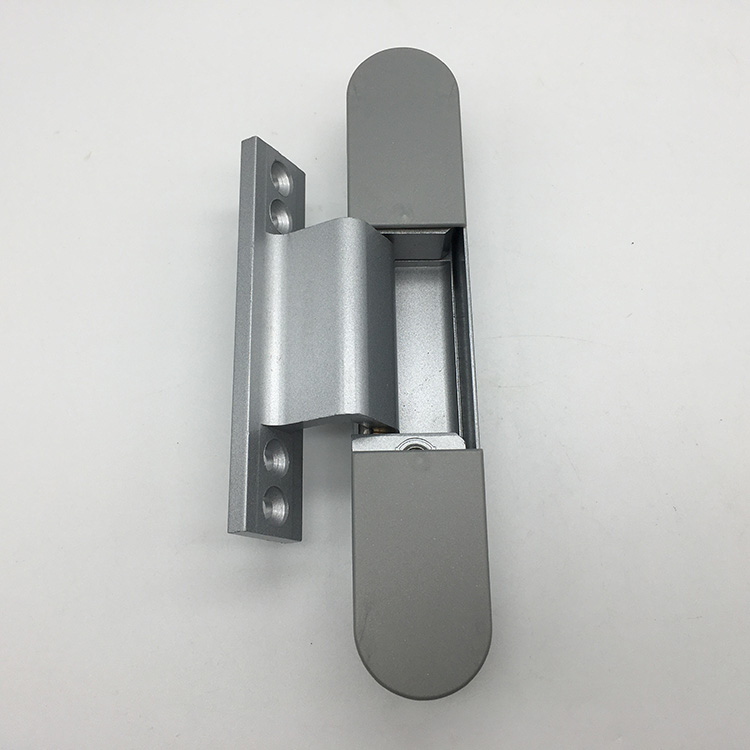

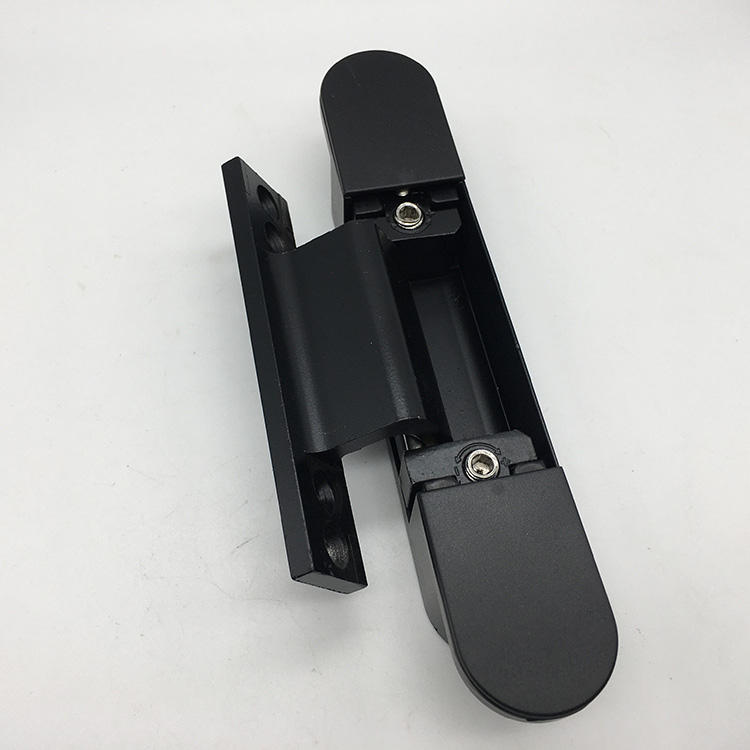

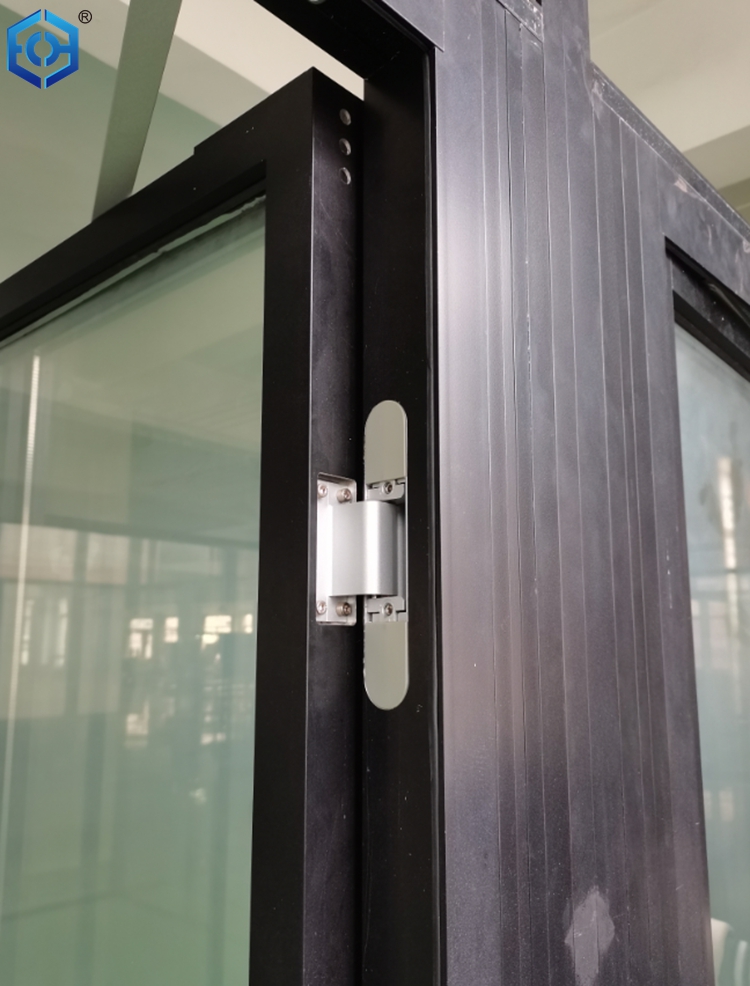

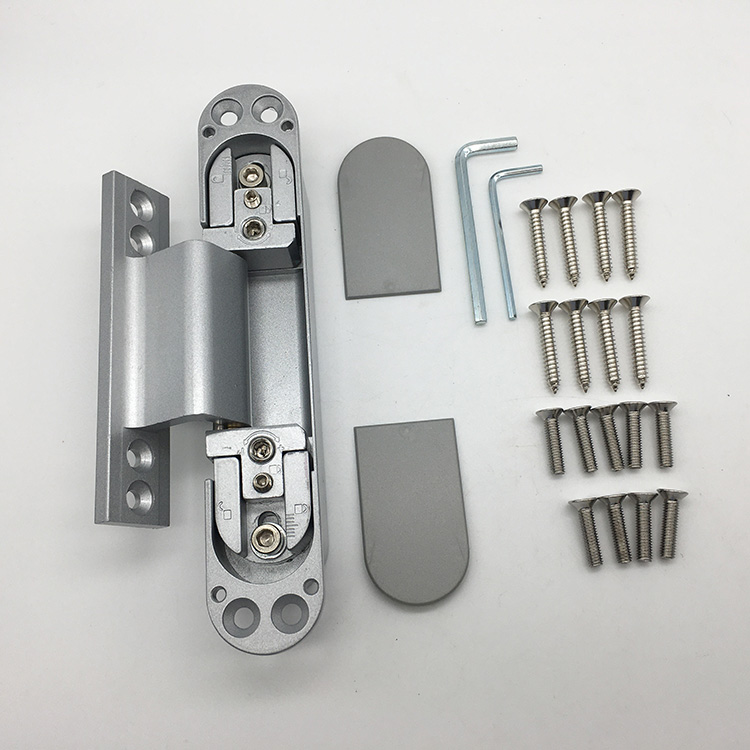

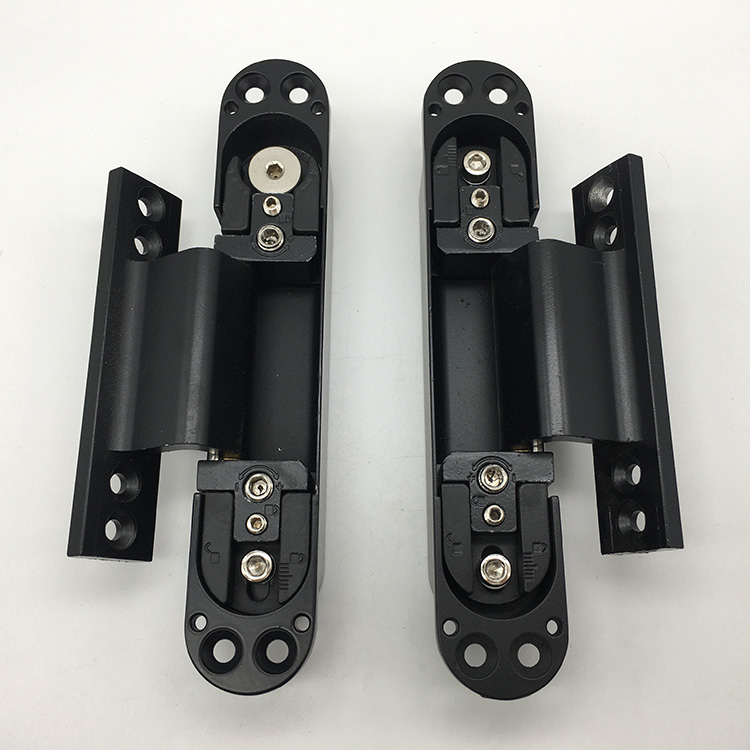

Product Picture:

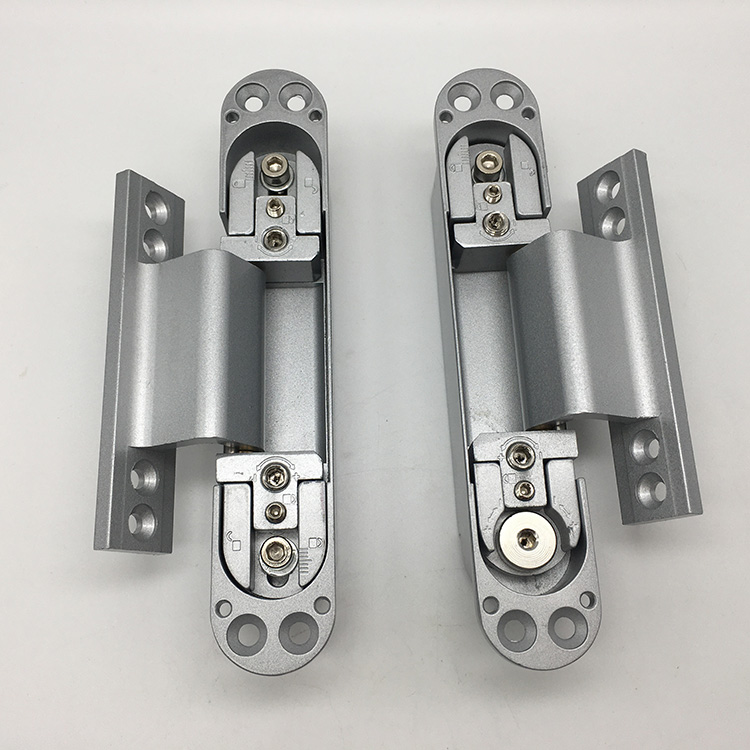

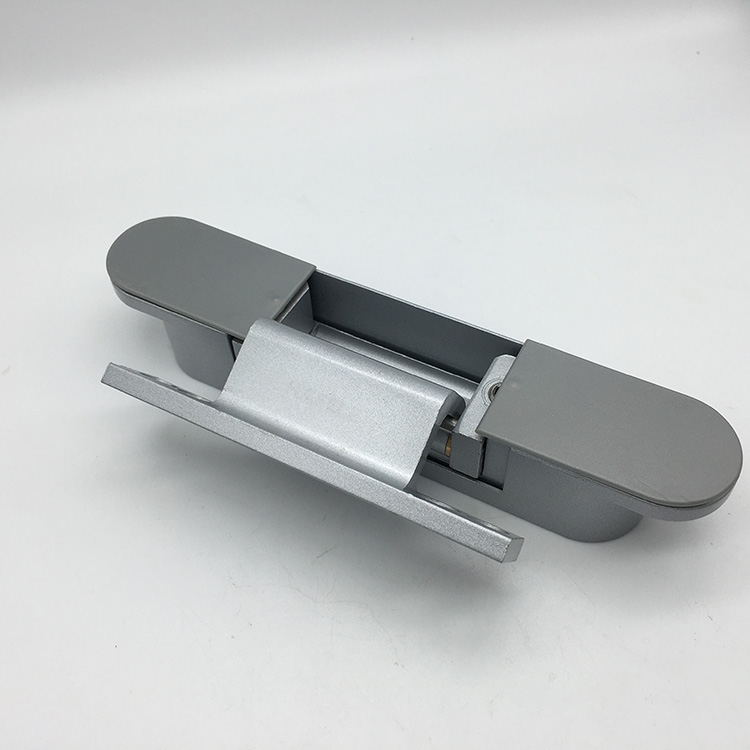

Adjusting Concealed HingesConcealed Door Hinges BunningsInset Cupboard HingesInset Cupboard HingesInset Cupboard HingesAdjusting Concealed HingesConcealed Hinges C1Zinc Alloy 120 Degree Cabinet Hinge

Second-Dimensional Conceal HingeAdjustable Invisible Hinge2D conceal hingeConcealed Door Cabinet Hinge

concealed hinge geometry
