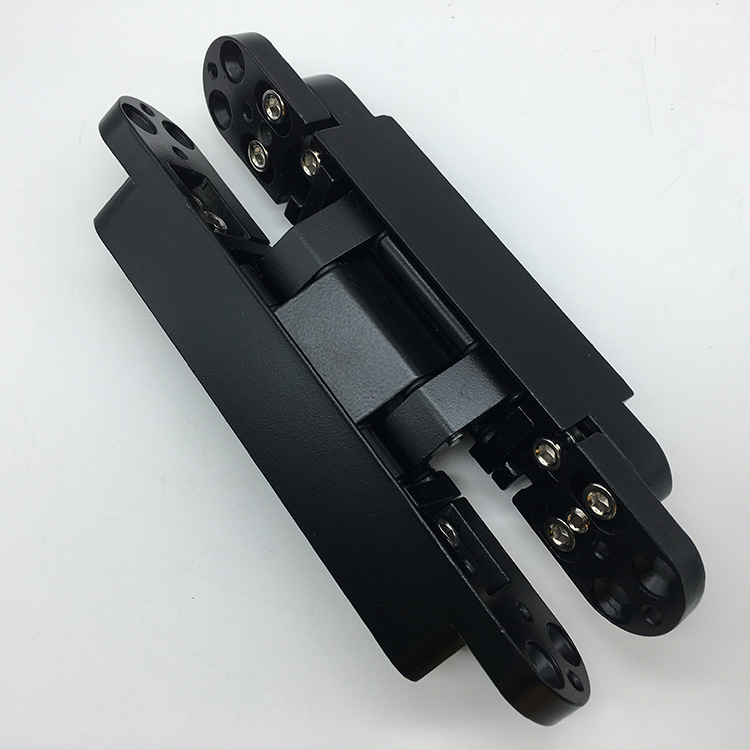

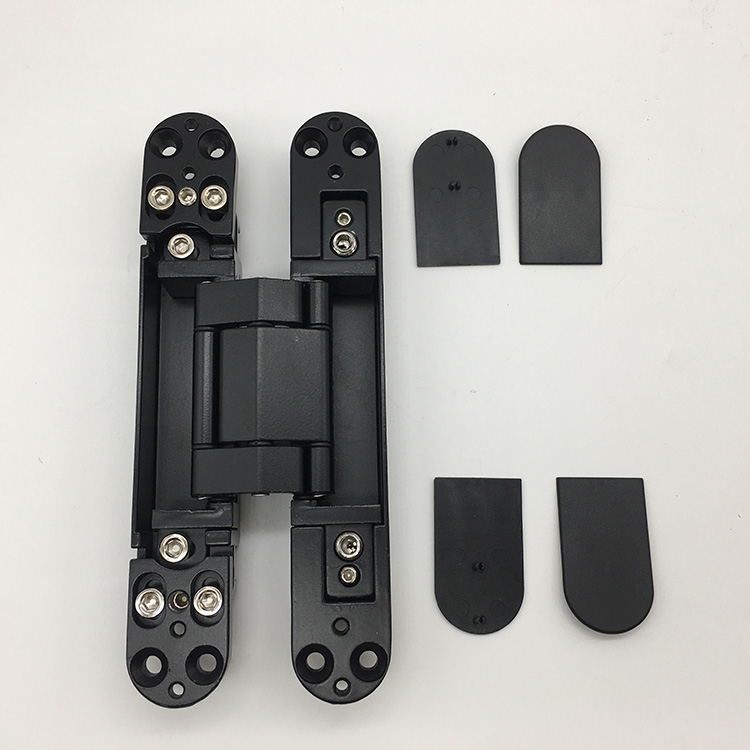

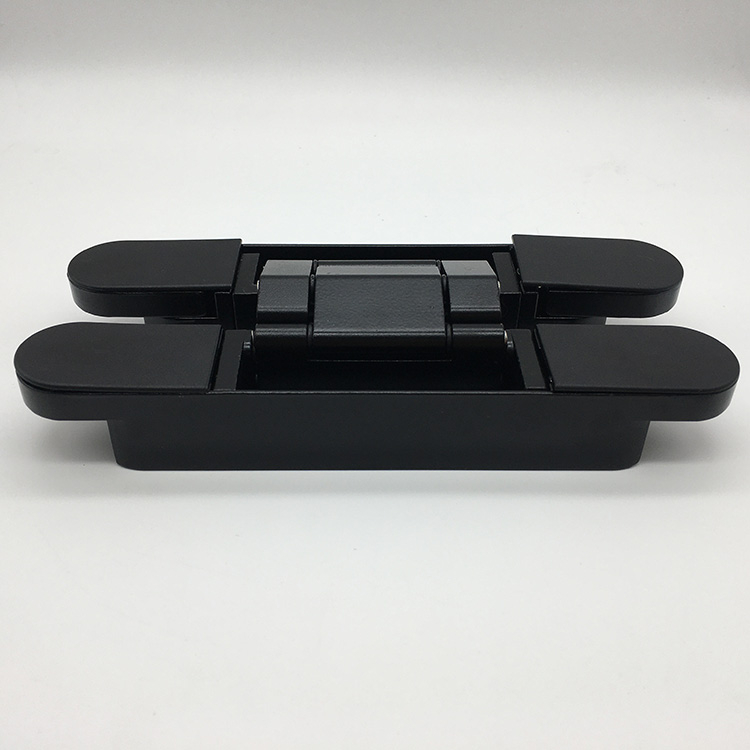

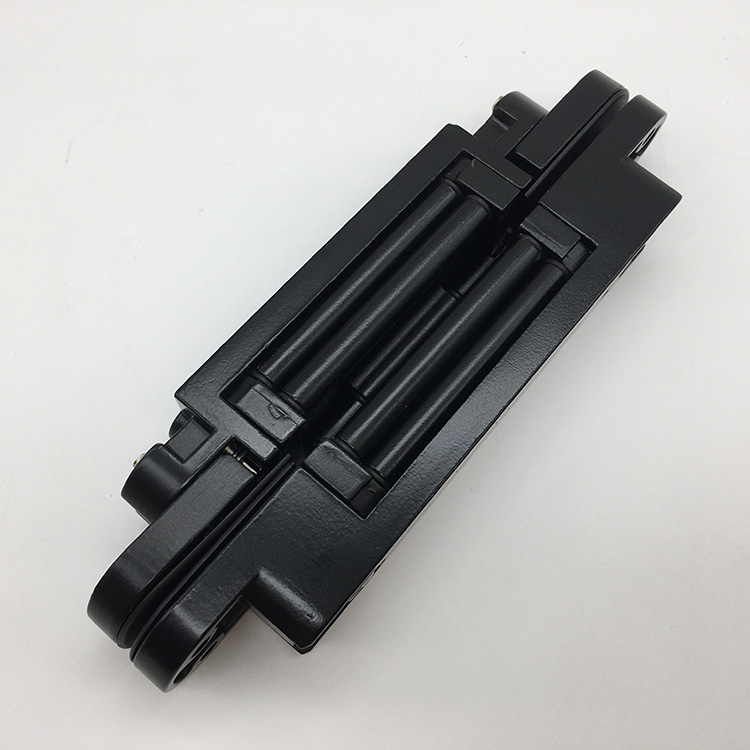

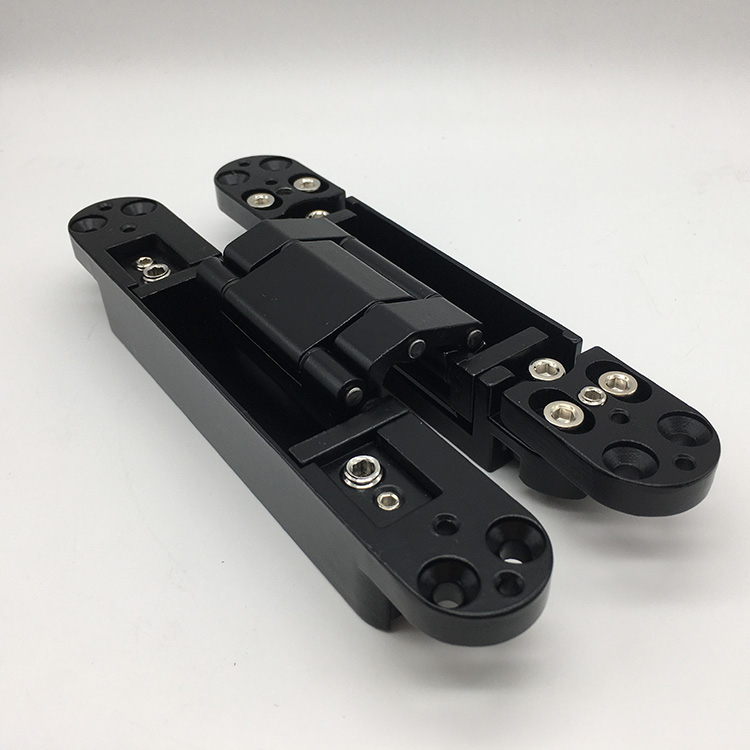

Black Zinc Alloy Heavy Duty 3D Adjust Concealed Invisible Hidden Hinge

Zinc Alloy 120 Degree Second-Dimensional Adjustable Invisible Concealed Door Cabinet Hinge
Finish:
Size:
Min door thickness:
Load-Bearing:
MAX.door width:
Quantity:
  • G120-Black
  • ECH

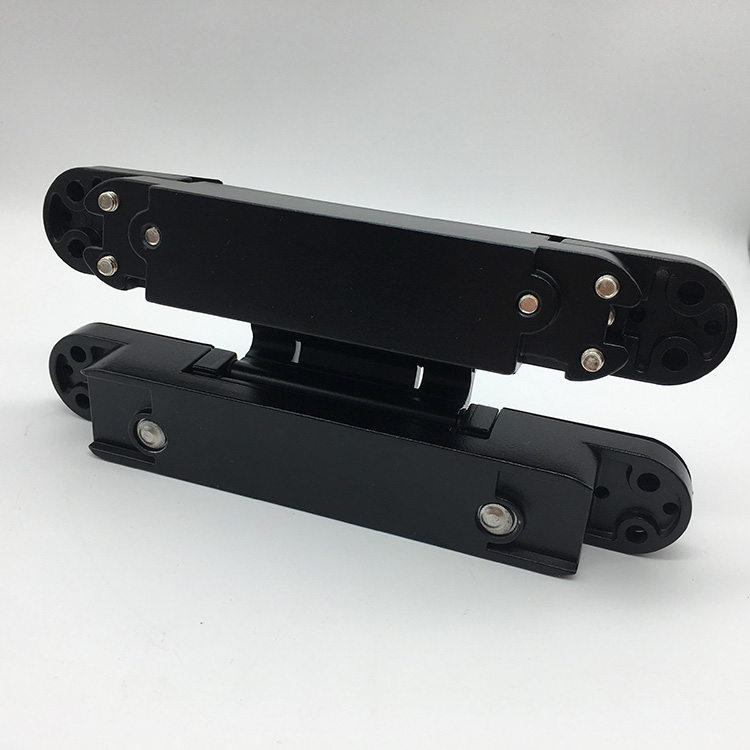

Black Zinc Alloy Heavy Duty 3D Adjust Concealed Invisible Hidden Hinge

Product Details
Basic Info.


ADJUSTABLE CONCEALED HINGE

FEATURES

For wooden doors

For flush doors

Concealed installation

Adjustable after installed

Adjustments:

Vertical ±3mm, horizontal+2mm,-2mm and depth ±1mm

Opening angle:180°

TECHNICAL DATA

Max.door weight with 2 hinges: 120kg

Min.door thickness: 45mm

Max.door width: 1300mm

Slim design for thin door: 26.5mm

MATERIALS:Zinc Alloy,Alum

FINISHES:Chrome,Nickle,Brass and Painting

INSTALLATION: Wood tapping screws,Iron screws(optional)

Note

Finger protection due to small gap between door and frame

Application

Completely concealed for flush door with wood steel or aluminum frame




Hinge/door hinge/ zinc alloy door hinge/gate hinge

Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price



Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
Hidden door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



   Specification
Type door hinge
Brand name ECH
Model NO. G120-Black
Material zinc alloy
Finish Satin chrome/Satin nickel/Polished chrome/Polished nickel
Size 246x34x27mm
Radius comer Round corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 20 pairs in one carton
Delivery day 30 working days
name hidden door hinge

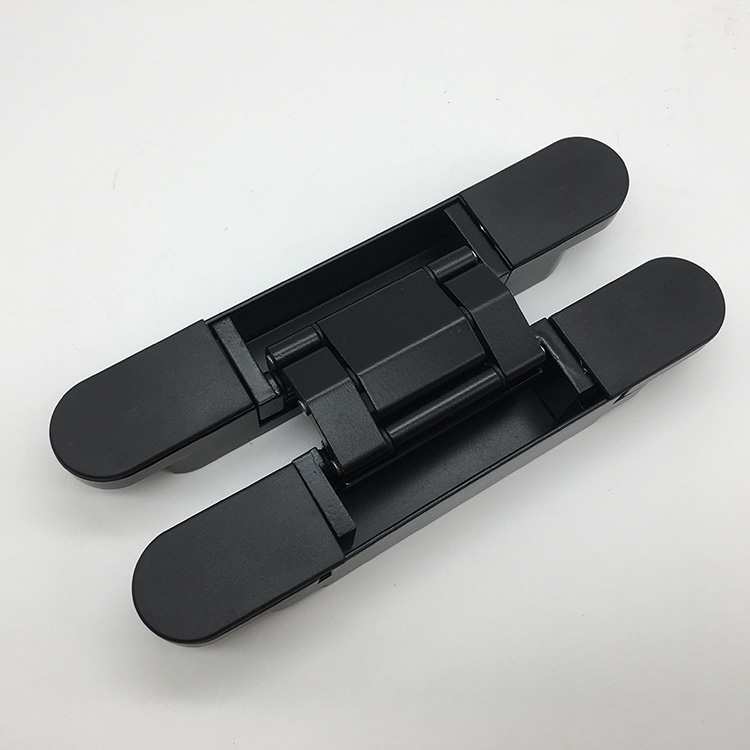

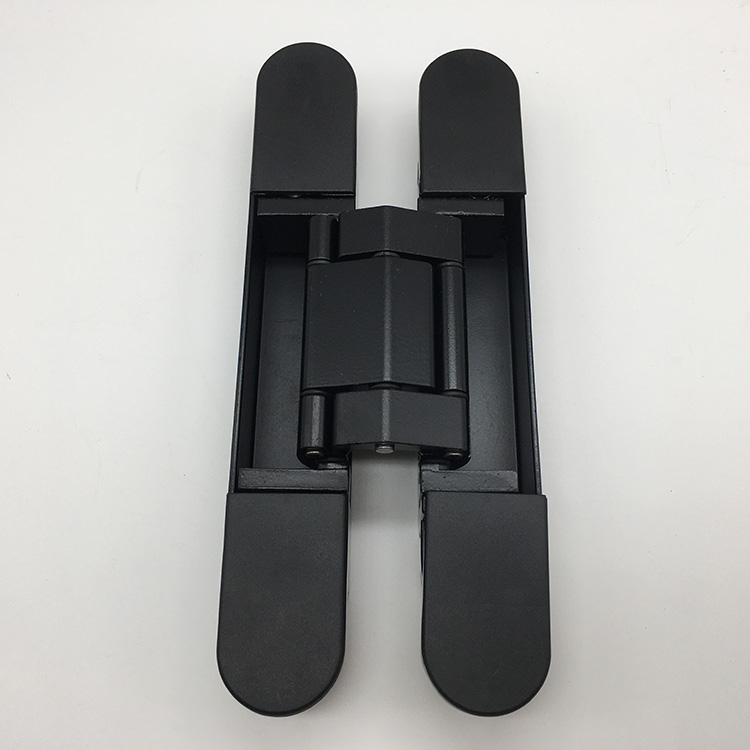

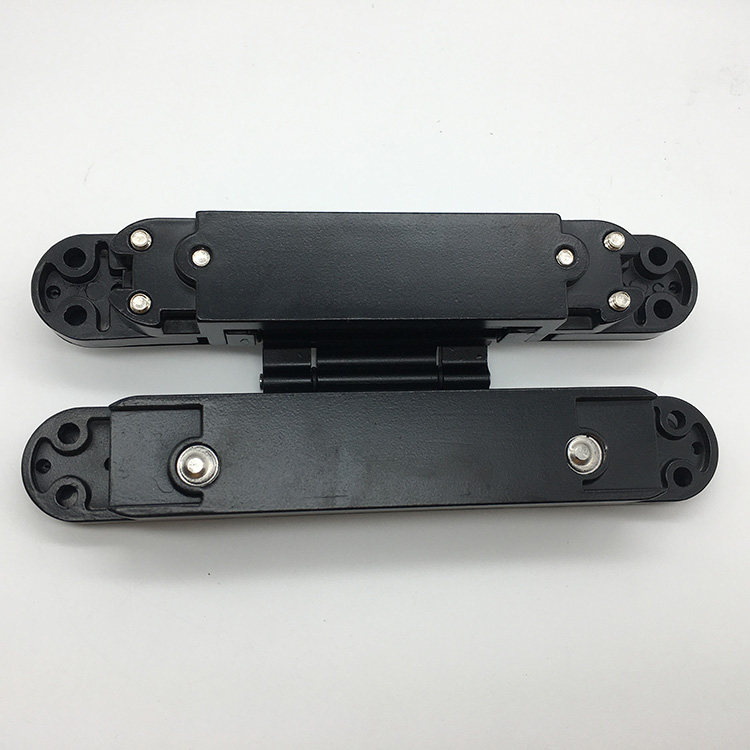

Product Picture:

concealed hinge adjustmentconcealed hinge adelaide

concealed hinge access panel concealed hinge 90° easy mount steelconcealed euro hingeconcealed geared hingeconcealed gravity hinge concealed hinge concealed hinge & mounting plate drilling jigconcealed hinge 100 degree with 15mm crank

Adjustable Invisible Hinge

concealed hinge geometry
