EC100B
ECH
2D Adjustable Concealed Hinges for Kitchen Furniture Hardware Woodwork Hidden Door Hinge Home Wooden Cabinet Folding Wood Gate
Product Details
Basic Info.
ADJUSTABLE CONCEALED HINGE
FEATURES
For wooden doors
For flush doors
Concealed installation
Adjustable after installed
Adjustments:
Vertical ±3mm, horizontal+2mm,-2mm and depth ±1mm
Opening angle:180°

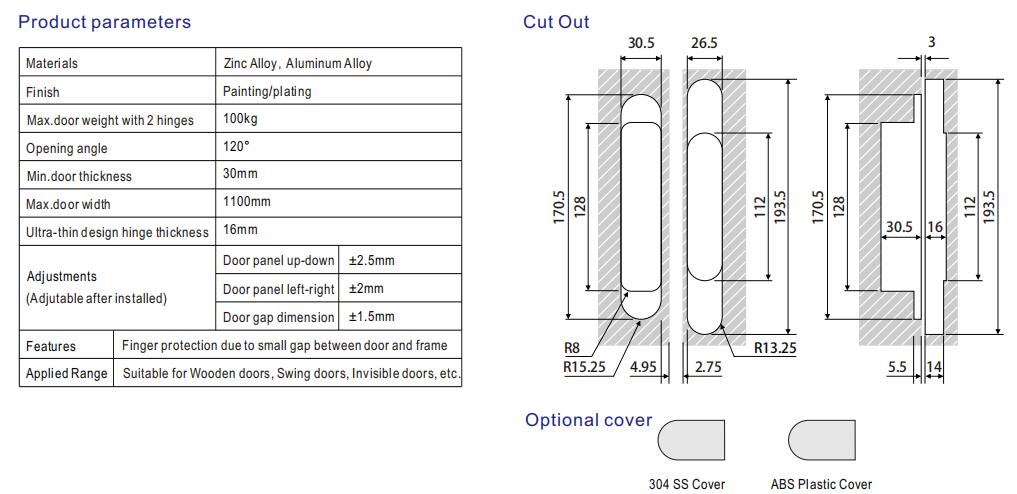

TECHNICAL DATA
Max.door weight with 2 hinges: 100kg
Min.door thickness: 30mm
Max.door width: 1100mm
Slim design for thin door: 26.5mm
MATERIALS:Zinc Alloy,Aluminum
FINISHES:Chrome,Nickle,Brass and Painting
INSTALLATION: Wood tapping screws,Iron screws(optional)
Note
Finger protection due to small gap between door and frame
Application
Completely concealed for flush door with wood steel or aluminum frame
Hinge/door hinge/ zinc alloy door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification | |
| Type | door hinge |
| Brand name | ECH |
| Model NO. | EC100B |
| Material | zinc alloy Aluminum |
| Finish | Satin chrome/Satin nickel/Polished chrome/Polished nickel |
| Size | 170.5X30.5/193.5X26.5mm |
| Radius comer | Round corner |
| Inner packing | soft foam pastic bag, color box and blister packing |
| Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
| Delivery day | 30 working days |
| name | hidden door hinge |

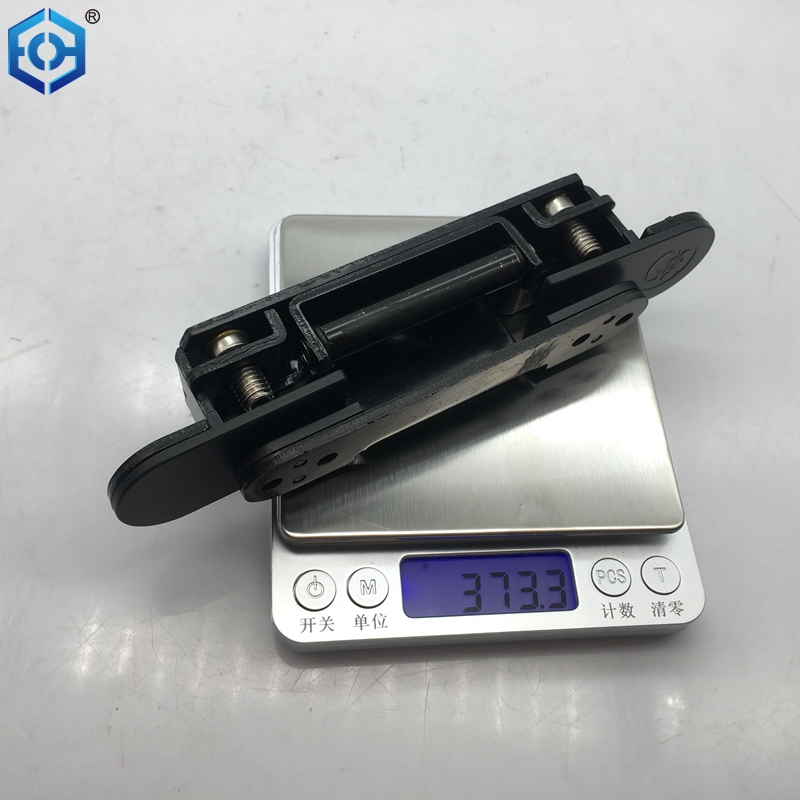

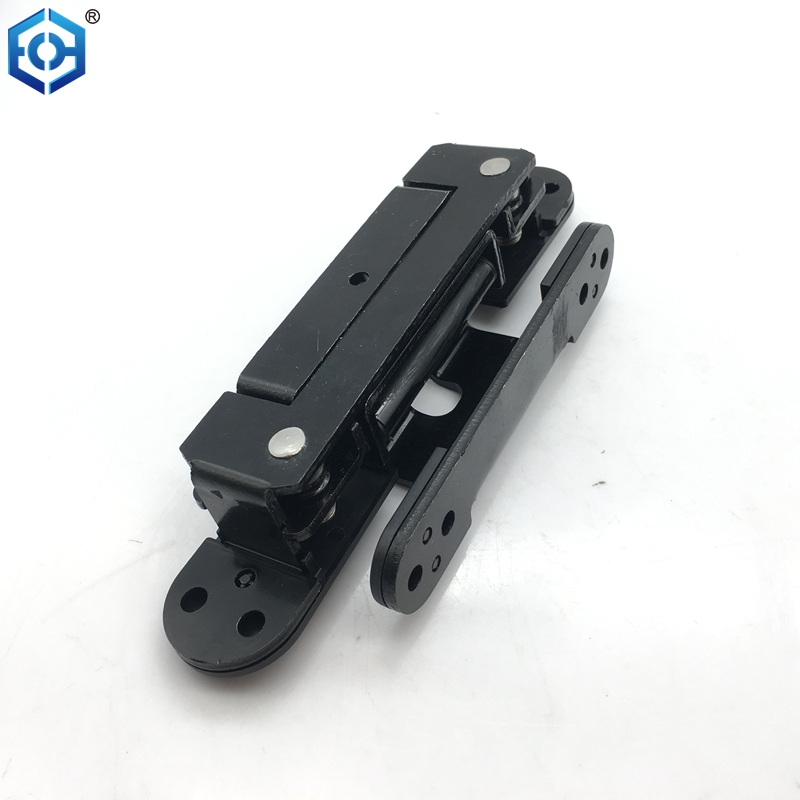

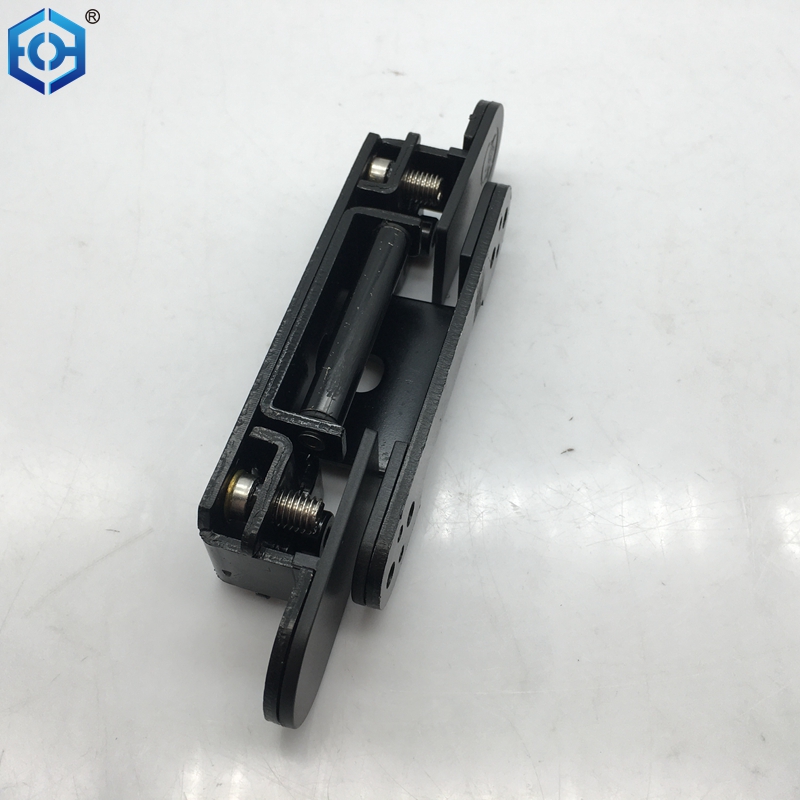

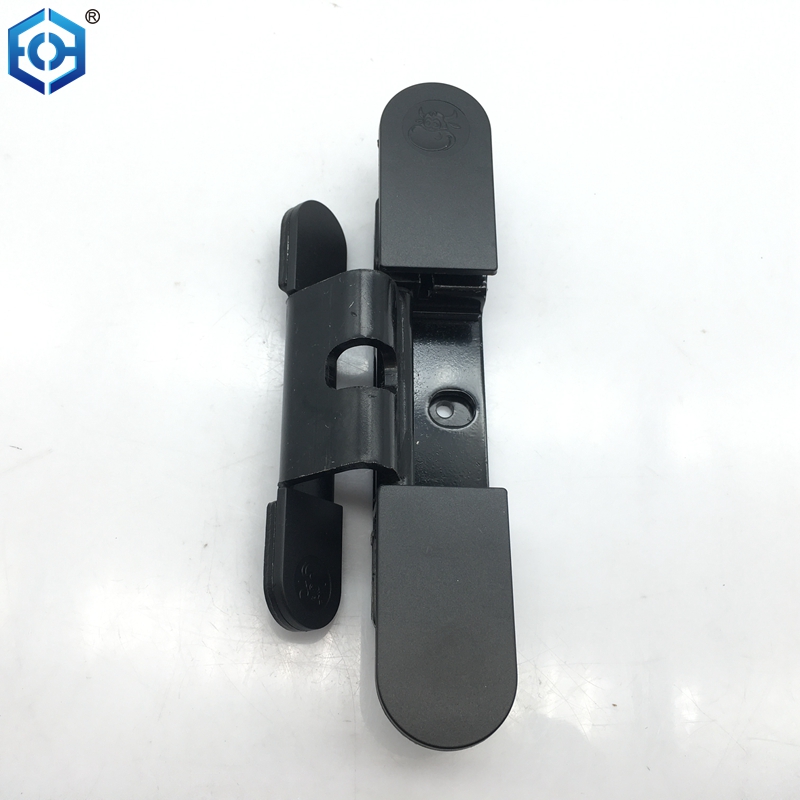

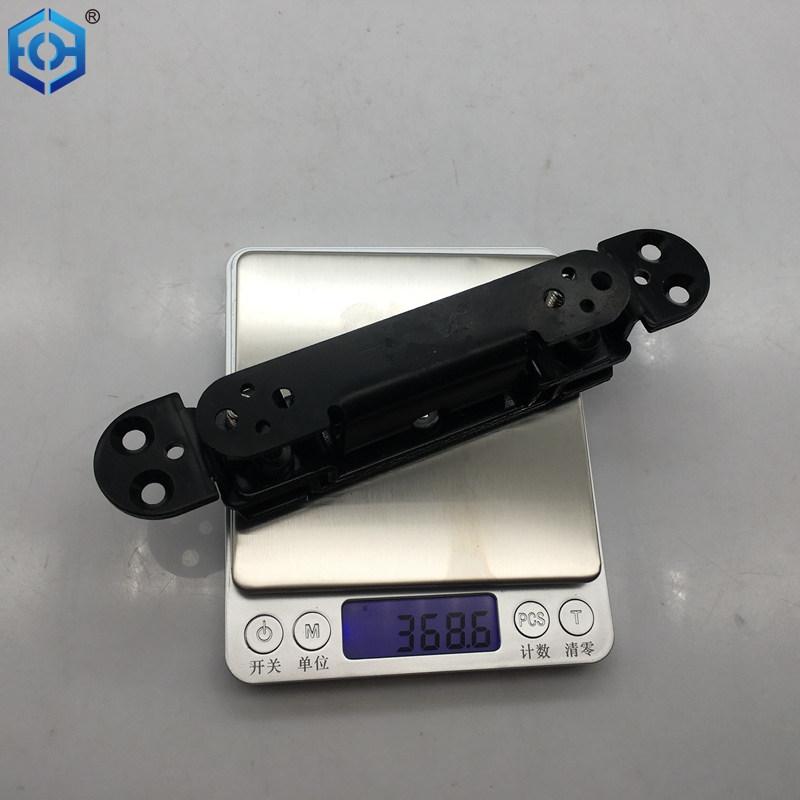

Product Picture:
Product Picture：
