Concealed Hinge Wooden Door Household 180-Degree Internal And External Opening Cross Hinge
Product Details
Basic Info.
ADJUSTABLE CONCEALED HINGE
FEATURES
For wooden doors
For flush doors
Concealed installation
Adjustable after installed
Adjustments:
Vertical ±3mm, horizontal+2mm,-2mm and depth ±1mm
Opening angle:180°
TECHNICAL DATA
Max.door weight with 2 hinges: 60kg
Min.door thickness: 40mm
Max.door width: 1000mm
Slim design for thin door: 20.5mm
MATERIALS:Zinc Alloy,Aluminum
FINISHES:Chrome,Nickle,Brass and Painting
INSTALLATION: Wood tapping screws,Iron screws(optional)
Note
Finger protection due to small gap between door and frame
Application
Completely concealed for flush door with wood steel or aluminum frame
Hinge/door hinge/ zinc alloy door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification |
| Type | door hinge |
| Brand name | ECH |
| Model NO. | EC50 |
| Material | zinc alloy Aluminum |
| Finish | Satin chrome/Satin nickel/Polished chrome/Polished nickel |
| Size | 130x30/114x30mm |
| Radius comer | Round corner |
| Inner packing | soft foam pastic bag, color box and blister packing |
| Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
| Delivery day | 30 working days |
| name | hidden door hinge |

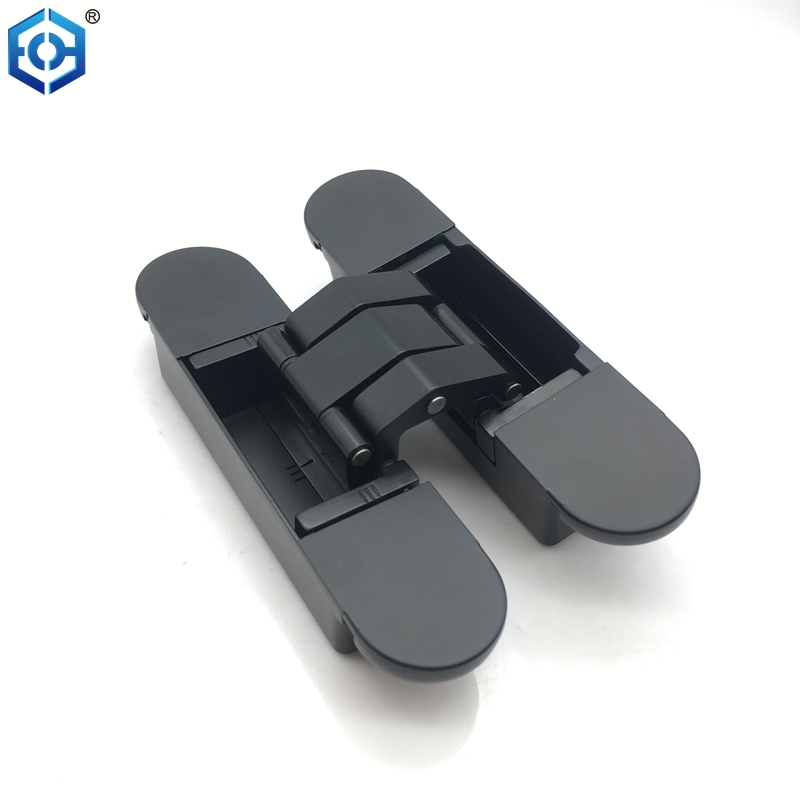

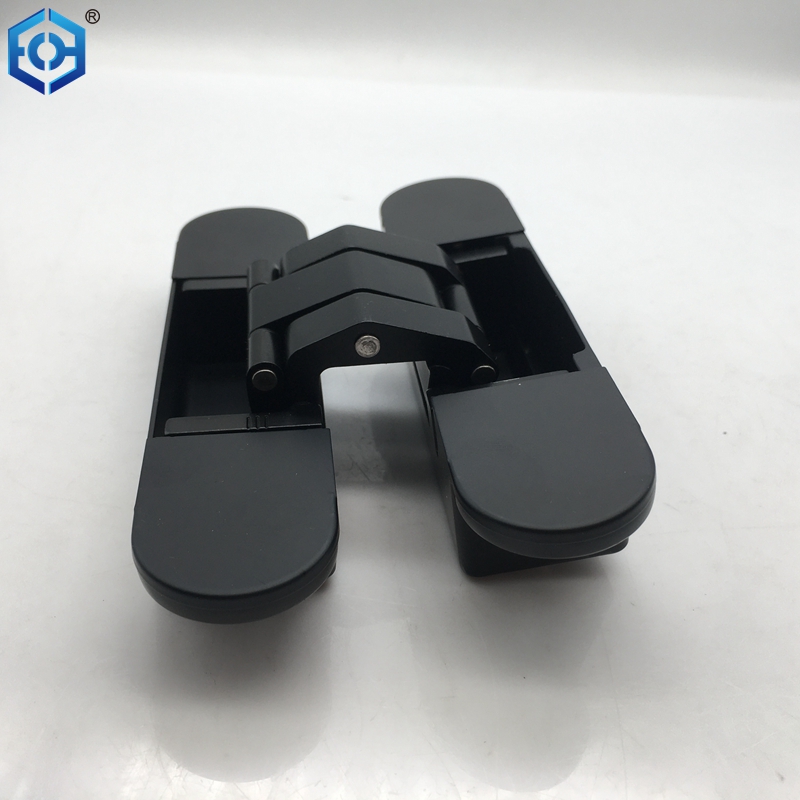

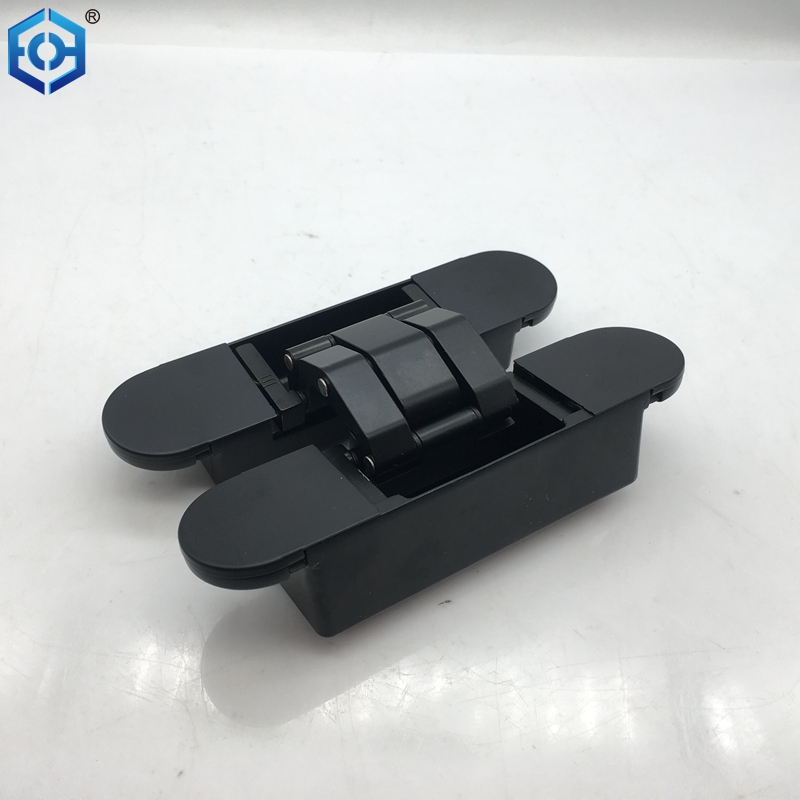

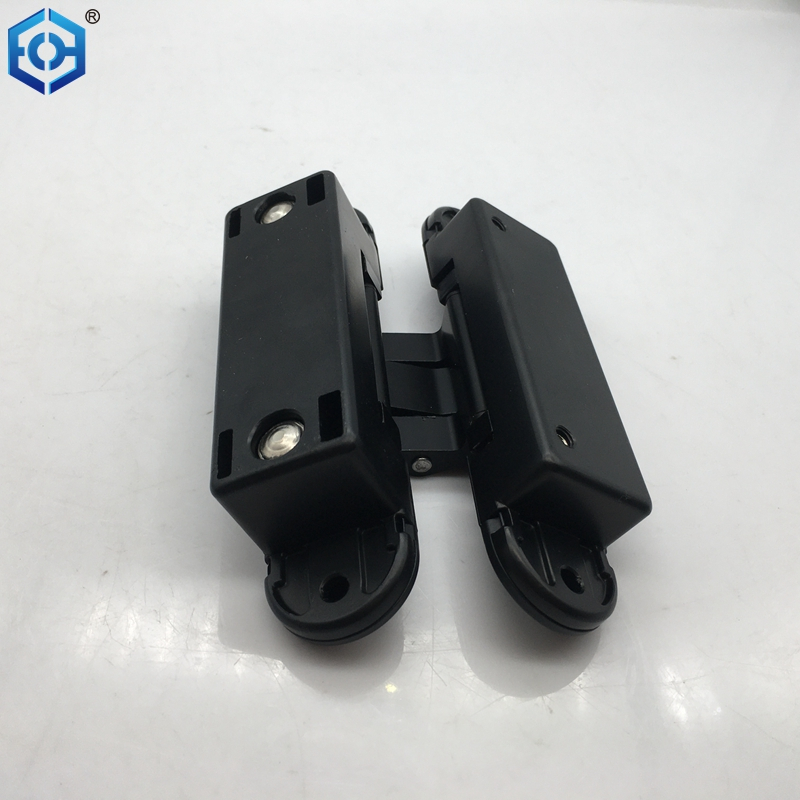

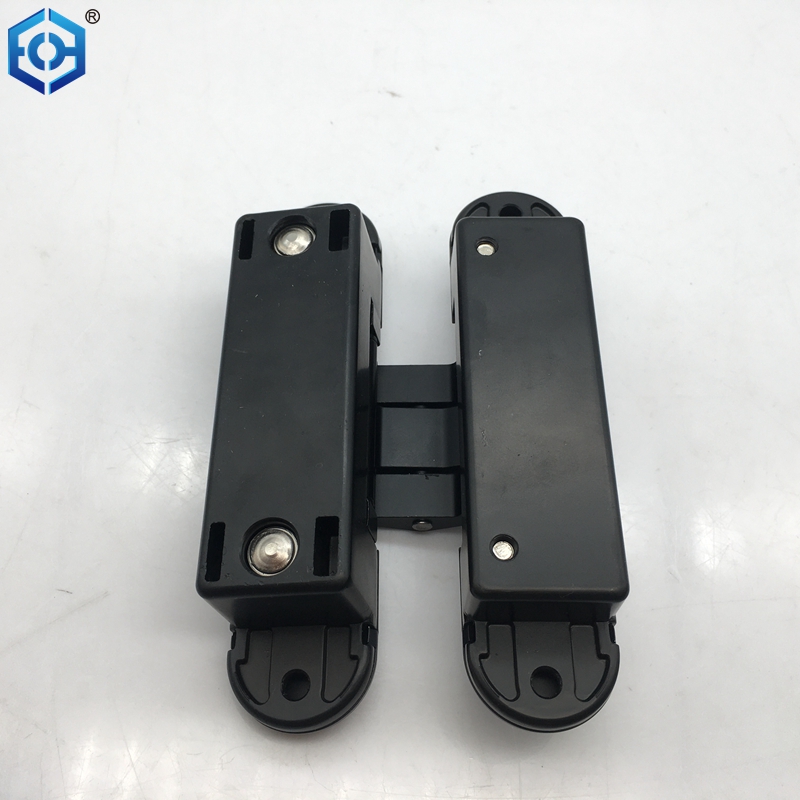

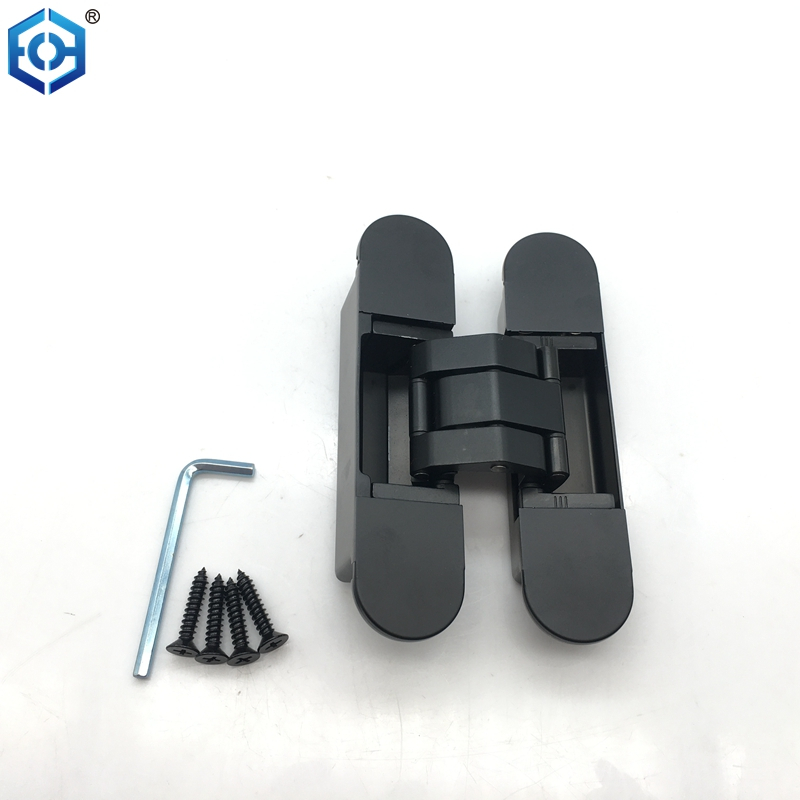

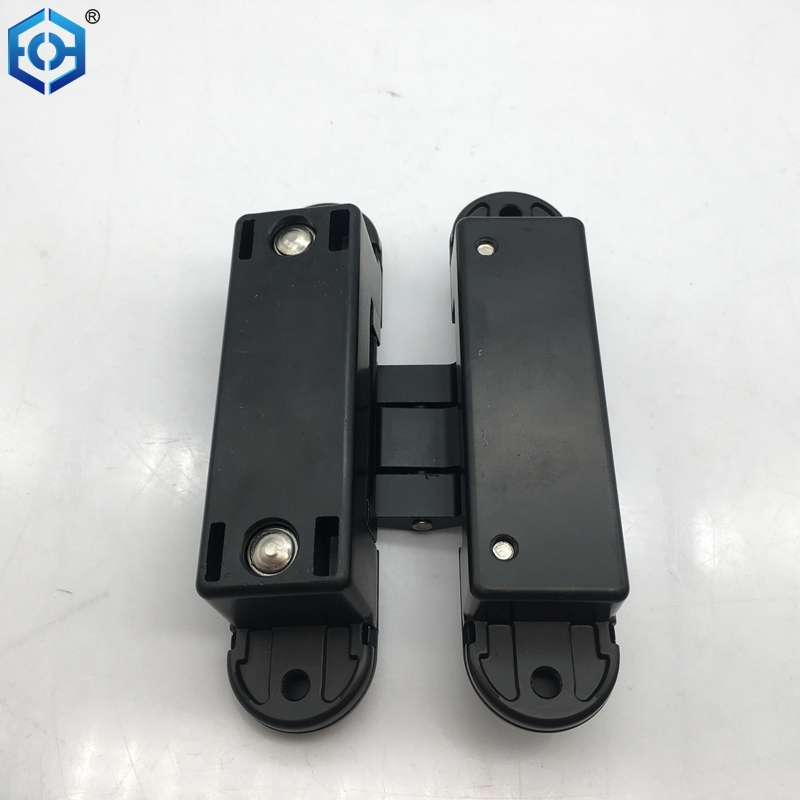

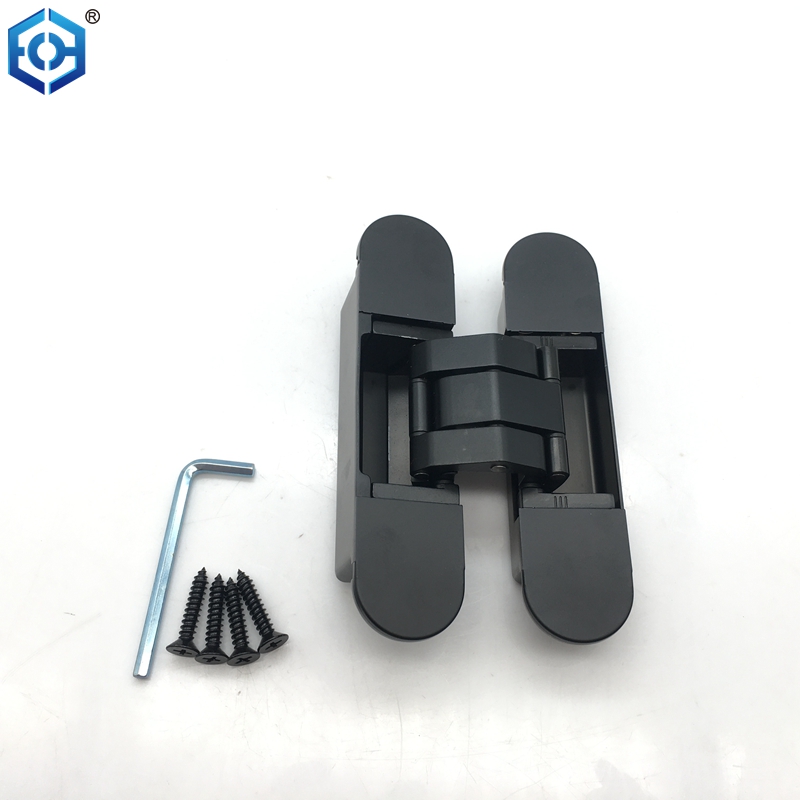

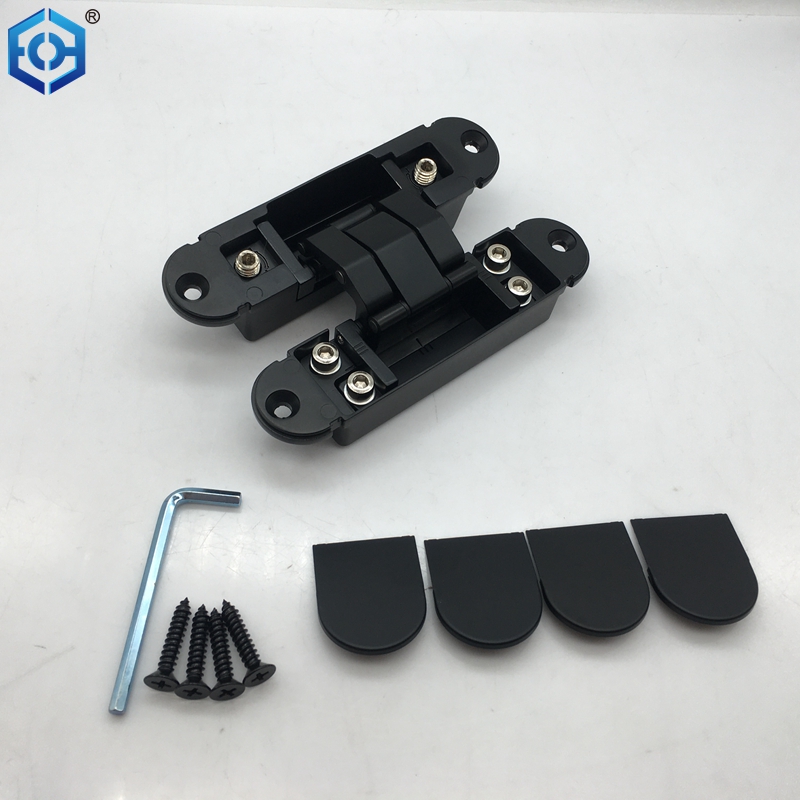

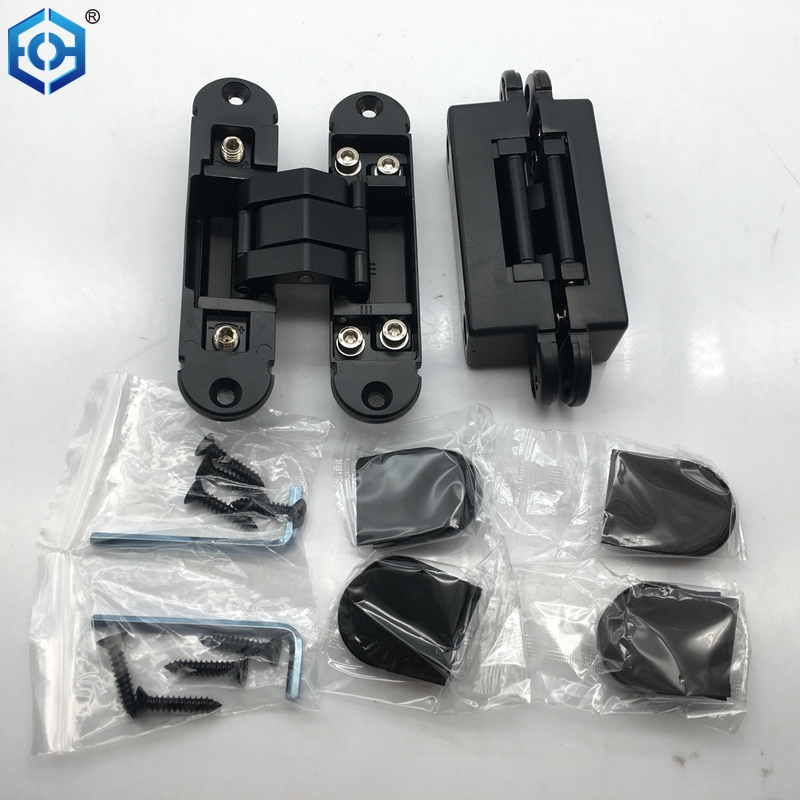

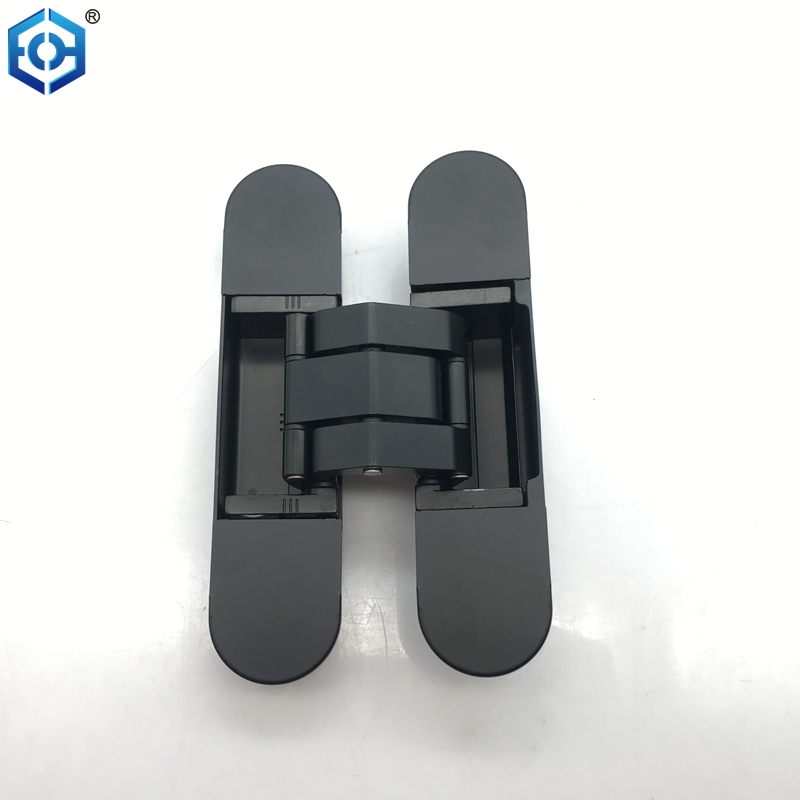

Product Picture:

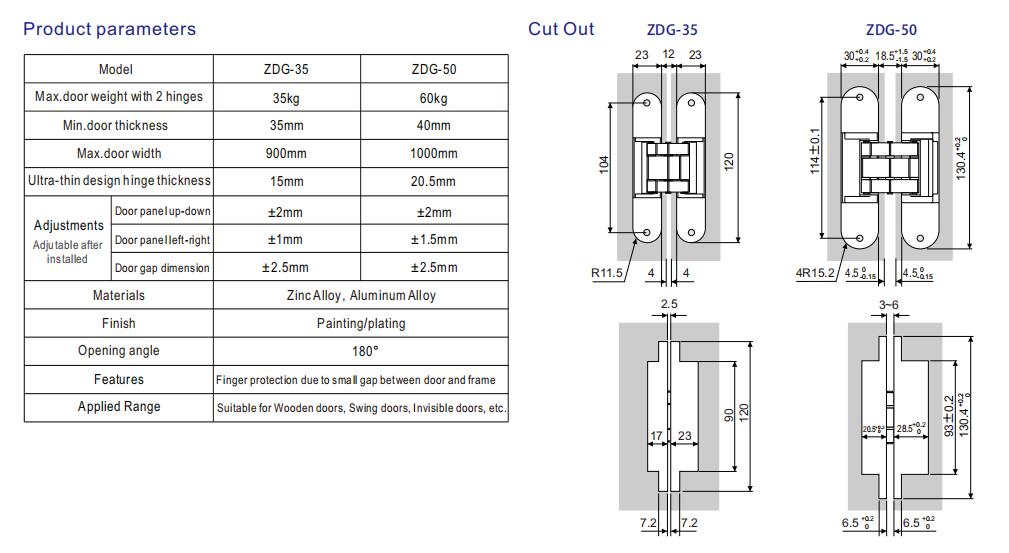

Product Size Picture：
