Frameless Sliding Glass Door System Hardware Glass Door Stainless Steel Bathroom Glass Door
| Model No. | SL-A02 |
| Application | Sliding door fitting |
| Usage | One fixed glass, one sliding door,180 degree |
| Glass type | Tempered glass |
| Glass thickness(mm) | 8/10/12 |
| Openning | Sliding |
| Max door width(mm) | 1000 |
| Capacity(kg) | 80 |
| Material | Stainless steel 304(die-casting) |
| Finish | SSS/PSS/customize |
| Handle | Concealed sliding handle |
| Track size(mm) | 10*30*1.5 |
| Track material | Stainless steel 304 |
| Finish | SSS/PSS/customize |
| Gasket material | PVC |
| OEM/ODM | Accepted |
180 degree single silde sliding door:

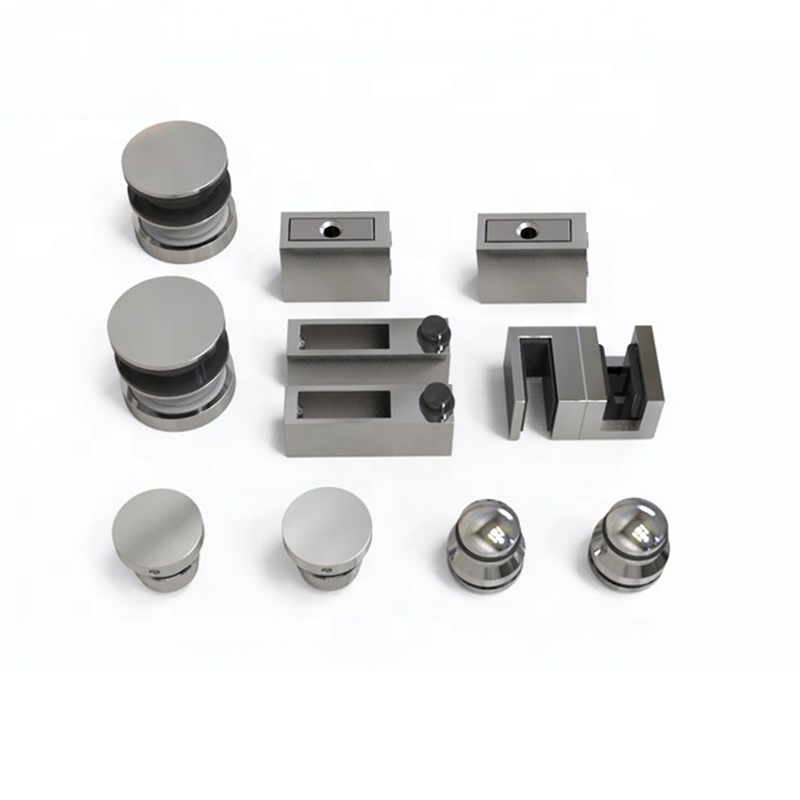

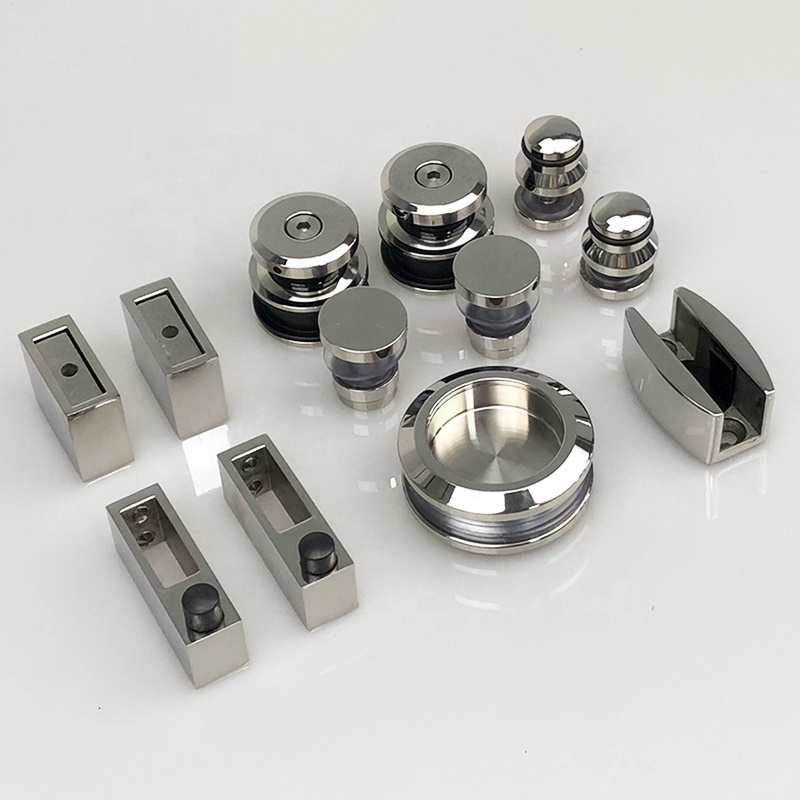

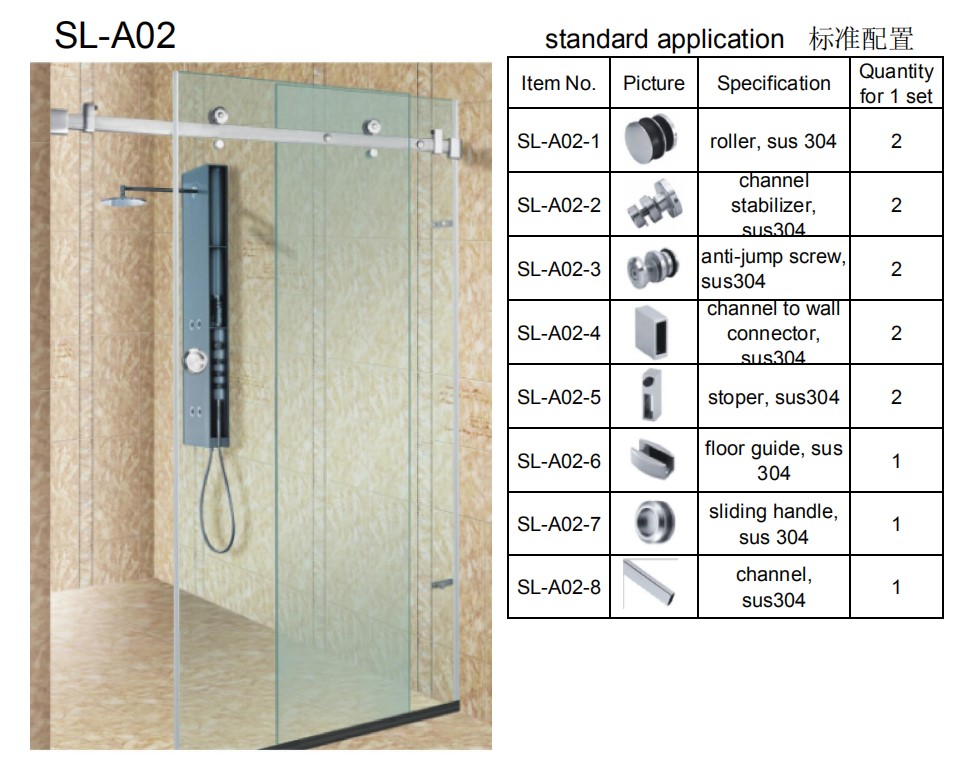

Common Complete set of accessories as follow:
Roller: 2pcs
Channel stabilizer: 2pcs
Channel to wall connector:2 pcs
stoper: 2pcs
floor guider: 1pcs
sliding handle: 1pcs
channel: 1pcs
anti-jump bar screw: 2pcs
All fittings are made in SUS 304

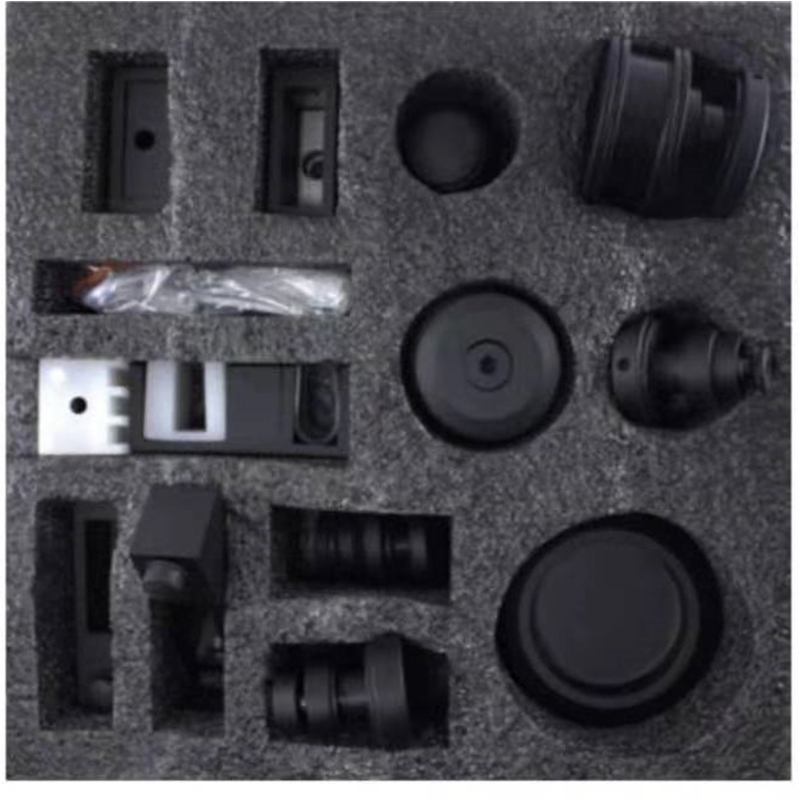

Safe Package:
1. Each metal component is wrapped with film which can protect the items from being scratched.
2. Each set component is packed with foam case which is much safer for long time shipping.
3. Fill in 5 layers corrugated carton.
4. Bind it with plastic belts.

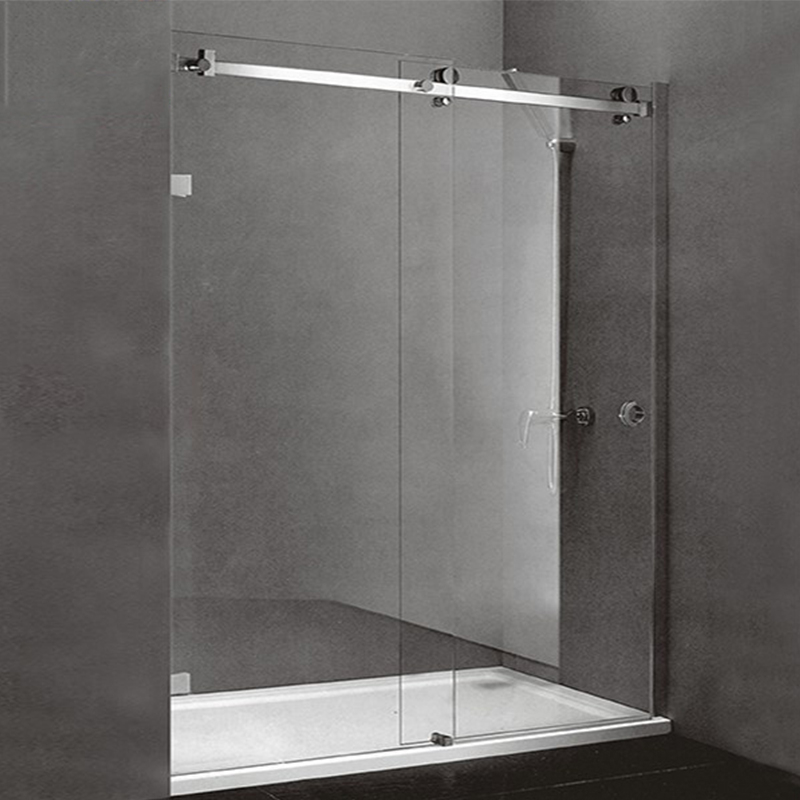

Product picture
