2020 Hot Sale Perfect Quality Soft Closing Hanging Sliding Rollers and Rollers Wheels for Sliding Door System

2020 Hot Sale Perfect Quality Soft Closing Hanging Sliding Rollers and Rollers Wheels for Sliding Door System

Quantity:
  • HL-026
  • ECH
  • 20

Welcome to ECH

Welcome a trial order!

Please contact us at any time!



sliding roller system

 The more quantity, the lower the price







Specification
Type sliding door closer
Brand name ECH
Model NO. HL-026
Material zinc alloy
Finish SN or to order
Max door weight 80KG
Size 250x21X21mm
MOQ 500 PCS
Inner packing soft foam pastic bag,color box and blister packing
Standard export packing one piece in one plastic bag,one pair in one white box ,20 pairs in one carton
Delivery day 30 working days







Soft-closing sliding door roller



Material: Hanger: zinc alloy

                Damper shell: cold plate

                Wheels: wrapped with nylon

Applicable door width: 》=800mm

Door thickness: 6-12mm

Load-bearing: 80kg

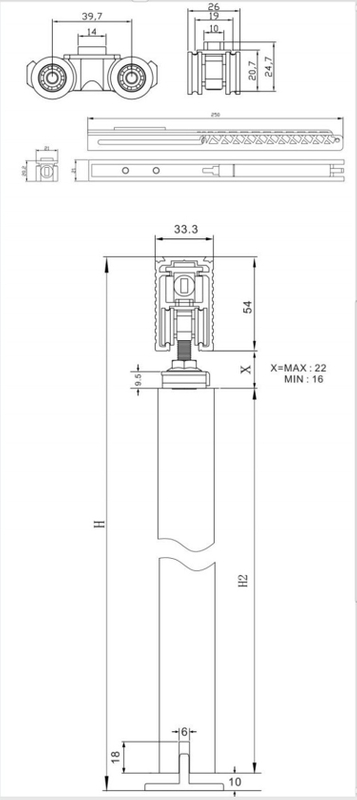

Door height formula:H-35-X-10



Characteristics and parameters of damper hanger roller:

1. New hydraulic damper structure, advanced technology, initial to use single damper to achieve two-way gate damper function.

2. Suspension structure connection  is simple, fast and convenient to install.

3. Minimum door width:800mm

4. Door thickness:6-12mm

5. Load-bearing::80kg (recommended 45kg)

6. Life test: repeated push-pull test 10000 times.

 Features
.Suitable for single or multiple sliding doors;
.Suitable for sliding doors for families ,hotels,office building,etc;
.Balance wheel design principle;
.Single soft closing system for sliding door balance running;
.Manual push and pull positioning on both sides to achieve balance;
.Easy installation ,smooth operation , long service life;

Material and finishes
Sliding track:Aluminum ,anodized
Hanging roller:zinc alloy,PC
Glass clamp :Aluminum ,Anodized blasting;

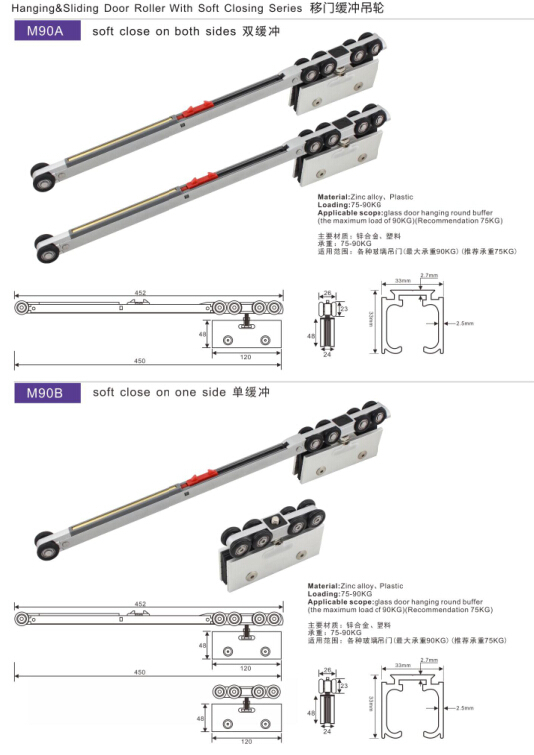

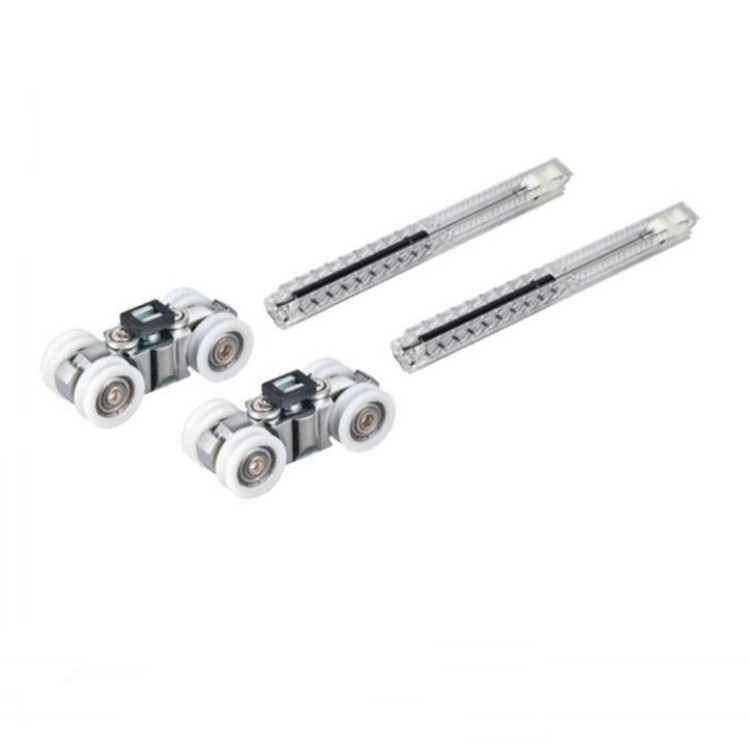

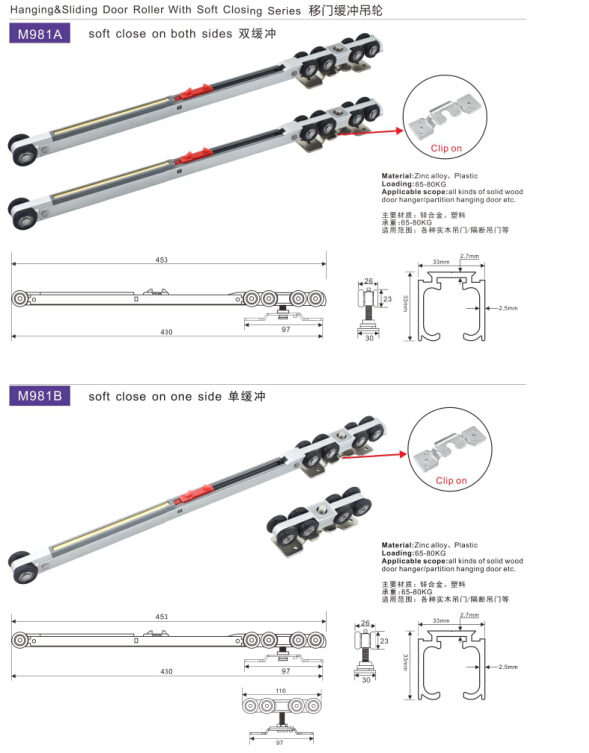

Product picture

double roller (1)double roller (3)double roller (2)

010304

slidingsliding system (1)1
