Single Soft Closer System Sliding Door Roller Plastic Wheels System for Door Closet

Single Soft Closer System Sliding Door Roller Plastic Wheels System for Door Closet
Availability:
Quantity:
Single Soft Closer System Sliding Door Roller Plastic Wheels System for Door Closet
Single Soft Closer System Sliding Door Roller Plastic Wheels System for Door Closet
Single Soft Closer System Sliding Door Roller Plastic Wheels System for Door Closet
Single Soft Closer System Sliding Door Roller Plastic Wheels System for Door Closet
Single Soft Closer System Sliding Door Roller Plastic Wheels System for Door Closet
  • HL-042

  • ECH

  • 20

Welcome to ECH

Welcome a trial order!

Please contact us at any time!



sliding roller system

 The more quantity, the lower the price

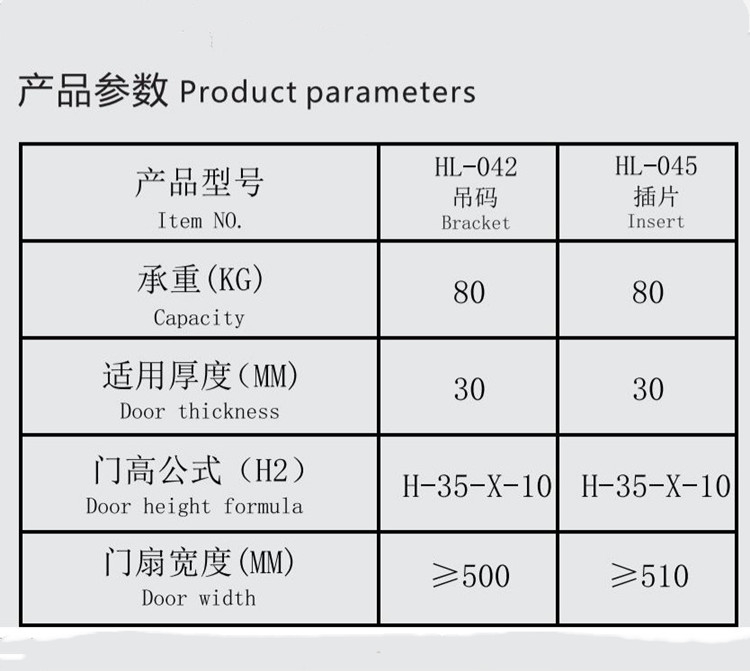

Specification
Type sliding door closer
Brand name ECH
Model NO. HL-042
Material zinc alloy
Finish SN or to order
Max door weight 80KG

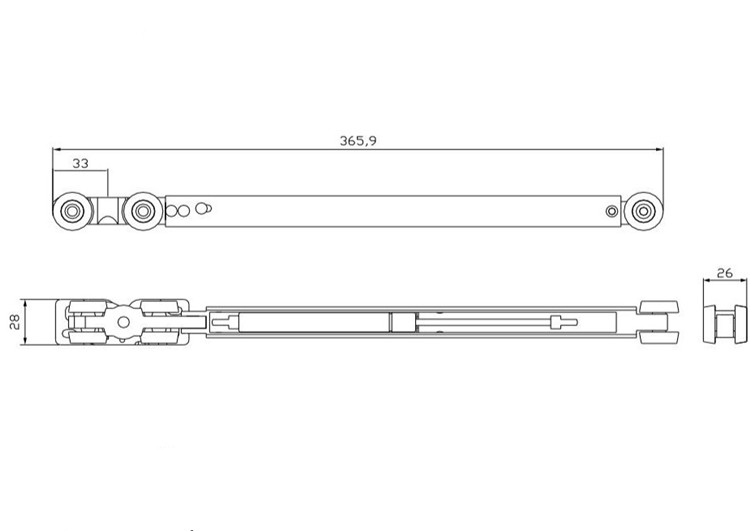

Size 366x28X26mm
MOQ 500 PCS
Inner packing soft foam pastic bag,color box and blister packing
Standard export packing one piece in one plastic bag,one pair in one white box ,20 pairs in one carton
Delivery day 30 working days







Soft-closing sliding door roller



Material: Hanger: zinc alloy

                Damper shell: cold plate

                Wheels: wrapped with nylon

Applicable door width: 》=500mm

Door thickness: 30mm

Load-bearing: 80kg

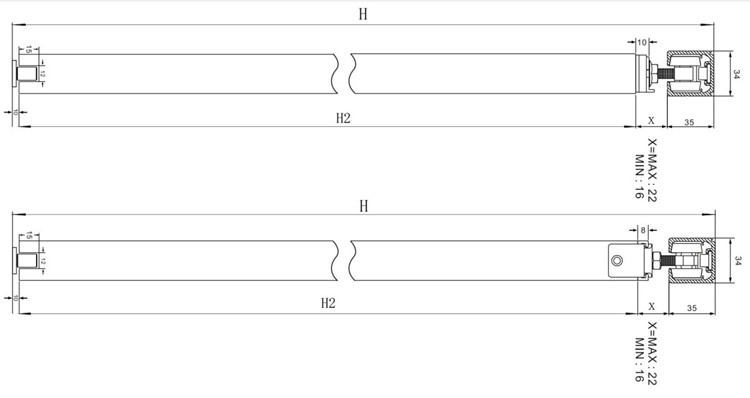

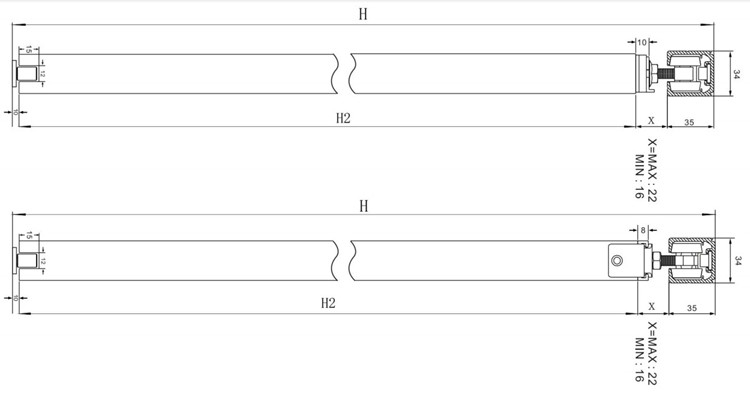

Door height formula:H-35-X-10



Characteristics and parameters of damper hanger roller:

1. New hydraulic damper structure, advanced technology, initial to use single damper to achieve two-way gate damper function.

2. Suspension structure connection  is simple, fast and convenient to install.

3. Minimum door width:500mm

4. Door thickness:30mm

5. Load-bearing::80kg (recommended 45kg)

6. Life test: repeated push-pull test 10000 times.

 Features
.Suitable for single or multiple sliding doors;
.Suitable for sliding doors for families ,hotels,office building,etc;
.Balance wheel design principle;
.Single soft closing system for sliding door balance running;
.Manual push and pull positioning on both sides to achieve balance;
.Easy installation ,smooth operation , long service life;

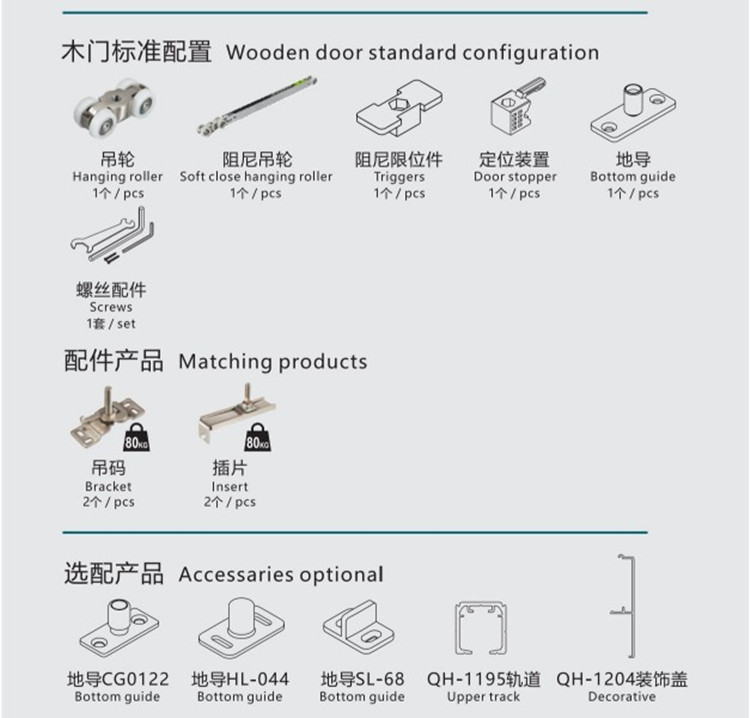

Material and finishes
Sliding track:Aluminum ,anodized
Hanging roller:zinc alloy,PC
Bracket:Iron,SN
Insert:Brass ,SN

Product picture

Plastic Wheels System for Door ClosetRoller Plastic Wheels SystemSingle Soft Closer System for Sliding Doorplastic wheels System (4)Sliding Roller System for wooden Door

slidingsliding system (1)1
