Wooden Sliding Door Soft Closing Synchronized Syntropy Sliding System Barn Door Hidden Hardware for Three Doors

Wooden Sliding Door Soft Closing Synchronized Syntropy sliding system barn door hidden hardware for three doors

Quantity:
  • HL-086-01
  • ECH
  • 20

Welcome to ECH

Welcome a trial order!

Please contact us at any time!



barn door hidden hardware

 The more quantity, the lower the price







Specification
Type barn door hidden hardware
Brand name ECH
Model NO. HL-086-01
Material zinc alloy
Finish SN or to order
Max door weight 100KG
Size 454x22mm
MOQ 500 PCS
Inner packing soft foam pastic bag,color box and blister packing
Standard export packing one piece in one plastic bag,one pair in one white box ,20 pairs in one carton
Delivery day 30 working days







Soft-closing sliding door roller



Material: Hanger: zinc alloy

                Damper shell: cold plate

                Wheels: wrapped with nylon

Applicable door width: 735-1200mm

Door thickness: 30-45mm

Load-bearing: 80kg



Characteristics and parameters of damper hanger roller:

1. New hydraulic damper structure, advanced technology, initial to use single damper to achieve two-way gate damper function.

2. Suspension structure connection  is simple, fast and convenient to install.

3. Minimum door width:735-1200mm

4. Door thickness:30-45mm

5. Load-bearing::80kg (recommended 45kg)

6. Life test: repeated push-pull test 10000 times.



Product picture

barn door hidden hardware

     Sliding roller systemWooden Sliding Door Soft Closing Hanger RollerWooden Sliding Door Soft Closing systemsliding system (2)Sliding door hanger roller Wheel with damper

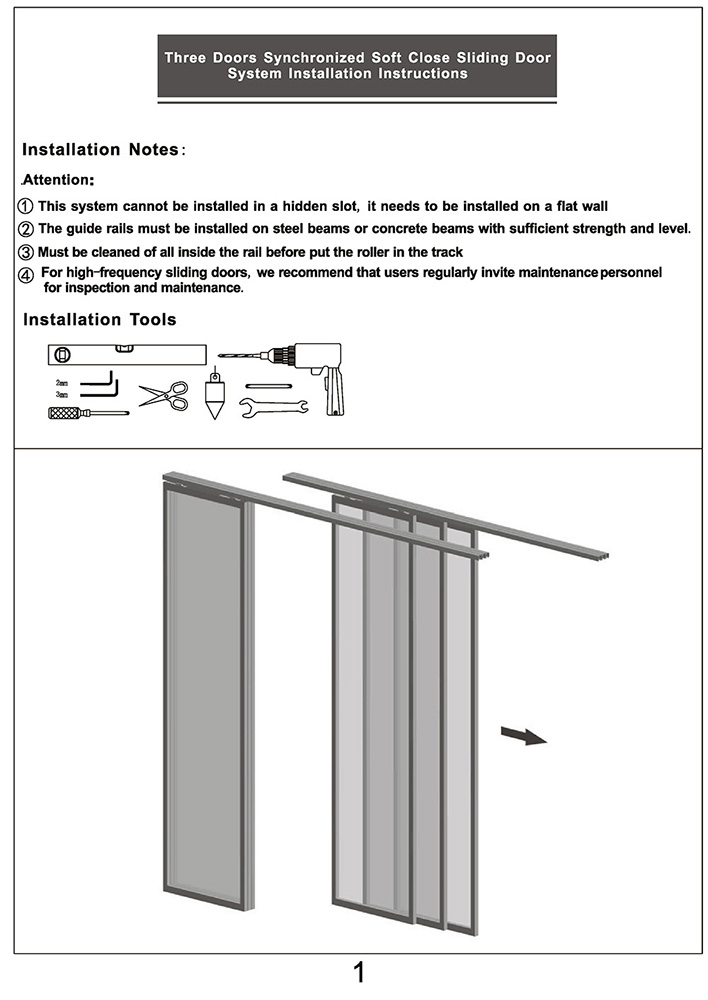

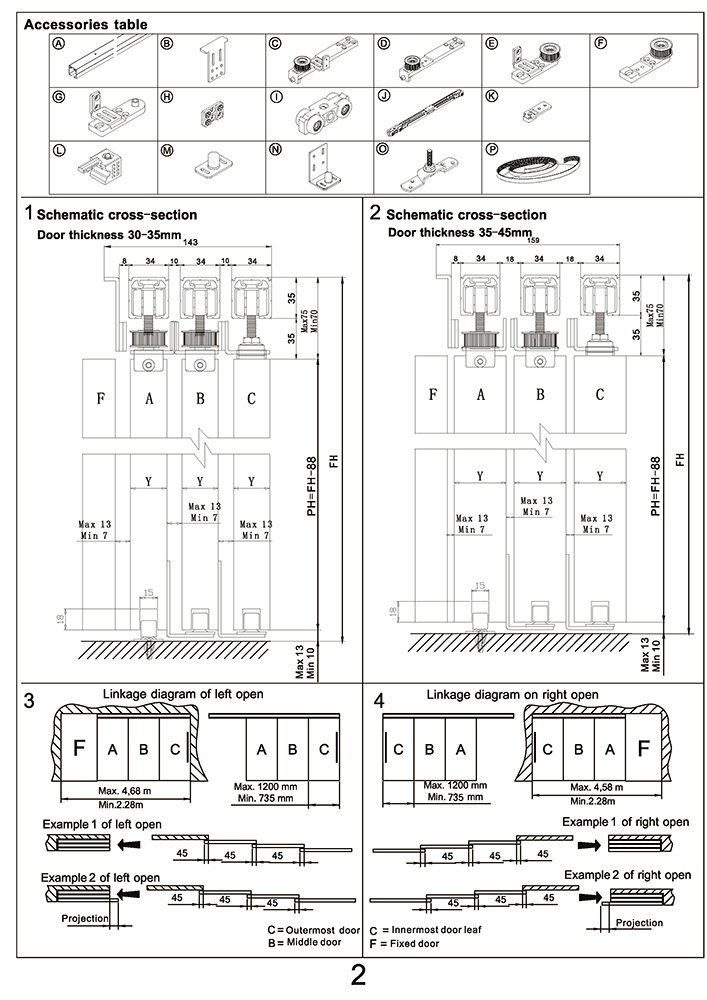

  Illustration:


 double soft close hardware

barn door hardware phoenix

Sliding door hanger roller Wheel
