Stainless Steel Horizontal Blinds Sliding Buffer Self-closing Overlapping Wooden Doors Hardware

Stainless Steel Horizontal Blinds Sliding Buffer Self-closing Overlapping Wooden Doors hardware

Quantity:
  • E6001
  • ECH

Welcome to ECH

Welcome a trial order!

Please contact us at any time!



overlapping wooden door

 The more quantity, the lower the price







Specification
Type sliding door closer
Brand name ECH
Model NO. E6001
Material Stainless steel
Finish SSS or to order
Max door weight 70KG
Size 28x126/28x92mm
MOQ 500 PCS
Inner packing soft foam pastic bag,color box and blister packing
Standard export packing one piece in one plastic bag,one pair in one white box ,20 pairs in one carton
Delivery day 30 working days







Soft-closing sliding door roller



Material: Hanger: stainless steel

                Damper shell: cold plate

                Wheels: wrapped with nylon

Applicable door width: 600-900mm

Door thickness: 30-45mm

Load-bearing: 70kg

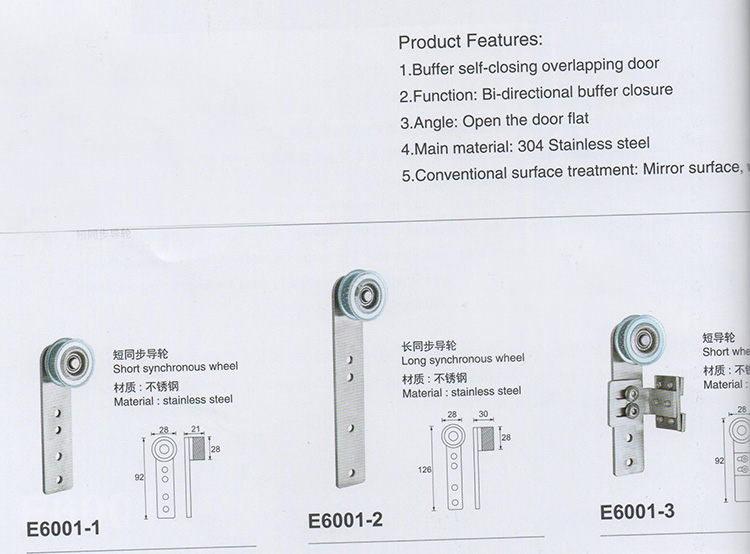

Product Features:

1. Buffer self-closing overlapping door;

2. Function:Bit-directional buffer closure;

3. Angle:Open the door flat;

4. Main material:304 stainless steel;

5. Conventional surface treatment :Mirror surface,wire drawing

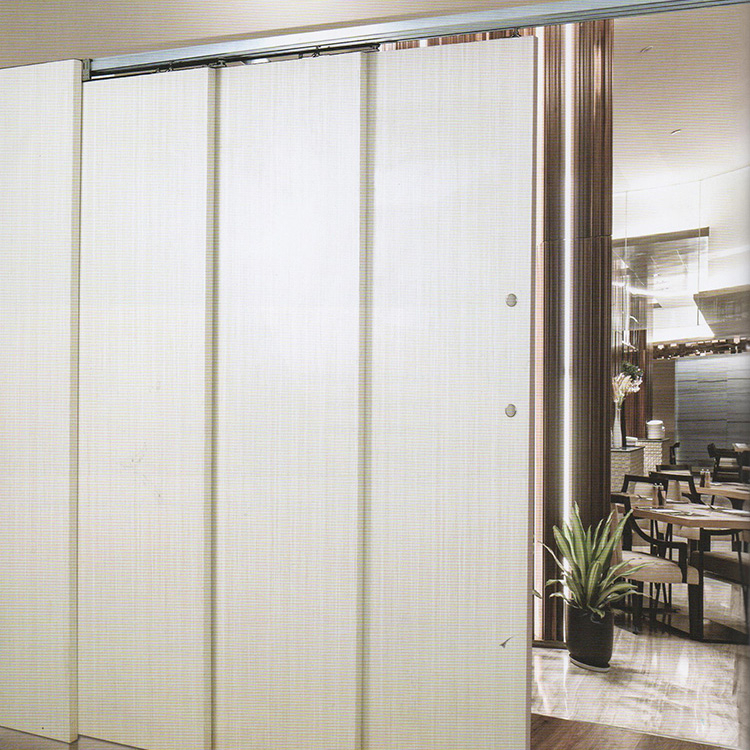

Product picture

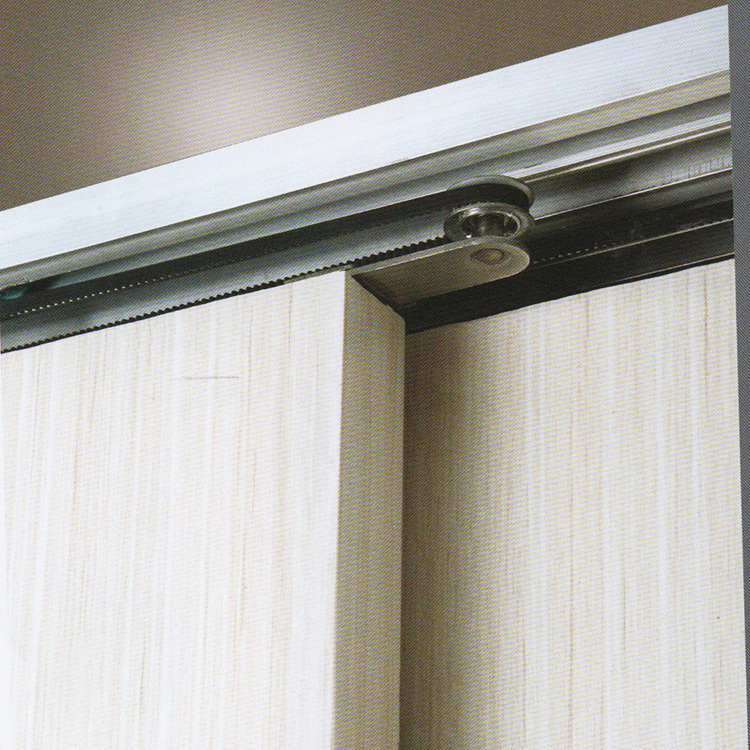

 Overlapping Wooden Doors accessory

Buffer Self-closing Doors accessoryWooden Sliding Door Soft Closing systemHorizontal Blinds Sliding hardware





  Illustration:

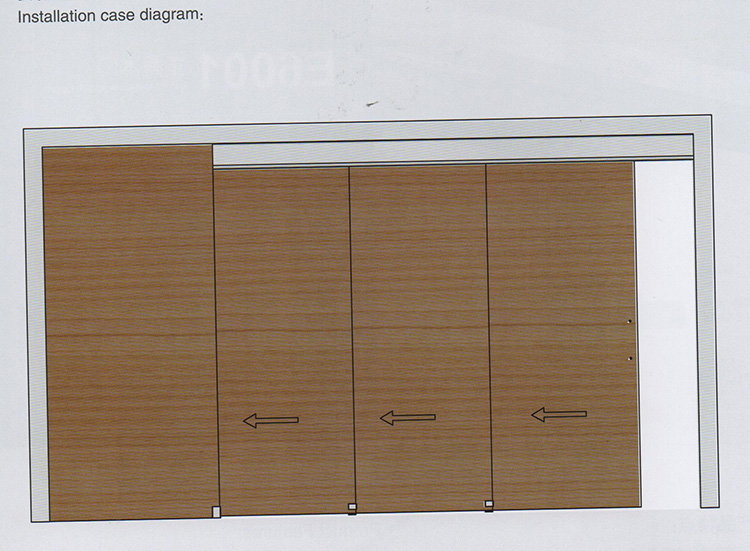

installation case diagram


E6001 series of folding wooden door partition panels may constitute a continuous transparent without any border component support shown on the surface. Both upper and lower glass door clips not only provide necessary system stability,but ensure small area coverage after the system is folded . Therefore using these products will effectively lead to more spacious spaces. There are diversifed options for component materials and colors,enabling easy system assembly and installation.


The products are widely used  in the senior banquet hall ,large star hotel ,airport , large exhition hall,all kimds of dance training room, high office and so on...
