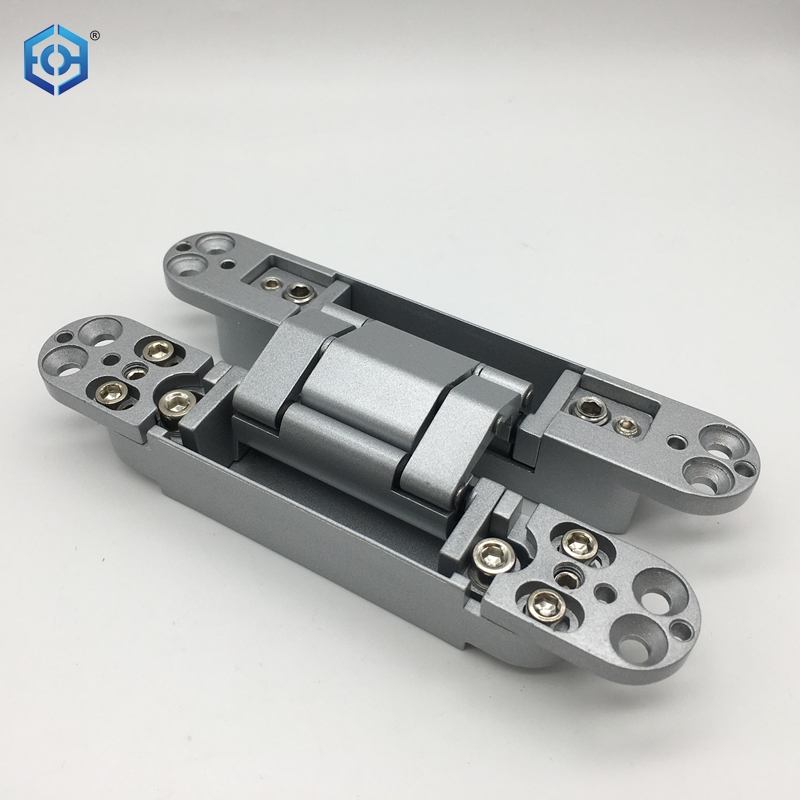

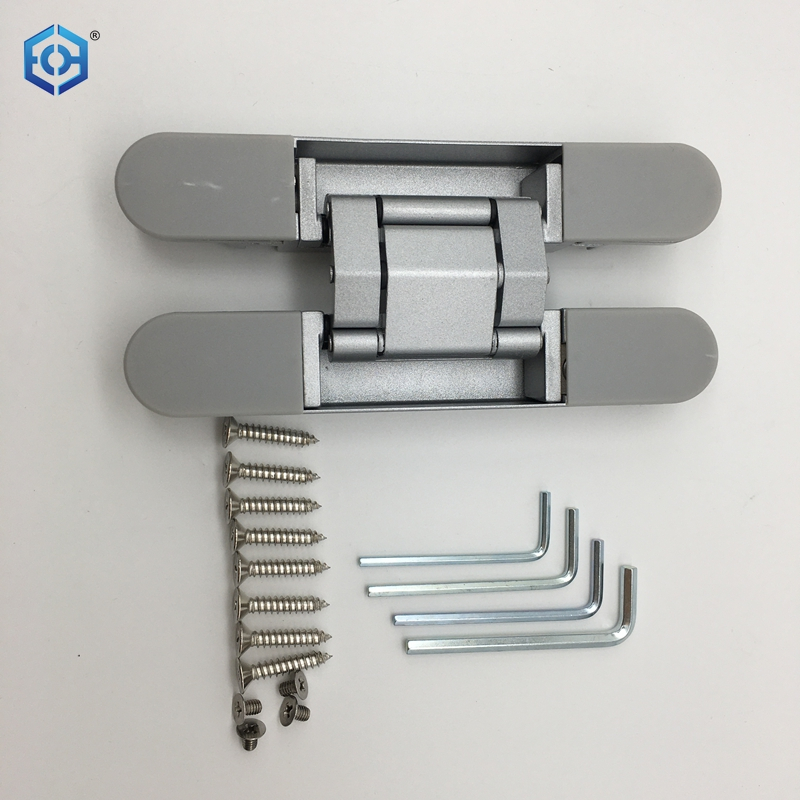

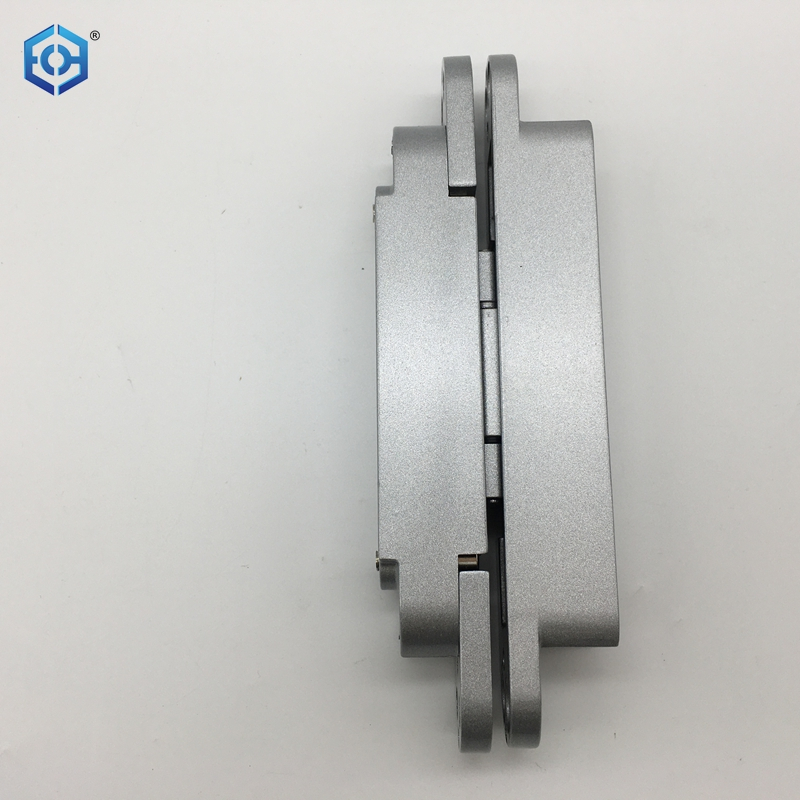

Zinc Alloy 3D Adjustable Conceal Hinge /Invisible Door Hinge

Zinc Alloy 3D Adjustable Conceal Hinge /Invisible Door Hinge
Finish:
Size:
Min door thickness:
Max door width:
Load-Bearing:
Availability:
Quantity:
Zinc Alloy 3D Adjustable Conceal Hinge /Invisible Door Hinge
Zinc Alloy 3D Adjustable Conceal Hinge /Invisible Door Hinge
Zinc Alloy 3D Adjustable Conceal Hinge /Invisible Door Hinge
Zinc Alloy 3D Adjustable Conceal Hinge /Invisible Door Hinge
Zinc Alloy 3D Adjustable Conceal Hinge /Invisible Door Hinge
Zinc Alloy 3D Adjustable Conceal Hinge /Invisible Door Hinge
  • G40

  • ECH

  • 7.6/pcs


Product Details
Basic Info.


Features:

1.For wooden doors,flush doors,aluminum doors;

2.Concealed installation;

3.3D Adjustments:vertical ±3mm,horizontal ±3mm and depth ±1mm;

4.Opening angle 180°;

5.Finish:SC/SN/PC/PN/AB/AC/white/black;


Technical Data:

1.Max.door weight with 2 hinges:40KG;

2.Min.door thickness:35mm;

3.Max.door width:850mm;

4.Slim design for thin  door:21mm;


Hinge/door hinge/ zinc alloy door hinge/gate hinge

Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price



Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
Hidden door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



   Specification
Type door hinge
Brand name ECH
Model NO. G40
Material zinc alloy
Finish Satin chrome/Satin nickel/Polished chrome/Polished nickel

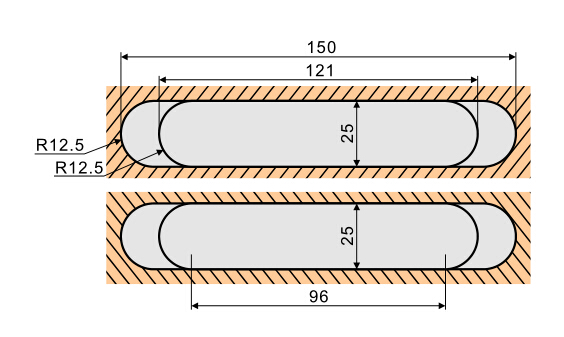

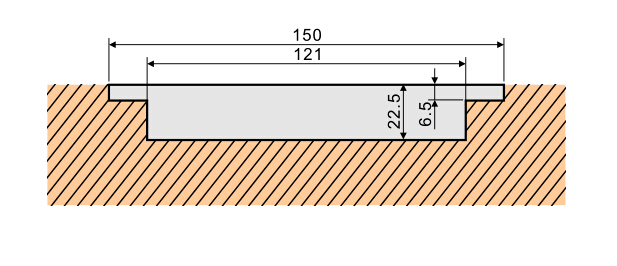

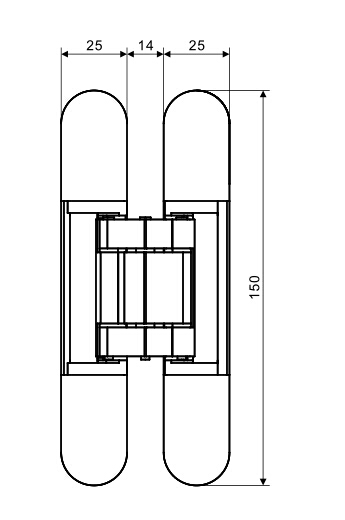

Size 150X25X22mm
Radius comer square corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 20 pairs in one carton
Delivery day 30 working days
name hidden door hinge

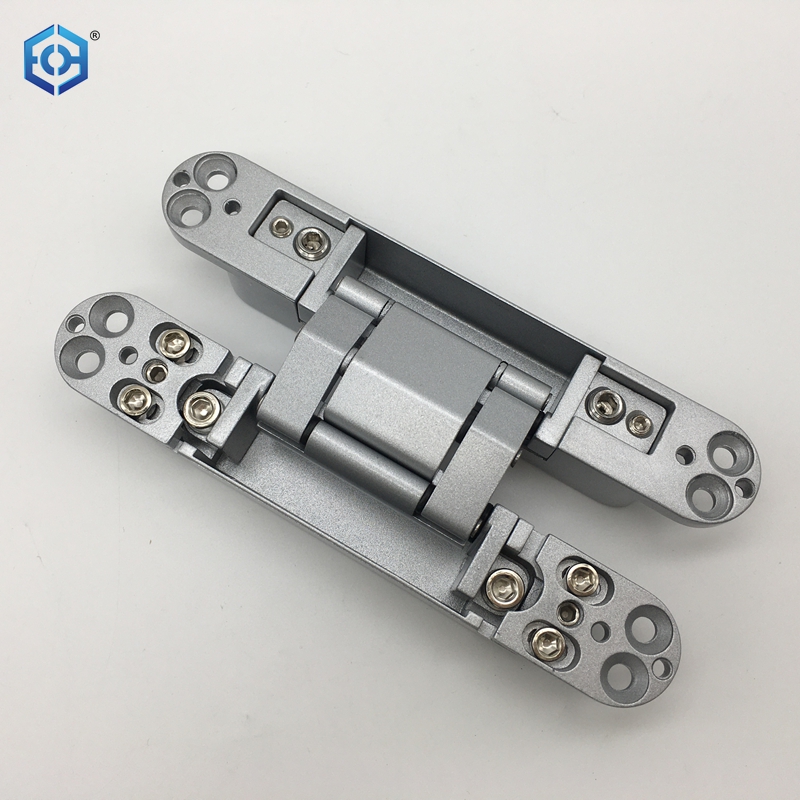

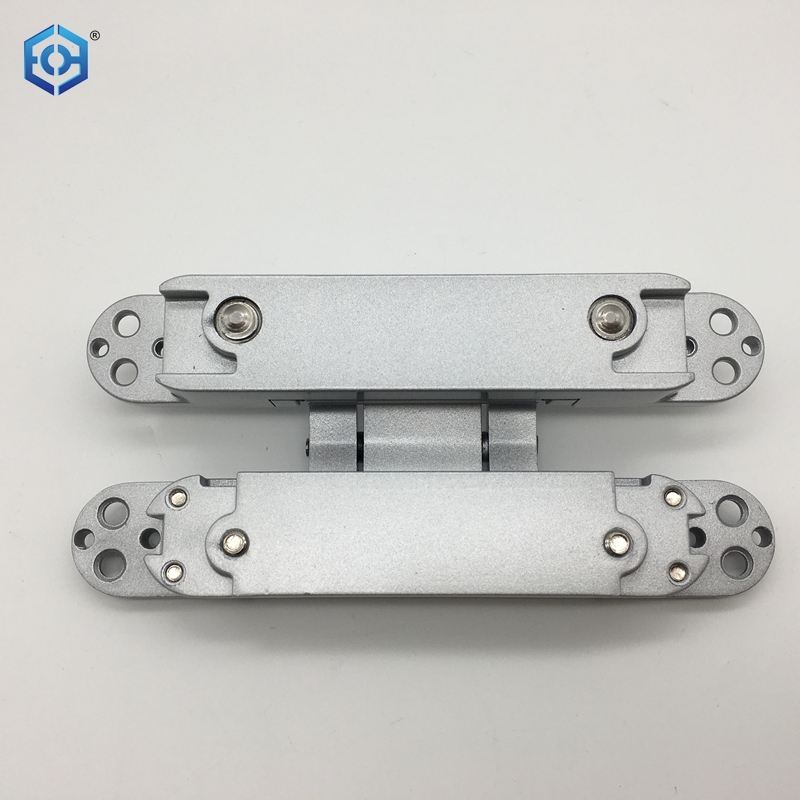

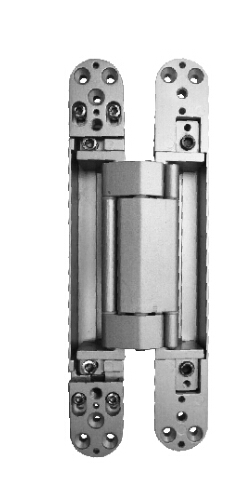

Product Picture:

Concealed Hinge CAD DrawingConcealed Hinge CAD FileConcealed Hinge CoversConcealed Hinge CrankConcealed Hinge CutterConcealed Hinge DepthConcealed Hinge DesignConcealed Hinge Door

Invisible Door Hinge 3D Adjustable Conceal Hingezinc alloy Concealed Hingeconcealed hingeshidden door hinges











QQ截图20191129175444


adjustable l hinge (5)conceal hinge (2)
