ZDY-EC-60-C2
ECH

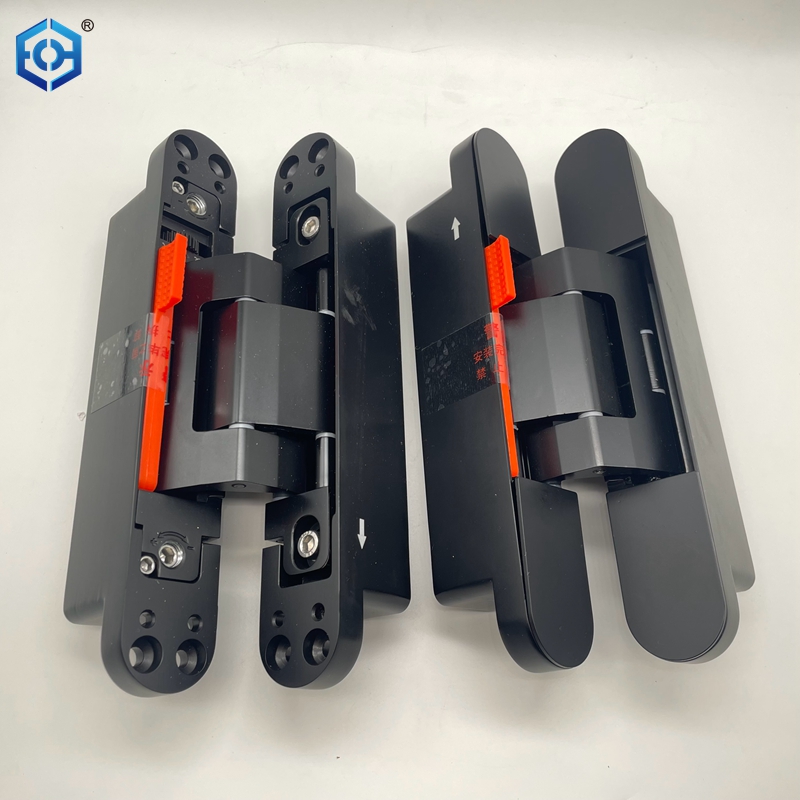

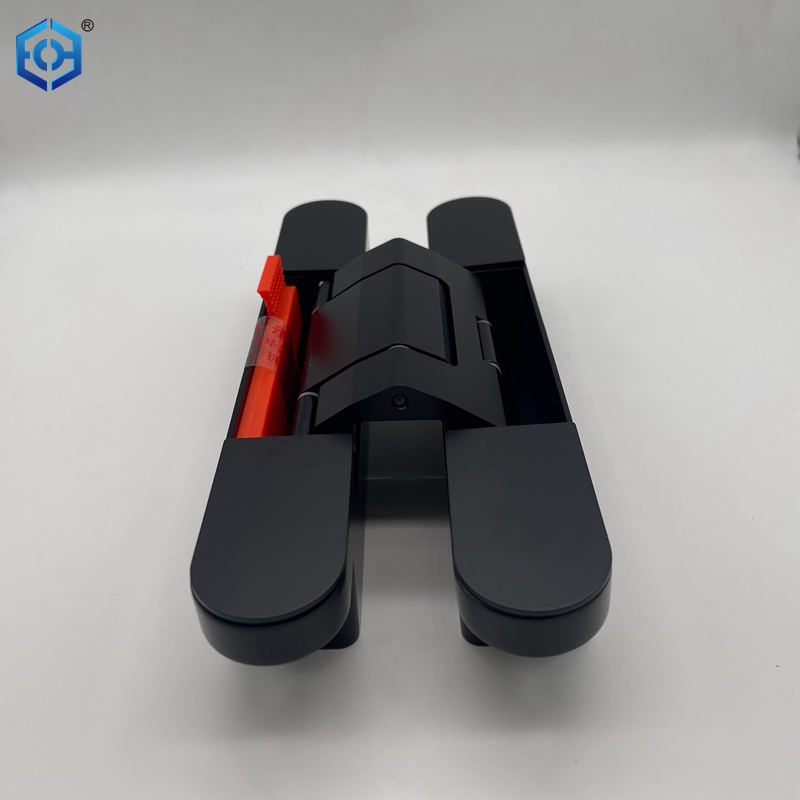

More Flexible More Precise Easy To Install 3D Hydraulic Self close Concealed Hinge
PRODUCTS OVERVIEW
·Materials:Zinc alloy+aviat ion aluminum
·Thickness Of Door:45-60mm door thickness
·Drill Gap To Edge:5mm to door frame 5mm to door edge
·Loading:2 hinge 60 kgs,3 hinge 90 kgs.2 hydraulic+1
standard hinge 80 kgs
·Function:3D adjustment;Self closed;90-180 degree position
Specification 1:
·Door Loading:60kg
·Door Dimension:2000mmx900mm
·Requirement Quantity:2 hydraulic concealed hinges
·Remarks:l need to add one hinge if height beyond 2100mm
Specification 2:
·Door Loading:90kg
·Door Dimension:2400mmx1100mm
·Requirement Quantity:3 hydraulic concealed hinges
·Remarks:l need to add one hinge if height beyond 2100mm
TECHNOLOGY&FEATURES:
3D adjustment.
·Adjusted through silent lock,no need any tools.
·Less drilling deepth.
·80-180 Degree position.
·Max opening angle 180 degree.
·Open and closecircle testing:>200000circle life.
Hinge/door hinge/ brass door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery

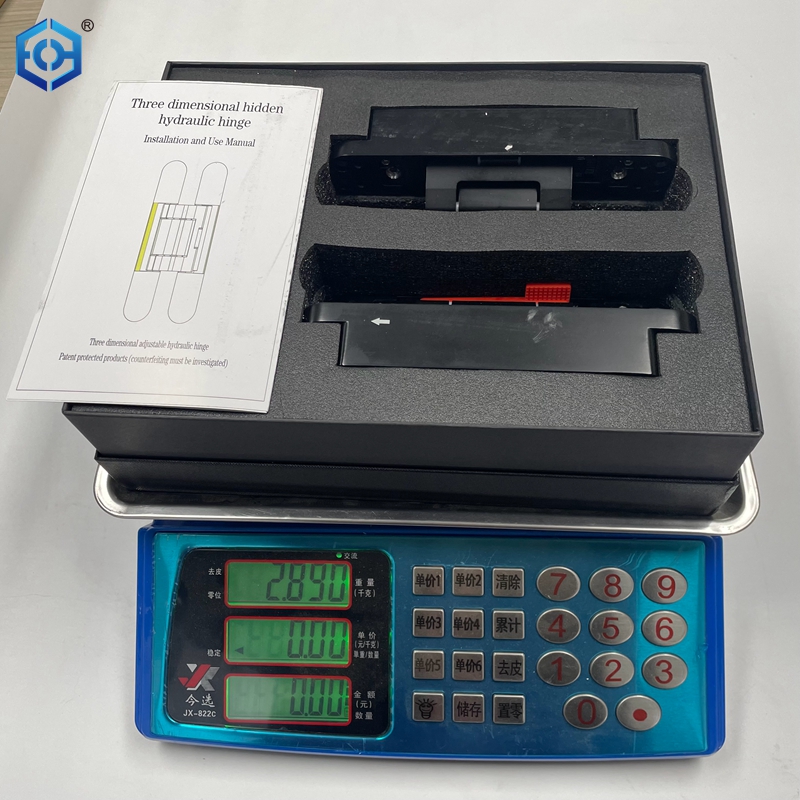

Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification | |
| Type | Concealed hinge |
| Brand name | ECH |
| Model NO. | ZDY-EC-60-C2 |
| Material | Zinc alloy |
| Finish | Satin chrome/Satin nickel/Polished chrome/Polished nickel |
| Size | 190x30x35MM |
| Radius comer | square corner |
| Inner packing | soft foam pastic bag, color box and blister packing |
| Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
| Delivery day | 30 working days |
| name | 3d adjustable concealed hinge |

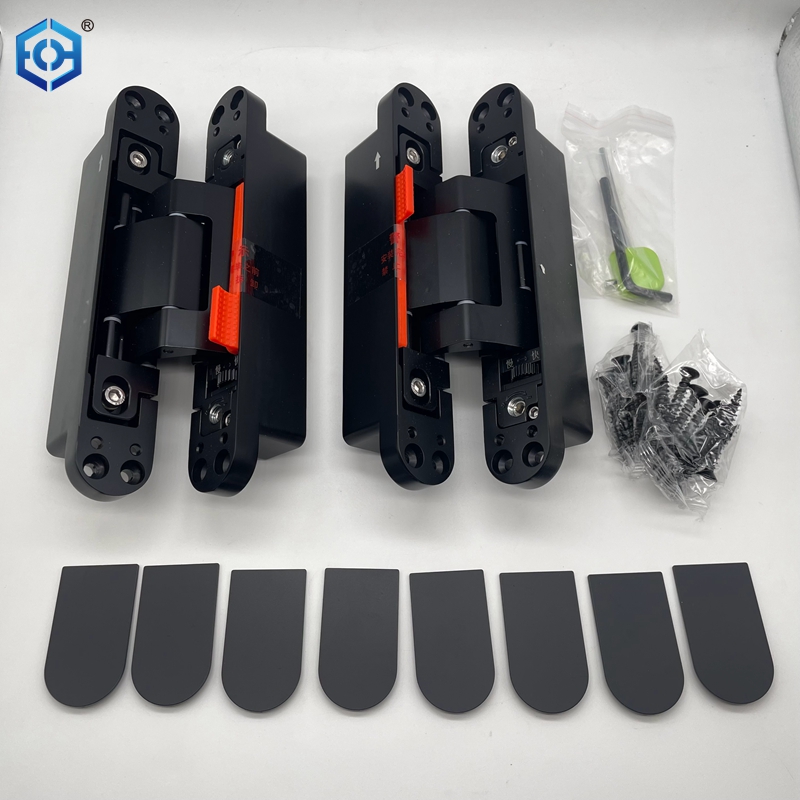

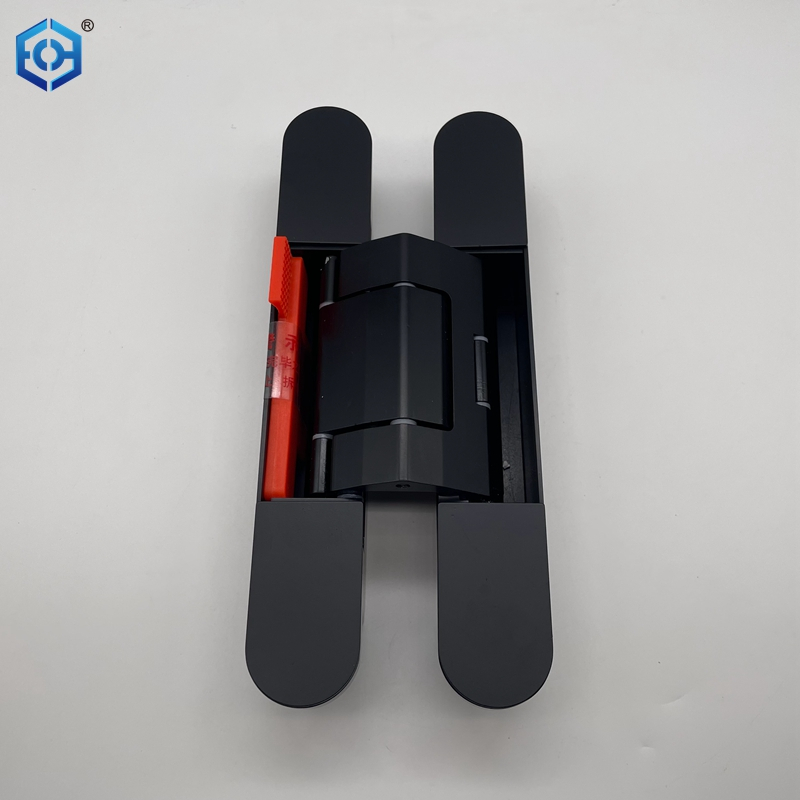

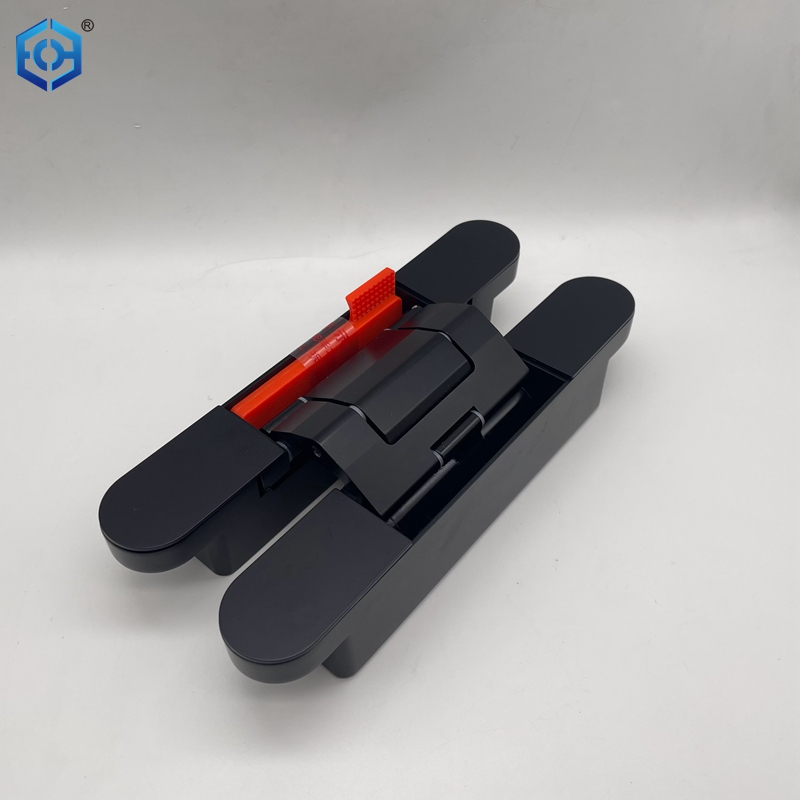

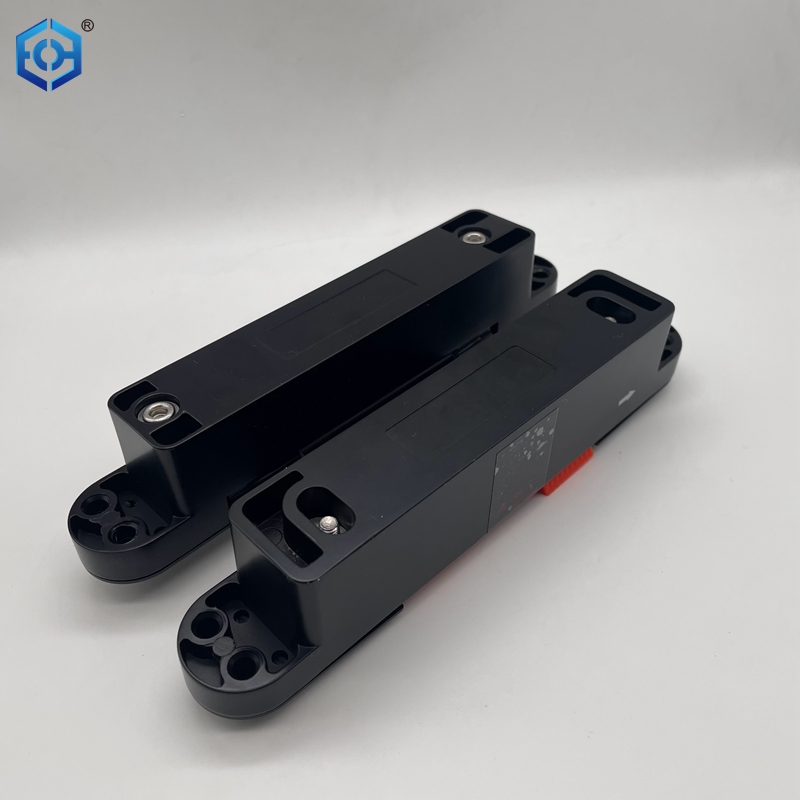

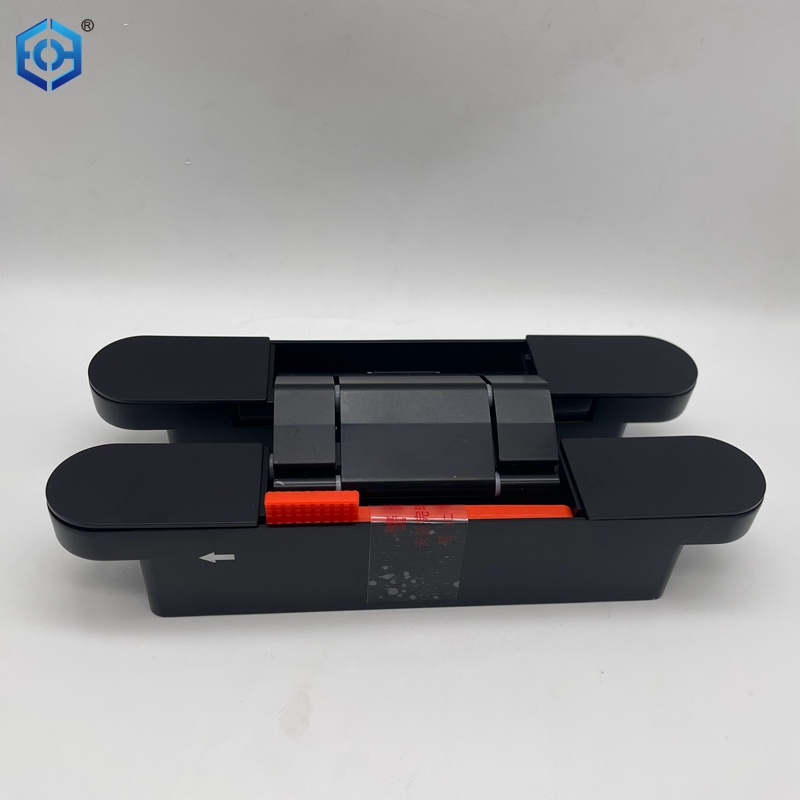

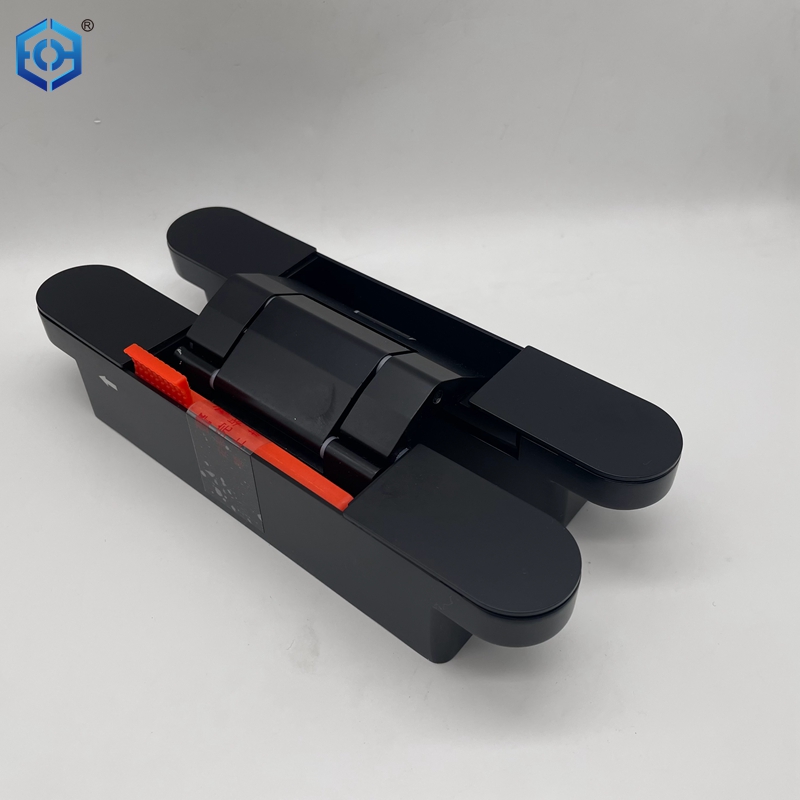

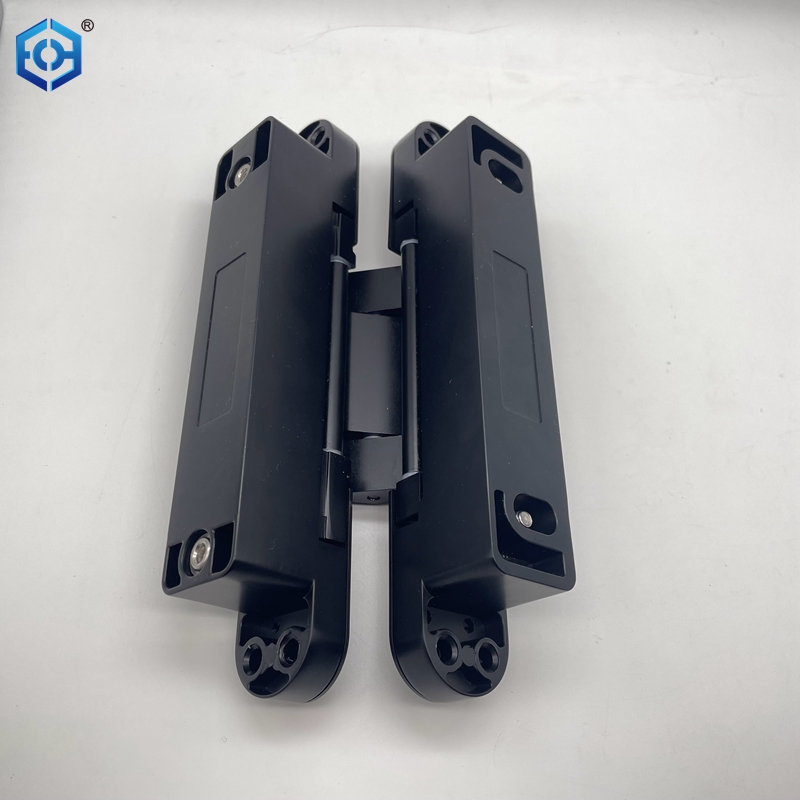

Product Picture:
