Commercial design waterproof glass folding shower door
Welcome a trial order!
Contact us at any time!

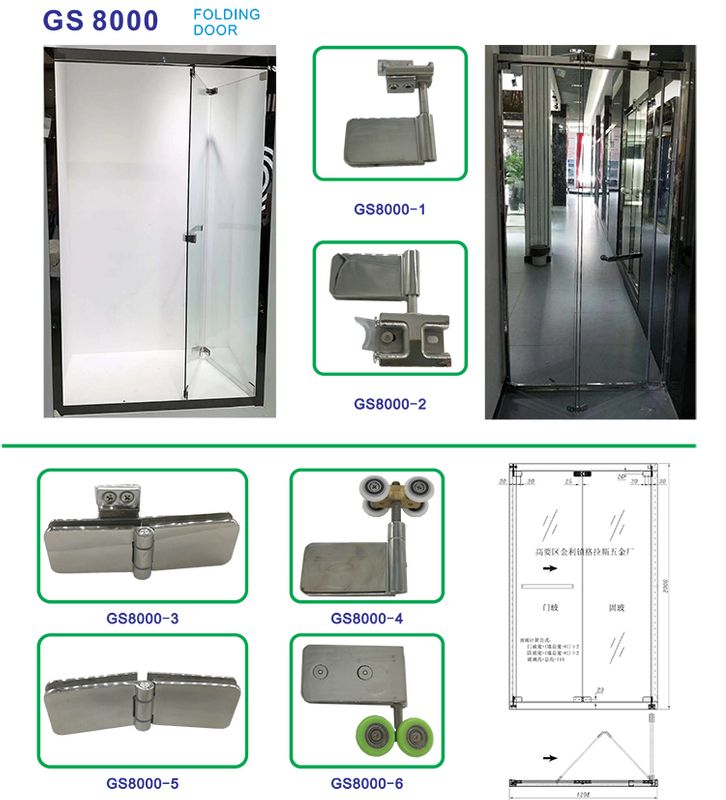

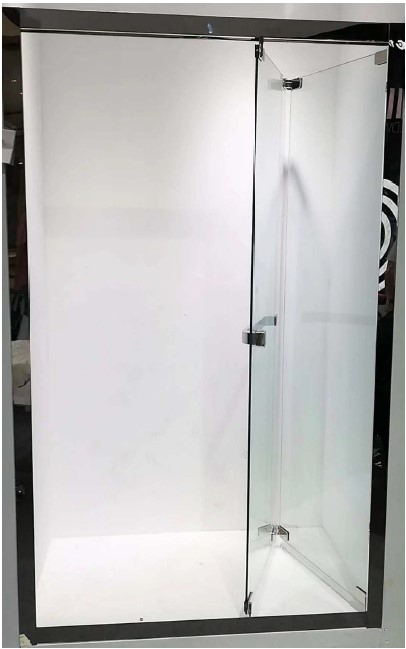

Commercial design waterproof glass folding shower door
Model No.: GS8000
Frameless folding sliding door
Material：Casting 304 SS glass clamp
Finish：Satin Nickel / Mirrow / Chrome / Powder Coating
Glass thickness：8-12mm
Door width：600-800mm
Door height：1800-2800mm
Door weight: within 45 kgs
| Model No. | GS8000 | Top track finish | Anodizing matt silver |
| Application | Folding door for shower room | Roler material | 304 stainless steel |
| Function | Water proof, folding door, save space | Bearing grade | CV2 |
| Max door leaf height(mm) | 2000 | Glass clamp material | 304 stainless steel |
| Max door leaf width(mm) | 700 | Glass clamp finishes | Mirror |
| Max door leaf load(kg) | 70 | Single hinge size(mm) | 77*40*17 |
| Glass thickness(mm) | 6; 8; 10 | Double hinge size(mm) | 141*40*17 |
| Top track size(mm) | 58*49 | Hinge material | 304 stainless steel |
| Top track thickness(mm) | 3 | Hinge finish | SSS/PSS/customise |
| Top track material | Aluminum 6063-T5 & stainless steel 304 | Bottom track | yes |
Customized design exterior frameless bi-fold glass folding door with hardware
Popular modern design large opening double glazed aluminum insulated folding door

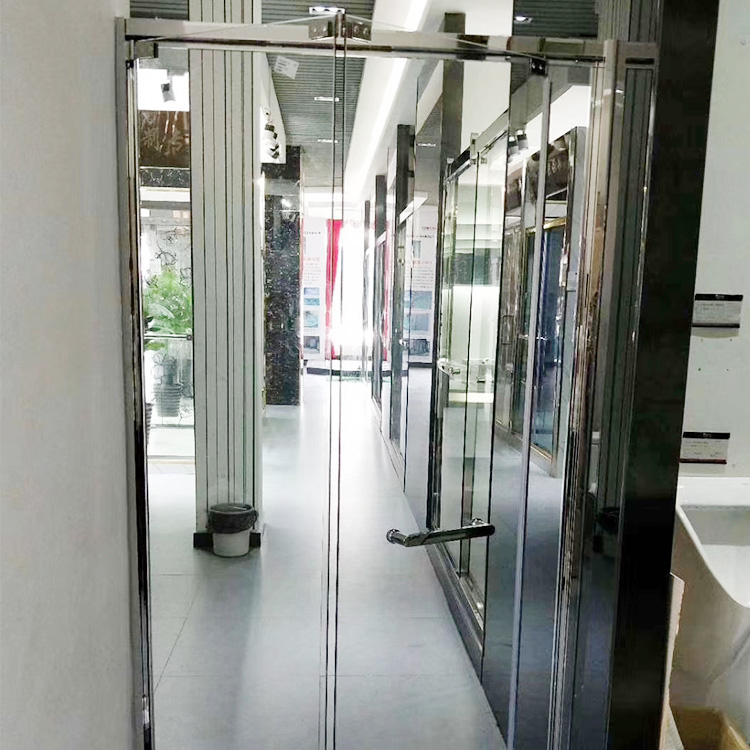

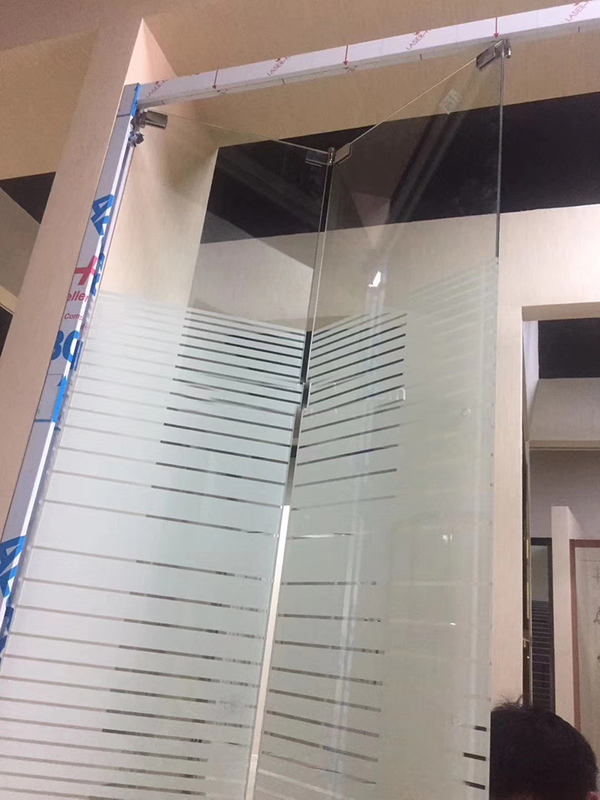

Project Case：
Product packaging
