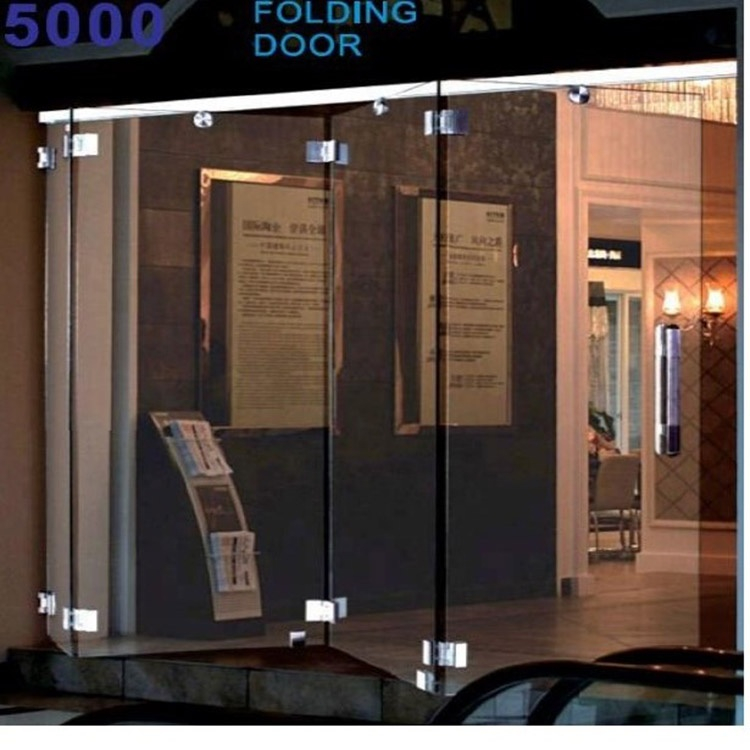

Fashion Sliding Glass Door Curtain Frameless Folding Door Folding Window
Model No.: GS5000

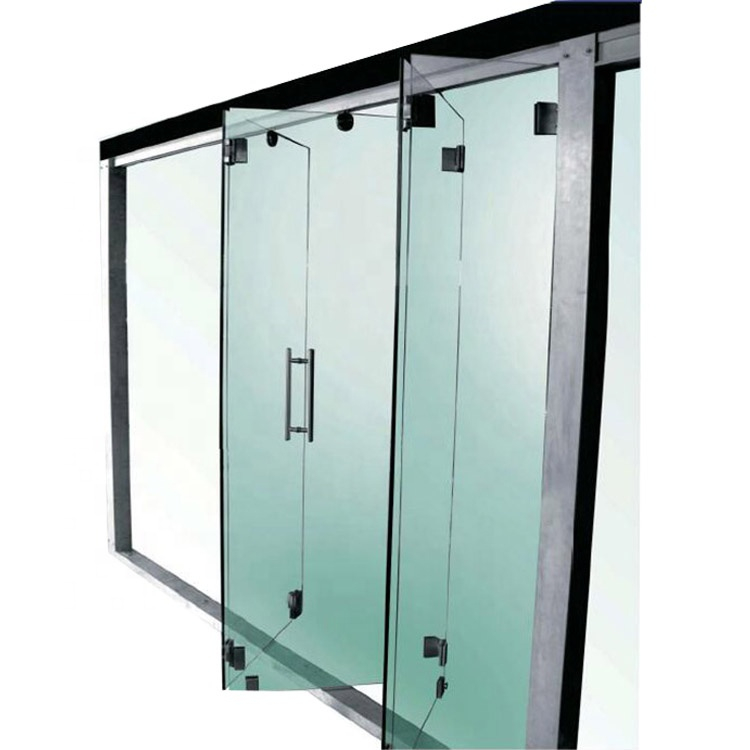

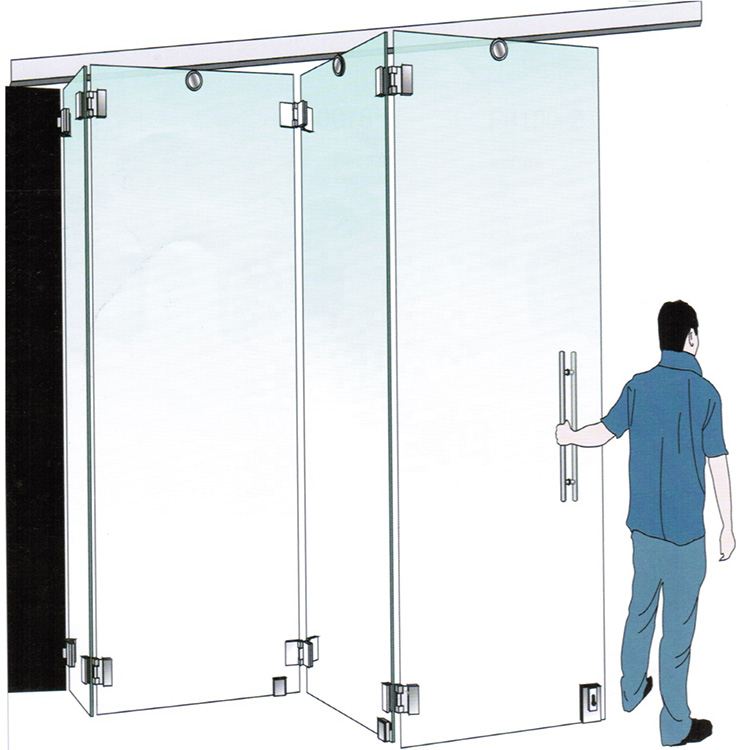

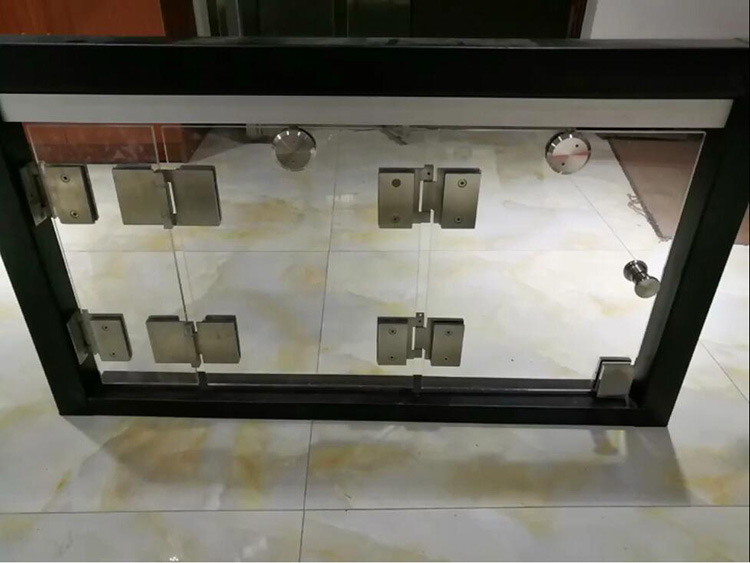

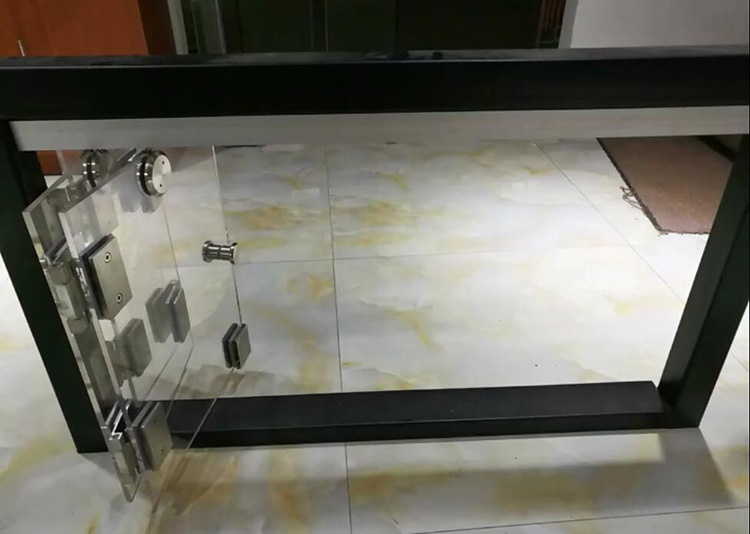

Frameless folding sliding door
Material：Casting 304 SS glass clamp
Finish：Satin Nickel / Mirrow / Chrome / Powder Coating
Glass thickness：8-12mm
Door width：600-800mm
Door height：1800-2800mm
Door weight: within 45 kgs
| Brand Name | ECH |
| Model No. | GS5000 |
| System name | Sliding folding door |
| Material | Aluminium + Stainless steel |
| Finished | Polished and stain |
| Glass thickness | 8-12mm single clear tempered glass |

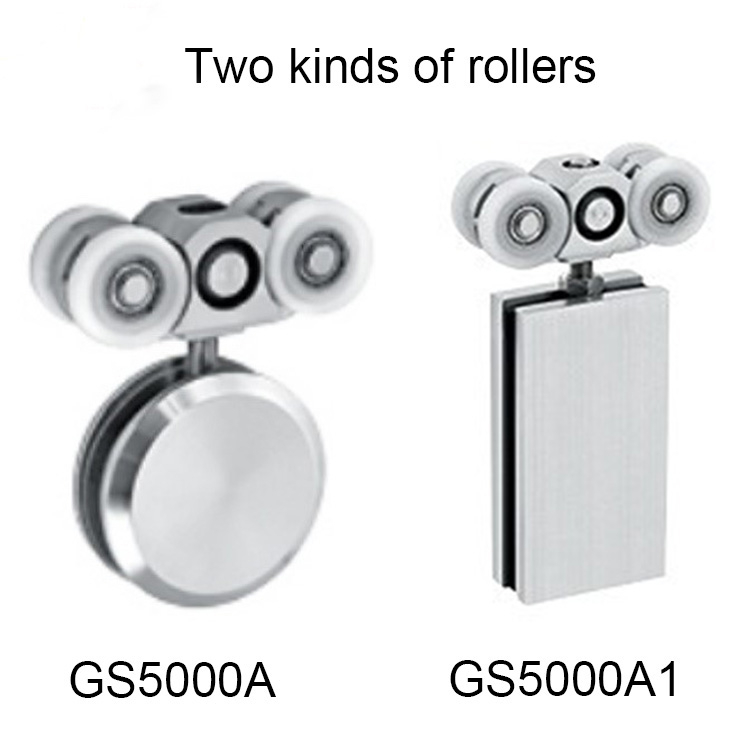

| Max. capacity for roller | 45kg |
| Installation | Configuration briefness and easy to install |
| Package | Standard packaging without any logo, can adjust customers request |
| Payment terms | T/T 30% deposit advanced, balanced before shipping |
| Delivery time | Usually within 10 days after receiving deposit |
| Model No. | GS5000 | Bearing grade | CV2 |
| Application |
Suitable for glass partition | Glass clamp cut size(mm) | 100*30 |
| Function | middle folding,each door width is same except the first fixed door | Glass clamp material | Aluminium 6063-T5 & 304 stainless steel |
| Max door leaf height(mm) | 3500 | Glass clamp finishes | A) Polished stainless steel
B) Satin stainless steel
C) Titanium |
| Max door leaf width(mm) | 1200 | Hinge size(mm) | 100*92.5*4 |
| Max door leaf load(kg) | 120 | Hinge material | 304 stainless steel |
| Glass thickness(mm) | 10; 12; 12.7 | Hinge finish | SSS/PSS/customise |
| Top track size(mm) | 72*78 | End cap material | 304 stainless steel |
| Top track thickness(mm) | 8 | End cap finish | SSS/PSS/customise |
| Top track material | Aluminum 6063-T5 | PVC seal | Optional |
| Top track finish | Anodizing matt silver | Lock | Optional |
| Roler material | 304 stainless steel | Lacth | Optional |

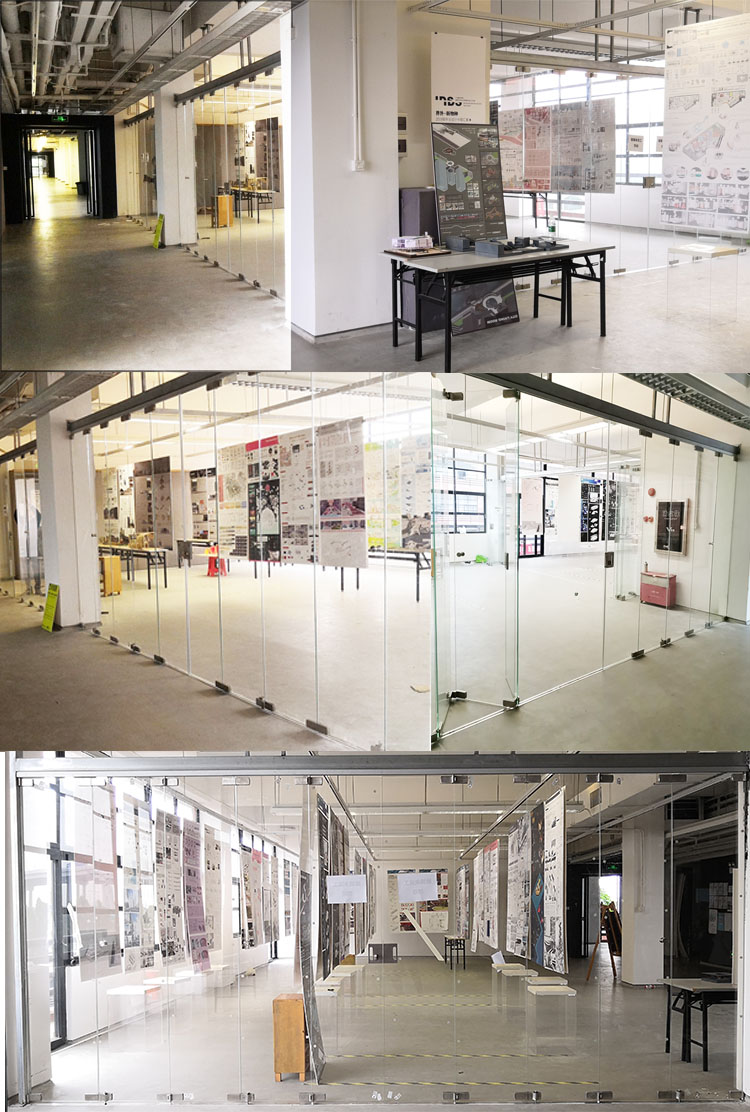

Customized design exterior frameless bi-fold glass folding door with hardware
