Wooden accordion folding door hinge rollers bifold door hardware

Wooden accordion folding door hinge rollers bifold door hardware
Quantity:
  • GS7000
  • ECH

Wooden accordion folding door hinge rollers bifold door hardware

Welcome a trial order!

Contact us at any time!

lever set

Wooden accordion folding door hinge rollers bifold door hardware

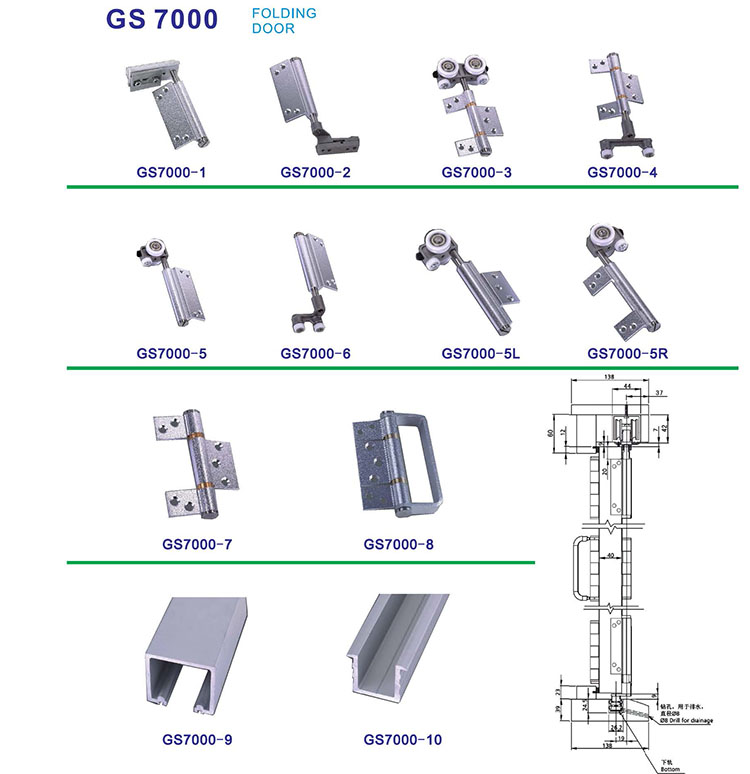

Model No.: GS7000
Frameless folding sliding door

Material:Casting 304 SS glass clamp
Finish:Satin Nickel / Mirrow / Chrome / Powder Coating
Glass thickness:8-12mm
Door width:600-800mm
Door height:1800-2800mm

Door weight: within 45 kgs


Brand Name
ECH
Model No.
GS7000
System name
Sliding folding door
Material
Aluminium + Stainless steel
Finished
Polished and stain
Glass thickness
8-12mm single clear tempered glass
Max. capacity for roller
45kg
Installation
Configuration briefness and easy to install
Package
Standard packaging without any logo, can adjust customers request
Payment terms
T/T 30% deposit advanced, balanced before shipping
Delivery time
Usually within 10 days after receiving deposit

Model No. GS7000 Bearing grade CV2
Application
Suitable for glass partition
Glass clamp cut size(mm) 100*30
Function middle  folding,each door width is same except the first fixed door Glass clamp material Aluminium 6063-T5 &  304 stainless steel
Max door leaf  height(mm) 3500 Glass clamp finishes A) Polished stainless steel
B)  Satin stainless steel
C) Titanium
Max door leaf width(mm) 1200 Hinge size(mm) 100*92.5*4
Max door leaf load(kg) 120 Hinge material 304 stainless steel
Glass thickness(mm) 10; 12; 12.7 Hinge finish  SSS/PSS/customise
Top track size(mm) 72*78 End cap material 304 stainless steel
Top track thickness(mm) 8 End cap finish SSS/PSS/customise
Top track material Aluminum 6063-T5 PVC seal Optional
Top track finish Anodizing matt silver Lock Optional
Roler material 304 stainless steel Lacth Optional


Customized design exterior frameless bi-fold glass folding door with hardware

Popular modern design large opening double glazed aluminum insulated folding door

brushed nickel door levers

aluminium glass folding doorssliding glass walls for patiosfrosted glass folding doorsframeless folding glass doors externalinterior bifold doors with glass panels

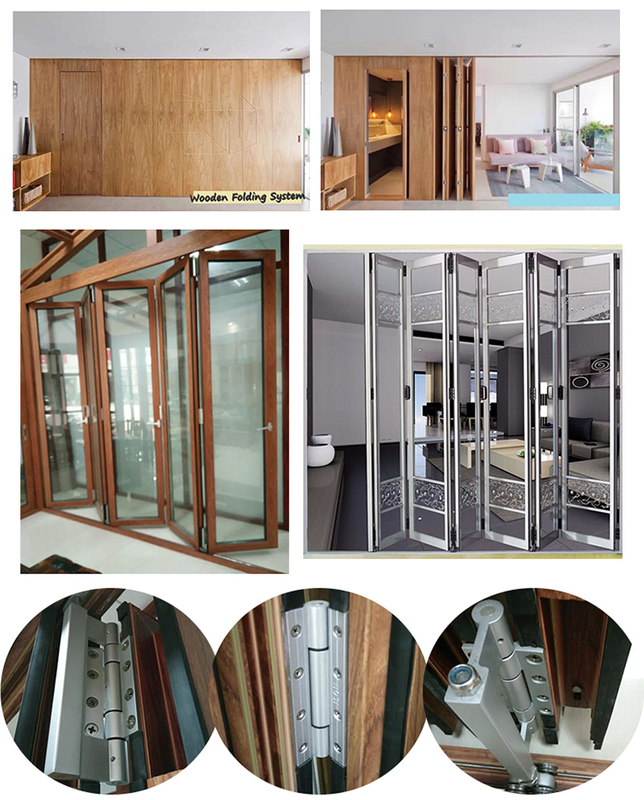

Project Case:

interior accordion glass doors


accordion glass


Product packaging

replacement glass for bifold doors
