Wooden Sliding Door Soft Closing Hanger Roller Sliding Door Closer

Wooden Sliding Door Soft Closing Hanger Roller

Quantity:
  • SDR010
  • ECH

Welcome to ECH

Welcome a trial order!

Please contact us at any time!



sliding door closer

 The more quantity, the lower the price







Specification
Type sliding door closer
Brand name ECH
Model NO. SDR010
Material Stainless steel
Finish SN or to order
Max door weight 100KG
Size 123*92*77mm
MOQ 500 PCS

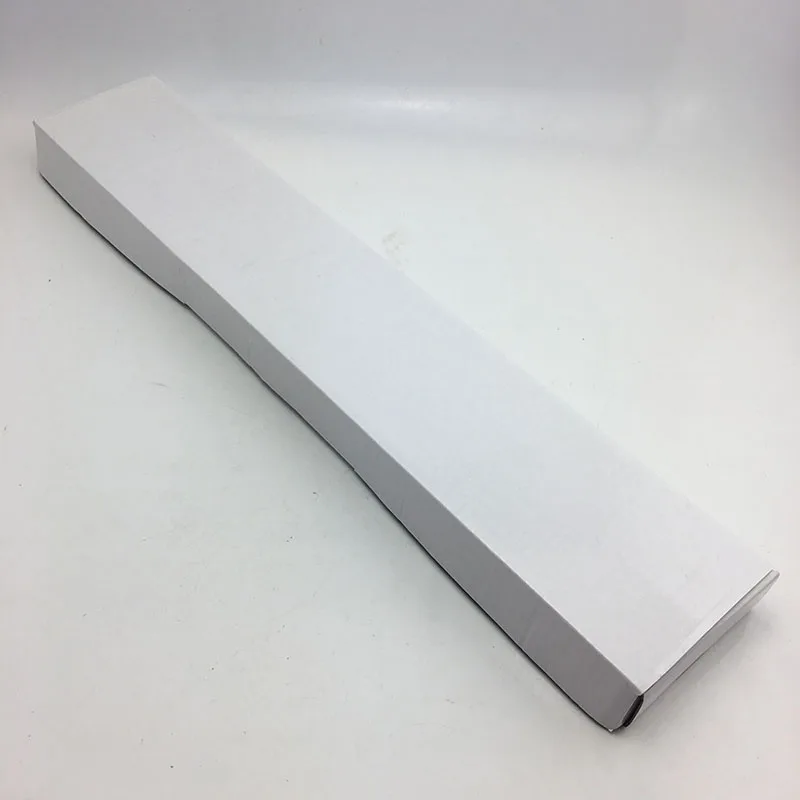

Inner packing soft foam pastic bag,color box and blister packing
Standard export packing one piece in one plastic bag,one pair in one white box ,20 pairs in one carton
Delivery day 30 working days







Soft-closing sliding door roller



Material: Hanger: zinc alloy

                Damper shell: cold plate

                Wheels: wrapped with nylon

Applicable door width: ≥550mm

Door thickness: ≥30mm

Load-bearing: ≤60kg



Characteristics and parameters of damper hanger roller:

1. New hydraulic damper structure, advanced technology, initial to use single damper to achieve two-way gate damper function.

2. Suspension structure connection  is simple, fast and convenient to install.

3. Minimum door width 4-wheel ≥550mm

4. Door thickness: ≥30mm

5. Load-bearing: 4-wheel ≤60kg (recommended 45kg)

6. Life test: repeated push-pull test ≥30000 times.

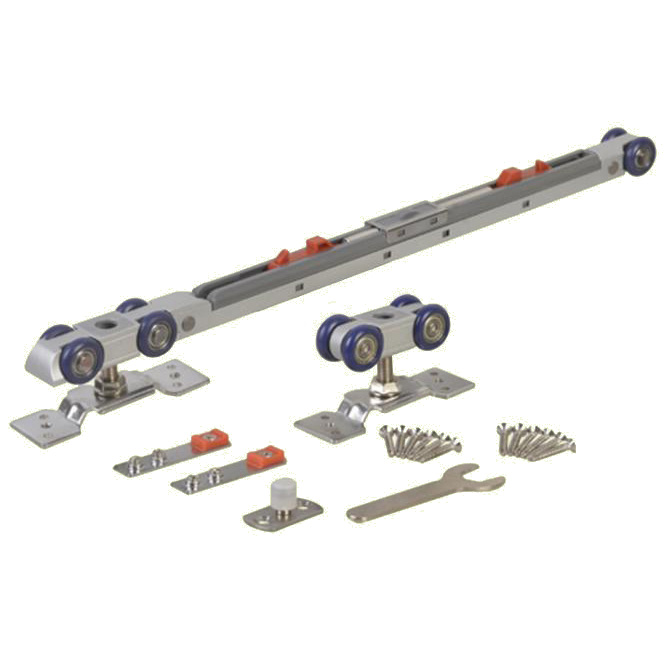

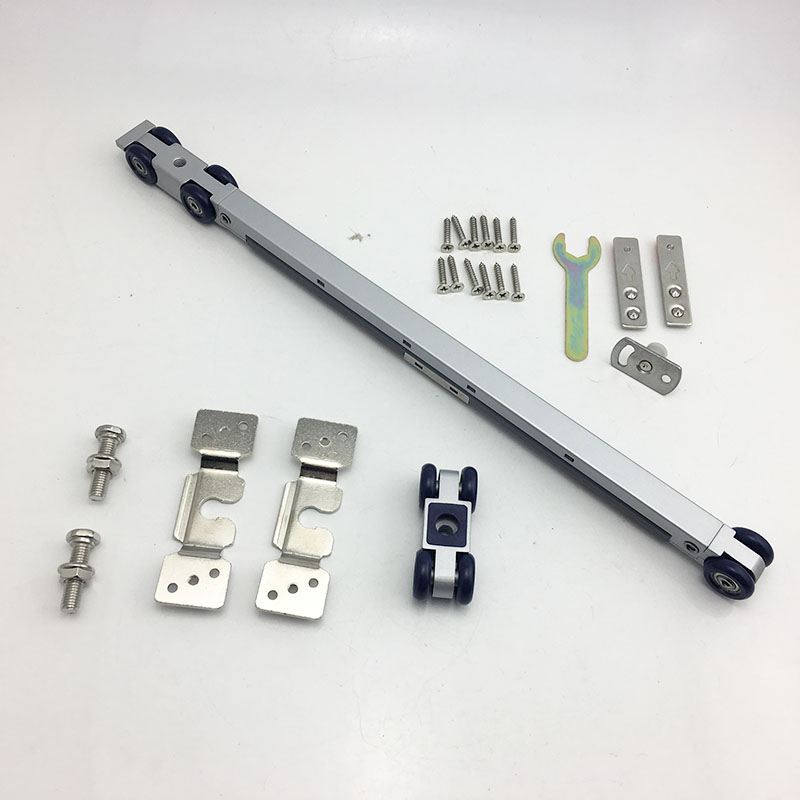

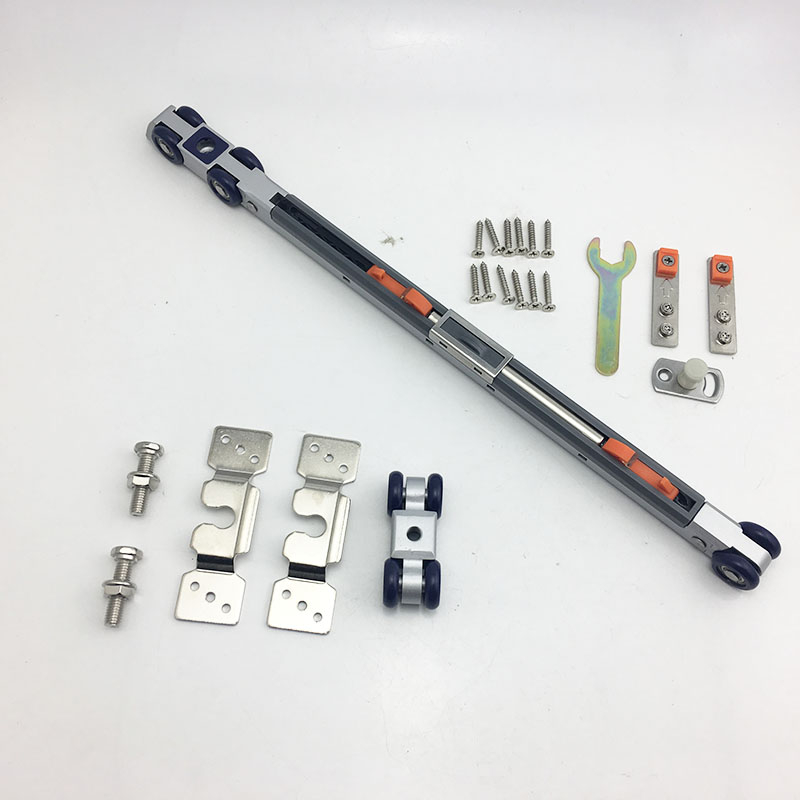

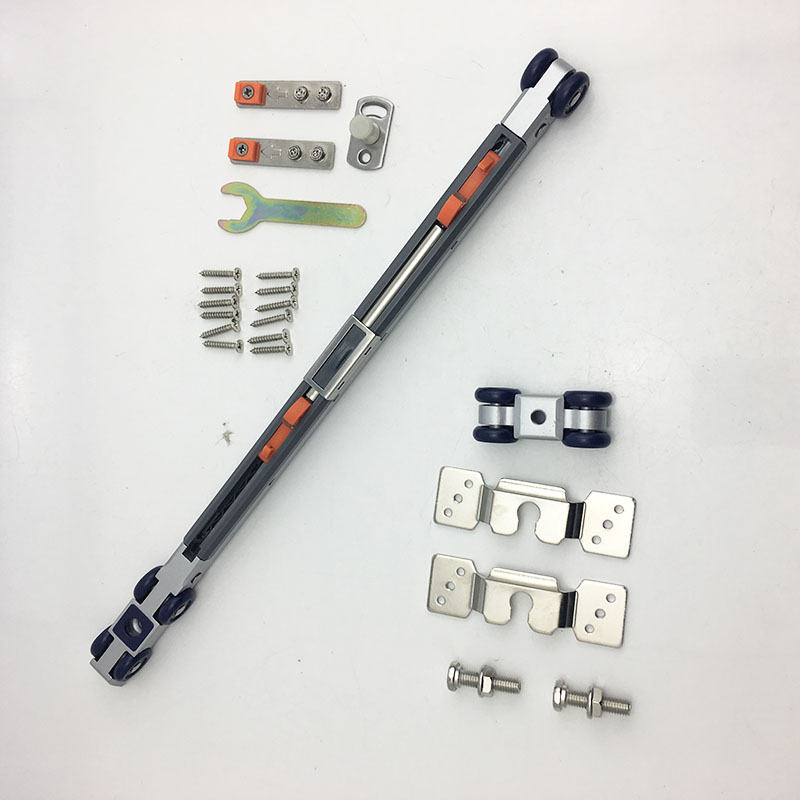

Product picture

Wooden-Sliding-Door-(9)

     Wooden-Sliding-Door-(4).jpgWooden-Sliding-Door-(5).jpgWooden-Sliding-Door-(6).jpgWooden-Sliding-Door-(7).jpgWooden-Sliding-Door-(8).jpg



   Size picture
