GD80
ECH
Modern Soft Close 40mm Thickness Silver Stainless Steel 2D Adjustable 180 Degree Hidden Door Hinges
Product Details
The product is made of 304 stainless steel material
Can bear a maximum door weight of 80KG
The maximum opening angle is 180°
The minimum Thickness of Door leaf is 40mm
Left and right adjustment ± 1.5mm
Front and rear adjustment ±1.5mm
Easy to install and use
Product Data
●Length:112/112mm Width:30/30mm
● Opening angle: ≤180°
Hinge/door hinge/ brass door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification | |
| Type | Concealed hinge |
| Brand name | ECH |
| Model NO. | GD80 |
| Material | stainless steel 304 |
| Finish | Satin chrome/Satin nickel/Polished chrome/Polished nickel |
| Size | 112X30X36MM |
| Radius comer | Round corner |
| Inner packing | soft foam pastic bag, color box and blister packing |
| Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
| Delivery day | 30 working days |
| name | hidden door hinge |

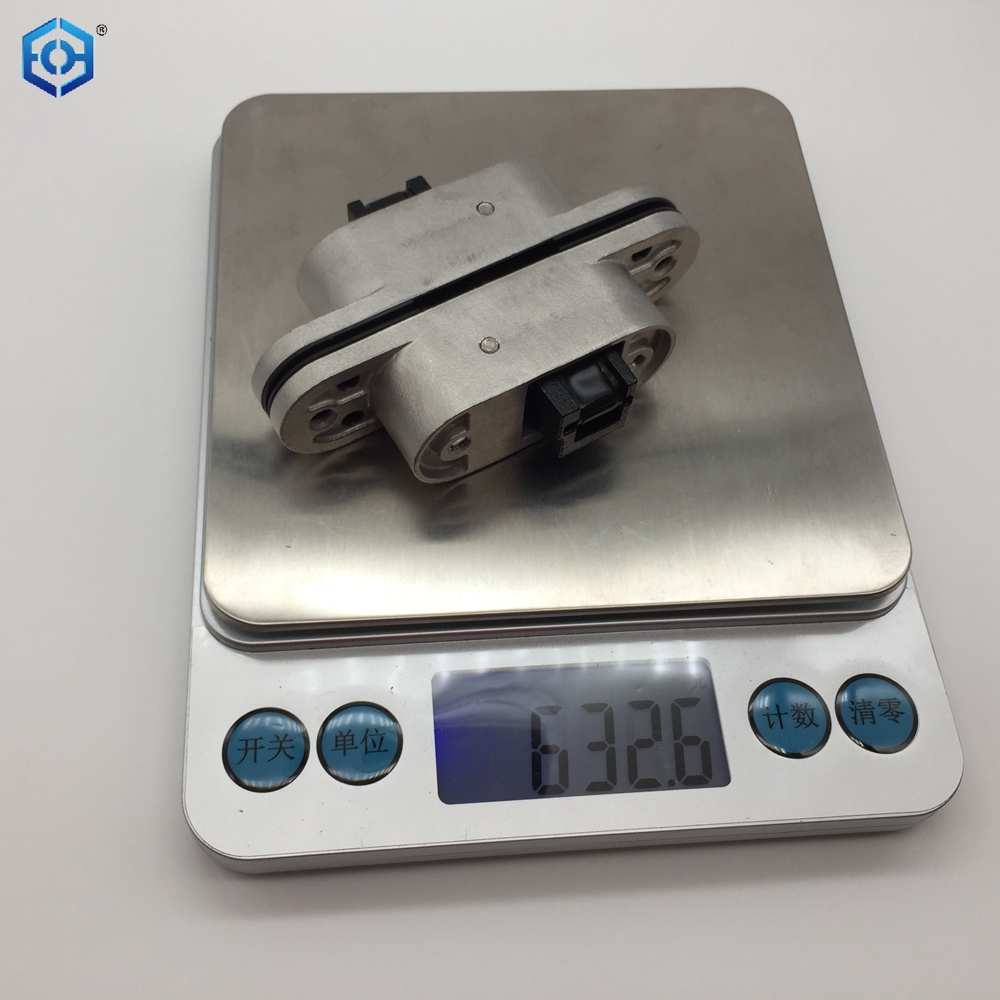

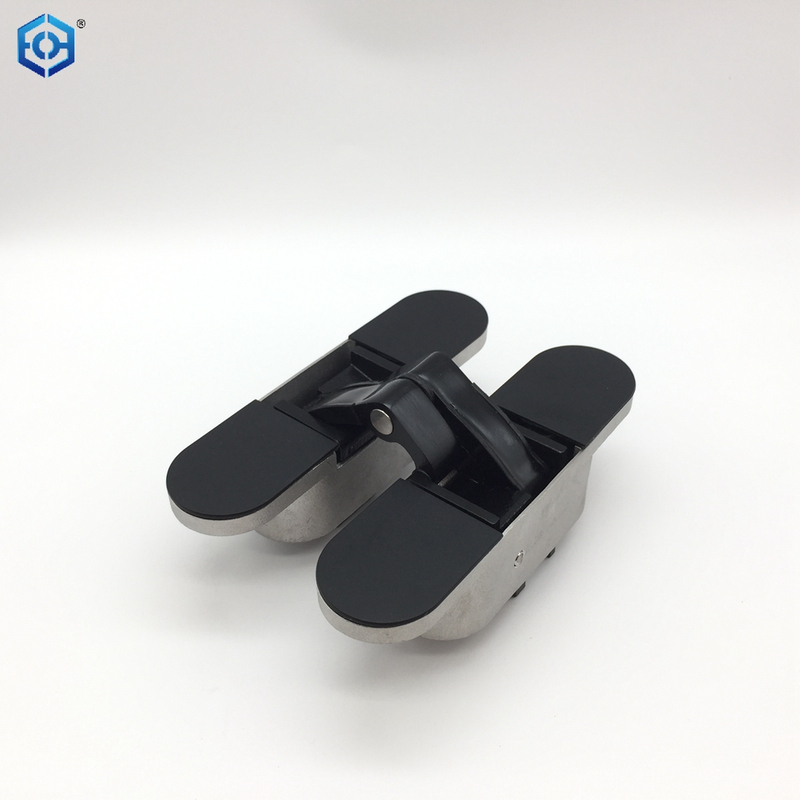

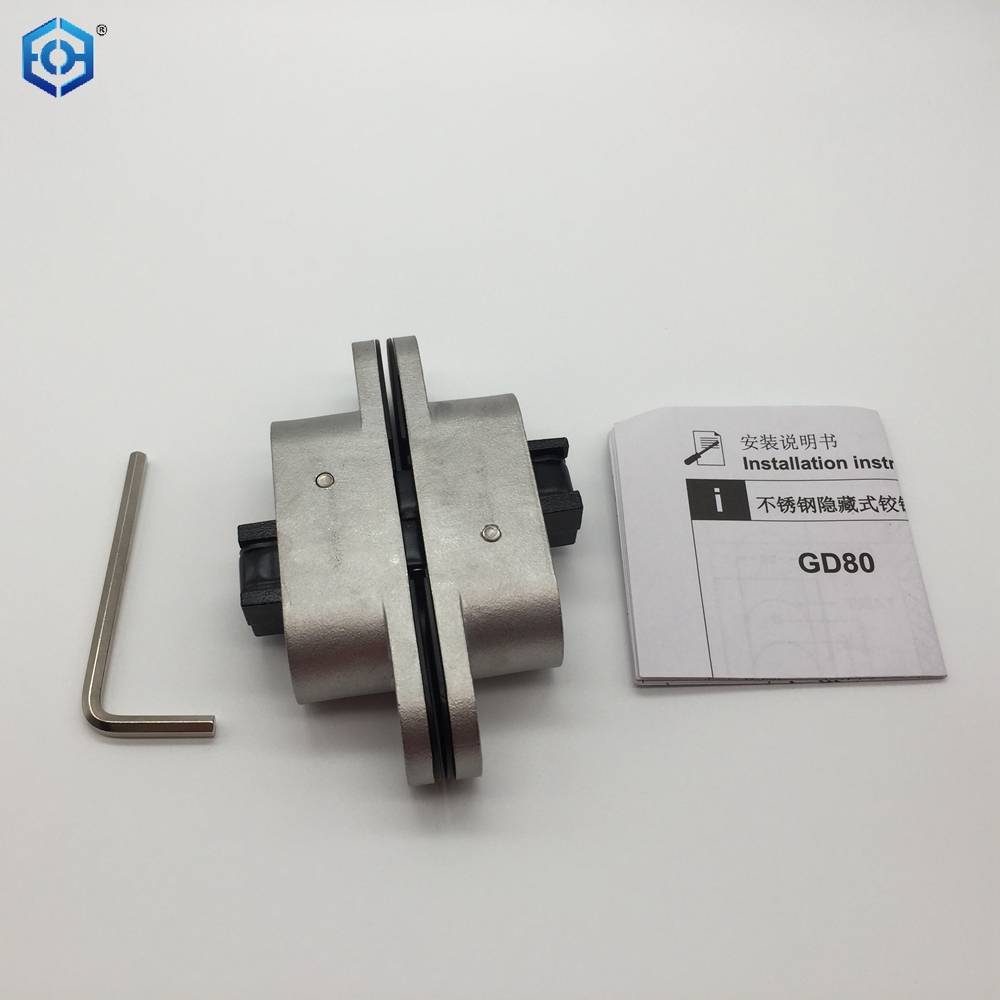

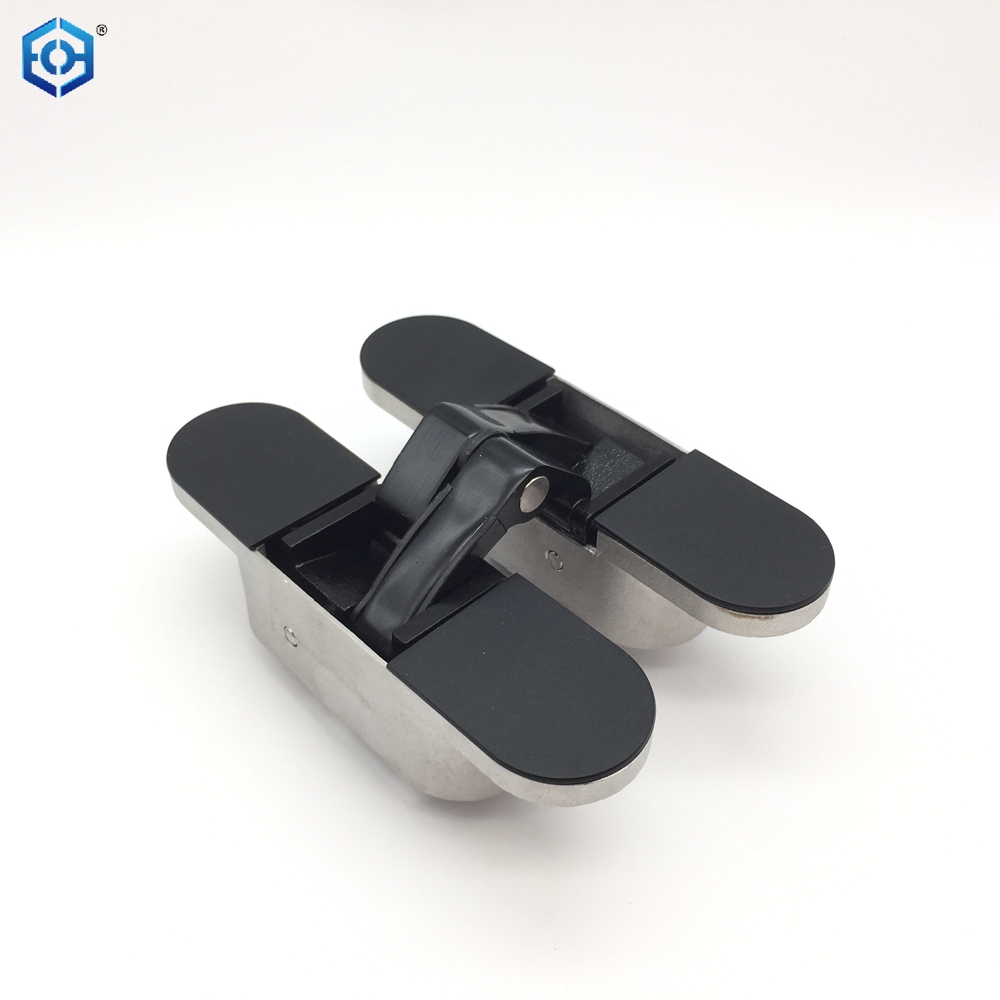

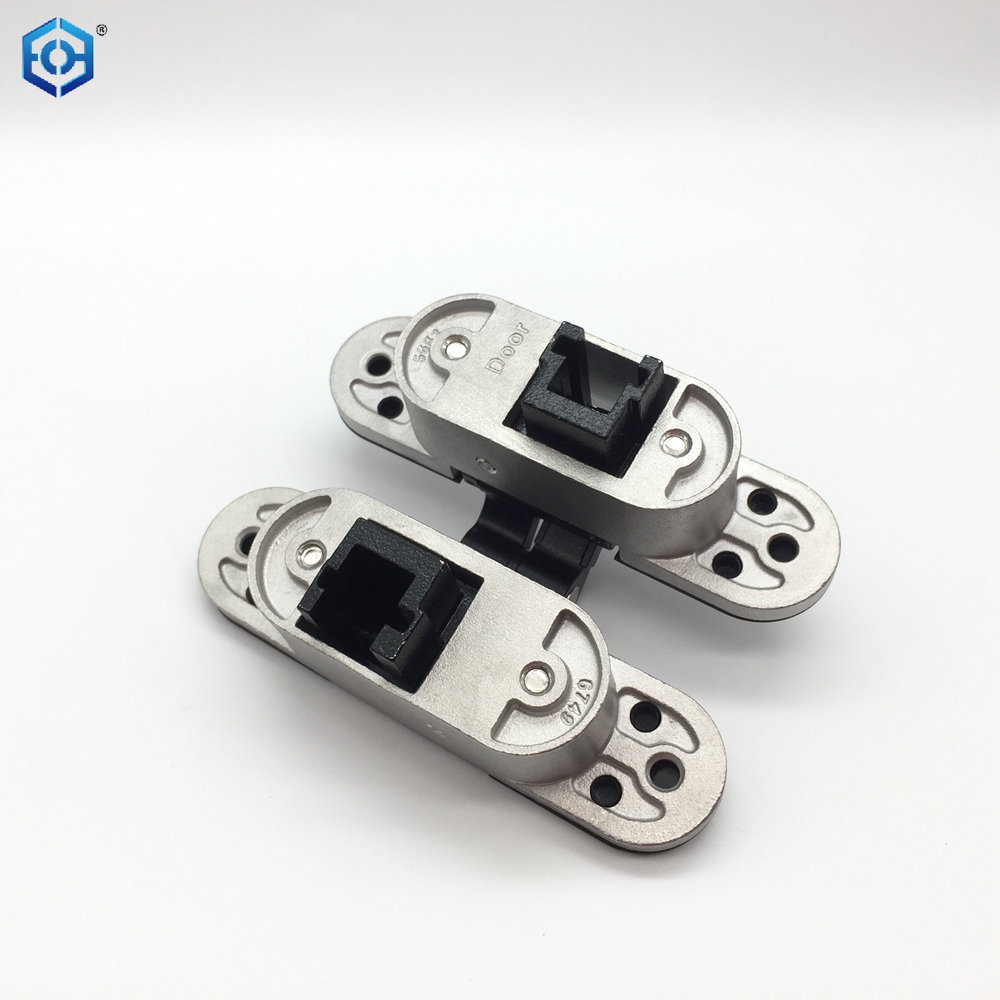

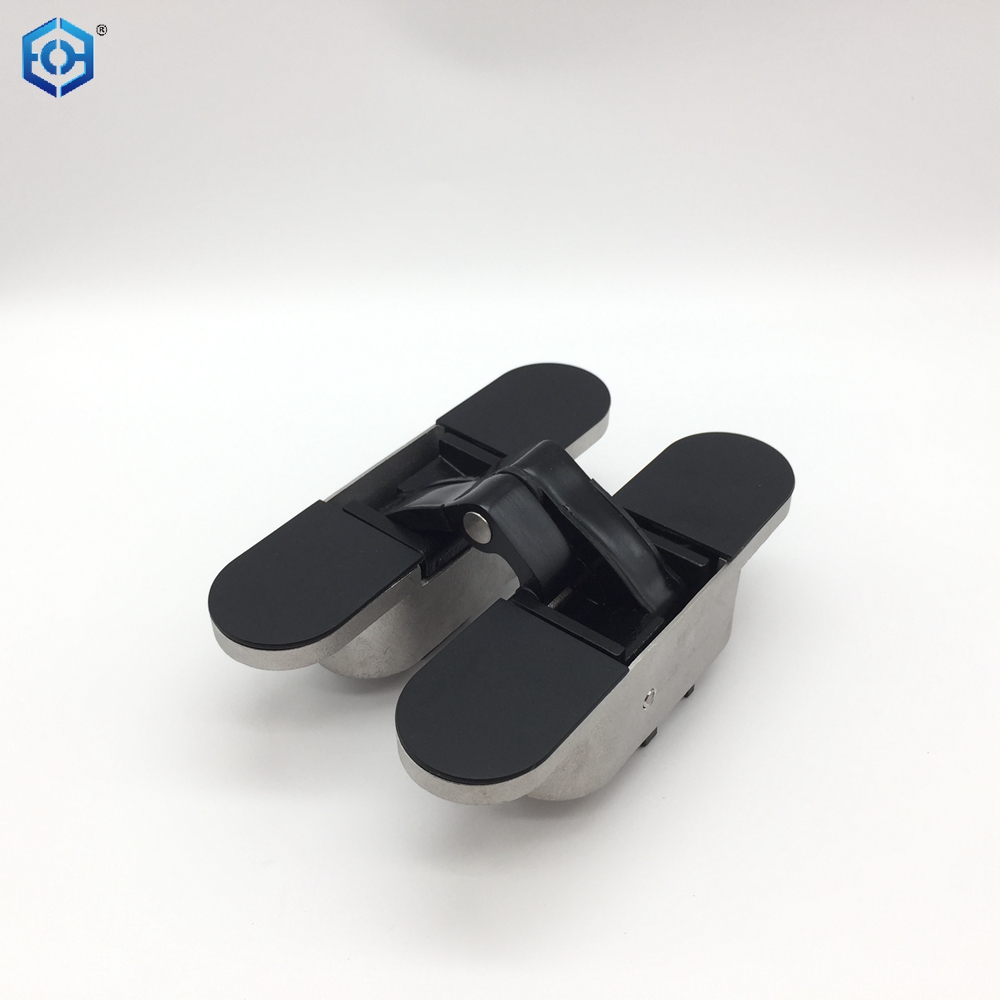

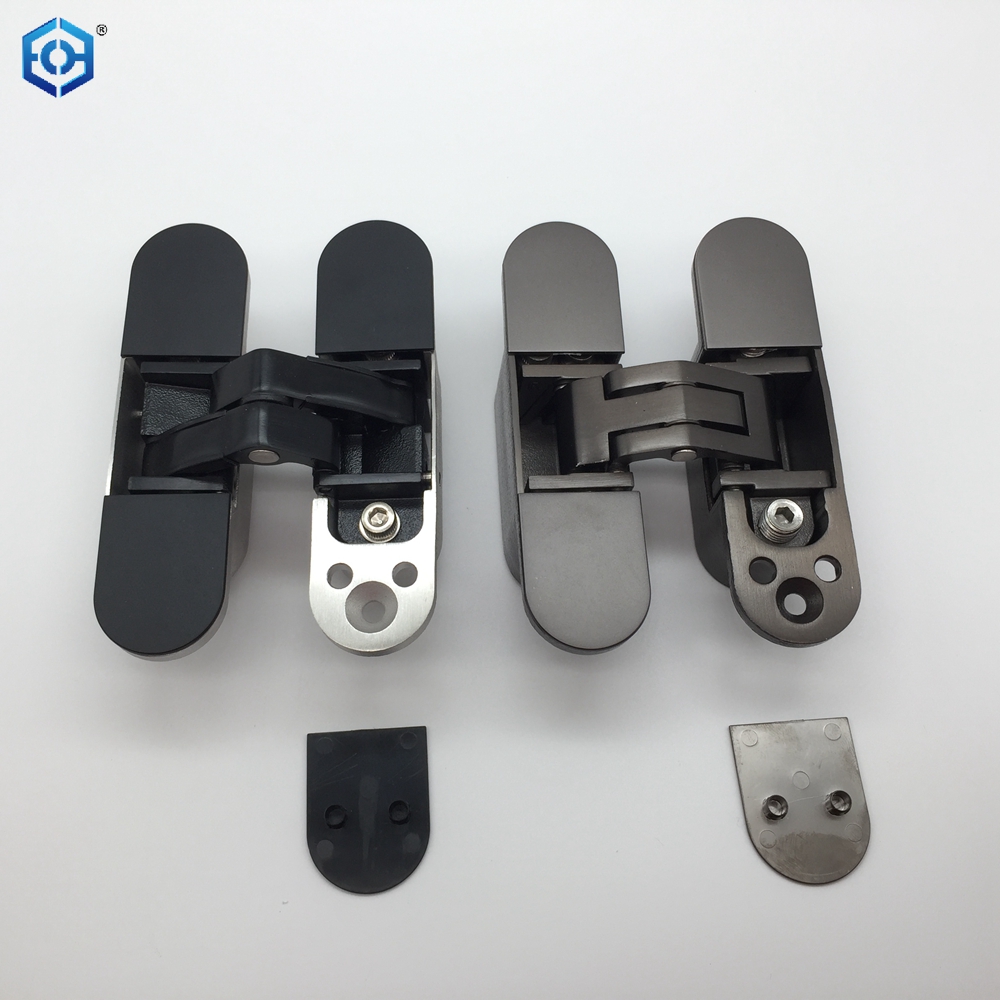

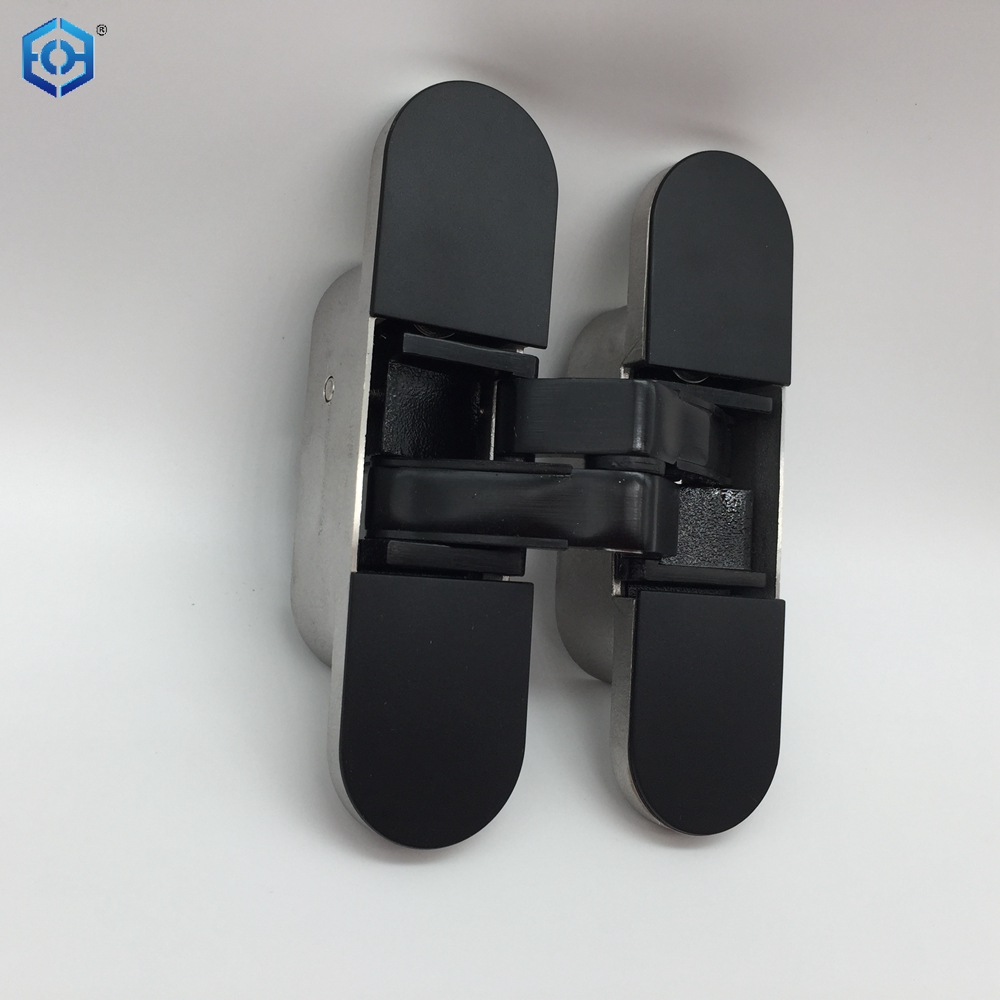

Product Picture:
