Stainless Steel Heavy Duty 3d Adjustable Concealed Hinges for 120kg Doors
Product Details
Basic Info.
Model NO.:ECH-100
Material: stainless steel 304
Finish:SATIN/GOLD/BLACK
Size:29.5x160x31.5MM
Min door thickness:40mm
Max door Open:180°
Load-Bearing:120kg/2pcs
Hinge/door hinge/ brass door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification |
| Type | Concealed hinge |
| Brand name | ECH |
| Model NO. | ECH-100 |
| Material | stainless steel 304 |
| Finish | Satin chrome/Satin nickel/Polished chrome/Polished nickel |
| Size | 29.5x160x31.5MM |
| Radius comer | round corner |
| Inner packing | soft foam pastic bag, color box and blister packing |
| Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
| Delivery day | 30 working days |
| name | hidden door hinge |

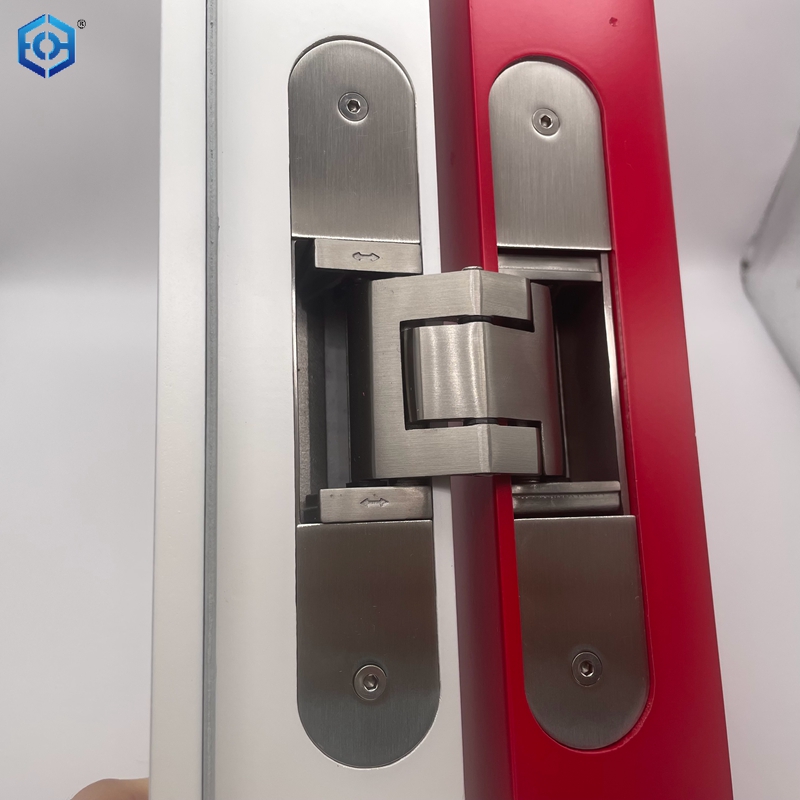

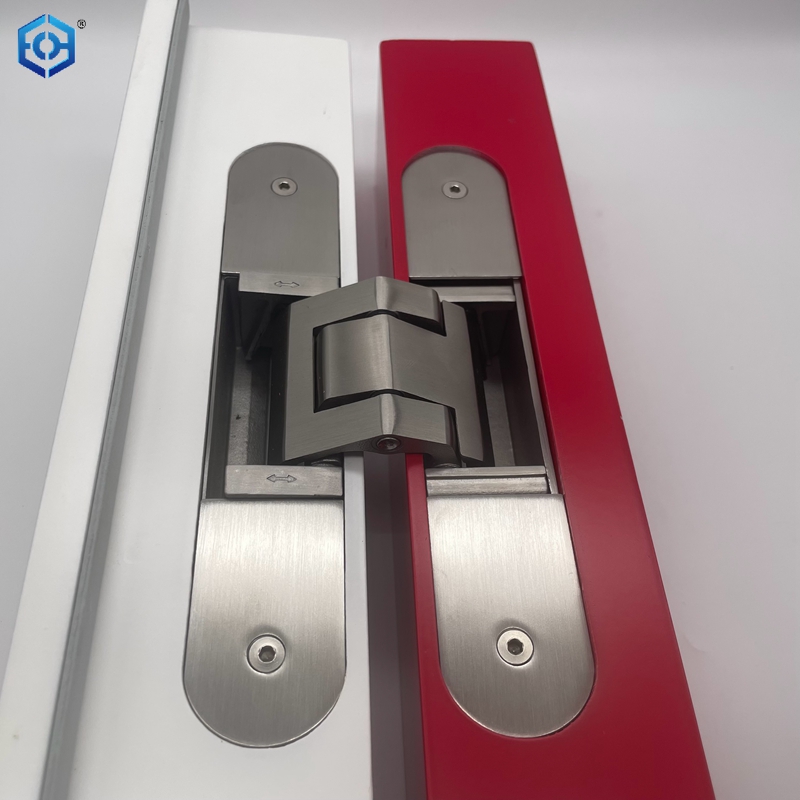

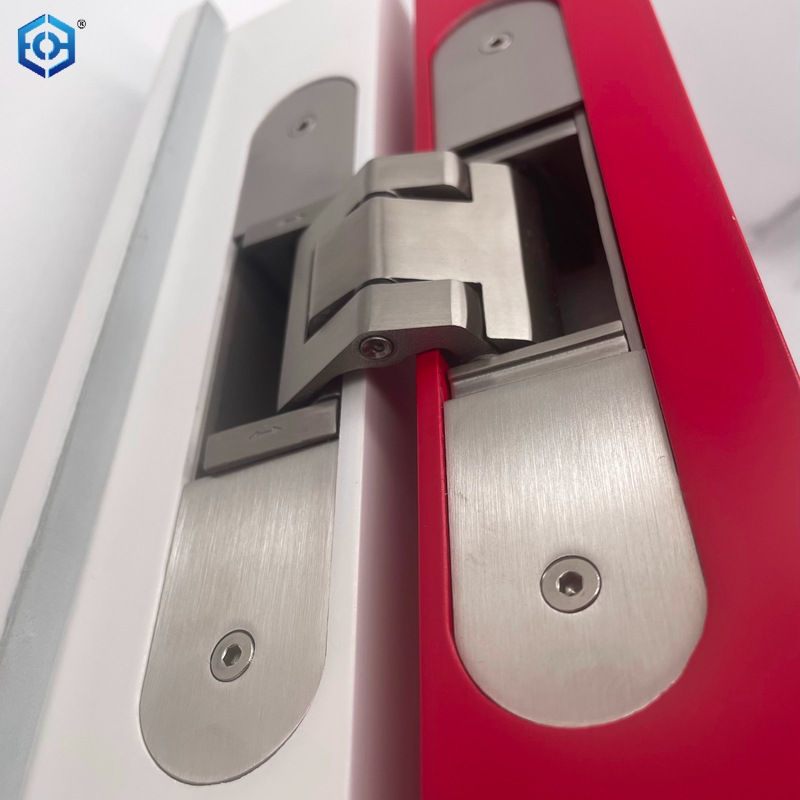

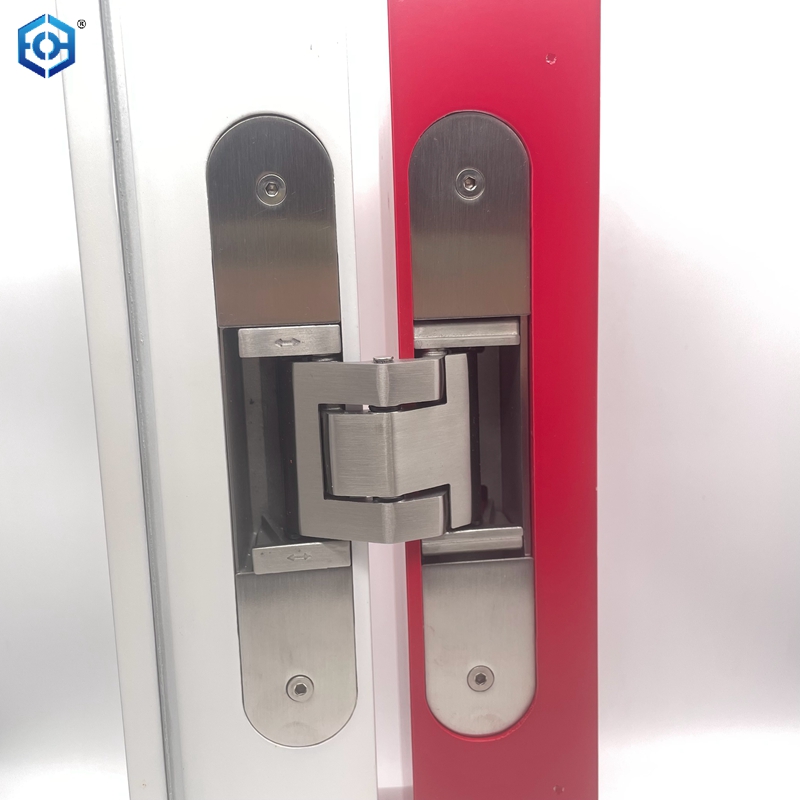

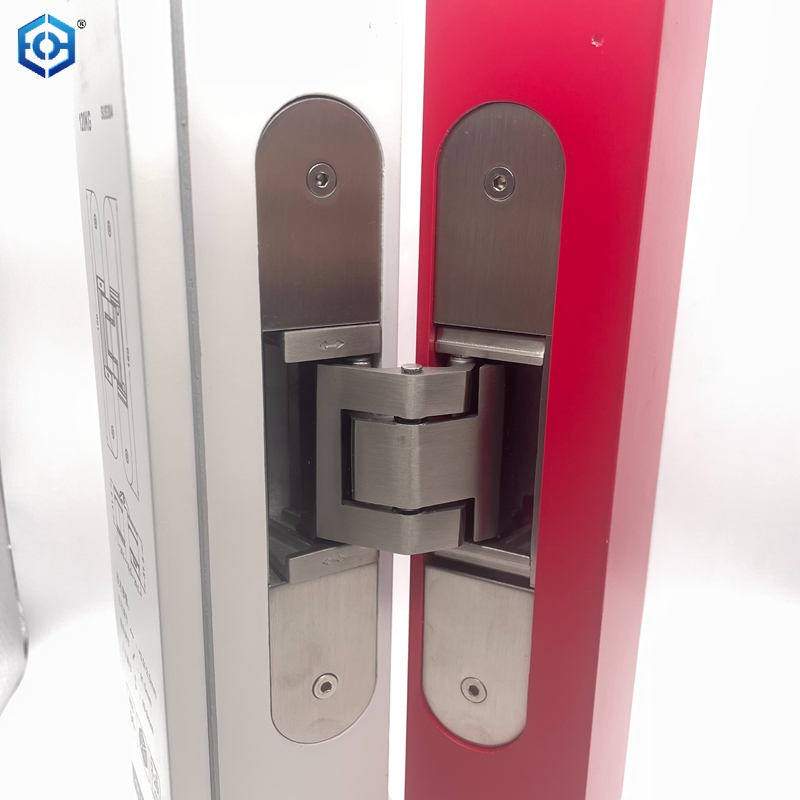

Product Picture:
