barn door hardware double bypass

barn door hardware double bypass
Availability:
Quantity:
barn door hardware double bypass
barn door hardware double bypass
barn door hardware double bypass
  • BDH-A09

  • ECH

Model number: BDH-A09
Material: Carbon steel
Surface finish:black/dark coffee powder coating or other color as required
Load bearing: 175kgs
Application: interior/exterior wooden doors for living room/store room/veranda/laundry.etc
Single/double open wooden door
Rail/track length: 2m/79" standard or as customized

Door thickness : 1 3/8" --1 5/8" (35-45MM)
Door width:31 1/2" --39 3/8"
Packing:2055*115*80/set

Warranty: 3--5years

Track length&door width Match: 1500mm track--under 750mm door
                                                1800mm track--under 900mm door
                                                 2000mm track--800-1000mm door

3000mm track(1500+1500)--1500mm door

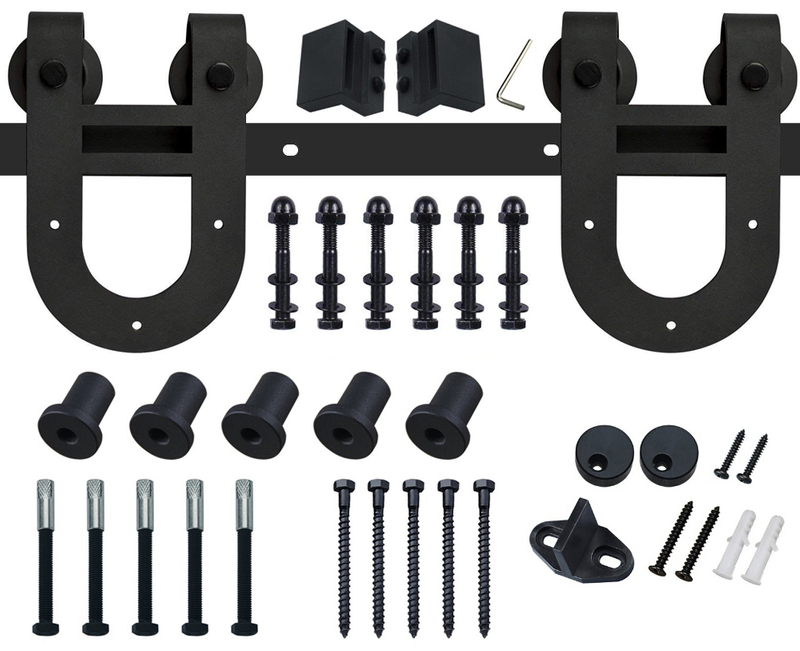

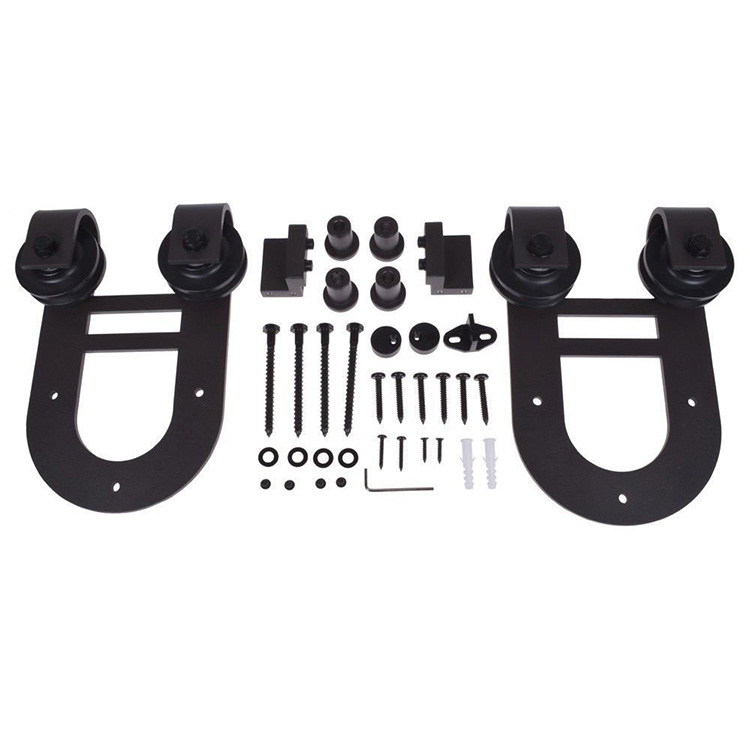

1 set include:

Door stopx2,sliding trackx1, wall mountx5,sliding rollerx2,bottom guidex1,door handle(selective)x1, anti-jump diskx1
ITEM
Qty
Material&Surface
Sliding Track(Length can be customized.)
1*2mm
Carbon Steel +black powder coating / painting
Sliding Rollers
2
Carbon Steel +black powder coating / painting
Door Stops
2
Carbon Steel +black powder coating / painting
Wall Mounts &Screws
5
Carbon Steel +black powder coating / painting
Anti-Jump Disks
2
POM
Floor Guide
1
POM
Door Handle(not included in the kit)
1
Carbon Steel +black powder coating / painting




New  door stop with damper

we already developed a new technology model,New door stop with damper, which replacing the original door stop and original Anti-jump.Technology is more advanced,the structure is more closely,we'd like to highly recommend this model to you,Pls have a try in your local market, if possible.
