Steel Sliding Barn Door Hardware Slide Bolt Latch Lock for Wooden Doors

Steel Sliding Barn Door Hardware Slide Bolt Latch Lock for Wooden Doors
Availability:
Quantity:
  • BDH-LATCH-STEEL
  • ECH

Steel Sliding Barn Door Hardware Slide Bolt Latch Lock for Wooden Doors


Model number: BDH-LATCH-STEEL

Finish:SSS/Black

Material:powder coated steel & 304 grade stainless steel

Overall Length:3.46"

CC:2.43"

Width:3.36"

Thickness:1.51"


Material: Carbon steel
Surface finish:black/dark coffee powder coating or other color as required
Load bearing: 175kgs
Application: interior/exterior wooden doors for living room/store room/veranda/laundry.etc
Single/double open wooden door
Rail/track length: 2m/79" standard or as customized

Door thickness : 1 3/8" --1 5/8" (35-45MM)
Door width:31 1/2" --39 3/8"
Packing:2055*115*80/set

Warranty: 3--5years

Track length&door width Match: 1500mm track--under 750mm door
                                                1800mm track--under 900mm door
                                                 2000mm track--800-1000mm door

3000mm track(1500+1500)--1500mm door


1 set include:

Door stopx2,sliding trackx1, wall mountx5,sliding rollerx2,bottom guidex1,door handle(selective)x1, anti-jump diskx1
ITEM
Qty
Material&Surface
Sliding Track(Length can be customized.)
1*2mm
Carbon Steel +black powder coating / painting
Sliding Rollers
2
Carbon Steel +black powder coating / painting
Door Stops
2
Carbon Steel +black powder coating / painting
Wall Mounts &Screws
5
Carbon Steel +black powder coating / painting
Anti-Jump Disks
2
POM
Floor Guide
1
POM
Door Handle(not included in the kit)
1
Carbon Steel +black powder coating / painting


New  door stop with damper

we already developed a new technology model,New door stop with damper, which replacing the original door stop and original Anti-jump.Technology is more advanced,the structure is more closely,we'd like to highly recommend this model to you,Pls have a try in your local market, if possible.

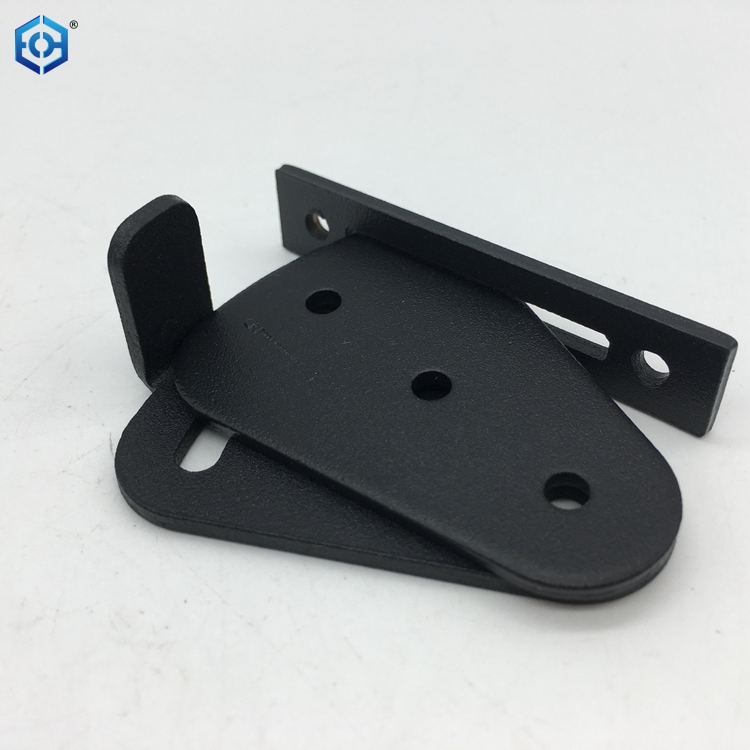

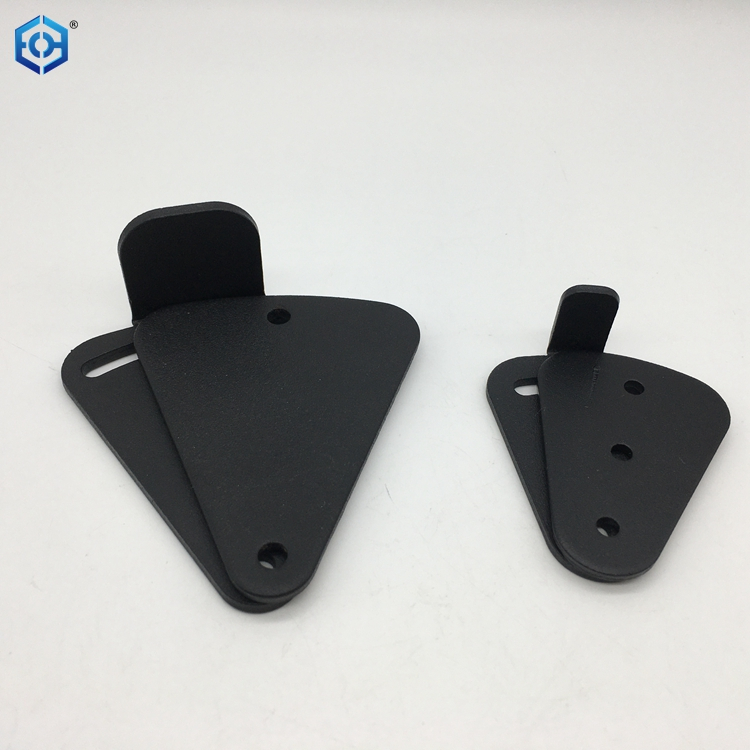

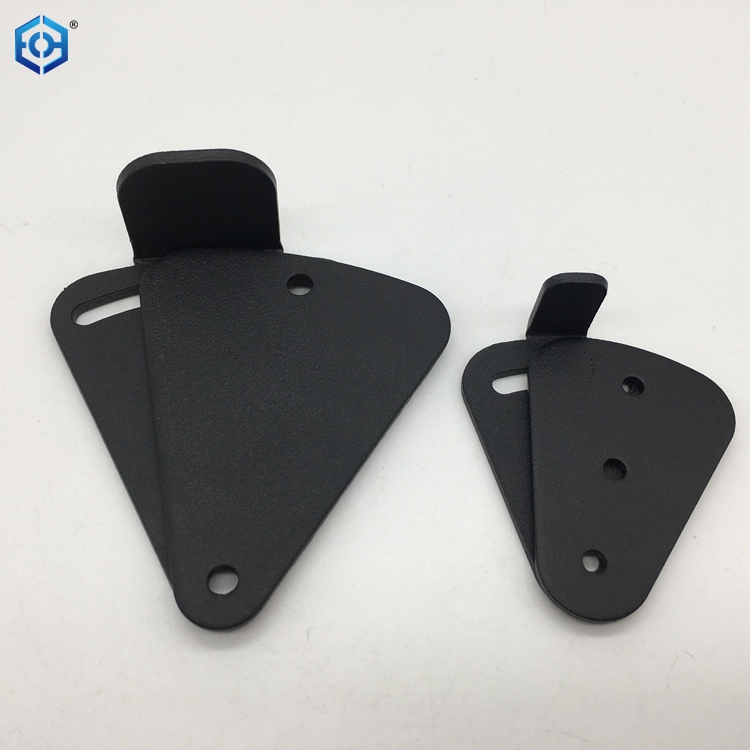

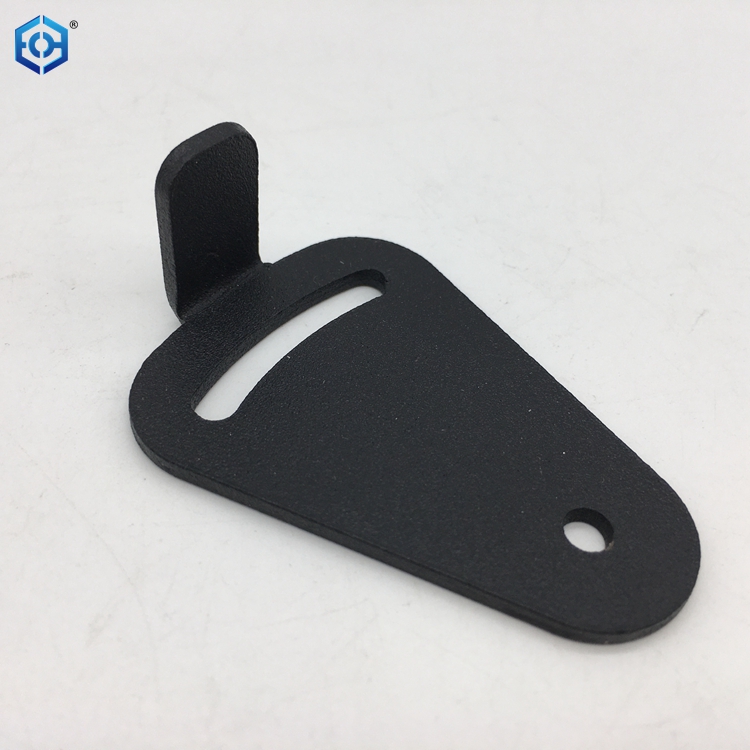

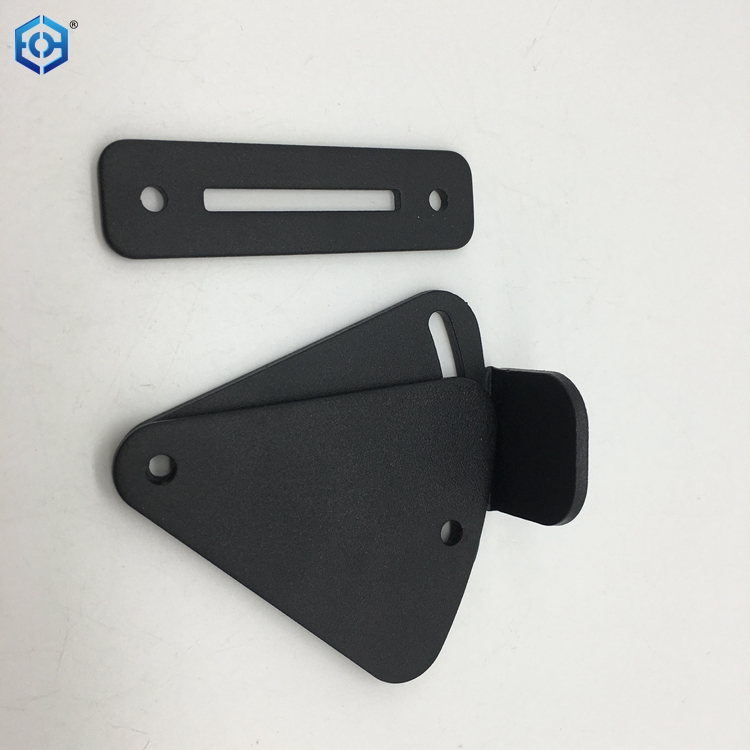

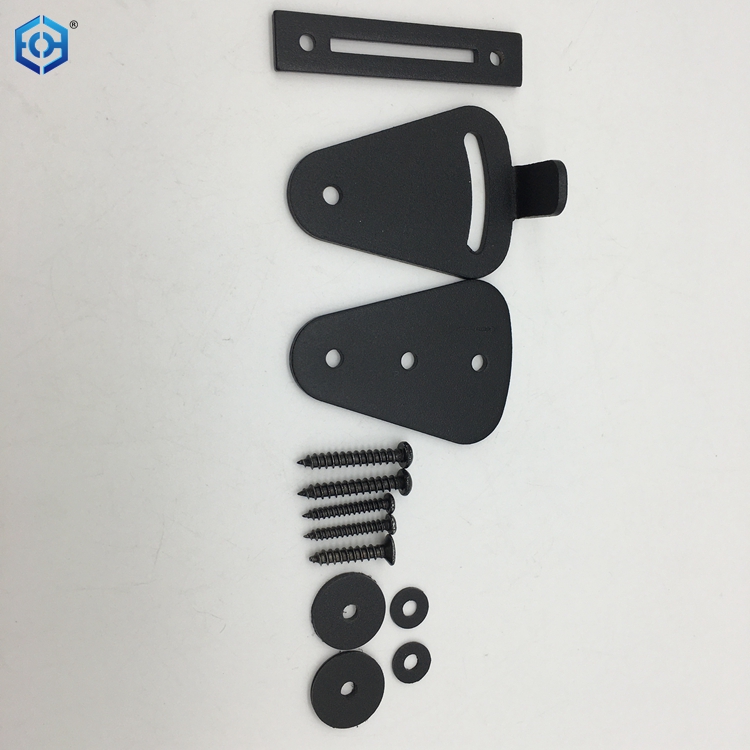

Product Picture:

emtek barn door lock

door locks for barn doorsbarn door magnetic lockfarm door lockdoor lock for barn doorsliding barn door locks and latchesbarn door latch lowespole barn sliding door lockbarn door locks and handles

sliding shed door lock

exterior barn door locks

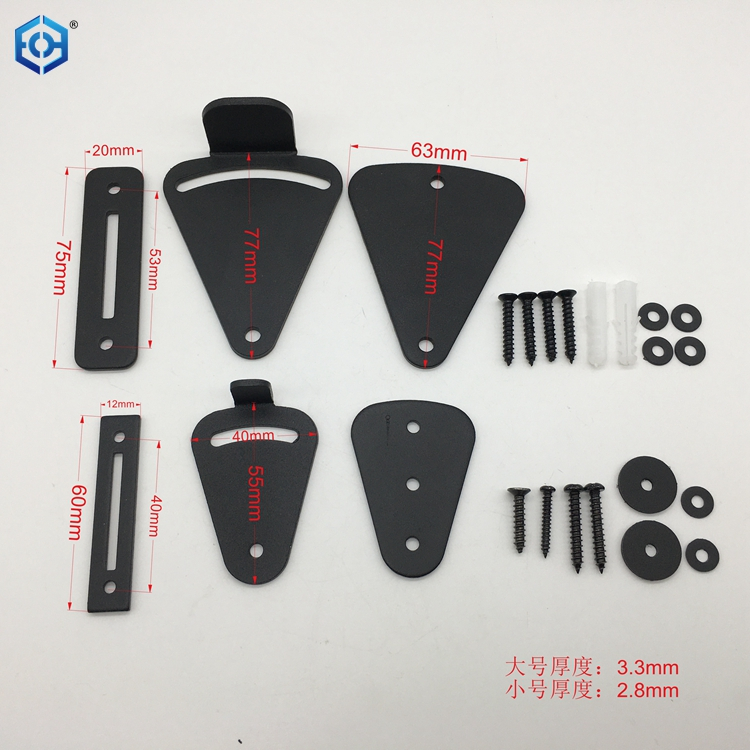

Product Size Picture :

BDH-LATCH-STEEL (5)
