Matte Black Steel Super Mini Single Door Cabinet Sliding Barn Door Hardware Track Kit

Matte Black Steel Super Mini Single Door Cabinet Sliding Barn Door Hardware Track Kit

Quantity:
  • BDH-A01-XS
  • ECH

Matte Black Steel  Super Mini Single Door Cabinet Sliding Barn Door Hardware Track Kit


Model number: BDH-A01-XS
Material:  steel
Surface finish:black/dark coffee powder coating or other color as required
Load bearing: 175kgs
Application: interior/exterior wooden doors for living room/store room/veranda/laundry.etc
Single/double open wooden door
Rail/track length: 2m/79" standard or as customized

Door thickness : 1 3/8" --1 5/8" (35-45MM)
Door width:31 1/2" --39 3/8"
Packing:2055*115*80/set

Warranty: 3--5years

Track length&door width Match: 1500mm track--under 750mm door
                     1800mm track--under 900mm door
                      2000mm track--800-1000mm door

                      3000mm track(1500+1500)--1500mm door


1 set include:

Door stopx2,sliding trackx1, wall mountx5,sliding rollerx2,bottom guidex1,door handle(selective)x1, anti-jump diskx1
ITEM
Qty
Material&Surface

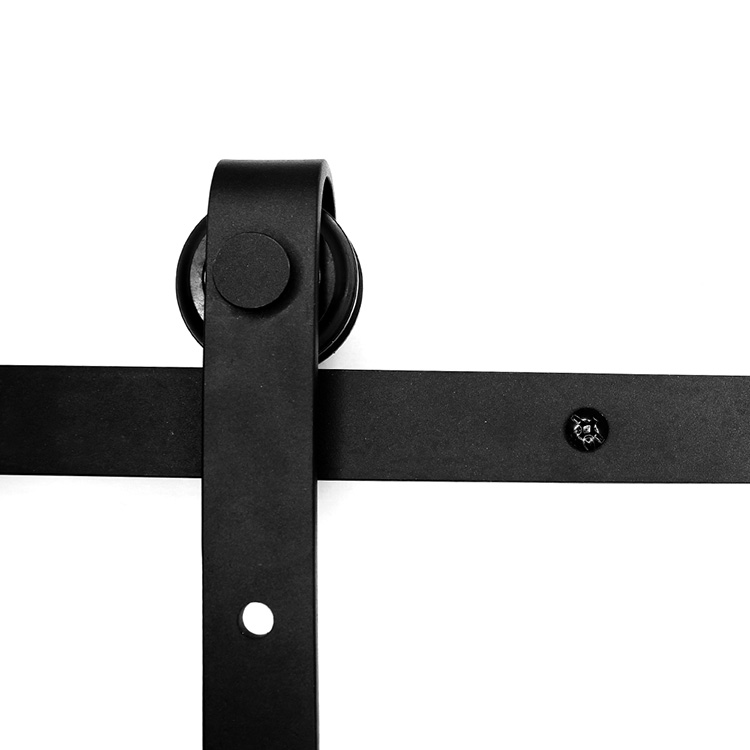

Sliding Track(Length can be customized.)
1*2mm
Carbon Steel +black powder coating / painting

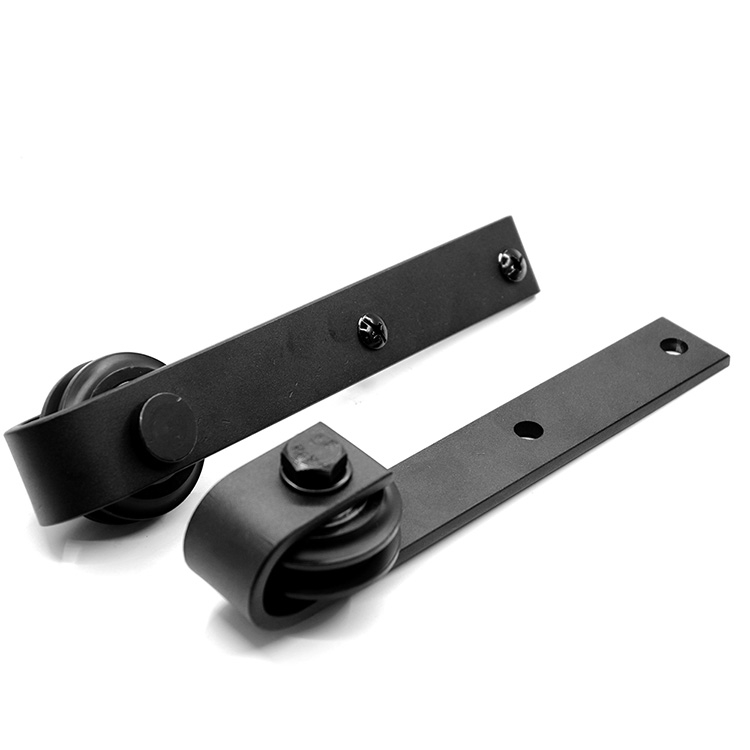

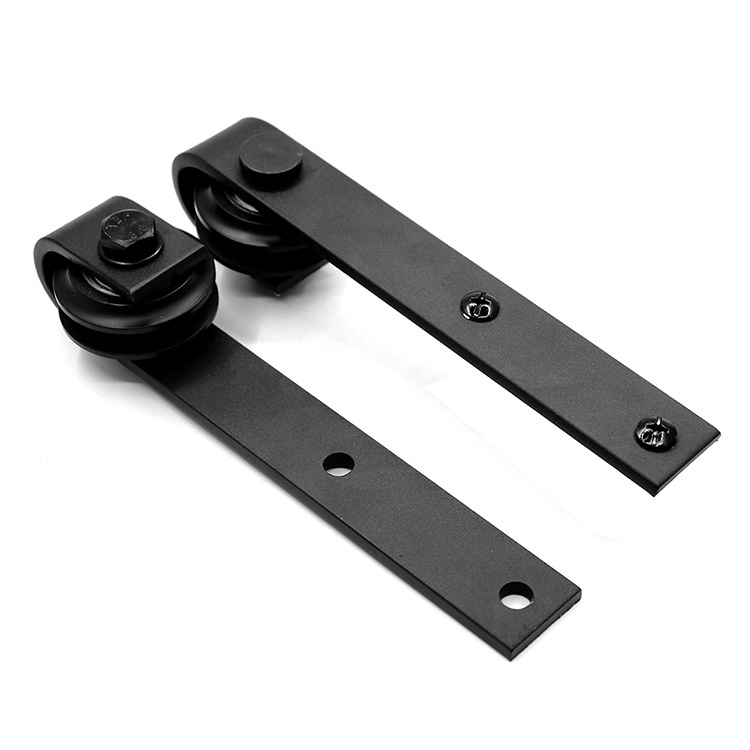

Sliding Rollers
2
Carbon Steel +black powder coating / painting

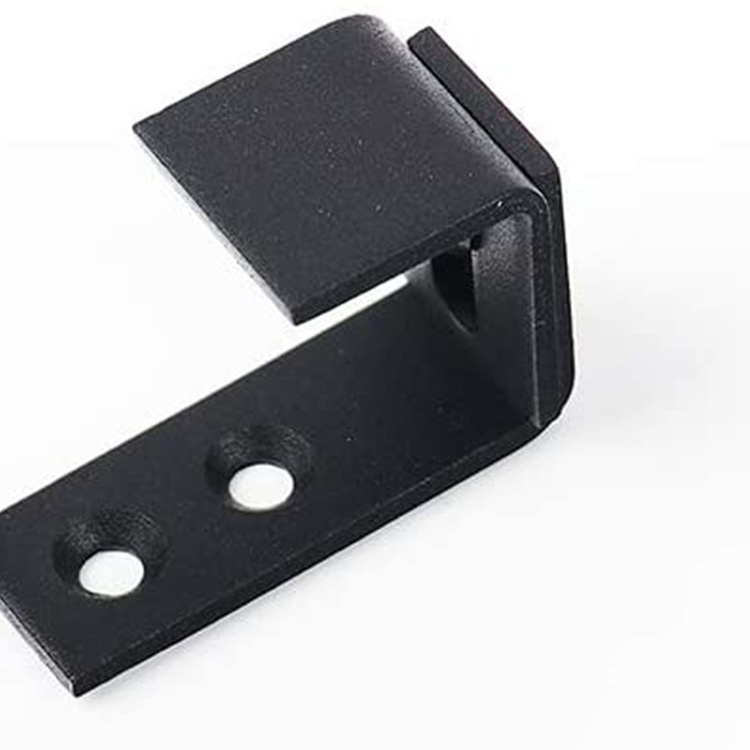

Door Stops
2
Carbon Steel +black powder coating / painting
Wall Mounts &Screws
5
Carbon Steel +black powder coating / painting

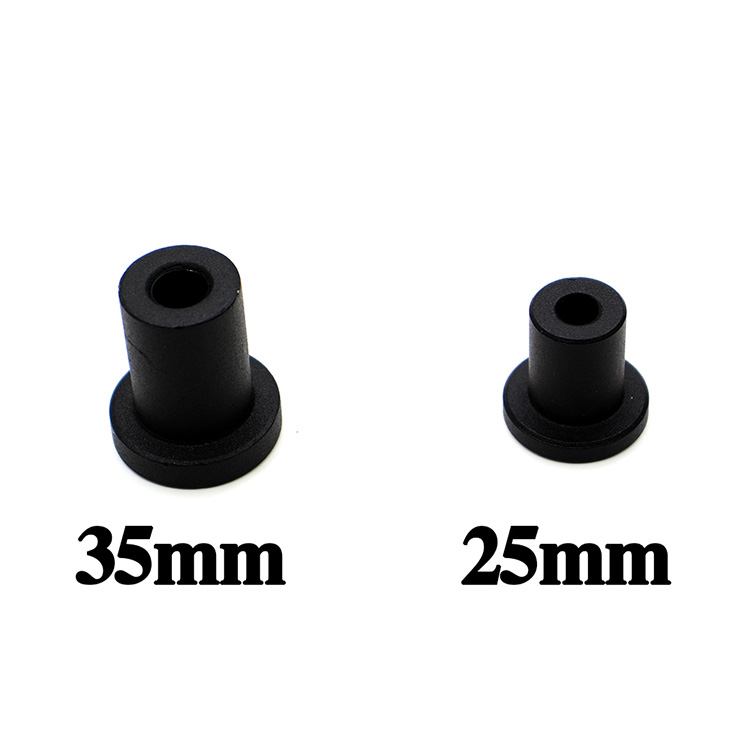

Anti-Jump Disks
2
POM

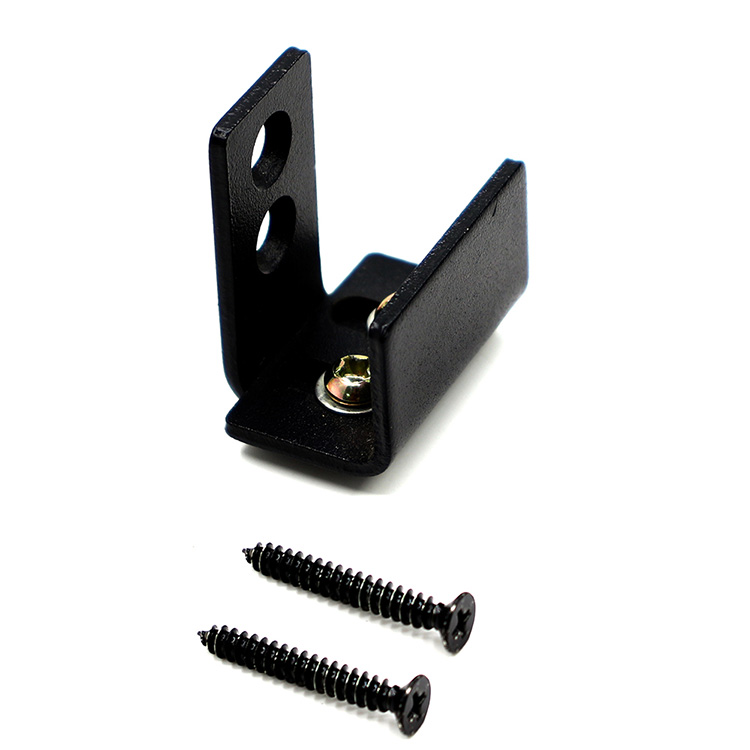

Floor Guide
1
POM
Door Handle(not included in the kit)
1
Carbon Steel +black powder coating / painting



New  door stop with damper

we already developed a new technology model,New door stop with damper, which replacing the original door stop and original Anti-jump.Technology is more advanced,the structure is more closely,we'd like to highly recommend this model to you,Pls have a try in your local market, if possible.


Product Picture:

pole barn door hardwaresingle barn door kitbronze barn door hardwaredisplay case sliding glass door tracksliding cabinet door hardware kit8 foot barn door hardwaremini sliding barn door hardwarebarn door and hardware kit

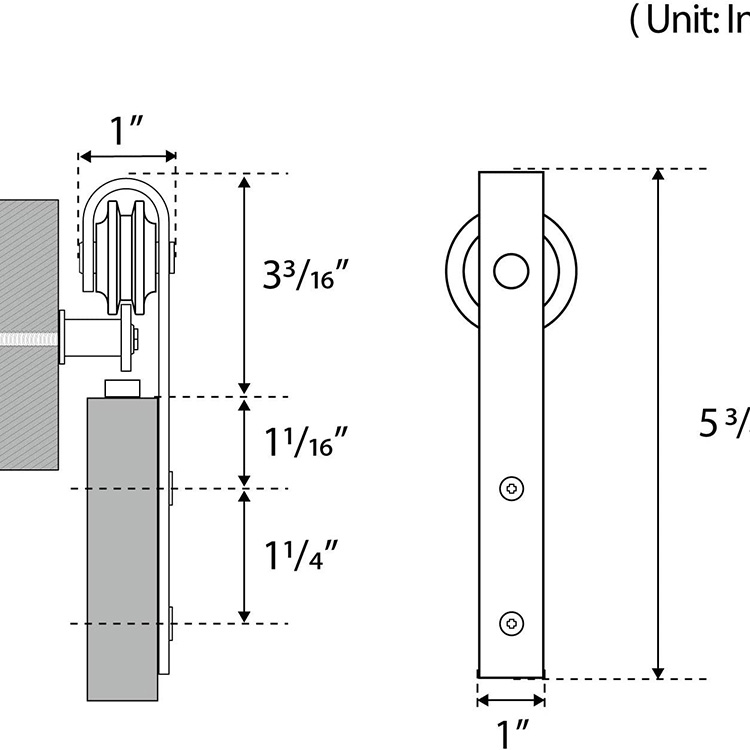

Product Size Picture:

8ft barn door hardware
