Stainless Steel Heavy Duty Commercial ANSI A156.2 Grade 2 Cylindrical Lever Door Lock

 Stainless Steel Heavy Duty Commercial ANSI A156.2 Grade 2 Cylindrical Lever Door Lock

Lock/door lock/stainless steel door lock/Security Lock
Welcome a trial order!
Contact us at any time!

Quick Details
Place of Origin: Guangdong, China (Mainland)
Type:door lock
Brand Name: ECH
Model Number: ECH-K013
Function: Entrance/Privacy/Passage/Dummy
Material: Stainless Steel

Special Design for Standard Duty

Meets With ANSI A156.2 Grade 2.Exceeds 450,000 Life Cycles.

Door Prep: Cross bore 2-1/8"(54mm),Edge bore 1"(25mm).

Door Thick: 1-3/8"(35mm) to 2"(50mm) thickness door Standard.

Backset: 2-3/4"(70mm) standard.2-3/8"(60mm) optional.

Latch: 1/2" throw dead latch and spring latch.

Cylinder: 6 pin removable core, Schlage C keyway,(Kwikset, C4 keyway optional).

Clutch: Clutch (Free Wheel) function available for ET(Entry),ST(Storage) function

Faceplate: Square corner 1-1/8"2-1/4"(28.5x57mm) standard, 1" 2-1/4"(25.4x57mm) optional.

Strikes: T-Strike 2-3/4"x2-3/4"(44x70mm) standard, ASA-Strike 4-7/8" x 1-1/4"(123.8x31.7mm) optional.

Function: DM(0:Dummy),ET(1:Entrance), BK(2:Privacy),PS(3:Passage),ST(4:Storeroom),CL(5:Classroom)，CM(8:Communicaton),EX(9:Exit).

Packaging & Delivery

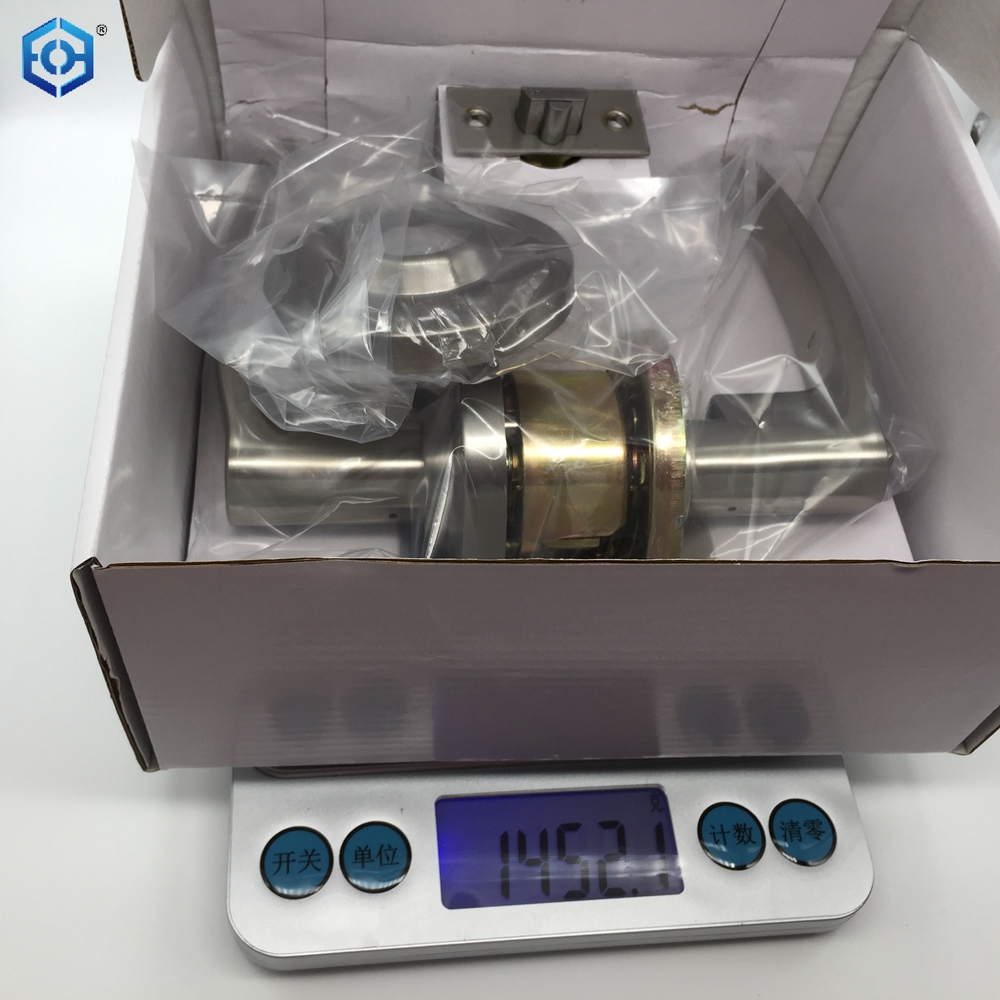

Packaging Details: Color box, Soft foam plastic bag, and pallet or to order
Delivery Detail: 30-40 working days


Specifications
Lever Door lock
1. Lever door lock
2. Entrance/privacy/passage/dummy
3. Smooth Finish
4. Quick delivery time


Speciality
*Advanced facility door handle lock
*Professional design lock
*Nice appearance handle
*Easy to install; Open and close flexibly
*Stainless Steel on external lock body
*Fully reversible for right and left handle doors
*Construction key master key upon request, re-key cylinder for door handle lock
