Product

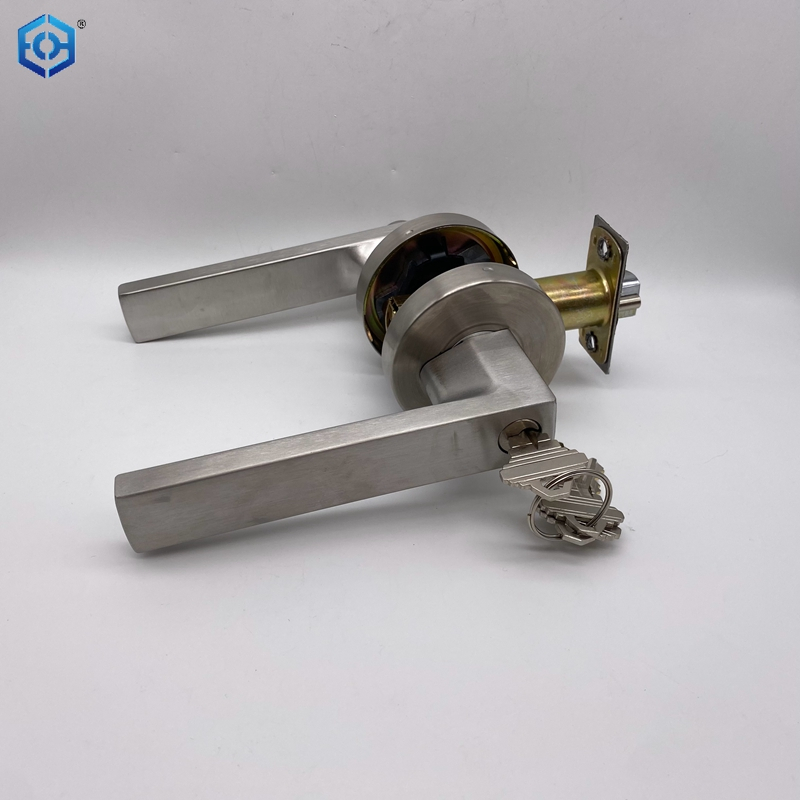

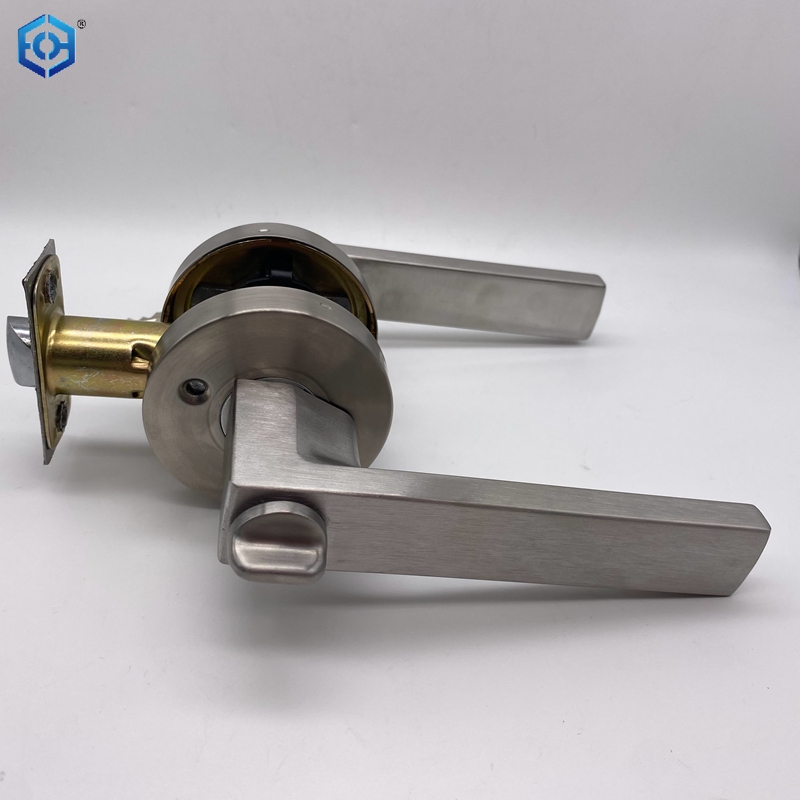

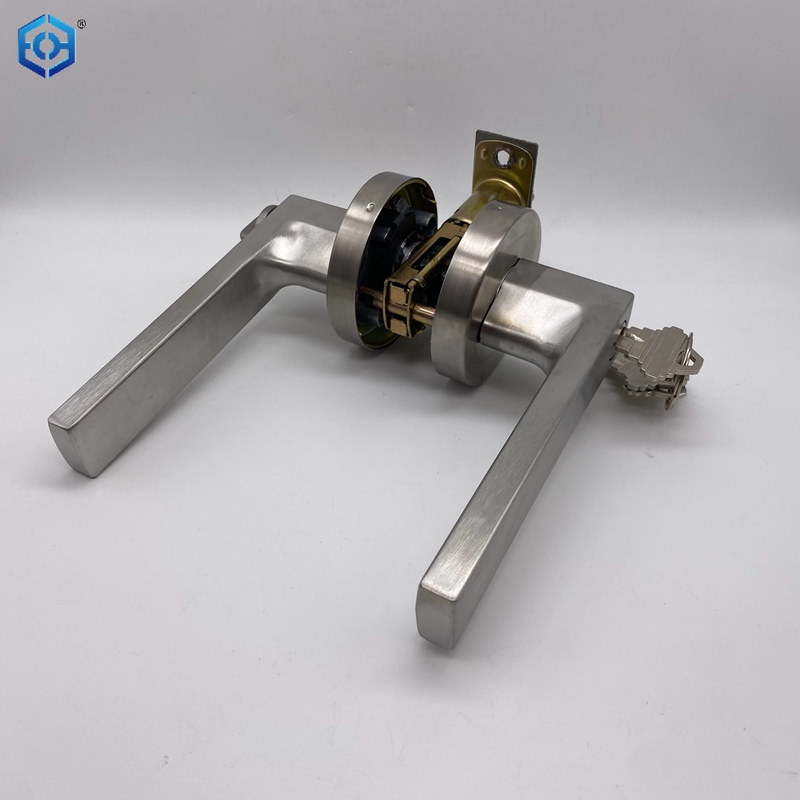

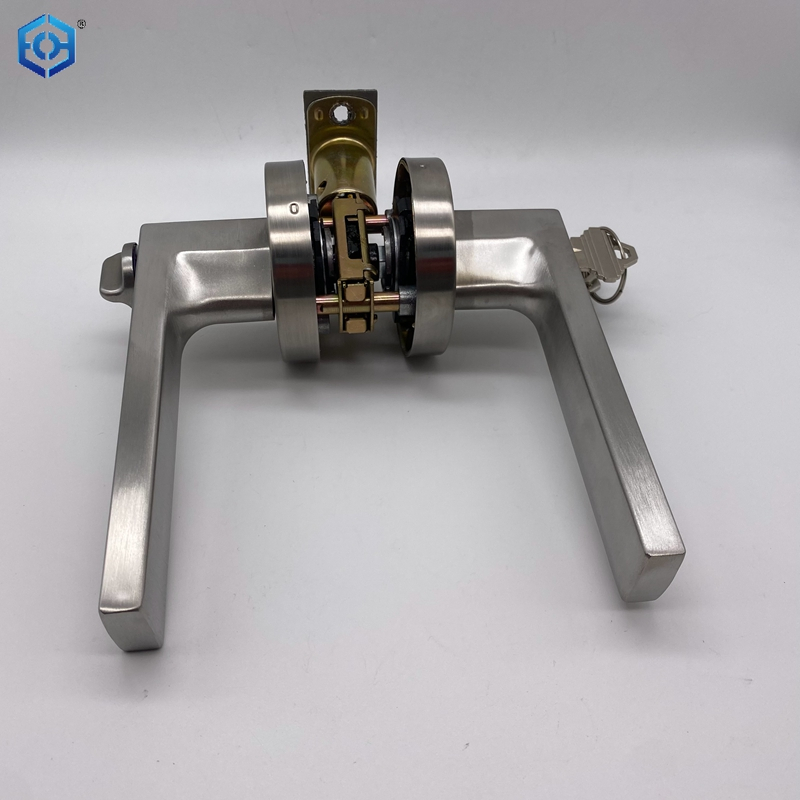

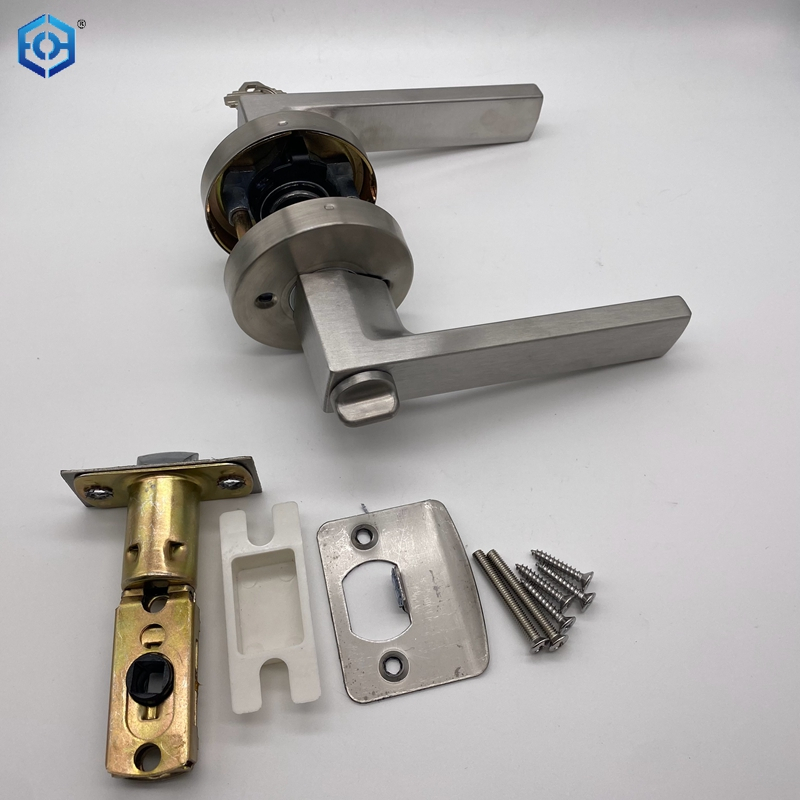

Stainless Steel Keyed Entry Grade 2 Commercial Door Locks Heavy Duty Office Door Lever
Model: SGS011
Material: SUS/304 stainless steel
Weight: 661 ± 10g
Scope of application: wooden/metal doors
Door thickness: below 35mm (customized)/35~50mm/50~65mm
Surface treatment: Steel wire drawing/Qinggu/Honggu/Gun gray/Matte black/Milk white/Mirror
surface Function: ET/BK/PS
key: 3 nickel plated copper key
Grade: ANSL level 3 standard gate
Gusset plate: 304 stainless steel
Material: 304 stainless steel
Door latch box: high-grade rubber
lock core: leaf lock core
Door margin: 60MM
Functions: room locks, sanitary locks, access locks, decorative handles, etc
Screw: 4 stainless steel 304 screws
Locking tongue: 60MM and 70MM adjustable
Warranty period: 5 years mechanical function warranty
General specification
| Type | Lever door lock |
| Model NO | SGS011 |
| Brand name | ECH |
| Materal | 304 stainless steel |
| Finish | SSS or to order |
Packaging
Packaging design: white box and color optional, customizable packaging design.
Unit gross weight: 1.20kg/box.
Unit net weight: 1KG/ piece.
Packing details: 20 pieces/per carton
Inner box size: 18CM* 15.50cm *7CM
Case size: 38CM*33CM*37CM
