Stainless Steel Concealed Cross Hinge for Cabinet Door Or Wooden Box

Stainless Steel Concealed Cross Hinge for Cabinet Door Or Wooden Box

Finish:
Size:
Min door thickness:
Load-Bearing:
Height:
Quantity:
  • MA03-09
  • ECH
  • 0.94/pcs


Product Details
Basic Info.


Features:

1.For wooden doors,flush doors,aluminum doors;

2.Concealed installation;

3.3D Adjustments:vertical ±3mm,horizontal ±3mm and depth ±1mm;

4.Opening angle 180°;

5.Finish:SSS;

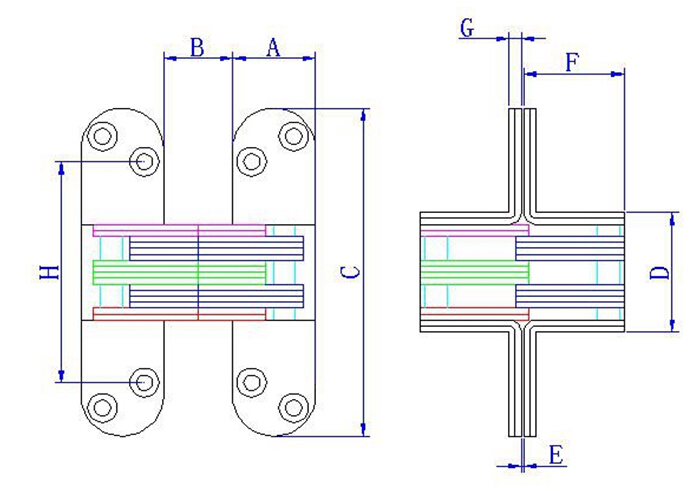

Technical Data:

1.Max.door weight with 2 hinges:7/10/20/30/85KG;

2.Min.door thickness:32mm;

3.Height:44.5-137mm

4.Width:frame:12.4-33.5mm;

5.Depth:frame:16.7-40.5mm;


Hinge/door hinge/ zinc alloy door hinge/gate hinge

Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price



Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
Hidden door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



   Specification
Type door hinge
Brand name ECH
Model NO.

MA03-09

Material stainless steel
Finish SSS

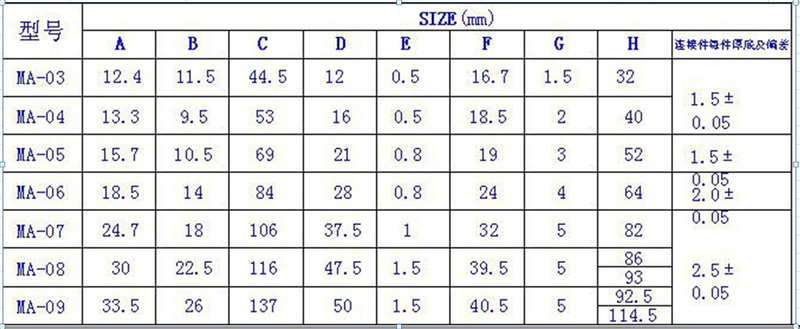

Size 44.5/53/69/84/106/116/137mm
Radius comer square corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 20 pairs in one carton
Delivery day 30 working days
name hidden door hinge


Product Picture

Concealed cross hinge for cabinet doorconceal hinge for wooden boxreplacing cabinet hinges with concealed hingesinside hinges for kitchen cabinets

Adjustable Invisible Concealed hinge

 Conceal Hinge for Wooden Door

EBG006-3

3D Adjustable Concealed Hinge Heavy Duty

EBG001






QQ截图20191129175444


black conceal hingeadjustable l hinge (5)conceal hinge (2)concealed hinge
