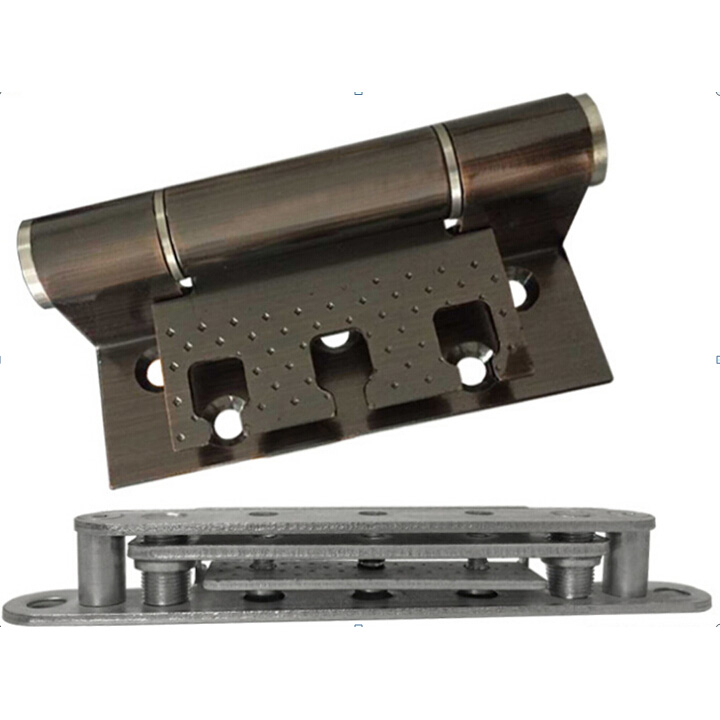

180x23/120x70mm iron and 201 stainless steel Invisible Hidden Concealed door Hinge for wood Door

180x23/120x70mm iron and 201 stainless steel Invisible Hidden Concealed door Hinge for wood Door

Finish:
Size:
Load-Bearing:
Quantity:
  • G40
  • ECH
  • 10/pcs


Product Details
Basic Info.


Features:

1.For wooden doors,flush doors,aluminum doors;

2.Concealed installation;

3.3D Adjustments:vertical ±3mm,horizontal ±3mm and depth ±1mm;

4.Opening angle 180°;

5.Finish:SC/SN/PC/PN/AB/AC/white/black;


Technical Data:

Max.door weight with 2 hinges:120KG;



Hinge/door hinge/ zinc alloy door hinge/gate hinge

Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price



Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
Hidden door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



   Specification
Type door hinge
Brand name ECH
Model NO. G33
Material iron and stainless steel 201
Finish Satin nickel

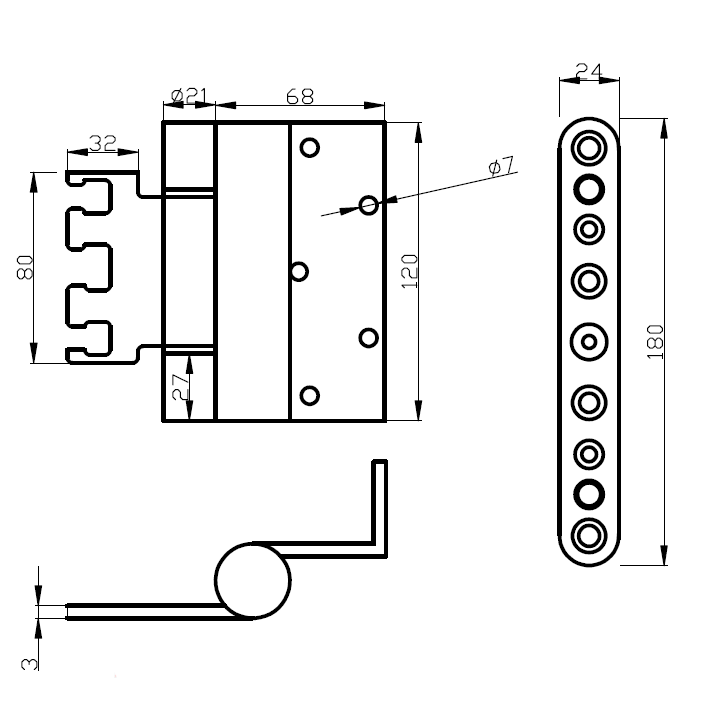

Size 180x23/120x70mm
Radius comer square corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 20 pairs in one carton
Delivery day 30 working days
name hidden door hinge


Product Picture:

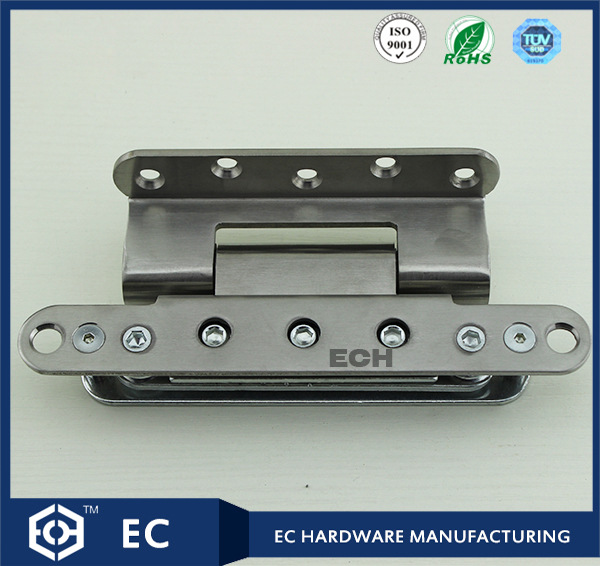

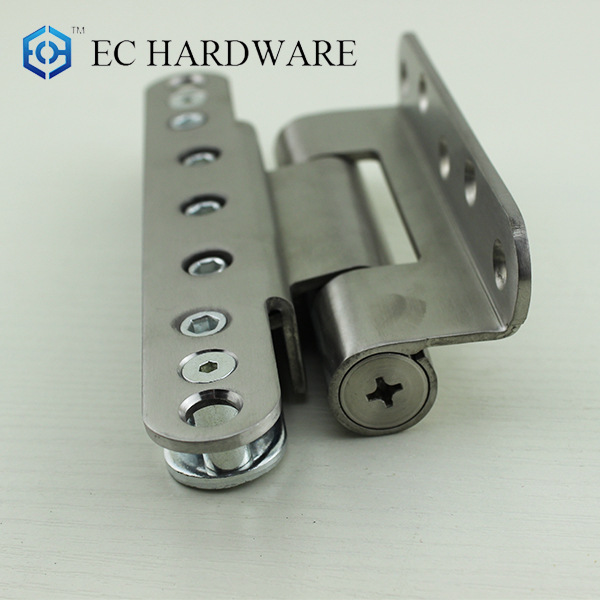

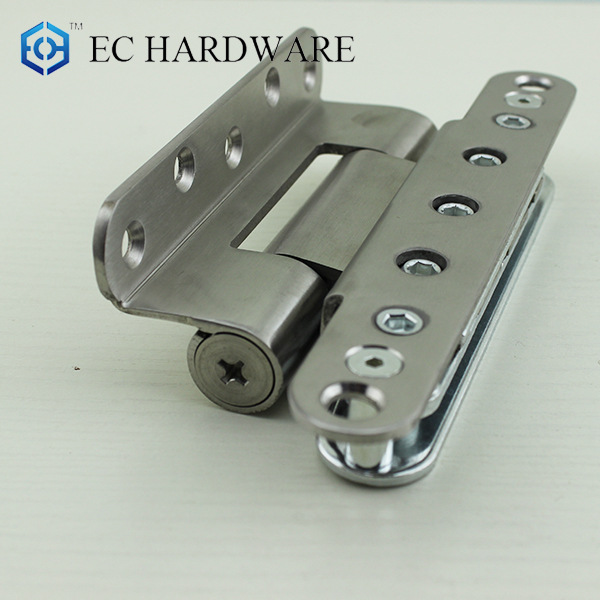

Concealed door Hinge for wood Dooriron and 201 stainless steel Invisible Hiddenhingestainless steel Concealed Hinge180x23/120x70mm concealed hinges3d adjustable conceal hingeconcealed cabinet door hingesheavy duty hidden hingesinvisible cabinet hinges

 Conceal Hinge for Wooden Door

EBG006-3

3D Adjustable Concealed Hinge Heavy Duty







QQ截图20191129175444

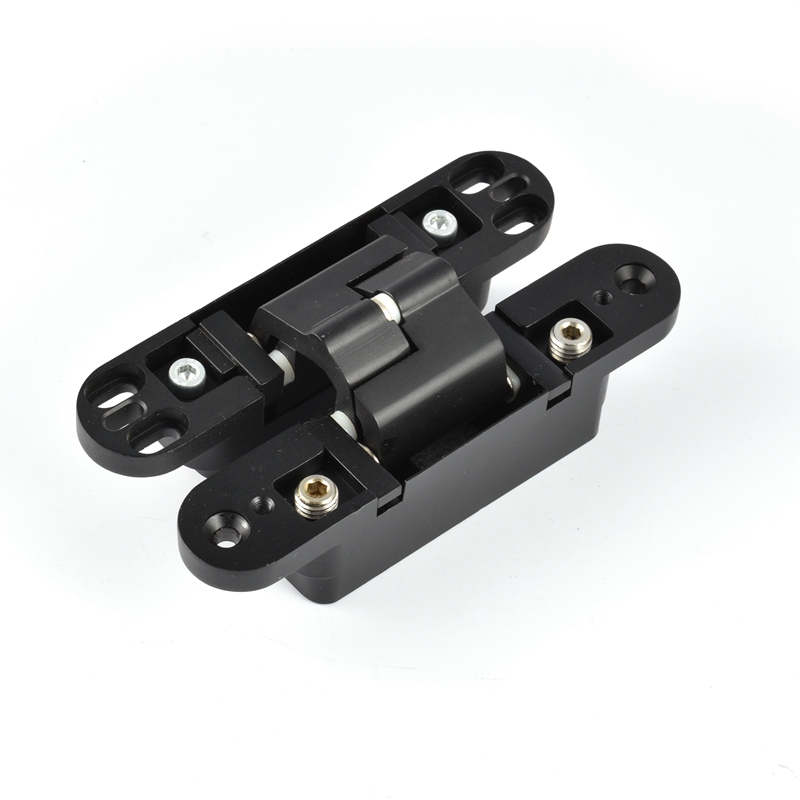

black conceal hingeadjustable l hinge (5)conceal hinge (2)
