Rosette set BB Move light green, satined stainless steel
Product features:
kind: door fittings
Kind of door:room door
Battery:Alkaline
battery operation:Battery powered
batteries:2 pieces.
battery type: Mignon AA 1.5V
DIN stop: Universally applicable
detection range: 2 m
angle of coverage: 60 °
colour:stainless steel
Color LED: blue/white/green/red
Shape pushers:L-form
Shape rosette:round
features:Infrared sensor, time interval 10 s
perforation:Buntbart BB
material: stainless steel
surface: Frosted
Shield / Rosette: rosette
Screws hidden:Yes
Power consumption standby:<0.3 mA
door thickness:40 - 45 mm
Type:Door handle set
Weight (net) :400 g

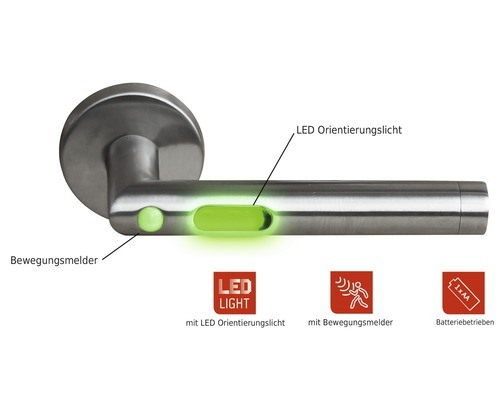

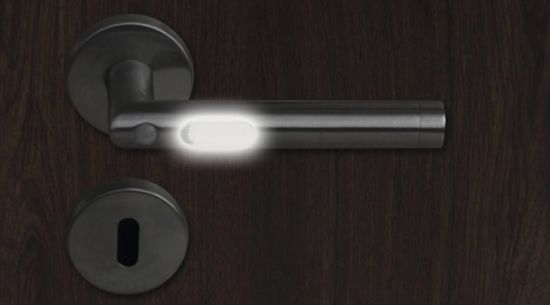

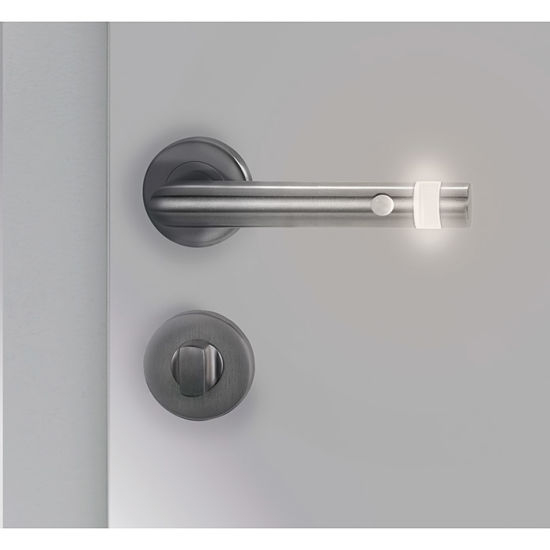

The stainless steel door handle with plastic substructure and support cams has a motion detector with
a 60 ° sensor angle of about 2-5m responds and the integrated LED for about 10-15sec in a discreet
green light up. The 1 AA battery is to be replaced by unscrewing the threaded cap on the hole part (handle).
The positive pole must be in the direction of the threaded cap (negative pole in the direction of the LED)
Suitable for all common doors with a door thickness of 38 - 45 mm.
Punching:Buntbart BB, Matt, Infrared Sensor, Universally applicable
