| Quantity: | |
|---|---|
DLT-2
ECH
Hidden Interior Door Soft Close Flush Sliding Door Roller System
Specification
Product Features
①Maintain the same level as the wall surface
②Beautiful and invisible door
③Perfect functions,safe and practical
Technical Parameterfully open
Material:Aluminum alloy,cast steel
Maximum load:60 KG
Door width:≥700mm
Main use:wooden doors
Product NO: DLT-2
Product Description: Flush Sliding Door Roller System
Product Specification:
1. Main Material: Aluminum alloy,cast steel
2. Finish: Silver Anodization
3. Rail Length: Customized (normally 1000mm)
4. Max Loading: 60kg with soft closer
5. Durability: 100000 workcycles
6. Suitable for residential use.
7. Soft closing included
Packing Method
Each set into a Carton as a sales unit(1 set/ctn), then proper quantity a wooden pallet.
EXW, MOQ 112 sets Due to frequent fluctuations in raw materials and exchange rates, the price is subject to final confirmation before ordering
| Type | Flush Sliding Door System |
| Brand name | ECH |
| Model NO. | DLT-2 |
| Material | Aluminum alloy,cast steel |
| Finish | satin zinc or to order |
| Max door weight | 60KG |
| Door thickness | 45mm |
| Door width | ≥700mm |
| Inner packing | soft foam pastic bag,color box and blister packing |
| Standard export packing | one piece in one plastic bag,one pair in one white box ,20 pairs in one carton |
| Delivery day | 30 working days |
— Limited number of parts for easy installation.
— The two-way damper allows doors to be both opened and closed softly.
— No bottom rail or floor groove is necessary.
— Improved adjustments for a perfect result.
— Doors will be flush with walls when closed.
— Door can be pushed open and no handle is necessary on the door front.
Product picture

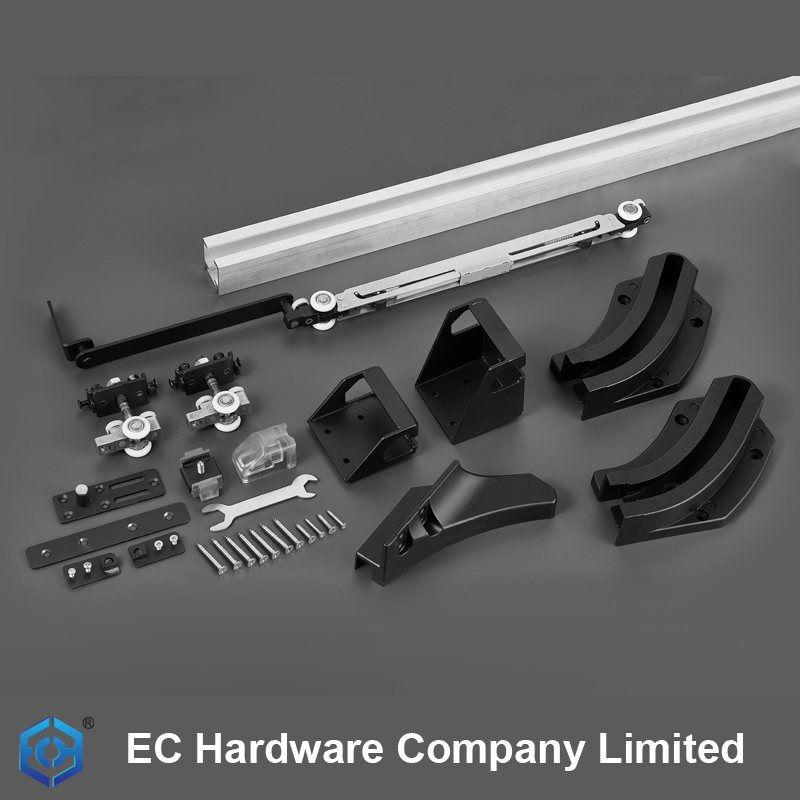

Hidden Interior Door Soft Close Flush Sliding Door Roller System
