American Ghost Sliding Door System Hidden Track Barn Doors Hardware Concealed Sliding Door System
Specification
Product Features
①Ghost levitation,hidden track
②Perfect functions,safe and practical
Technical Parameterfully open
Material:Zinc alloy,plastic
Maximum load:60 KG
Door width:≥800mm
Main use:wooden doors
Product NO: ECYI-2
Product Description:Ghost door sliding system for wooden doors
Product Specification:
1. Main Material: zinc alloy,plastic
2. Finish: Silver Anodization
3. Rail Length: Customized (normally 1000mm)
4. Max Loading: 60kg with soft closer
5. Durability: 100000 workcycles
6. Suitable for residential use.
7. Soft closing included
Packing Method
Each set into a Carton as a sales unit(1 set/ctn), then proper quantity a wooden pallet.
EXW, MOQ 112 sets Due to frequent fluctuations in raw materials and exchange rates, the price is subject to final confirmation before ordering
| Type | Ghost door |
| Brand name | ECH |
| Model NO. | ECYI-2 |
| Material | zinc alloy,plastic |
| Finish | satin zinc or to order |
| Max door weight | 60KG |
| Door thickness | 45mm |
| Door width | ≥800mm |
| Inner packing | soft foam pastic bag,color box and blister packing |
| Standard export packing | one piece in one plastic bag,one pair in one white box ,20 pairs in one carton |
| Delivery day | 30 working days |

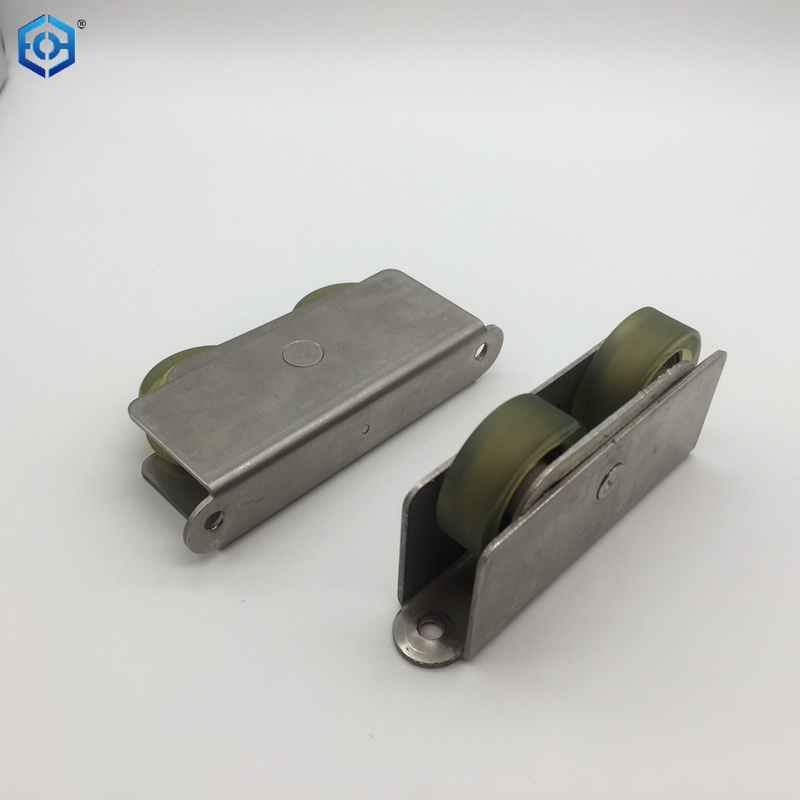

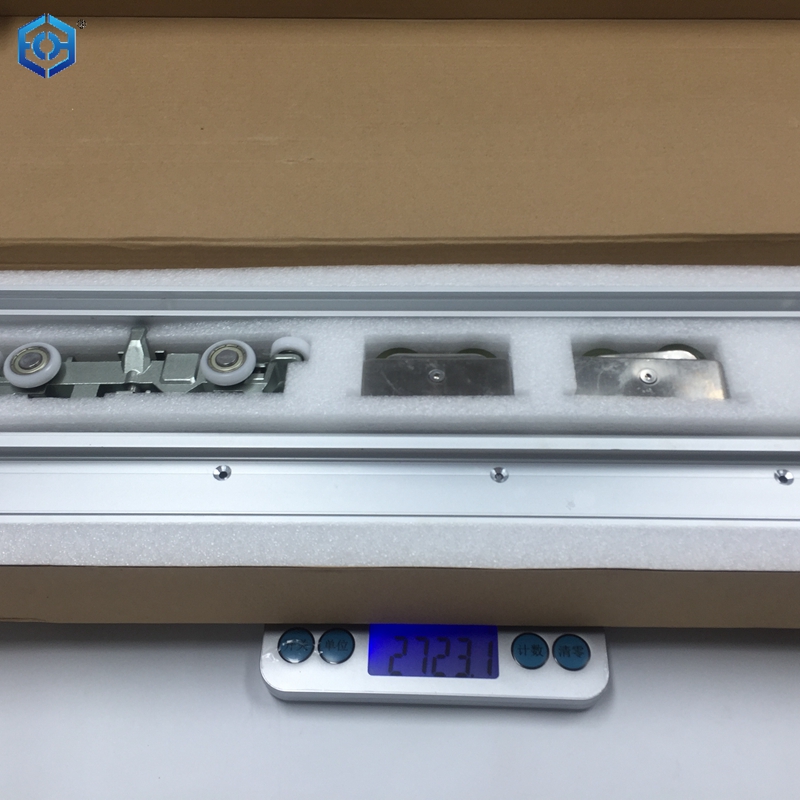

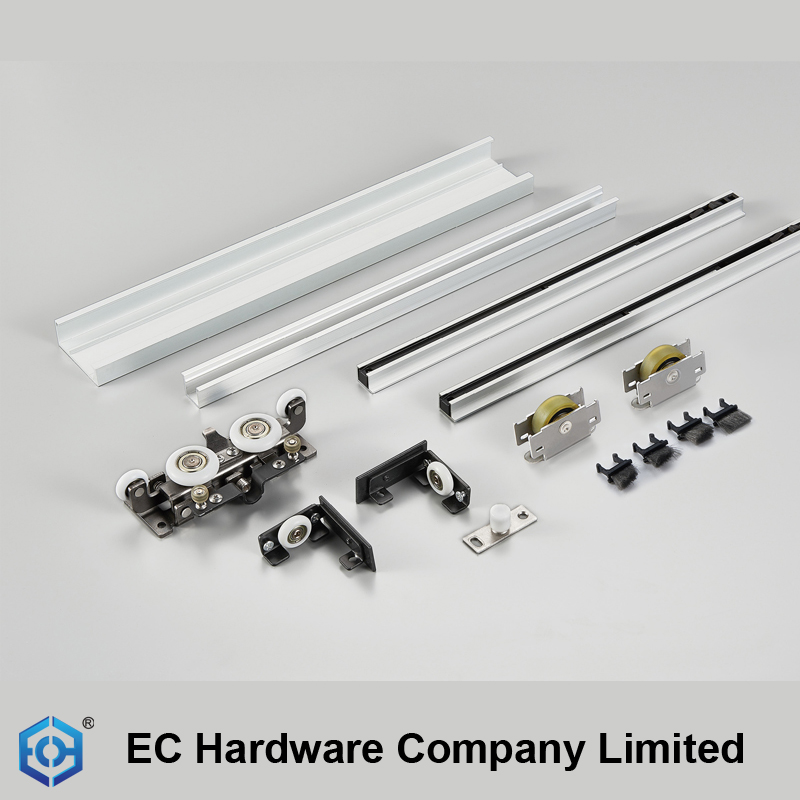

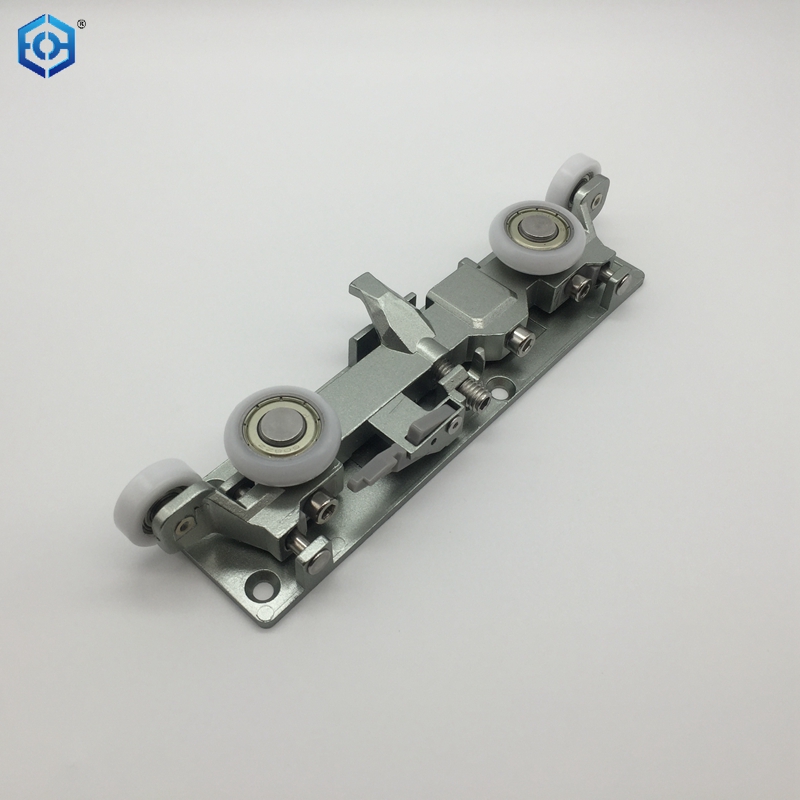

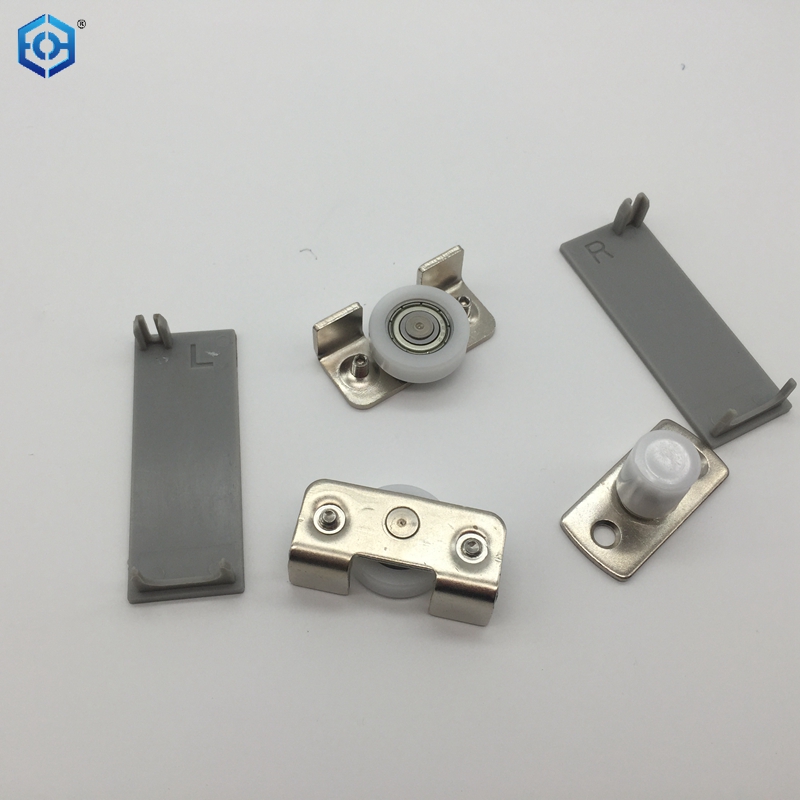

Product picture

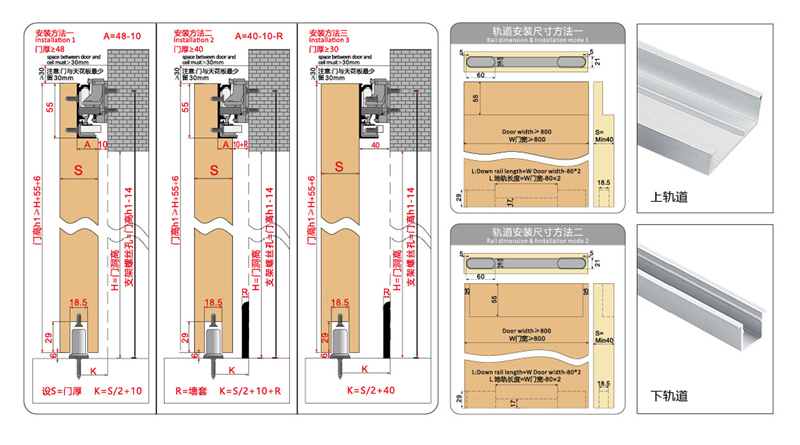

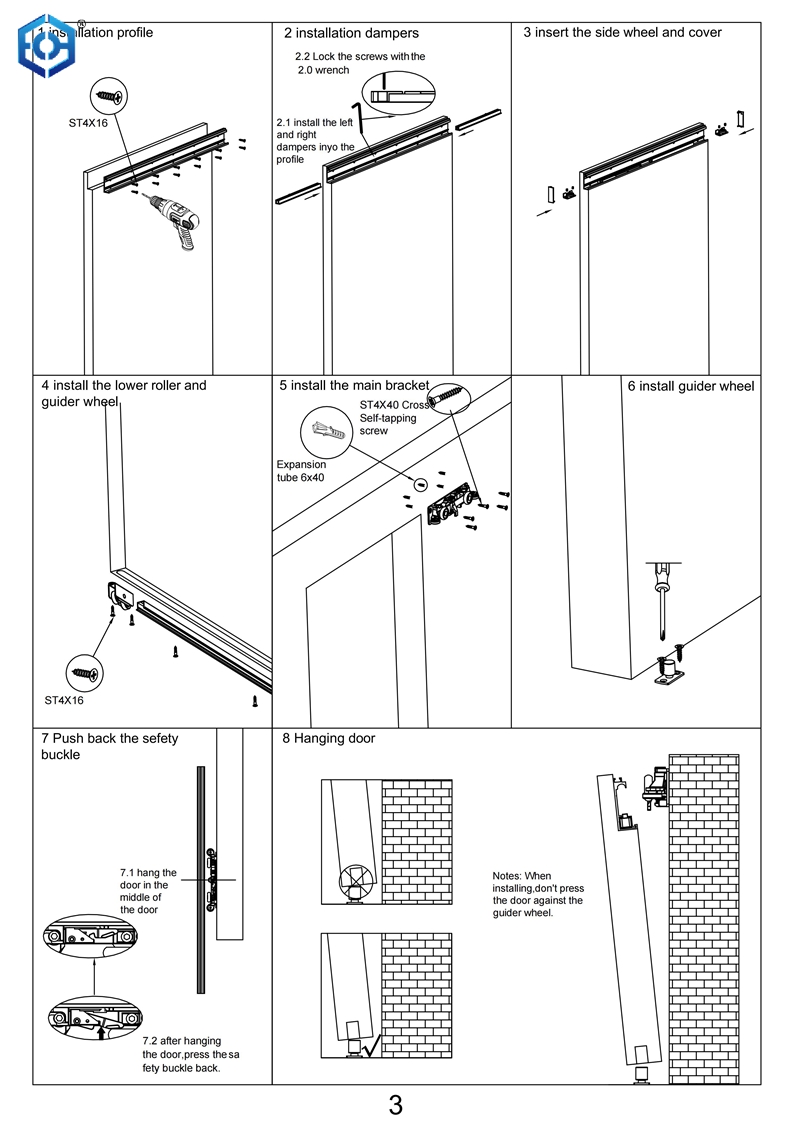

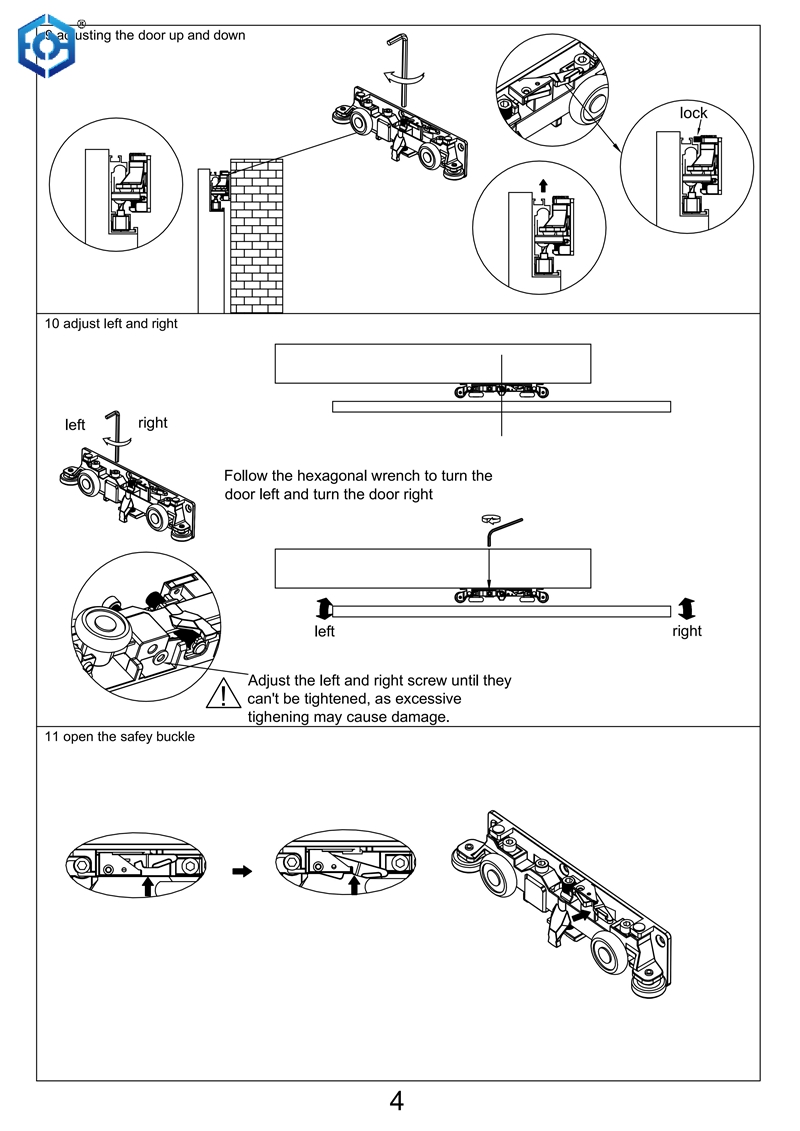

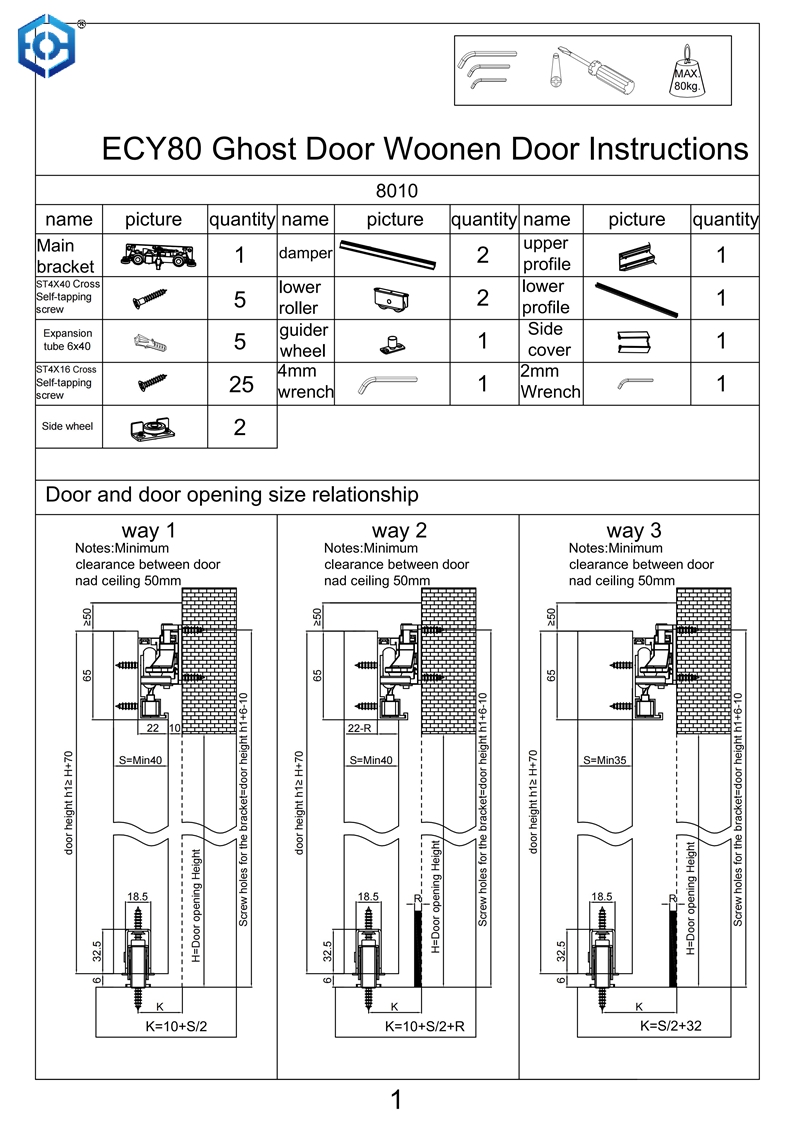

How to install the ghost door:
