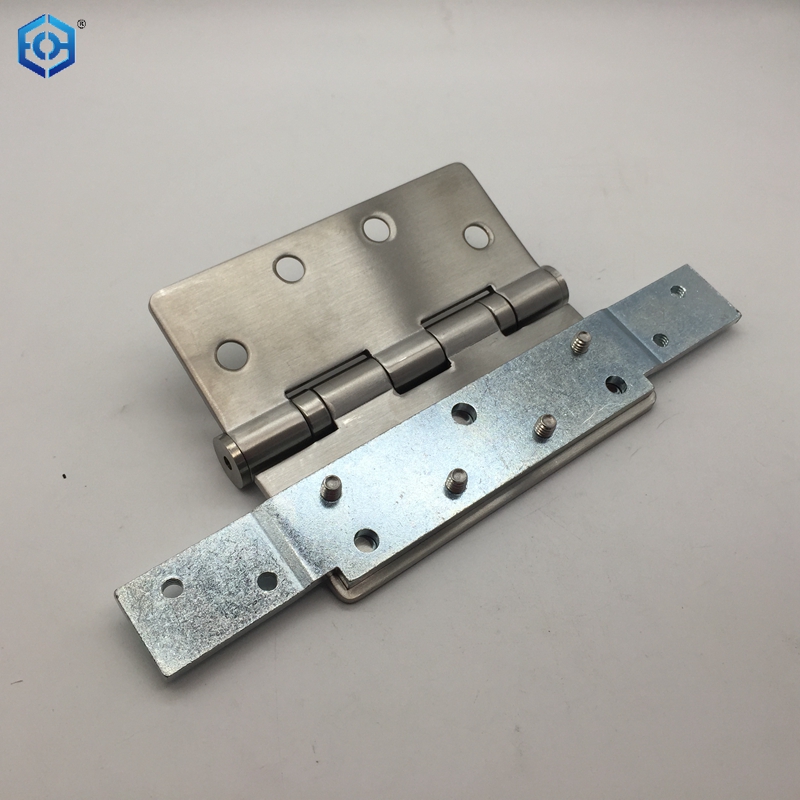

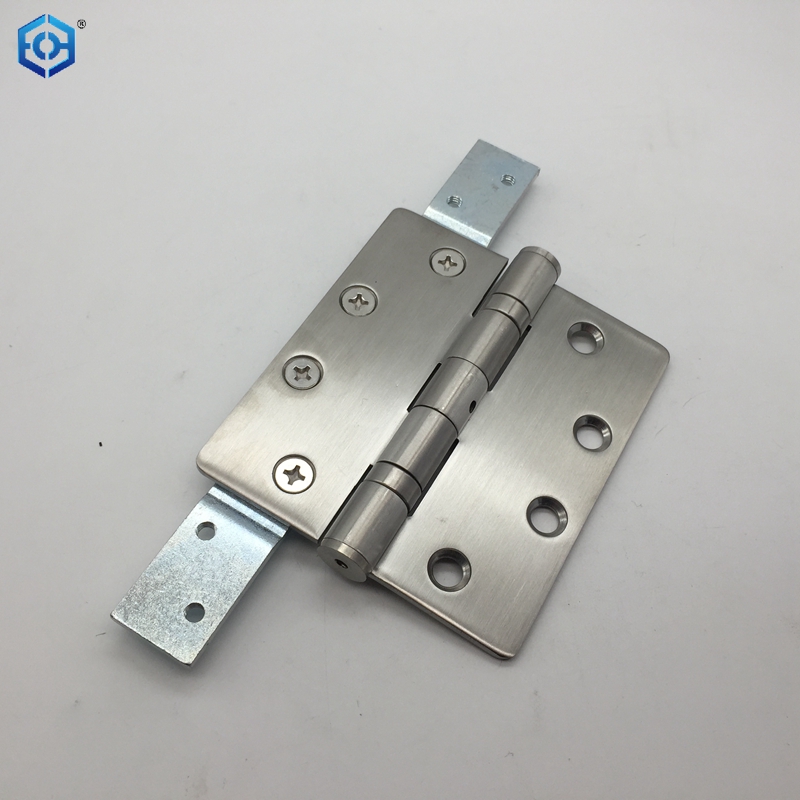

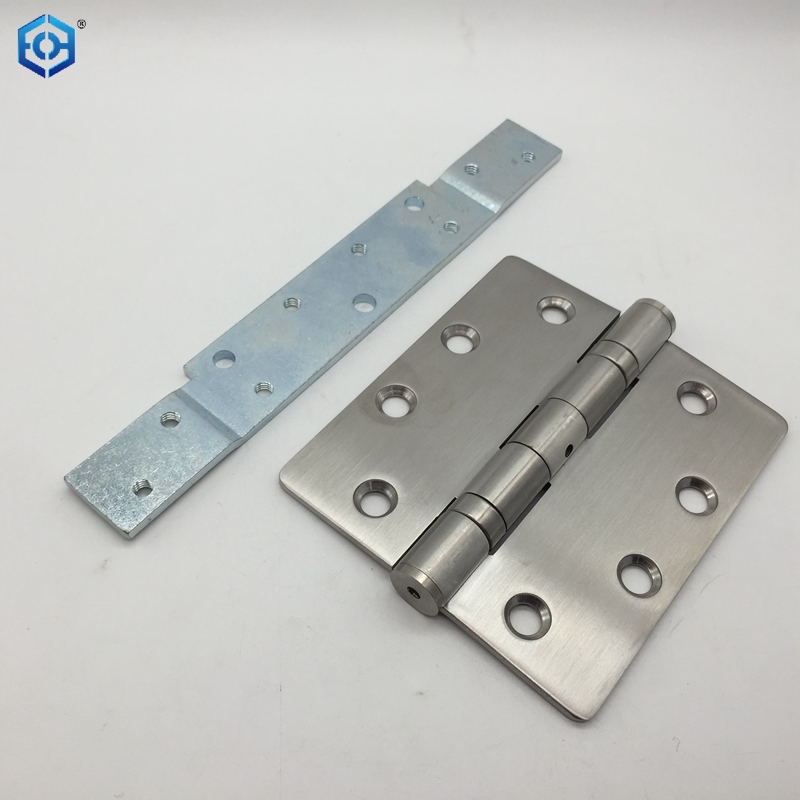

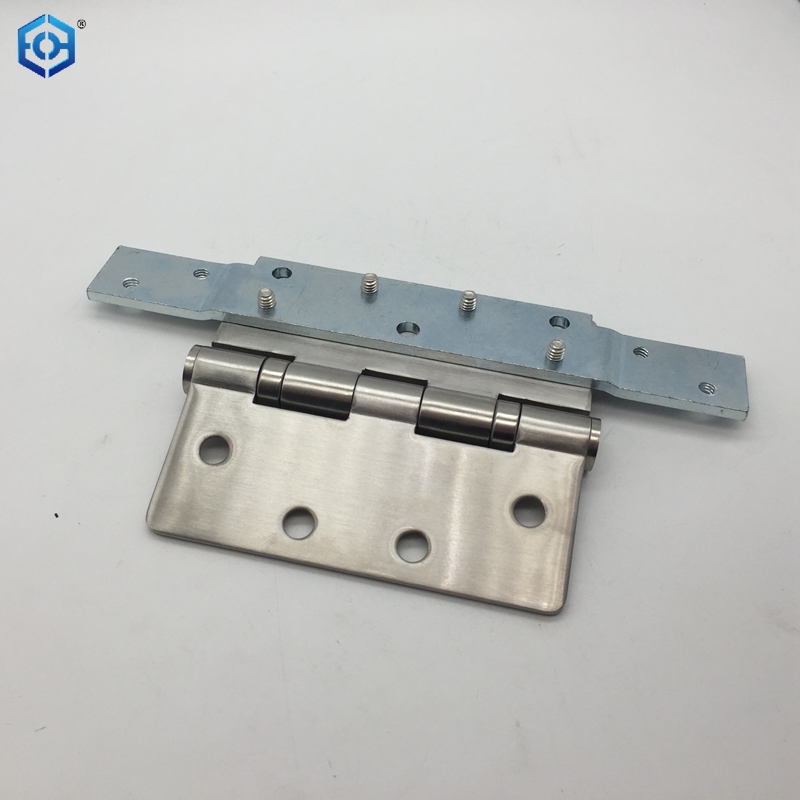

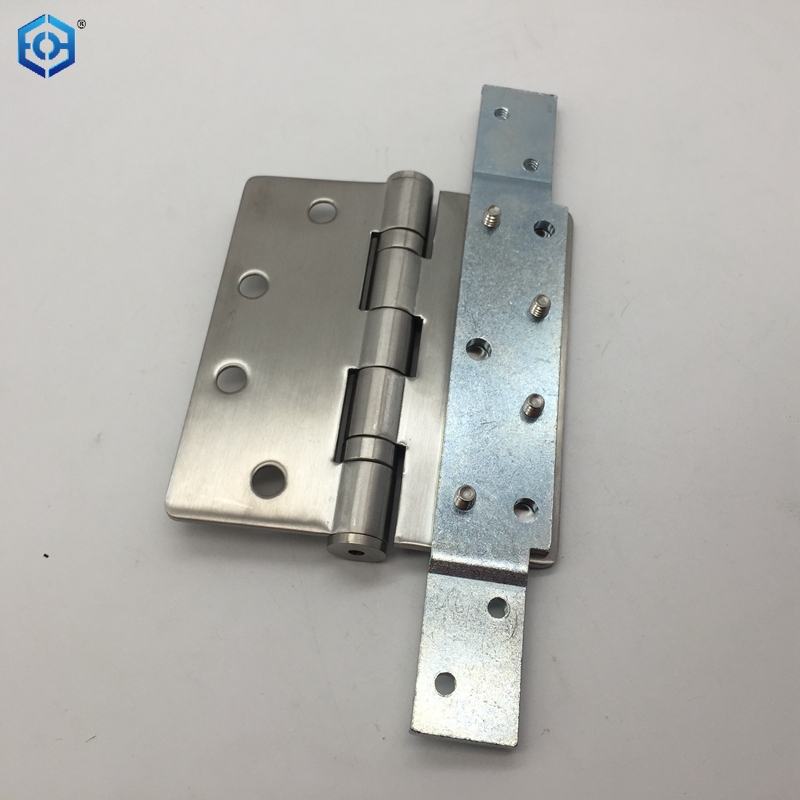

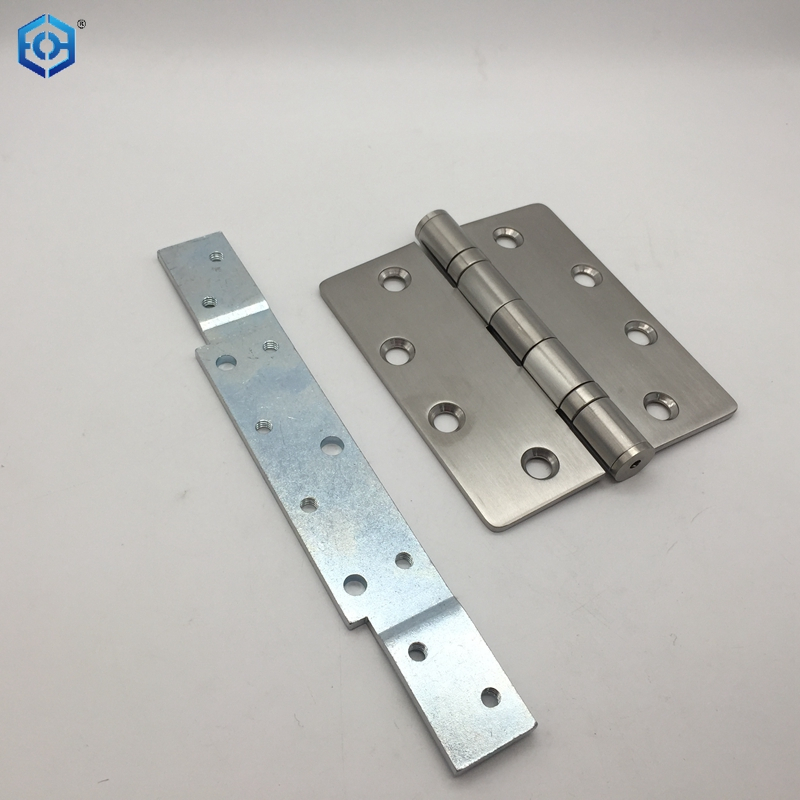

Heavy Duty Stainless Steel Commercial Door Hinge Reinforcement Plate

Heavy Duty Stainless Steel Commercial Door Hinge Reinforcement Plate

 Door Hinge Plate is a popular door hardware,it is durable and easy to use.As a professional door hardware manufacturer in China,we provide customers various quality door hardware and they apply to diferent commercial of doors.The Hinge Reinforcement Plate is one kind of our door hardware.The material of Door Hinge Reinforcement Plate is steel,so it can keep the original shape very well.It won't turn yellow or rust.The main body in solid can also keep smooth surface for a long time,not easy to rust and can wear resistant,these two characteristics greatly reduce the possibility of door hardware become old and bad.The hardware is smooth and easy to install and use,it can bring you high security and beauty.For further information please contact us

Quick Details

Model Number: ECH-4.5X4X3.8

Finish: SSS

Material:steel

size:4.5x4x3.8mm

Packaging & Delivery

Packaging Details: White box, Soft foam plastic bag or to order

Delivery Detail: 30 working days

Specifications

●Plate Height:228mm

●Plate Width:32mm

●Plate Thickness:4.0mm

●Material:Steel,Zinc plated

●Mounting:4 holes tapped in M5,M6,7/32

●Hinge Length:4“,4.5”,5”

●Hinge thickness:3.0mm,3.4mm,4.6mm,4.8mm

●Non-Handed,Can Be Used for Both Door and Frame Reinforcement

●Welding inside of Steel Door orFrame.

● Beneficial for Heavy Doors.

Suitable for Hinge Size

4.0"×3.0"x3.0mm

4.0"x4.0"x3.4mm

4.5"×4.0"x4.6mm

4.0"×3.5°×3.0mm

4.5”×4.0"×3.4mm

4.5"x4.5"×4.6mm

4.0"x4.0"x3.0mm

 4.5”x4.5"×3.4mm

5.0"x4.0"x4.6mm

4.5"×4.0"×3.0mm

5.0"x4.0"x3.4mm

5.0"x4.5"x4.6mm

4.5"×4.5"x3.0mm

5.0"x4.5"x3.4mm

 5.0"x5.0"x4.6mm

5.0"×4.0°×4.8mm

5.0”×4.5”×4.8mm

5.0"×5.0"×4.8mm
