GS5000-3
ECH

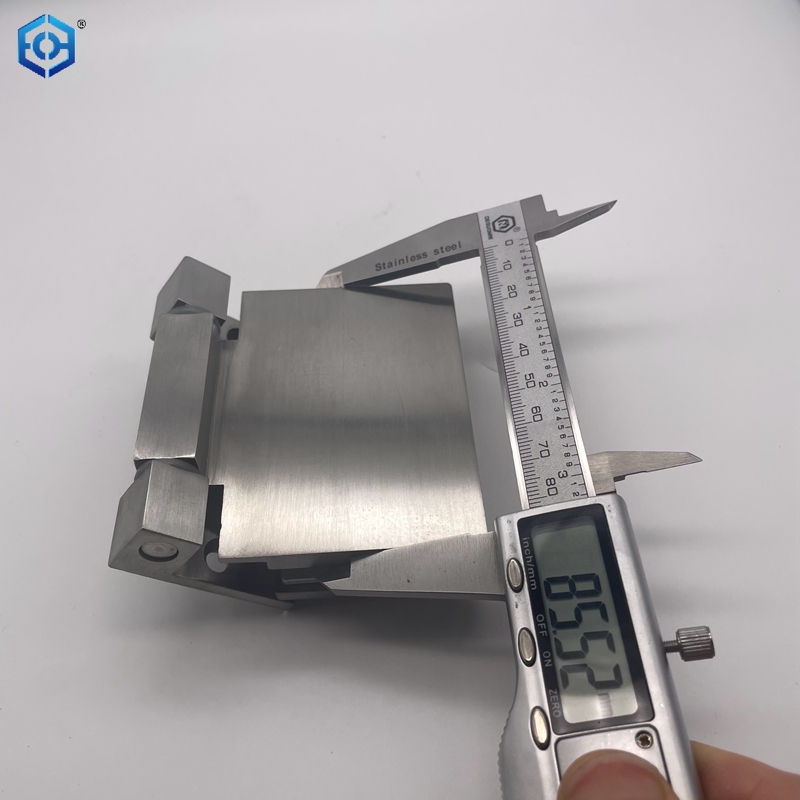

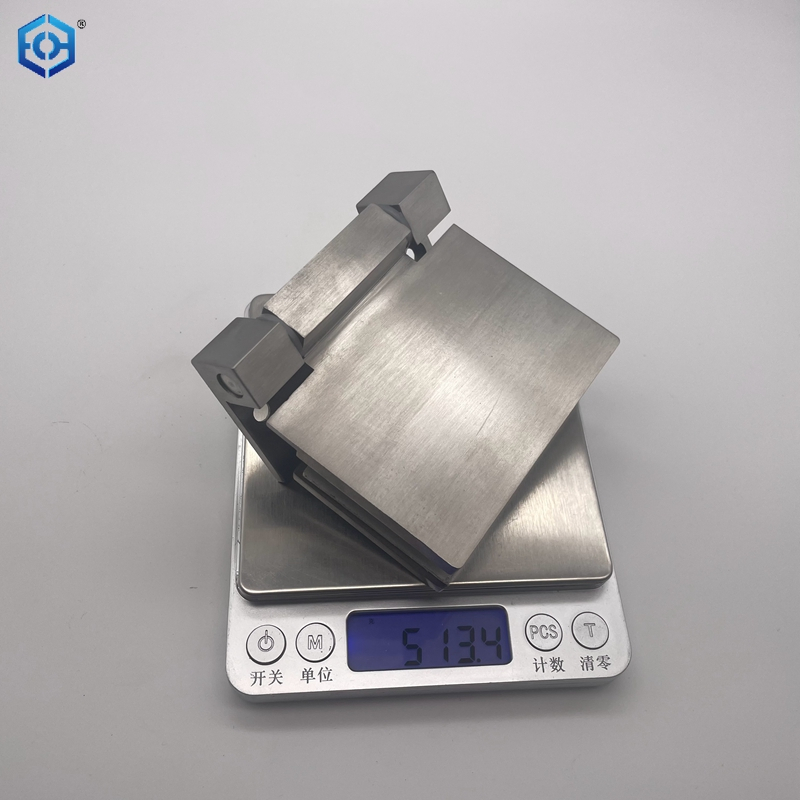

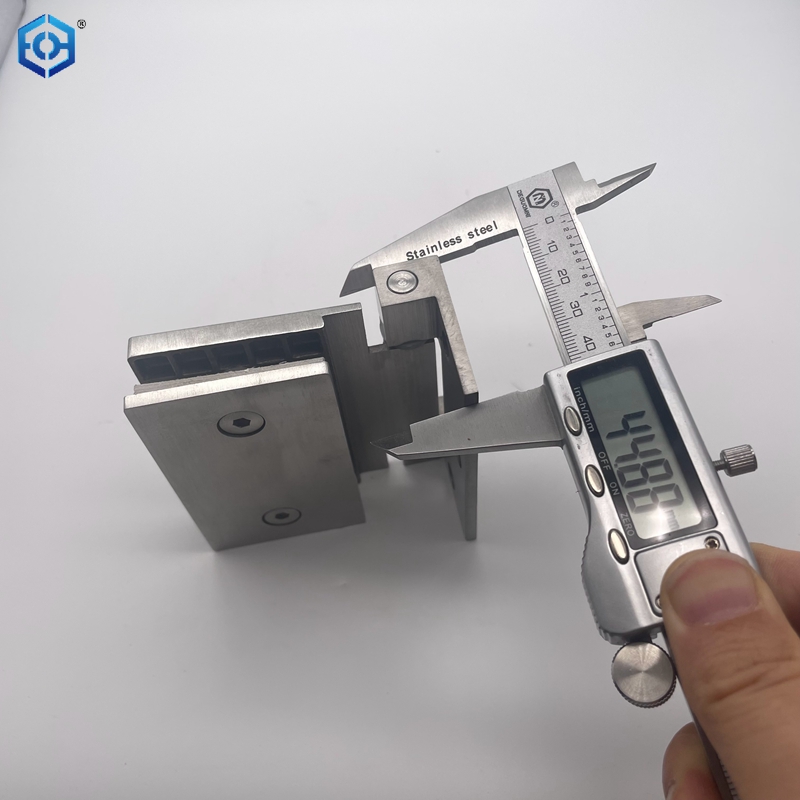

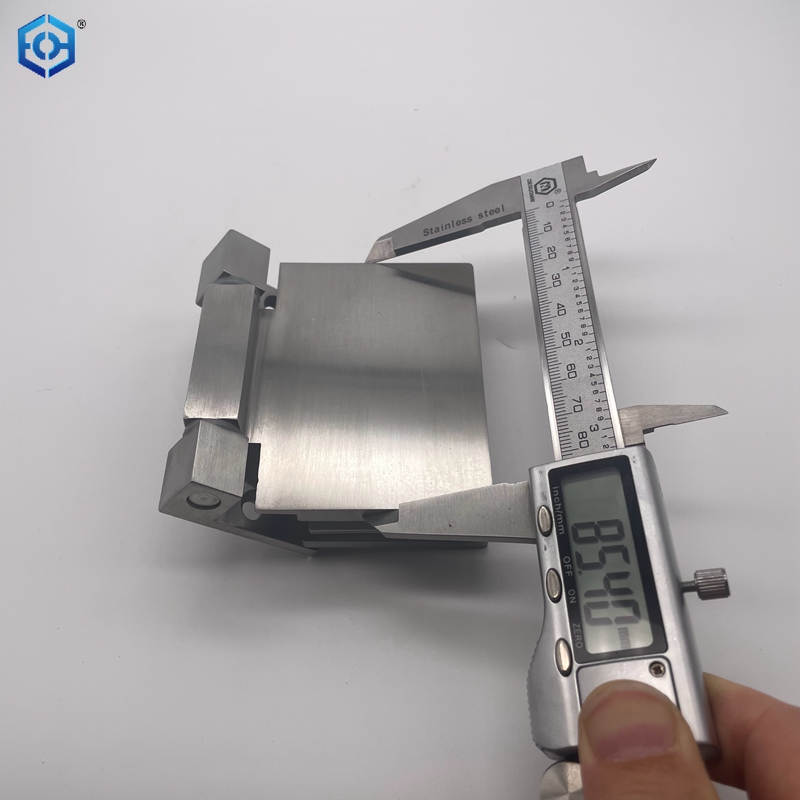

Frameless Folding Butt Flip Inclined One Side Durable Stainless Steel 90 Degree Glass Door Hinge
Welcome a trial order!
Contact us at any time!
Model No.: GS5000
Frameless folding sliding door
Door weight: within 45 kgs
| Model No. | GS5000 | Bearing grade | CV2 |
| Application | Suitable for glass partition | Glass clamp cut size(mm) | 100*30 |
| Function | middle folding,each door width is same except the first fixed door | Glass clamp material | Aluminium 6063-T5 & 304 stainless steel |
| Max door leaf height(mm) | 3500 | Glass clamp finishes | A) Polished stainless steel B) Satin stainless steel C) Titanium |
| Max door leaf width(mm) | 1200 | Hinge size(mm) | 100*92.5*4 |
| Max door leaf load(kg) | 120 | Hinge material | 304 stainless steel |
| Glass thickness(mm) | 10; 12; 12.7 | Hinge finish | SSS/PSS/customise |
| Top track size(mm) | 72*78 | End cap material | 304 stainless steel |
| Top track thickness(mm) | 8 | End cap finish | SSS/PSS/customise |
| Top track material | Aluminum 6063-T5 | PVC seal | Optional |
| Top track finish | Anodizing matt silver | Lock | Optional |
| Roler material | 304 stainless steel | Lacth | Optional |
Customized design exterior frameless bi-fold glass folding door with hardware
Popular modern design large opening double glazed aluminum insulated folding door
Product packaging
