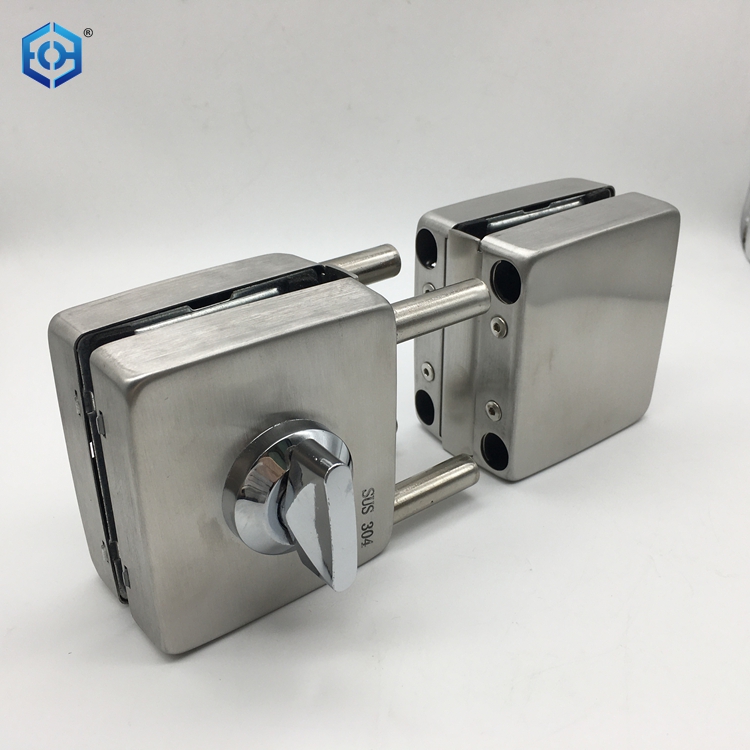

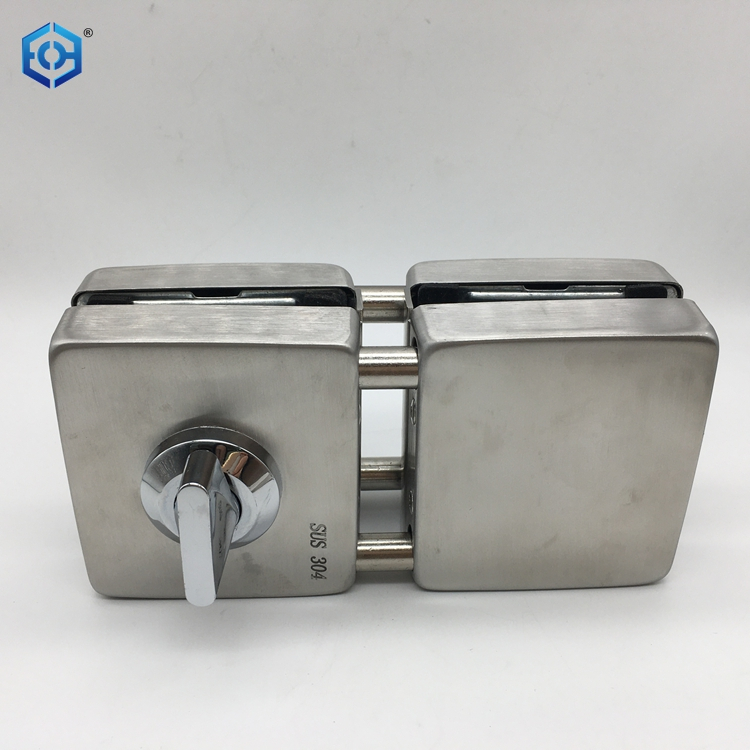

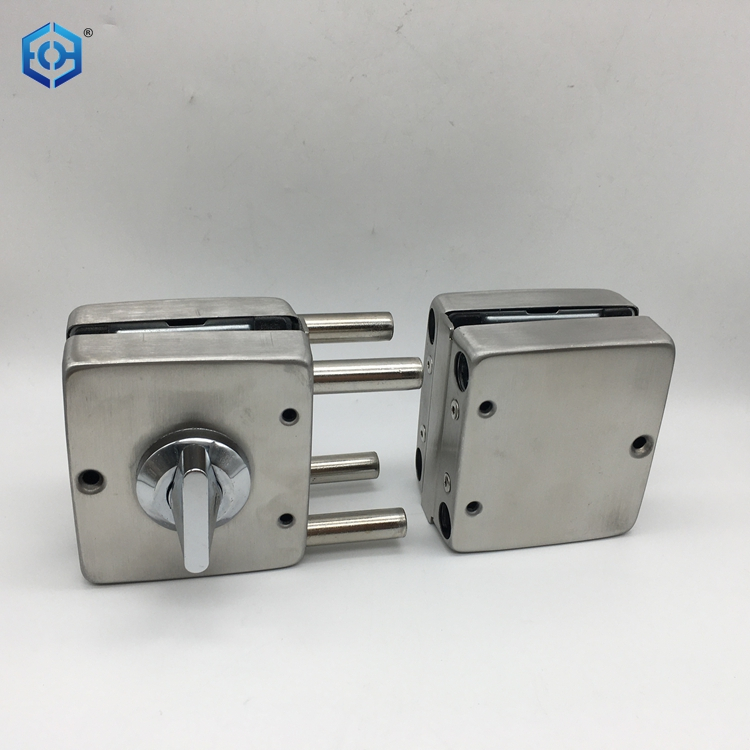

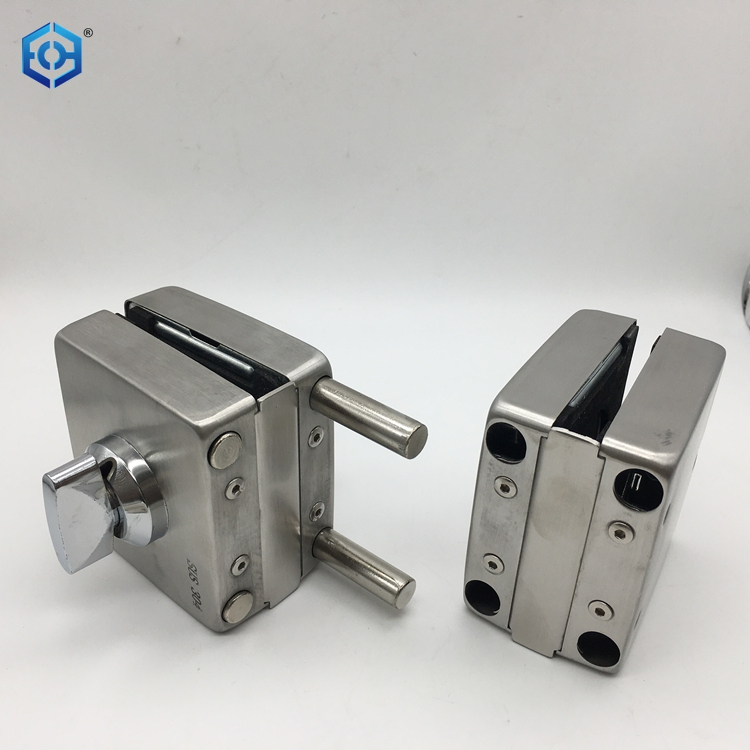

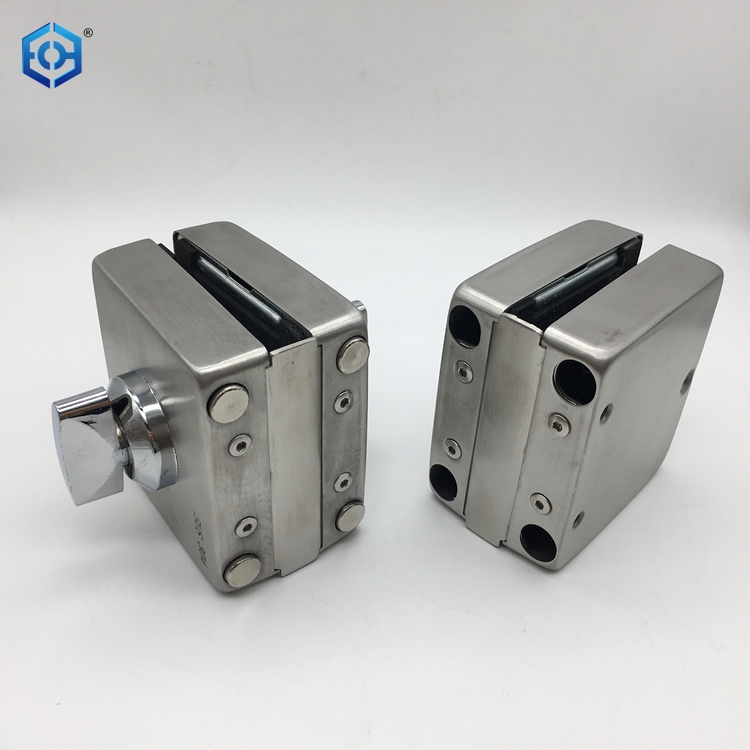

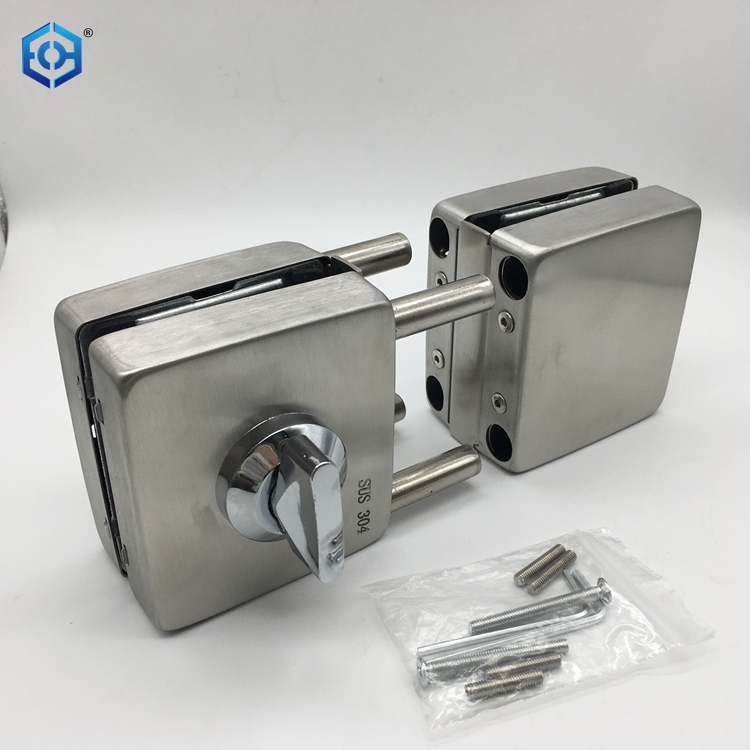

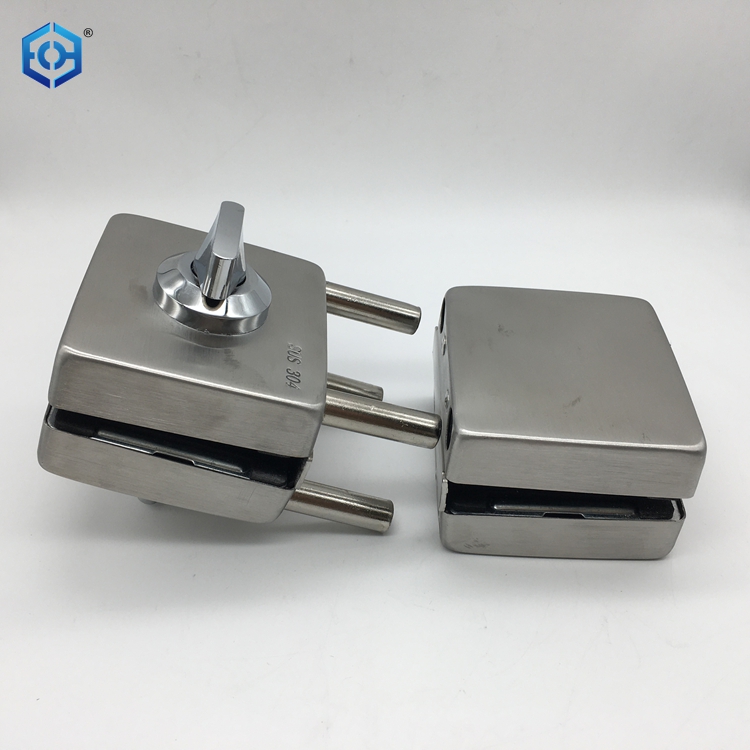

Type | door locks |
Brand NamE | ECH |
Place of Origin | Jiangmen China (Mainland) |
Model Number | GDL-012 |
Material | Stainless Steel |
Usage | Glass Door |
Finish & Size | SN,Black or PZ cylinder CTC 72mm |
Standard export package: | polyfoam bag+PVC bag+inner box+carton(PVC bag and inner box we also can print customer's Logo) |
Delivery | 30 working days |
A Store door
Latch bolt by handle either side. Deadbolt by key either side . No emergency egress.
ANSI CODE F14
C Passage
Latch bolt by handle either side.
ANSI CODE F01
H Entrance
Latch bolt by key outside and handle either side unless outside handle is locked by toggle.
Deadbolt by key outside and thumbturn inside. Inside handle retracts latch and deadbolt simultaneously.
Outside handle is rigid when deadbolt is thrown by key or thumbturn.
ANSI CODE F12
