Aluminium Alloy UL Listed CE Hydraulic Door Closer
Type | CE Hydraulic Door Closer |
Material | Aluminum |
Size | 146*35*57mm |
Function | Two values speed, Hold open optional |
QC | Each item will be checked before shipment |
Quality | Guaranteed, QC full inspection |
MOQ | 500 pcs |
Delivery Time | 30 working days |
Payment term | to order |
Technical Parameter:
Door Width:<=800mm
Door Weight:<=35kg
Function:Two values speed, Hold open optional
Length:Width:Height=146:35:57mm
Distance length：132mm
Distance Width：19mm
Opening Angle：120°/180°
It is applicable to single door with a width up to 1000mm and a weight up to 45kg.
It can be installed on the frame or on the panel.
Optional colors according to the requirement of client(gold,silver,bronze,white.etc.)
Hold open optional.
CE Hydraulic Door Closer

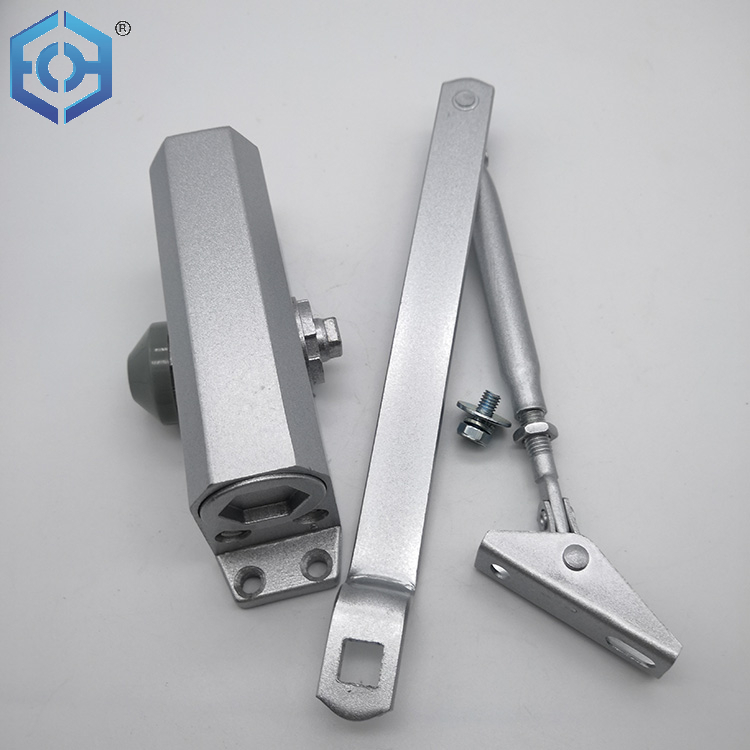

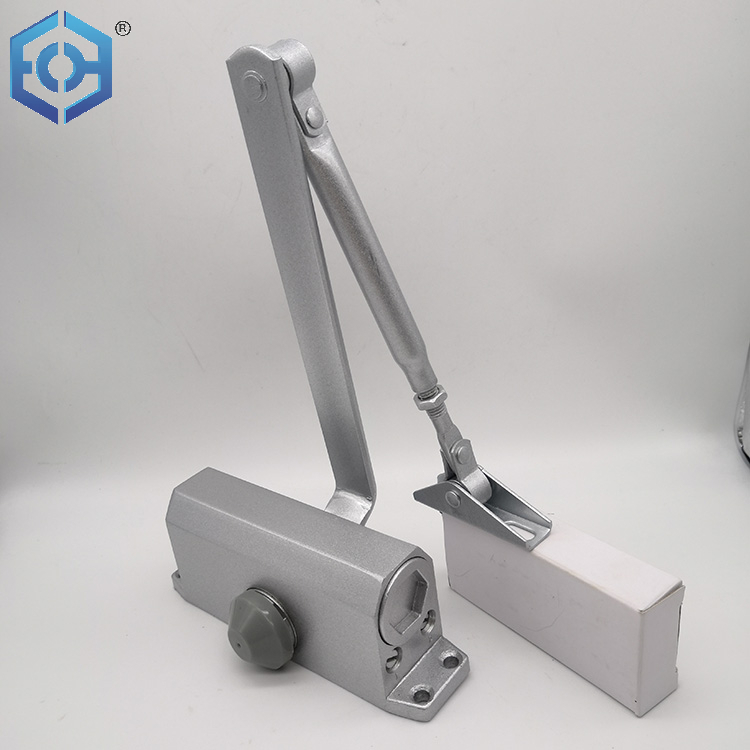

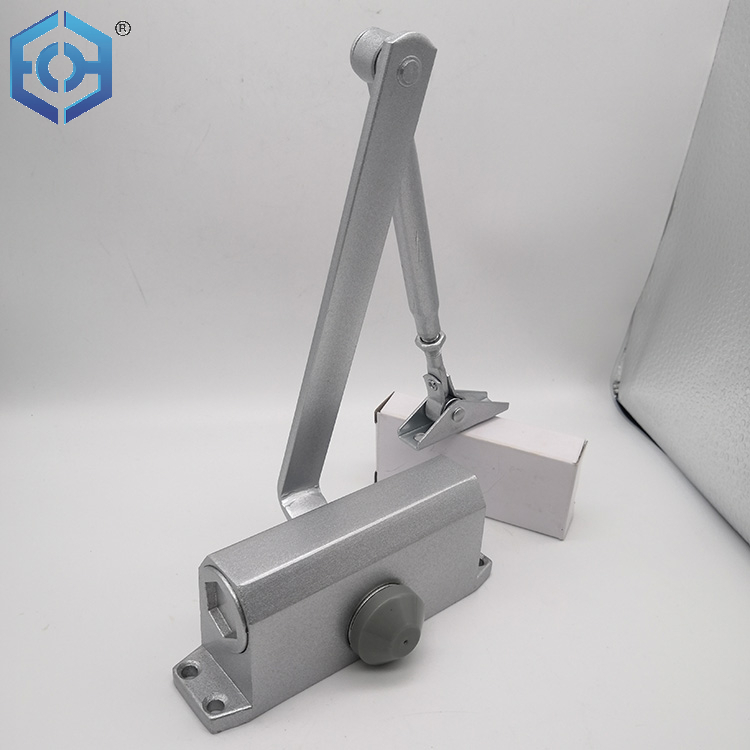

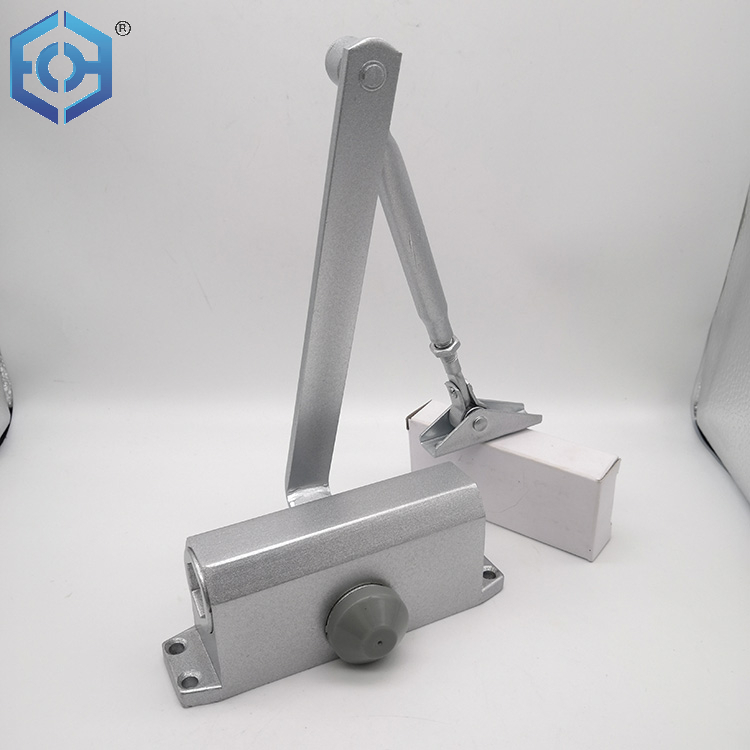

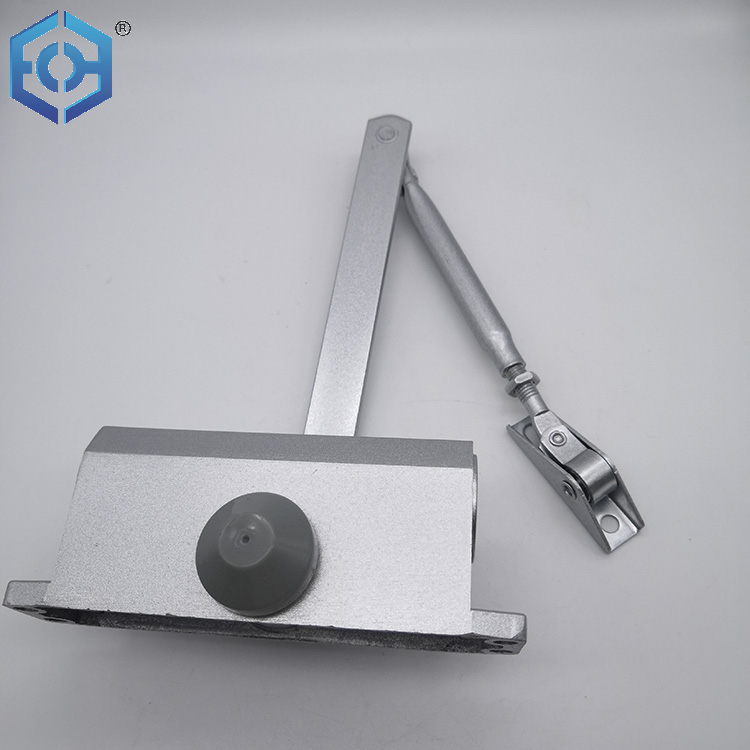

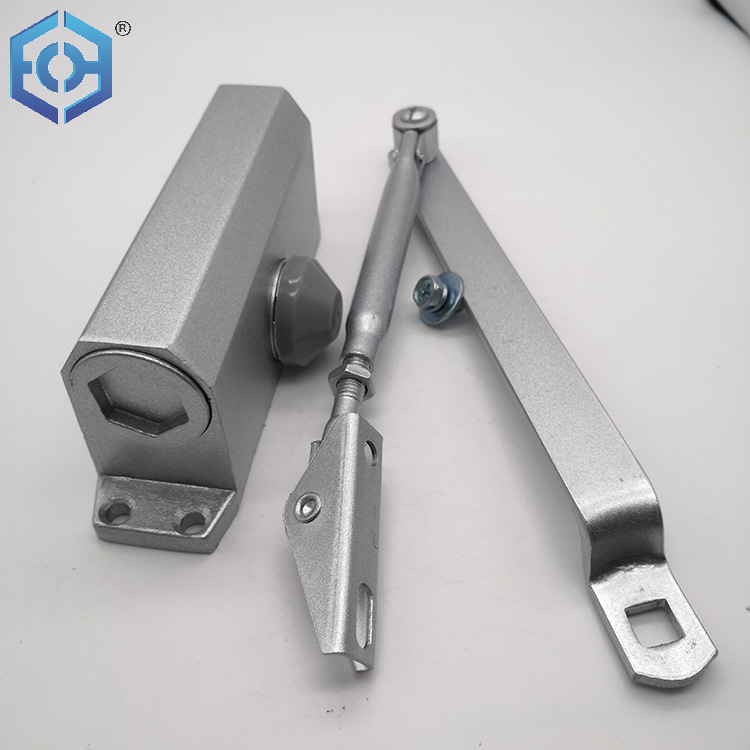

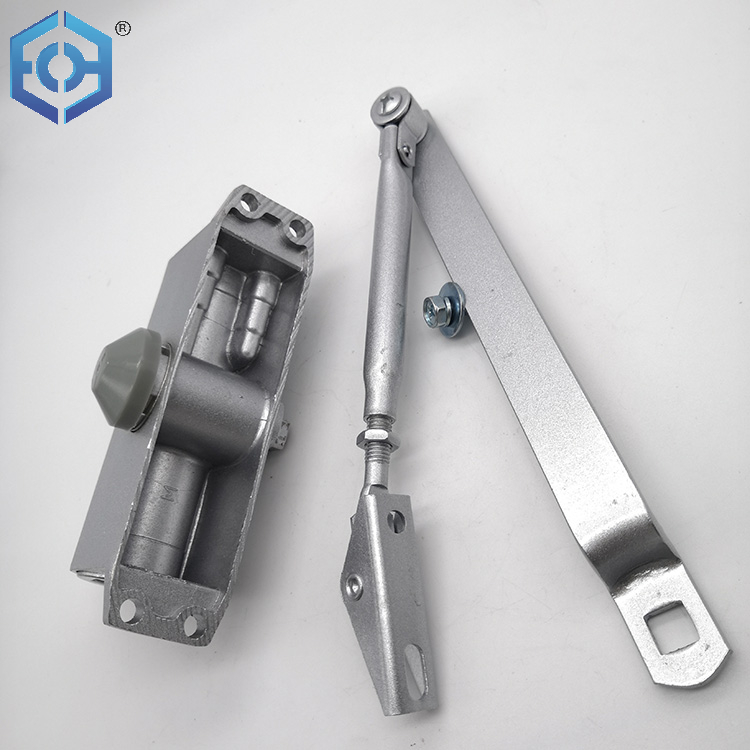

Product Picture
Door Closer Instailation:
According to different usages and requirements,for each type of EC Hardware door closer ,users can choose standard installation ,vertical installation of the door frame ,parallel installation ,slide rail installation and other different installation methods,in parallel installation ,for rail installation ,accessories are required.
