(EDC004) Steel Concealed Overhead Transom Door Closer Door Closer Transom Closer

Quantity:
  • EDC004
  • ECH

Product Description

Adjustable closing and latching speed
Maximum door opening angle at 130 degree
Mechanical hold-open at 90 degree or 105 degree.
(optional upon request)

Concealed transom mount.


Power size 2 3 4
MAX.Door width(mm) 850 950 1100
MAX.Door weight(kg) 80 100 120


Application Ranges:

.Suitable for single & double action door

.Available for lighet ,medium & heavy duty door


Finishes:

.Painted-silver /black & other colors upon request & discussion


Quick Details

Type: Door & Window closer
Usage: Door
Material: steel
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM
Model Number: EDC004
Finish: Silver or to order
MOQ: 500 pieces
Delivery: 30 working days
Name: Transom Closer


Packaging & Delivery

Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
Door closer

Mount: Parallel Arm mount /Multi Mount
Two Values Speed, Hold Open optional

Smooth Finish


Specification
Type Transom closer
Brand name ECH
Model NO. EDC004
Material steel
Finish Silver or to order
Size 283*94*40.5mm
Radius comer square corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 15 pairs in one carton
Delivery day 30 working days
name Transom Closerdummy transom closer

Product Photo:

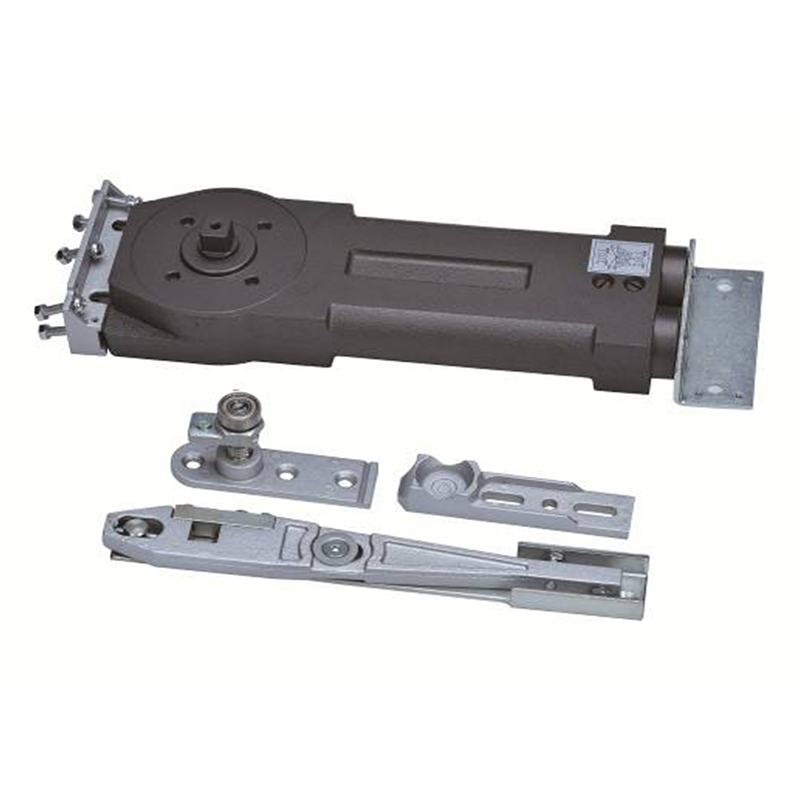

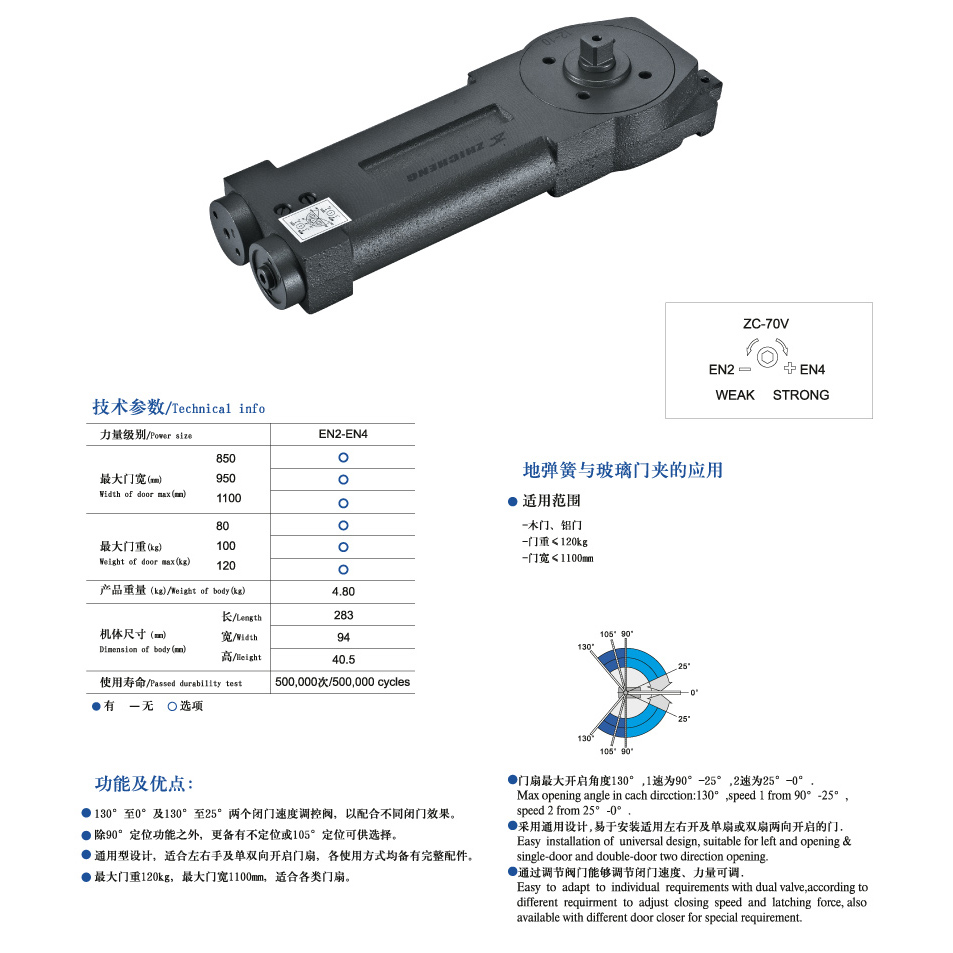

floor spring transon door closer arminstallation of floor spring transon door closer arm1heavy duty transom closer transon door closer armhold open transom closer


how to adjust transom door closer

how to fit a transom closer

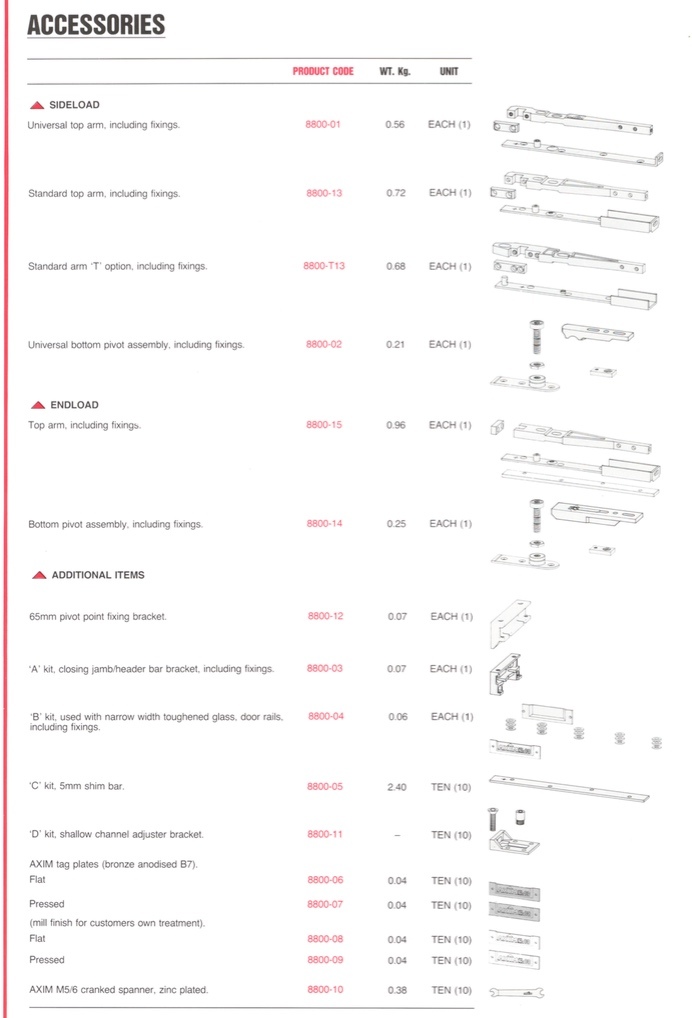

how to fit a transom door closer
novas transom closer
