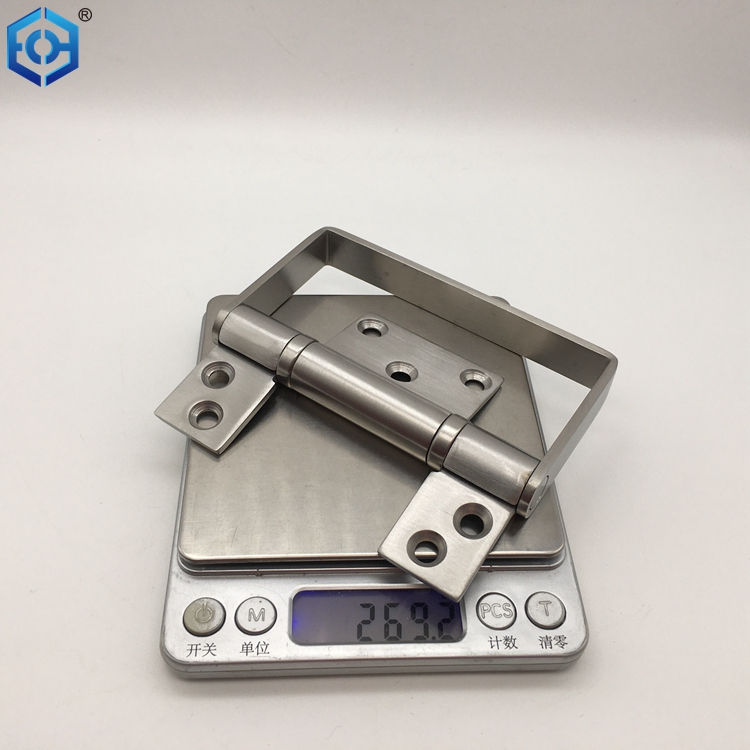

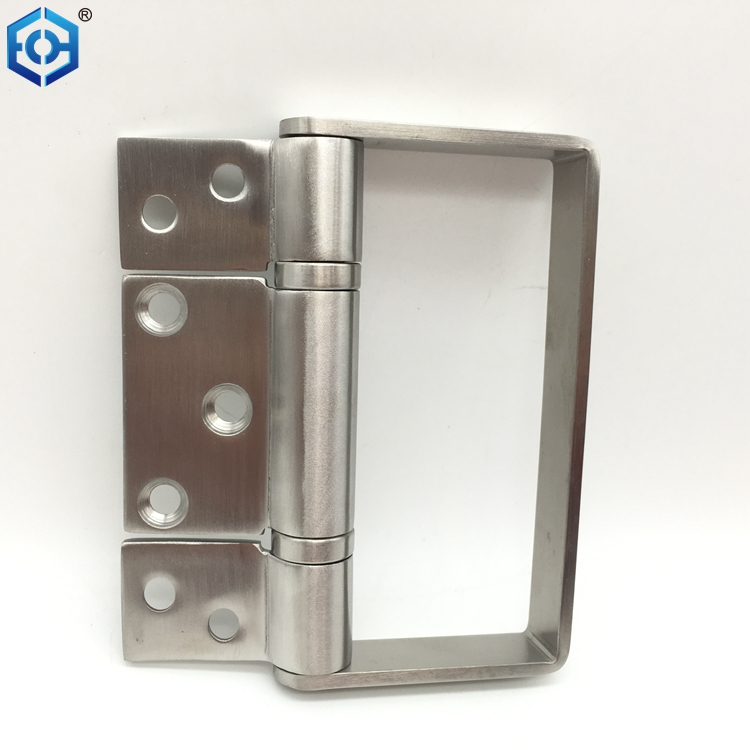

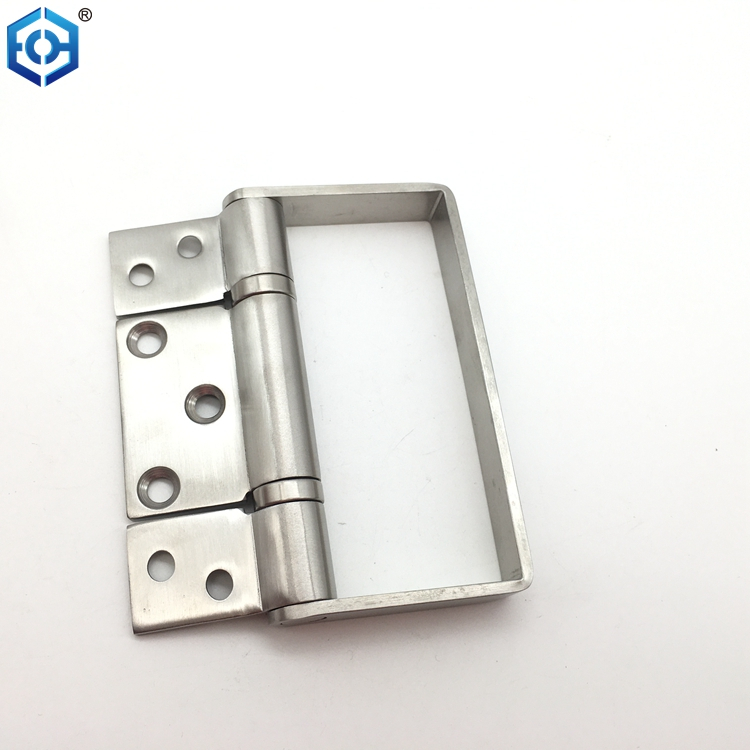

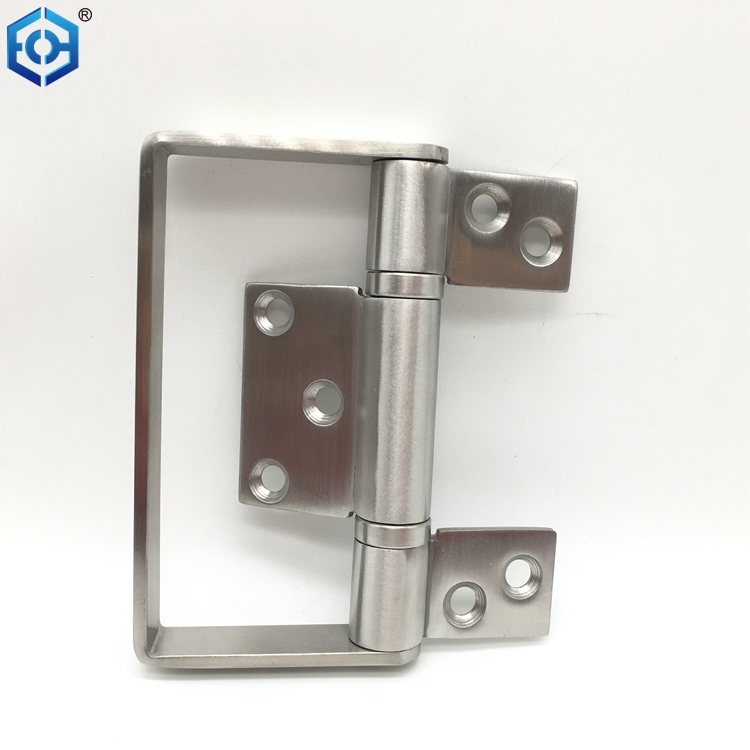

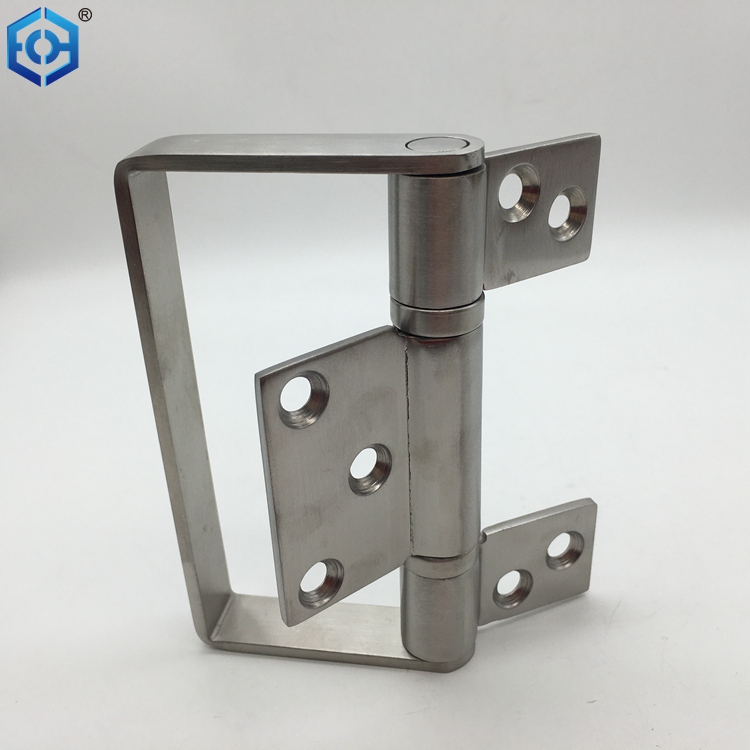

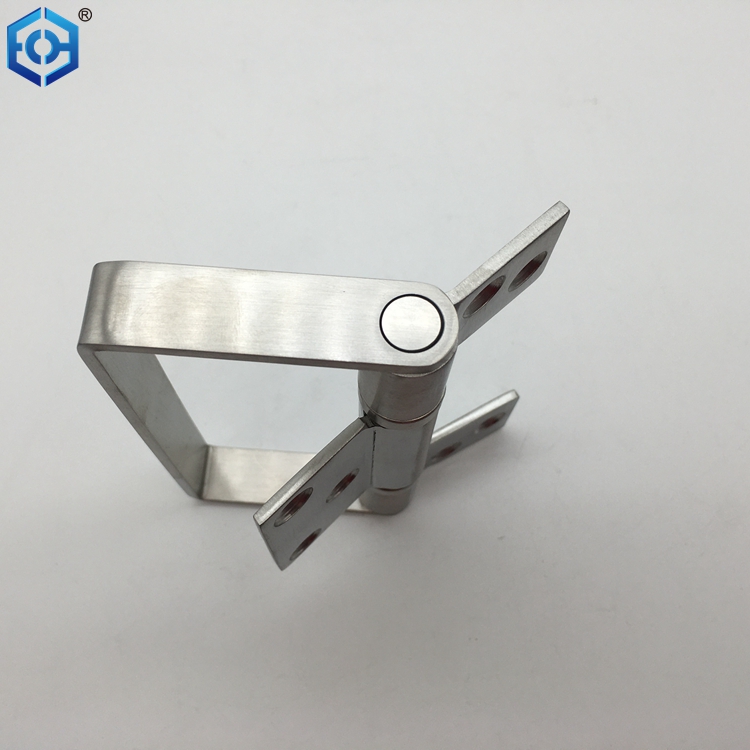

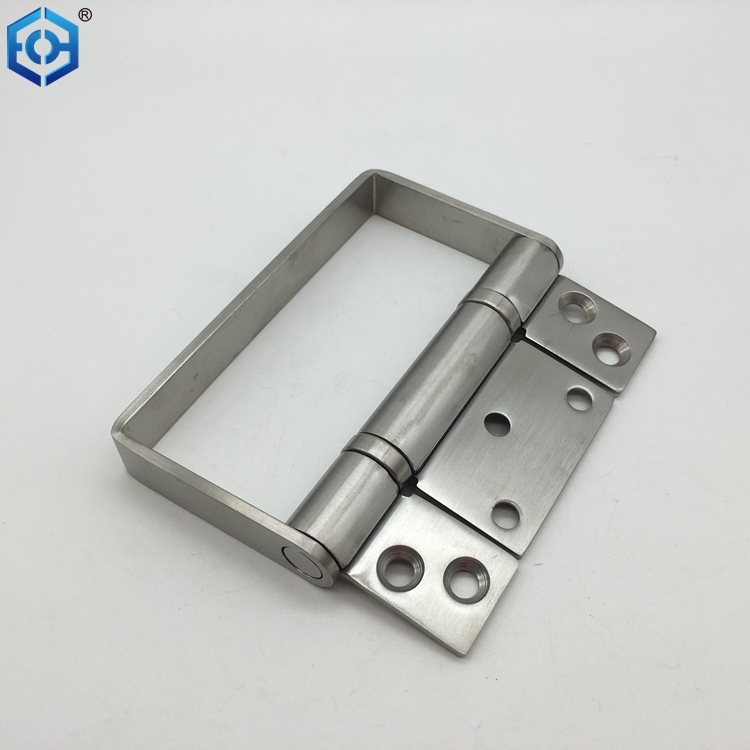

Bi-fold Door Hardware Brushed Stainless Steel Folding Door Hinge with Handle

Bi-fold Door Hardware Brushed Stainless Steel Folding Door Hinge with Handle
Availability:
Quantity:
Inquire Add to Basket

Bi-fold Door Hardware Brushed Stainless Steel Folding Door Hinge with Handle
Bi-fold Door Hardware Brushed Stainless Steel Folding Door Hinge with Handle
Bi-fold Door Hardware Brushed Stainless Steel Folding Door Hinge with Handle
Bi-fold Door Hardware Brushed Stainless Steel Folding Door Hinge with Handle
Bi-fold Door Hardware Brushed Stainless Steel Folding Door Hinge with Handle
Bi-fold Door Hardware Brushed Stainless Steel Folding Door Hinge with Handle

  • GS7000-8

  • ECH

Bi-fold Door Hardware Brushed Stainless Steel Folding Door Hinge with Handle

Welcome a trial order!

Contact us at any time!

lever set

Wooden accordion folding door hinge rollers bifold door hardware

Model No.: GS7000
Frameless folding  door

Material：Casting 304 SS
Finish：Satin Nickel / Mirrow / Chrome / Powder Coating
Glass thickness：35-50mm
Max Door width：800mm
Max Door height：3000mm

Door weight: within 60 kgs for one door


Brand Name
ECH
Model No.
GS7000
System name
folding door
Material
stainless steel
Finished
SSS
Door thickness
35-50mm
Max. capacity for roller
60kg/door
Installation
Configuration briefness and easy to install
Package
Standard packaging without any logo, can adjust customers request
Payment terms
T/T 30% deposit advanced, balanced before shipping
Delivery time
Usually within 10 days after receiving deposit

Model No. GS7000 Bearing grade CV2
Application
Suitable for glass partition		 Glass clamp cut size(mm) 100*30
Function middle  folding,each door width is same except the first fixed door Glass clamp material Aluminium 6063-T5 &  304 stainless steel
Max door leaf  height(mm) 3000 Glass clamp finishes A) Polished stainless steel
B)  Satin stainless steel
C) Titanium
Max door leaf width(mm) 800 Hinge size(mm) 100*92.5*4
Max door leaf load(kg) 60kg Hinge material 304 stainless steel
Glass thickness(mm) 10; 12; 12.7 Hinge finish  SSS/PSS/customise
Top track size(mm) 72*78 End cap material 304 stainless steel
Top track thickness(mm) 8 End cap finish SSS/PSS/customise
Top track material Aluminum 6063-T5 PVC seal Optional
Top track finish Anodizing matt silver Lock Optional
Roler material 304 stainless steel Lacth Optional


Customized design exterior frameless bi-fold glass folding door with hardware

Popular modern design large opening double glazed aluminum insulated folding door

brushed nickel door levers

GS7000-6(11)

bifold roller hingehinges for bi fold gates bifold door hingeslazy susan bifold doorsbifold door on hingesbifold corner cabinet hingejohnson bifold hingesgrass bifold hinge



70 degree bifold corner hingetri fold door hinges

Project Case：

interior accordion glass doors


accordion glass


Product packaging

replacement glass for bifold doors
