3D Adjustable Cross Door Hinges Invisible Concealed Hinges Zinc Alloy Hidden Hinge Bearing 80KG/2PCS For Folding Door
Product Details
Basic Info.
Features:
1.For wooden doors,flush doors,aluminum doors;
2.Concealed installation;
3.3D Adjustments:vertical ±3mm，horizontal ±3mm and depth ±1mm;
4.Opening angle 180°；
5.Finish：SC/SN/PC/PN/AB/AC/white/black;
Technical Data：
1.Max.door weight with 2 hinges:80KG;
2.Min.door thickness:35mm;
3.Max.door width:1000mm;
4.The door height is over 2100mm, each door is equipped with 4 hinges.
Hinge/door hinge/ zinc alloy door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification |
| Type | door hinge |
| Brand name | ECH |
| Model NO. | EBG011 |
| Material | zinc alloy |
| Finish | Satin chrome/Satin nickel/Polished chrome/Polished nickel |
| Size | 177X28X18mm |
| Radius comer | square corner |
| Inner packing | soft foam pastic bag, color box and blister packing |
| Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
| Delivery day | 30 working days |
| name | hidden door hinge |

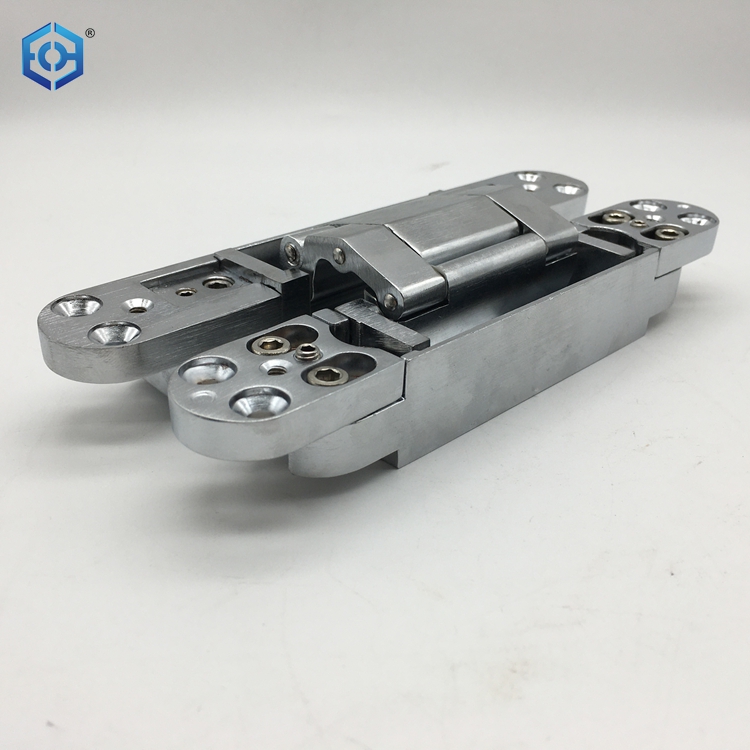

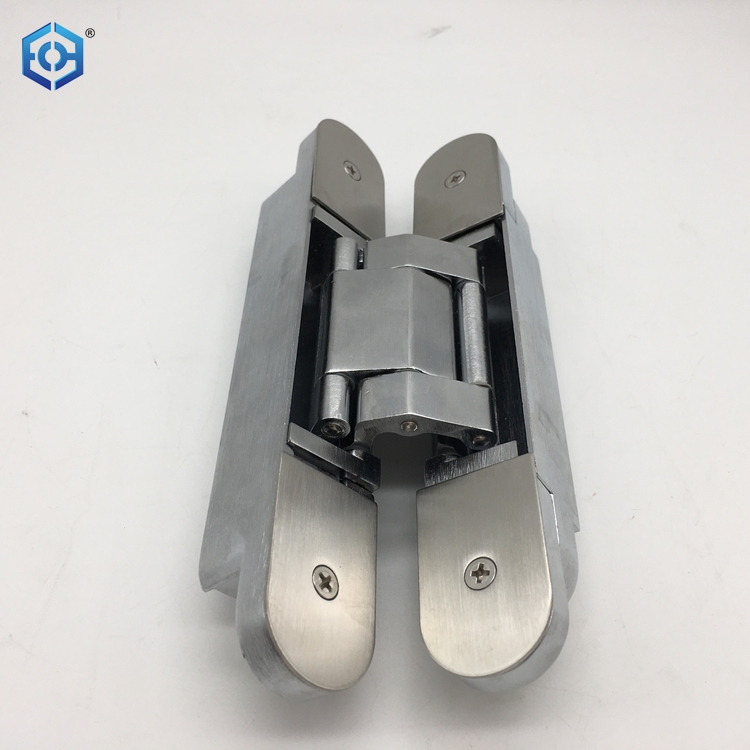

Product Picture:
