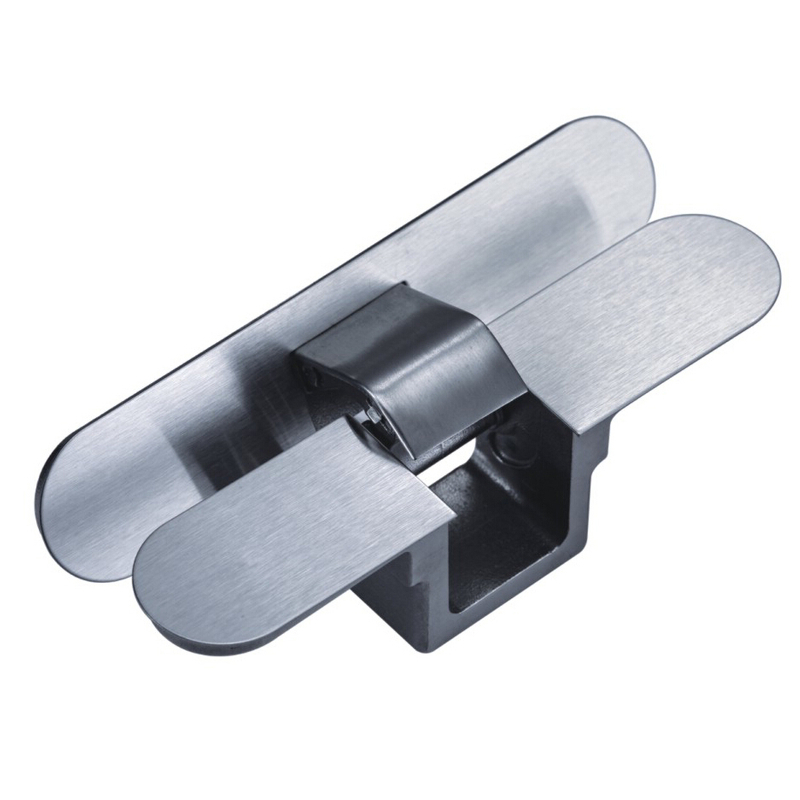

130 Degree Stainless Steel Conceal Hinge for Invisible Doors Concealed Doors Large Solid Wood Cabinet Doors Cloakrooms

OEM 130 Degree Stainless Steel 304 Concealed Hinge for Aluminium Door or Wooden Door

Finish:
Size:
Min door thickness:
Load-Bearing:
Opening angle:
Quantity:
  • EEG002
  • ECH
  • 11/pcs


Product Details
Basic Info.


Features:

1.For wooden doors,flush doors,aluminum doors;

2.Concealed installation;

3.3D Adjustments:vertical ±3mm,horizontal ±3mm and depth ±1mm;

4.Opening angle 130°;

5.Finish:SSS;


Technical Data:

1.Max.door weight with 3 hinges:60KG;

2.Min.door thickness:37-52mm;



Hinge/door hinge/ zinc alloy door hinge/gate hinge

Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price



Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days


Specifications
Hidden door hinge

1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish



   Specification
Type door hinge
Brand name ECH
Model NO.

EEG002

Material stainless steel
Finish SSS
Size 149X32X4mm
Radius comer square corner
Inner packing soft foam pastic bag, color box and blister packing
Standard export packing one piece in one plastic bag, one pair in one white box, 20 pairs in one carton
Delivery day 30 working days
name hidden door hinge


Product Picture

Assa Abloy Concealed HingesHidden Cabinet Door Hinges Types

Concealed Harmon Hinge

Adjustable Invisible Concealed hinge

 Conceal Hinge for Wooden Door

EBG006-3

3D Adjustable Concealed Hinge Heavy Duty

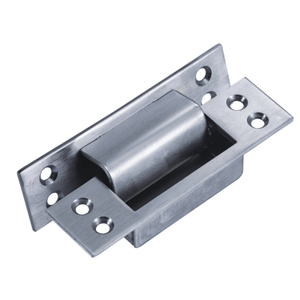

EBG001

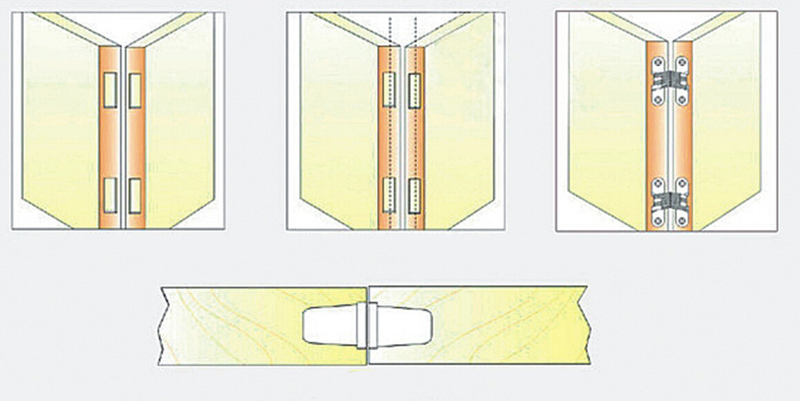

QQ截图20191129175444


black conceal hingeadjustable l hinge (5)conceal hinge (2)concealed hinge
