ECH-160
ECH

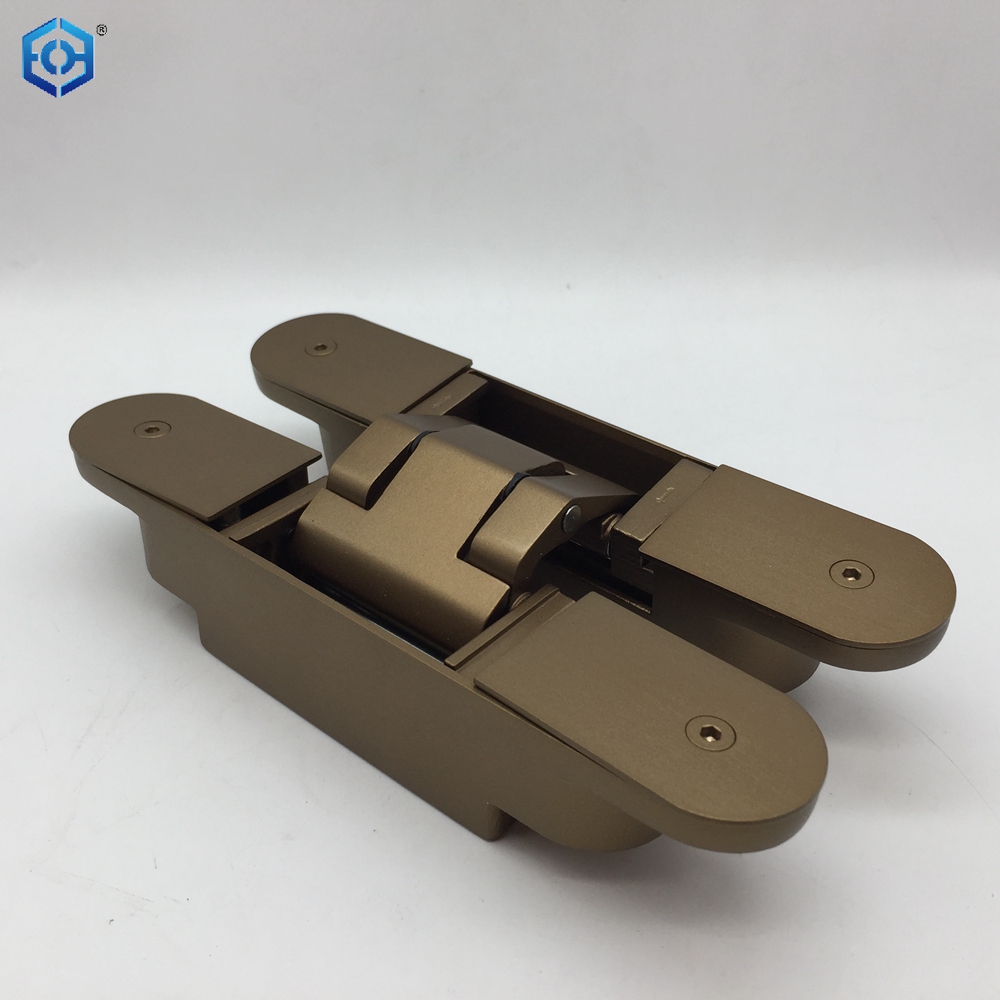

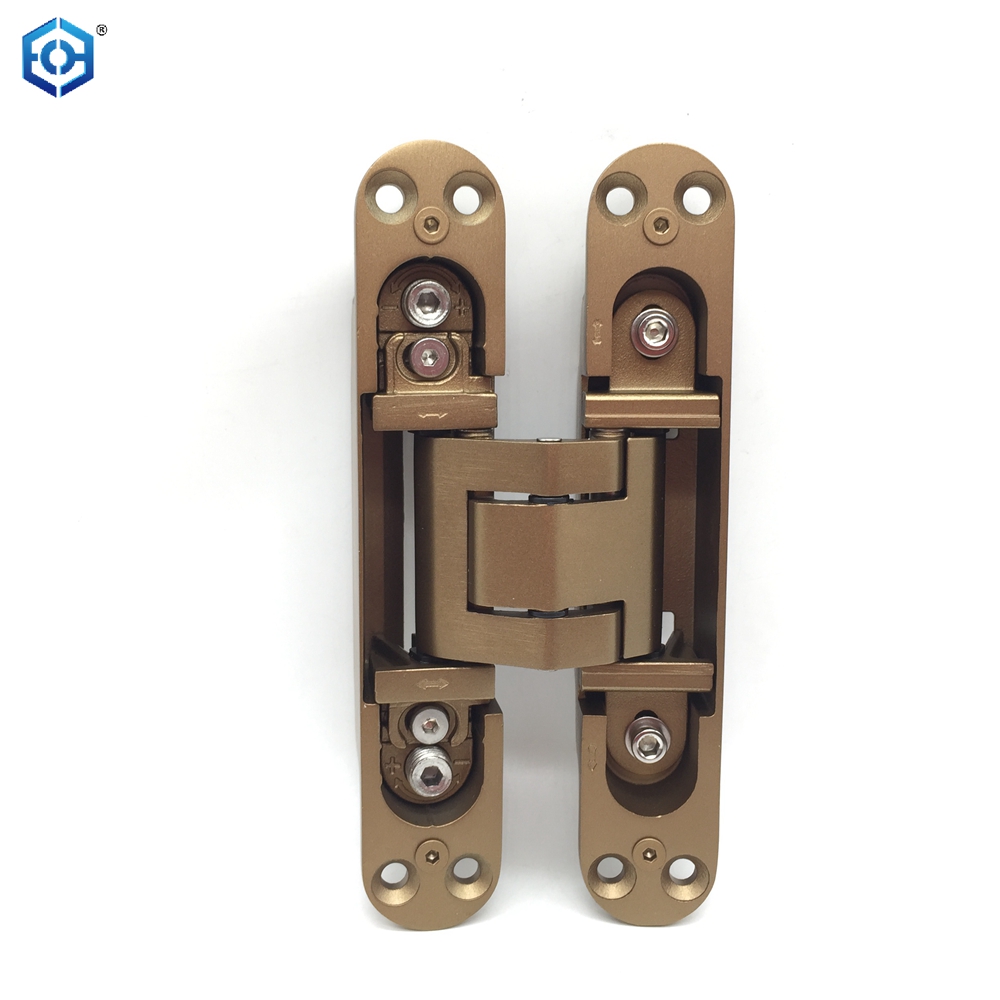

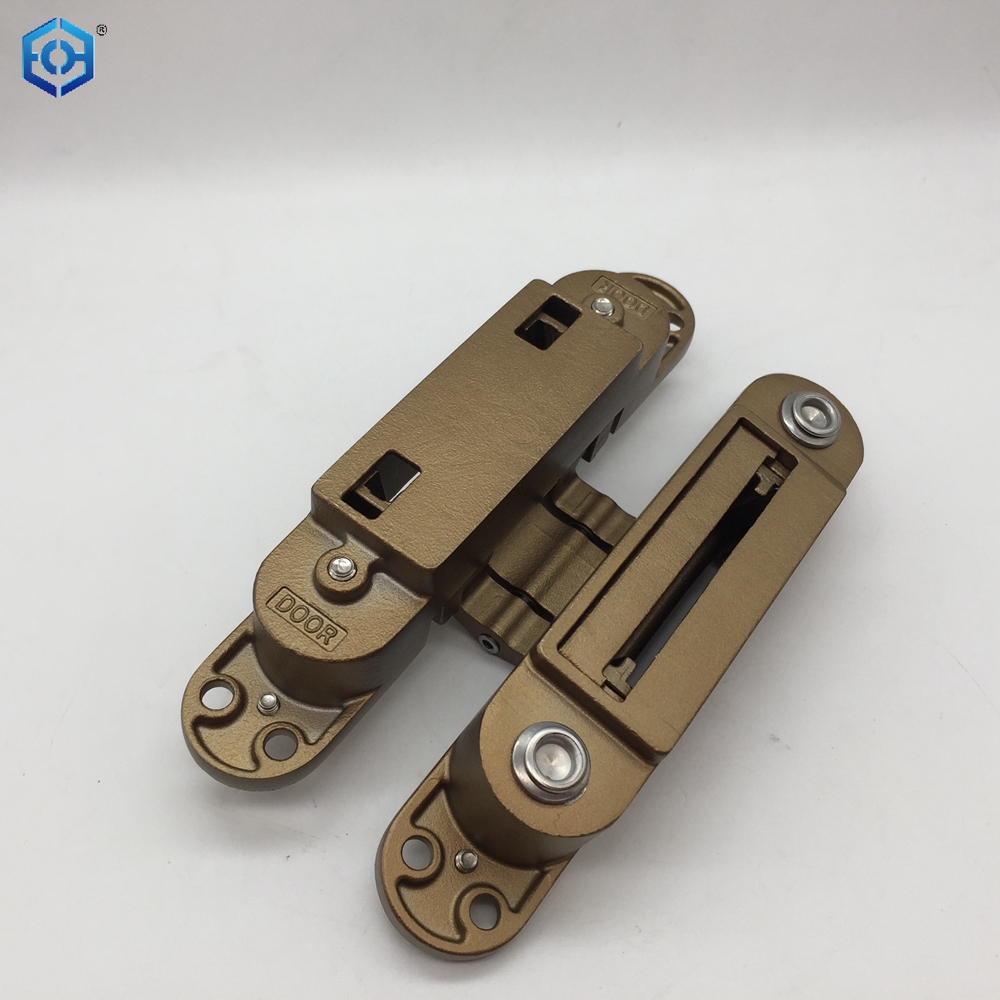

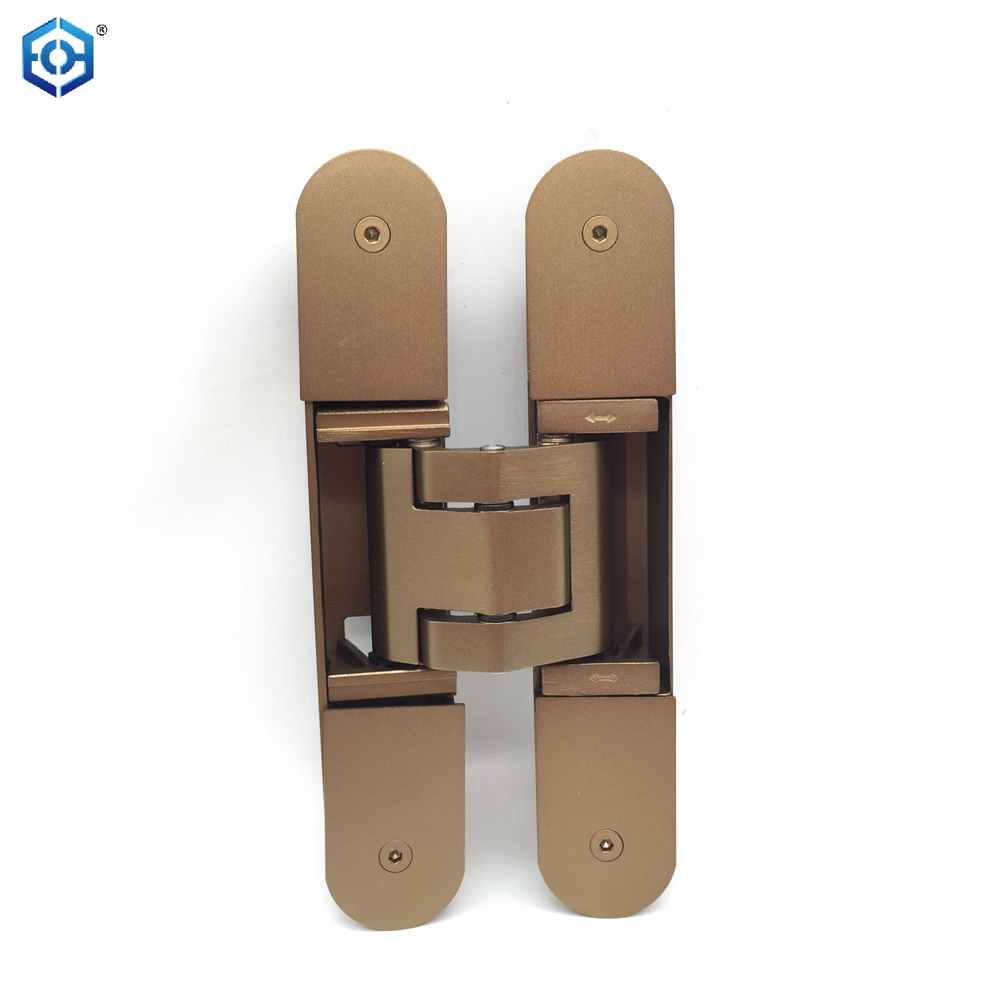

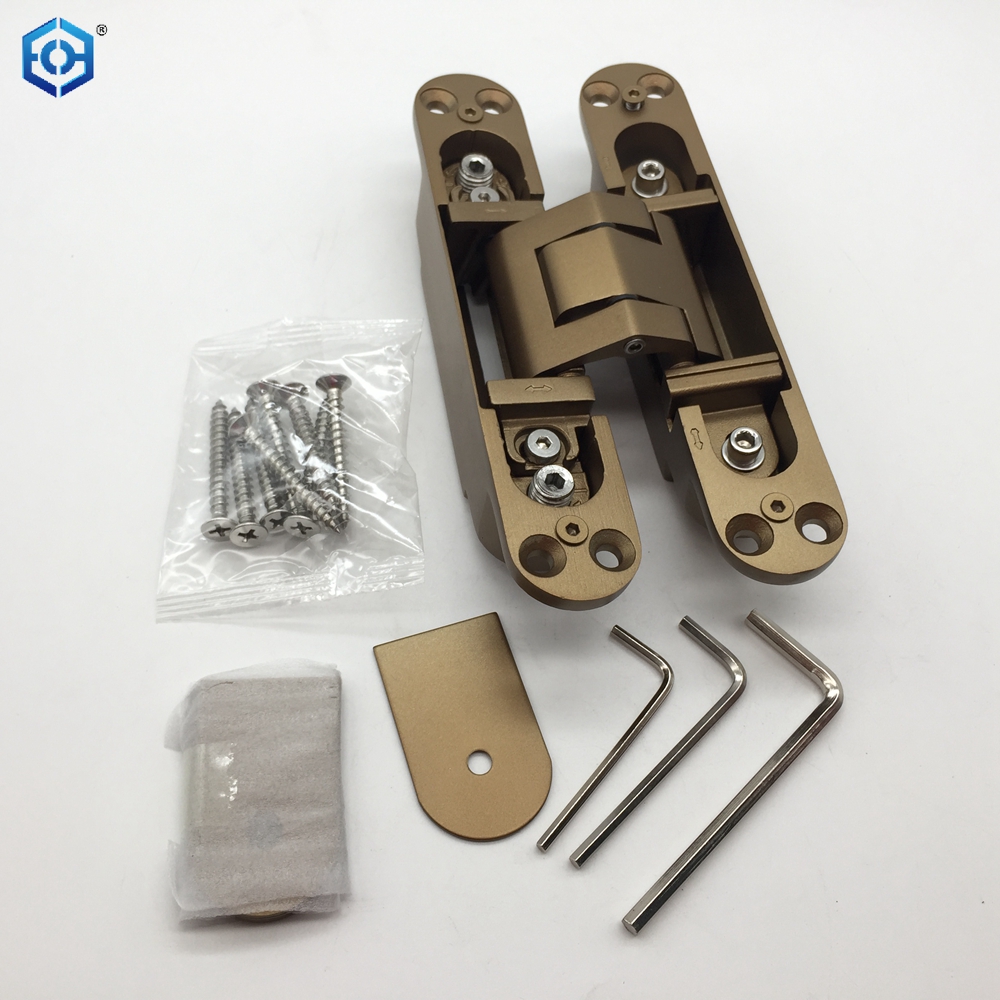

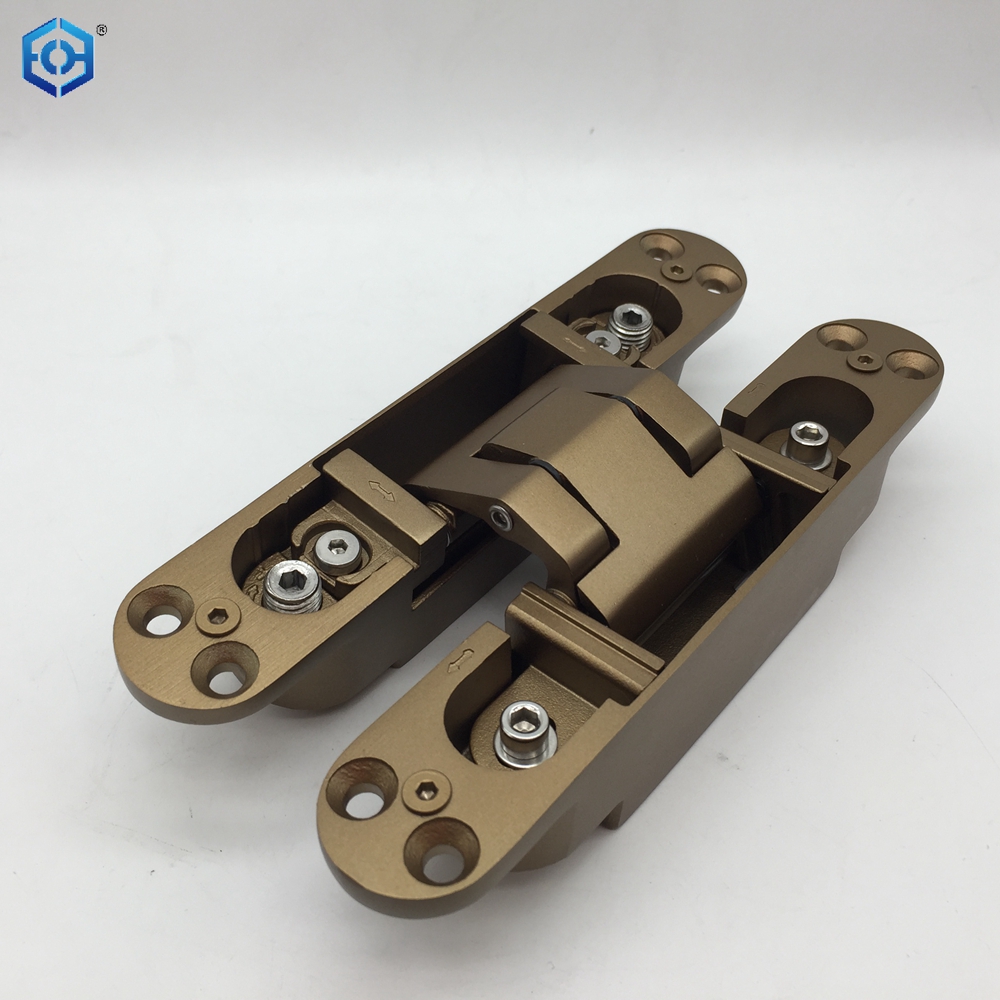

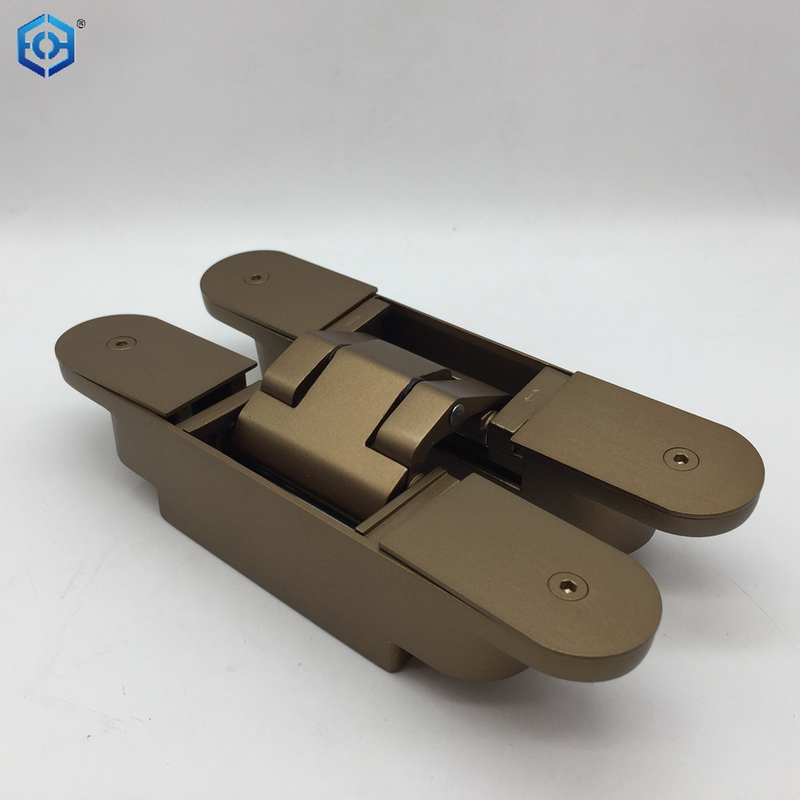

120kg AC Stainless Steel 3D Adjustable Concealed Hidden Door Hinge
Product Details
· The product is SUS304 material
· Carry the door weighs 120 kg maximum
· The maximum opening angle is 180 °
· Left and right adjustment：+3.5/-2.0mm
Up and down adjustment :±3.0mm
Front and rear adjustment: ±1.5mm
Product Data
· Length(door/frame)：160 / 160mm
· Width(door/frame)：30/ 30 mm
· Opening angel：≤ 180°
Hinge/door hinge/ brass door hinge/gate hinge
Welcome to a trial order!
Please contact us at any time!
Door hinge
The more quantity, the lower the price
Packaging & Delivery
Packaging Details: White box, Soft foam plastic bag or to order
Delivery Detail: 30 working days
Specifications
Hidden door hinge
1. Quality insurance
2. Professional service
3. Fast delivery
4. Smooth Finish
Specification | |
| Type | Concealed hinge |
| Brand name | ECH |
| Model NO. | ECH-160 |
| Material | stainless steel 304 |
| Finish | Satin chrome/Satin nickel/Polished chrome/Polished nickel |
| Size | 160X30X31.5MM |
| Radius comer | Round corner |
| Inner packing | soft foam pastic bag, color box and blister packing |
| Standard export packing | one piece in one plastic bag, one pair in one white box, 20 pairs in one carton |
| Delivery day | 30 working days |
| name | hidden door hinge |
Product Picture:
