8219
ECH
Product
Model No.: | 8219 |
Application: | Many kinds of wooden door and metal doors |
Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |

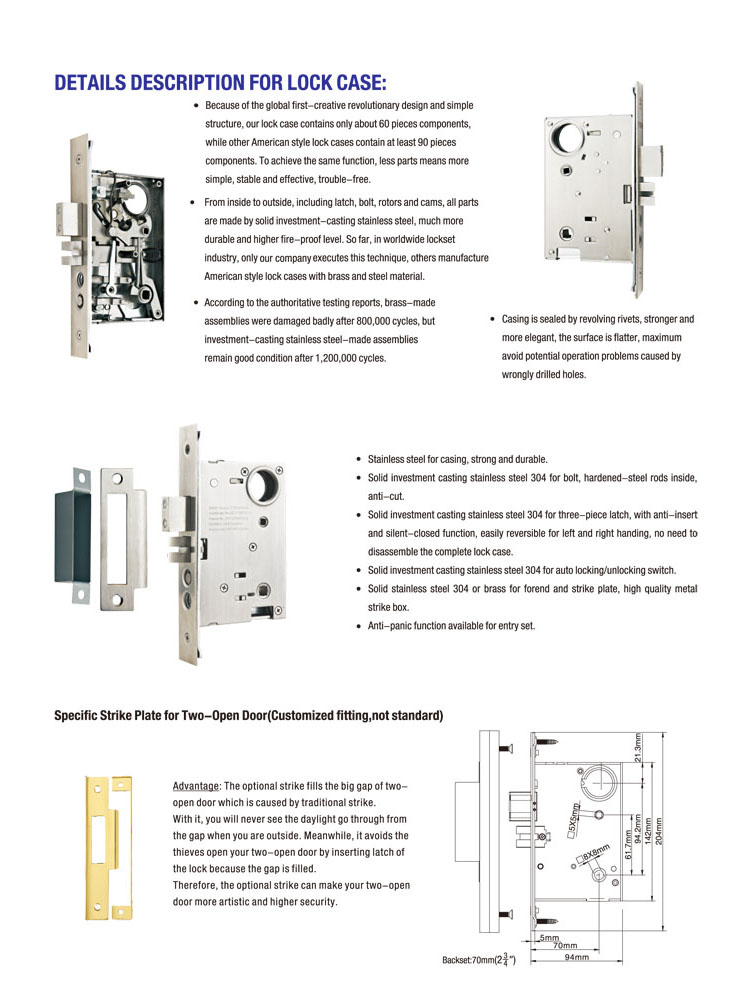

Mortise Lock: | Global first-creative revolutionary structure, the most components are made by stainless steel for heavy-duty purpose, three-piece latch with anti-insert and silent-closed function, big deadbolt with anti-saw function, 1,200,000 cycle-test passed. |
Backset of Mortise Lock Case: Standard 2-3/4”(70mm). | |
Auto-locking and anti-panic function. | |
Easily reversible for left and right handing. | |
Cylinder: | American standard, the most components made by brass, processed with highly precise CNC machines, with anti-drill function and construction key function. |
Standard keyway: Angle-cut-pin, each set with 5 pcs owner’s key + 1 pc construction key. | |
Optional keyway: Global first-creative, one side track-pin, one-side single-row-pin, top secure level, each set with 5 pcs owner’s key + 1 pc construction key. | |
Customized keyway: Double-row-pin | |
Supplying function: | Entrance, Dummy, Two-open Door. |
Available type of inside trim: | Type A(single cylinder), Type B(single cylinder),Type C(double cylinder),TypeD(double cylinder),TypeE(single cylinder), TypeF(double cylinder) |
Door thickness: | Standard 41-50mm |
Supplying finish: | ASL - Antique Silver |
ORB (US10B) - Oil Rubbed Bronze | |
OAC - oil Antique copper | |
DAC- Dim Antique Copper | |
DAB- Dim Antique Brass | |
Package: | High quality color box. |
Carton: | 4 sets/carton |

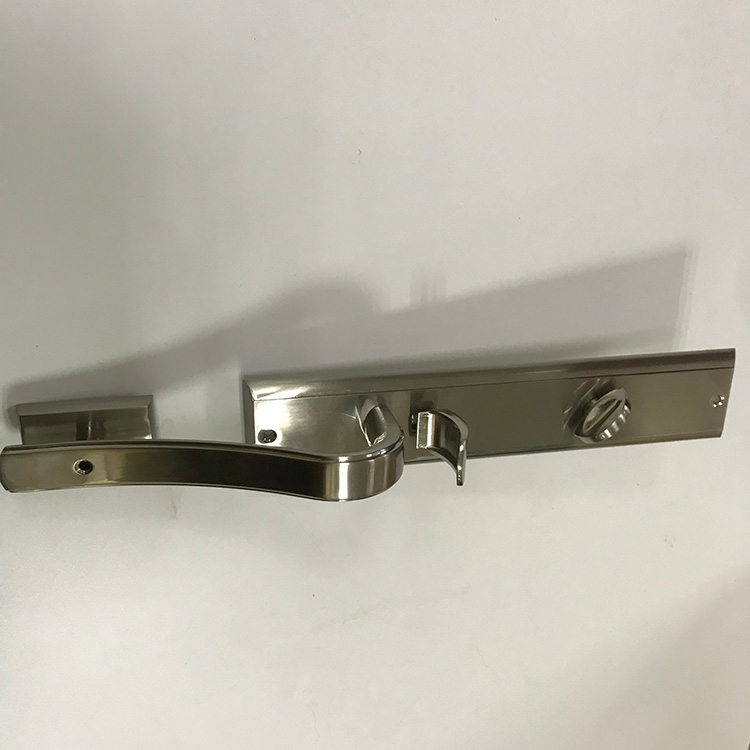

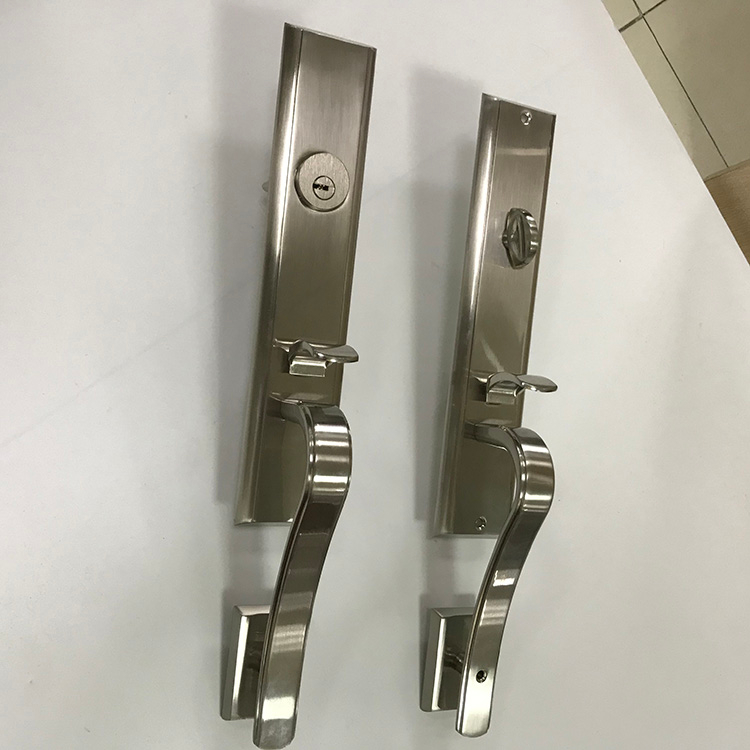

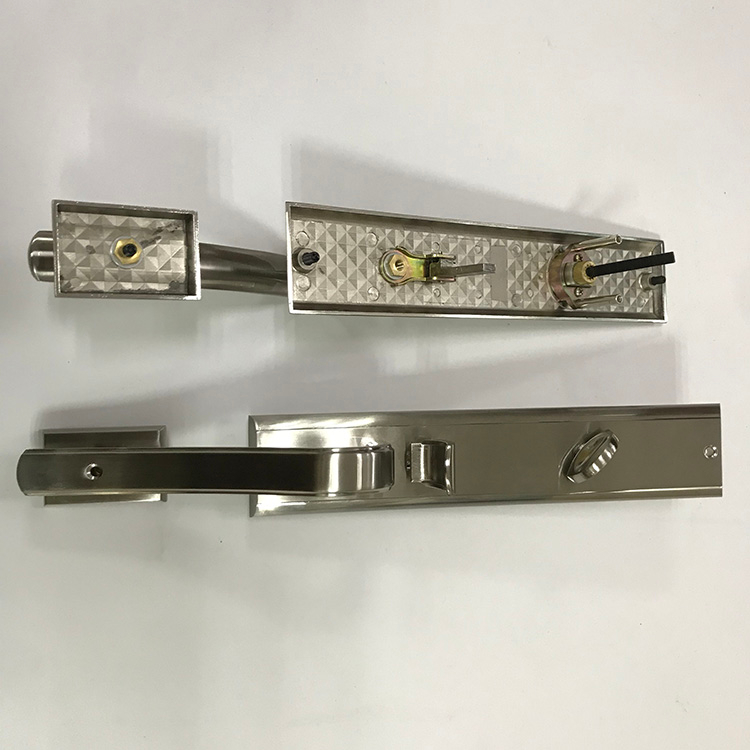

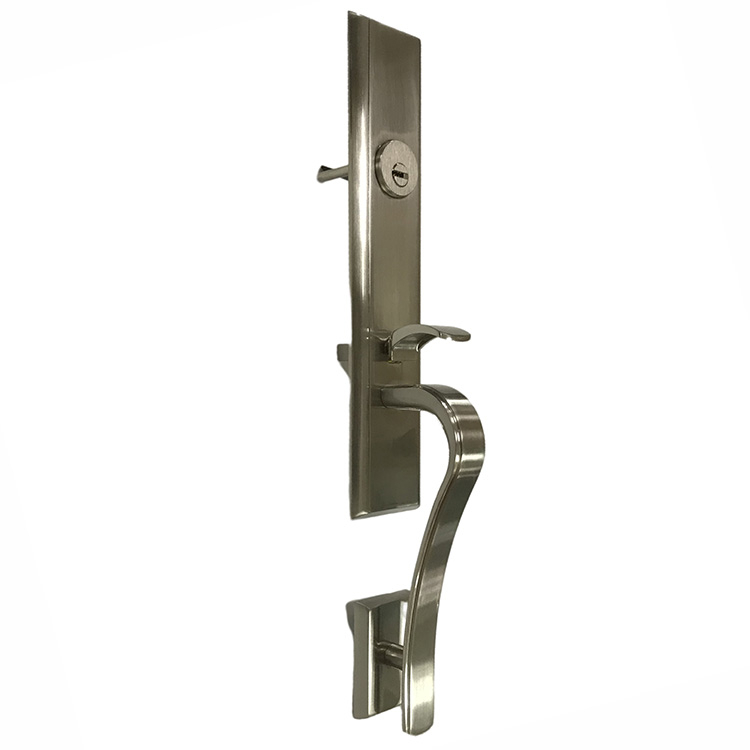

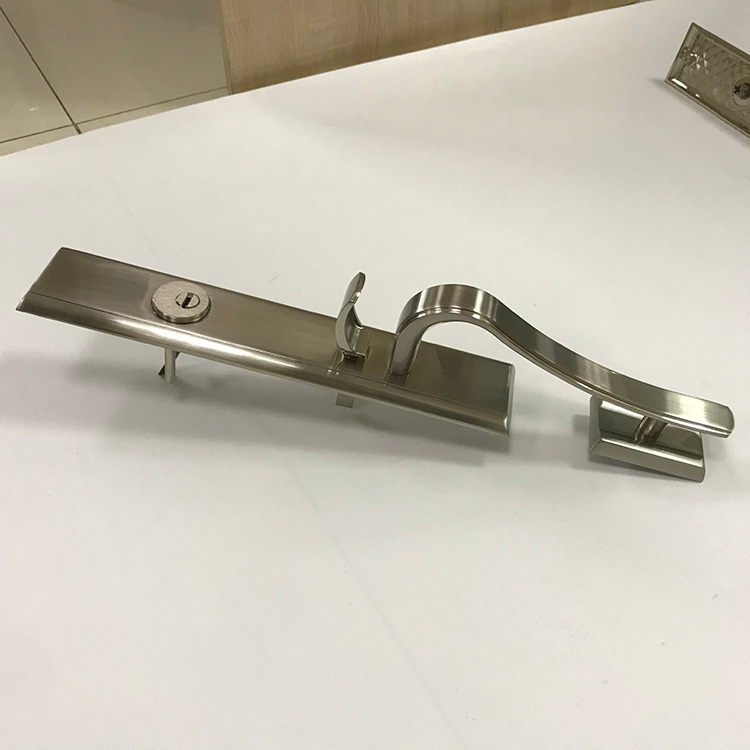

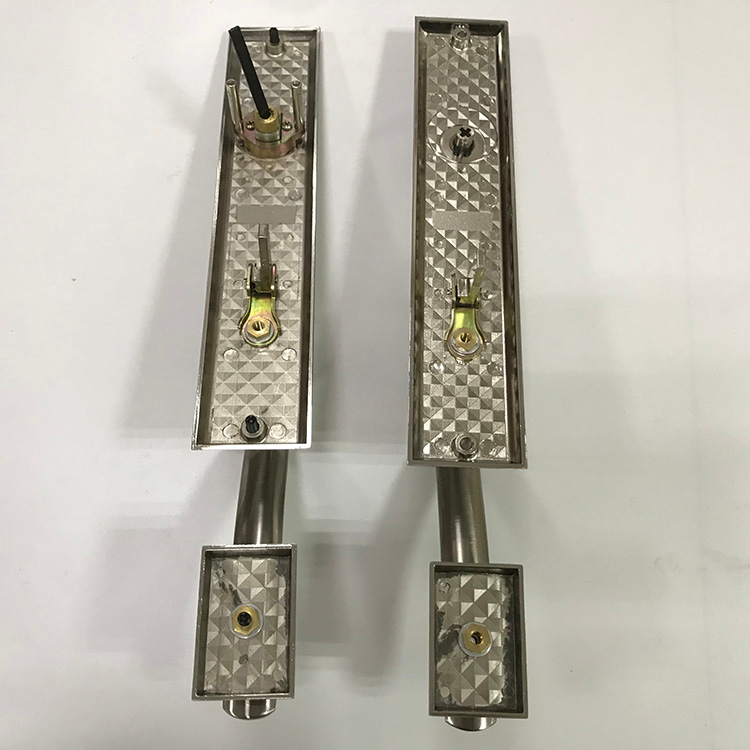

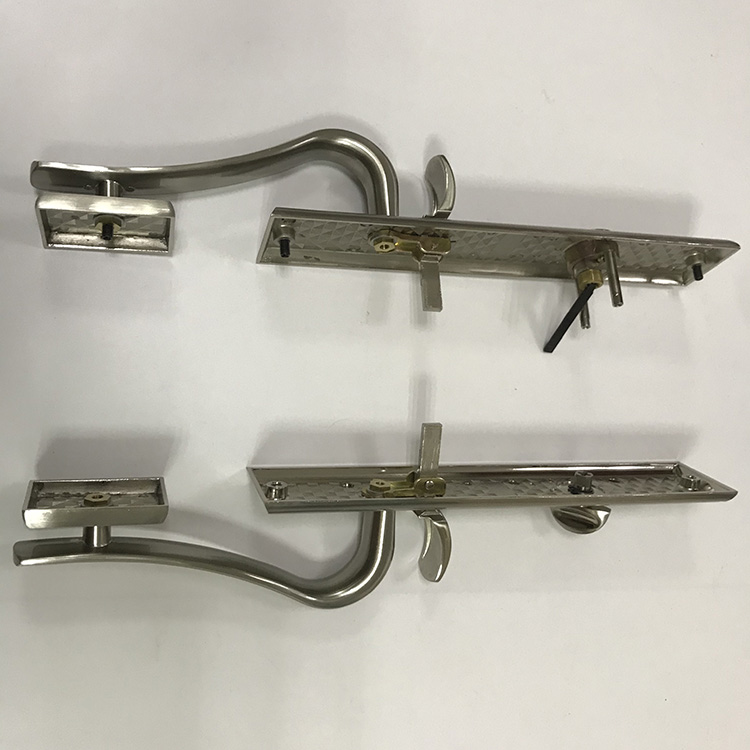

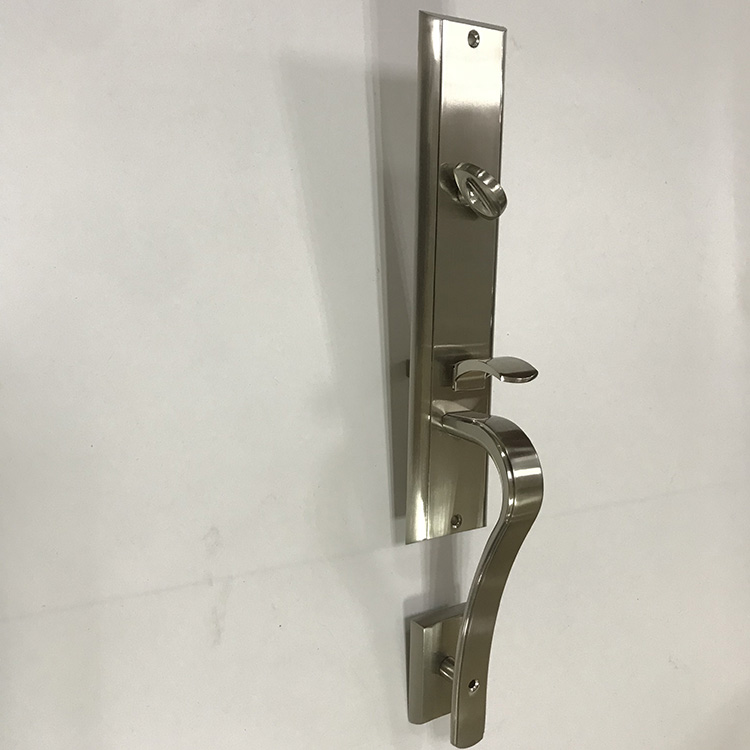

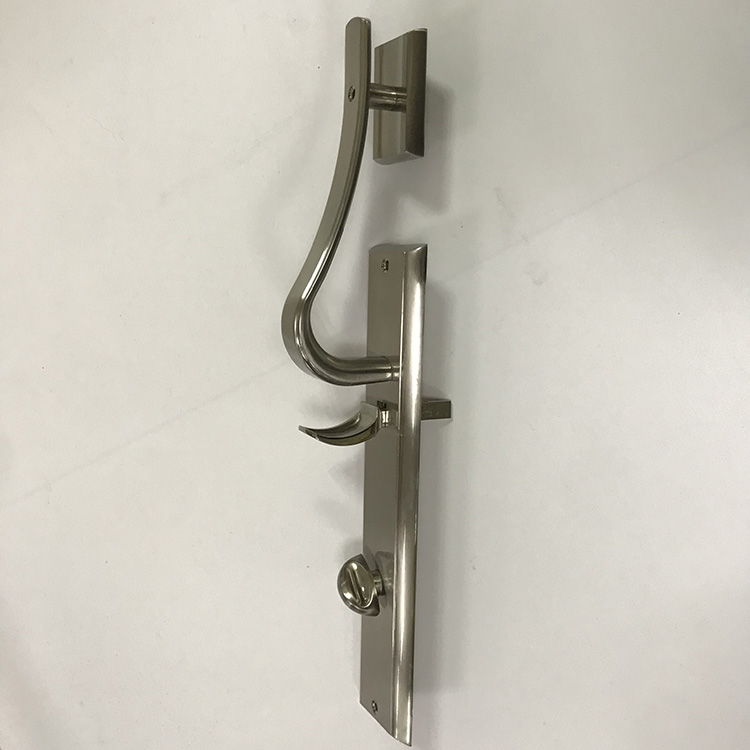

Product Picture:

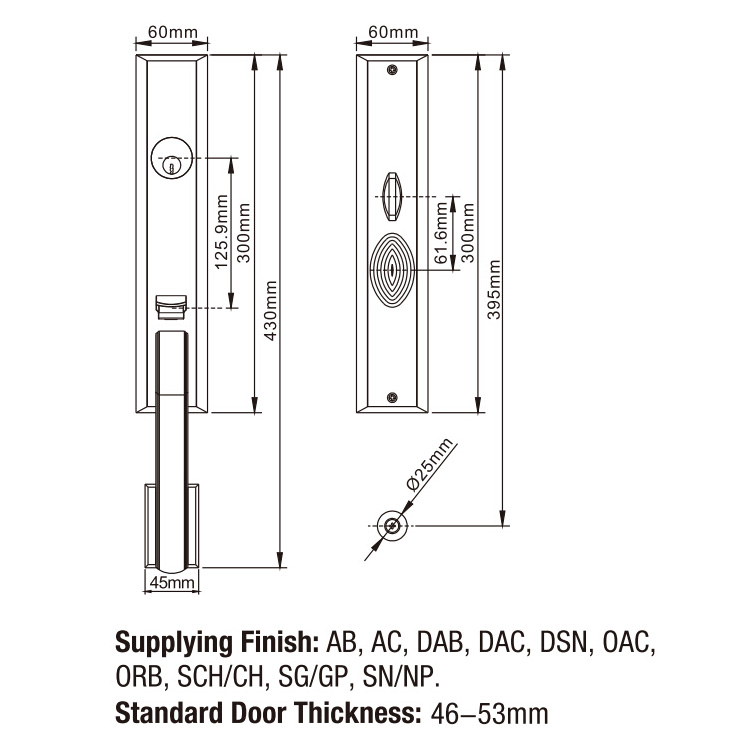

Product Size Picture:
Product
Model No.: | 8219 |
Application: | Many kinds of wooden door and metal doors |
Trim: | Made by Solid zinc alloy die-casting, raw material is from torch brand, top grade in China. |
Mortise Lock: | Global first-creative revolutionary structure, the most components are made by stainless steel for heavy-duty purpose, three-piece latch with anti-insert and silent-closed function, big deadbolt with anti-saw function, 1,200,000 cycle-test passed. |
Backset of Mortise Lock Case: Standard 2-3/4”(70mm). | |
Auto-locking and anti-panic function. | |
Easily reversible for left and right handing. | |
Cylinder: | American standard, the most components made by brass, processed with highly precise CNC machines, with anti-drill function and construction key function. |
Standard keyway: Angle-cut-pin, each set with 5 pcs owner’s key + 1 pc construction key. | |
Optional keyway: Global first-creative, one side track-pin, one-side single-row-pin, top secure level, each set with 5 pcs owner’s key + 1 pc construction key. | |
Customized keyway: Double-row-pin | |
Supplying function: | Entrance, Dummy, Two-open Door. |
Available type of inside trim: | Type A(single cylinder), Type B(single cylinder),Type C(double cylinder),TypeD(double cylinder),TypeE(single cylinder), TypeF(double cylinder) |
Door thickness: | Standard 41-50mm |
Supplying finish: | ASL - Antique Silver |
ORB (US10B) - Oil Rubbed Bronze | |
OAC - oil Antique copper | |
DAC- Dim Antique Copper | |
DAB- Dim Antique Brass | |
Package: | High quality color box. |
Carton: | 4 sets/carton |
Product Picture:
Product Size Picture:
